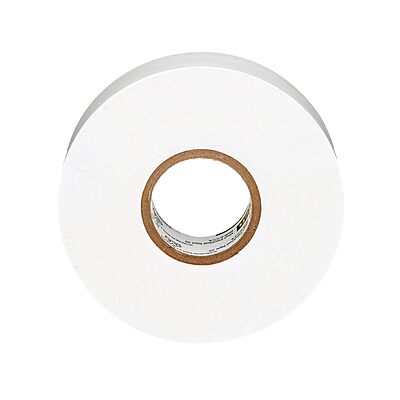

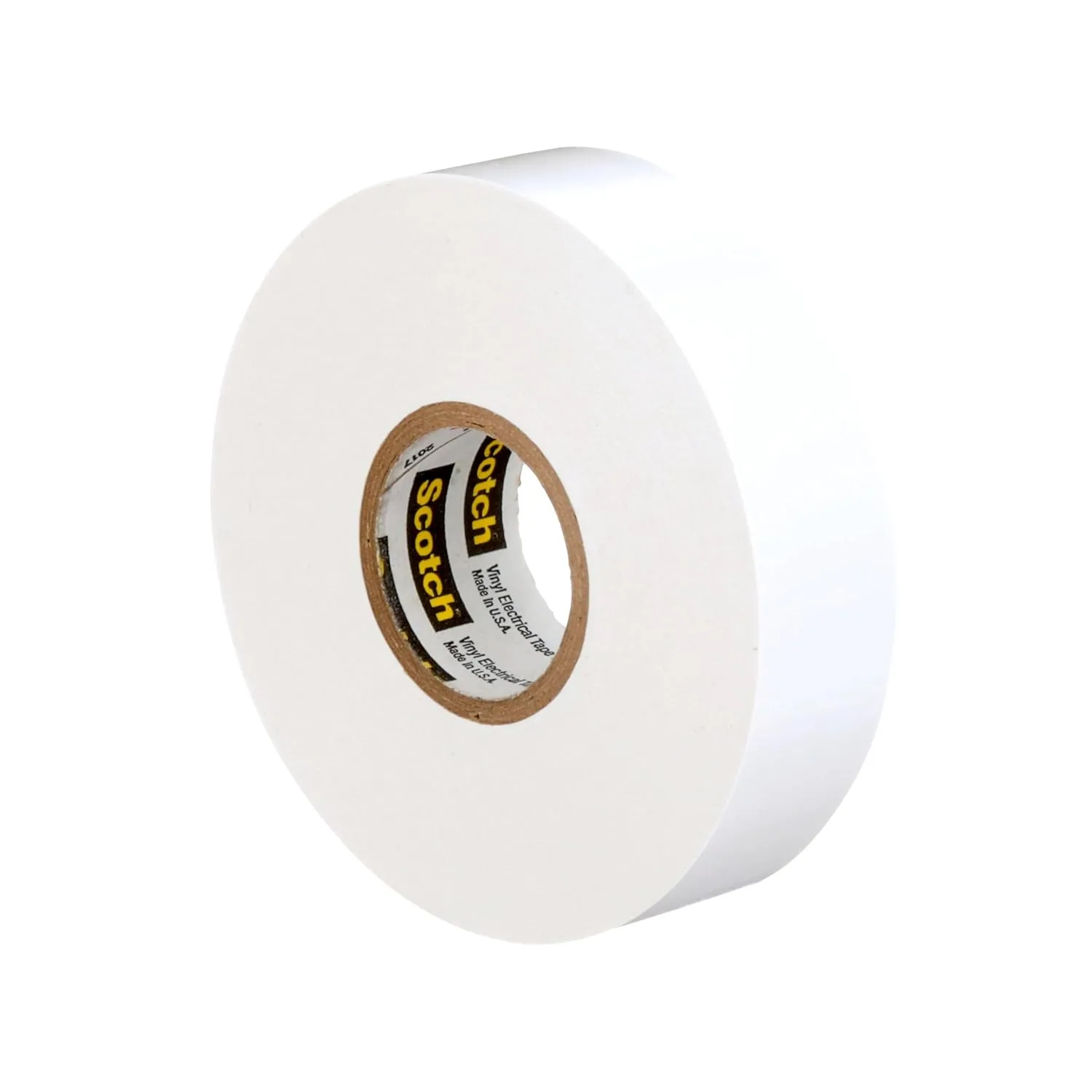

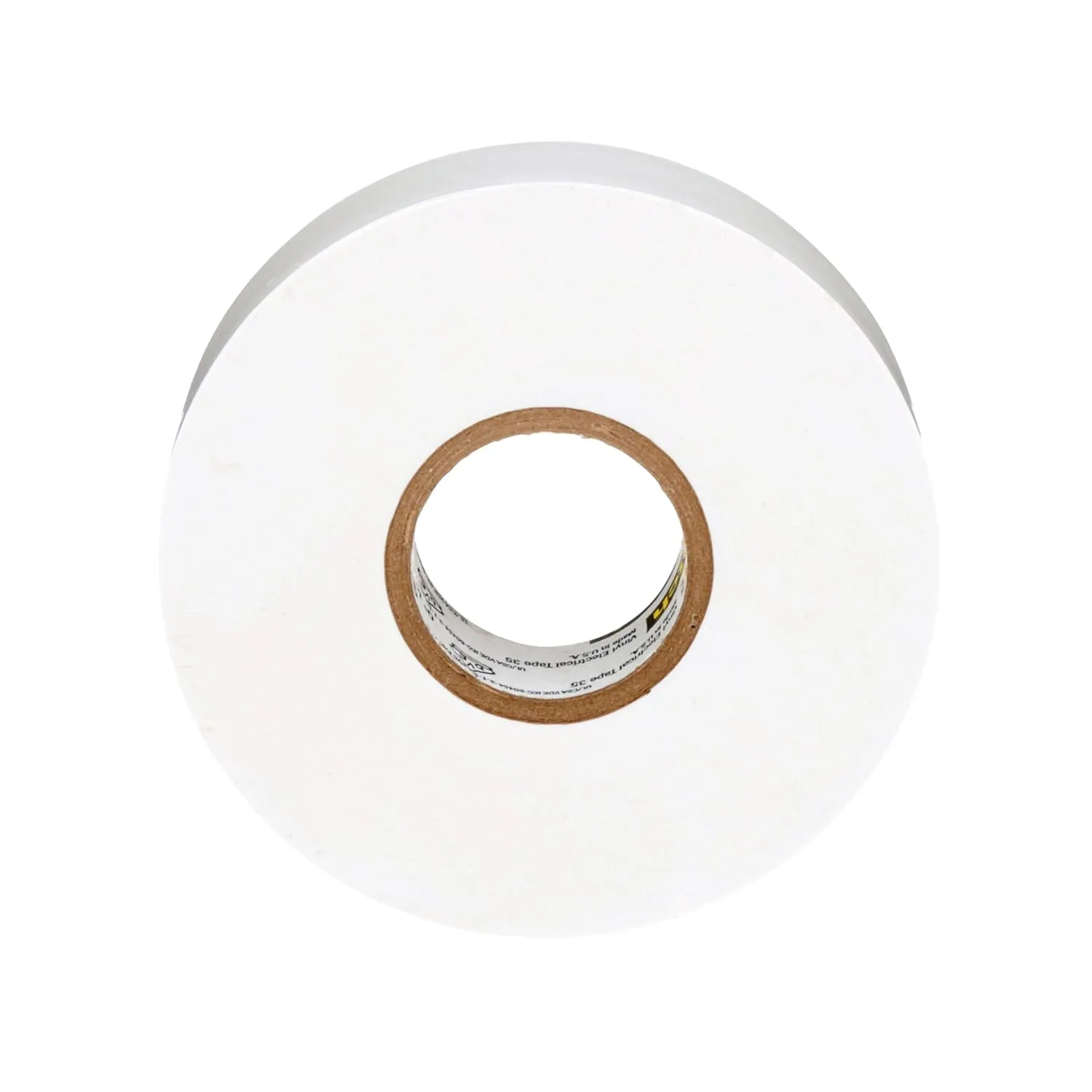

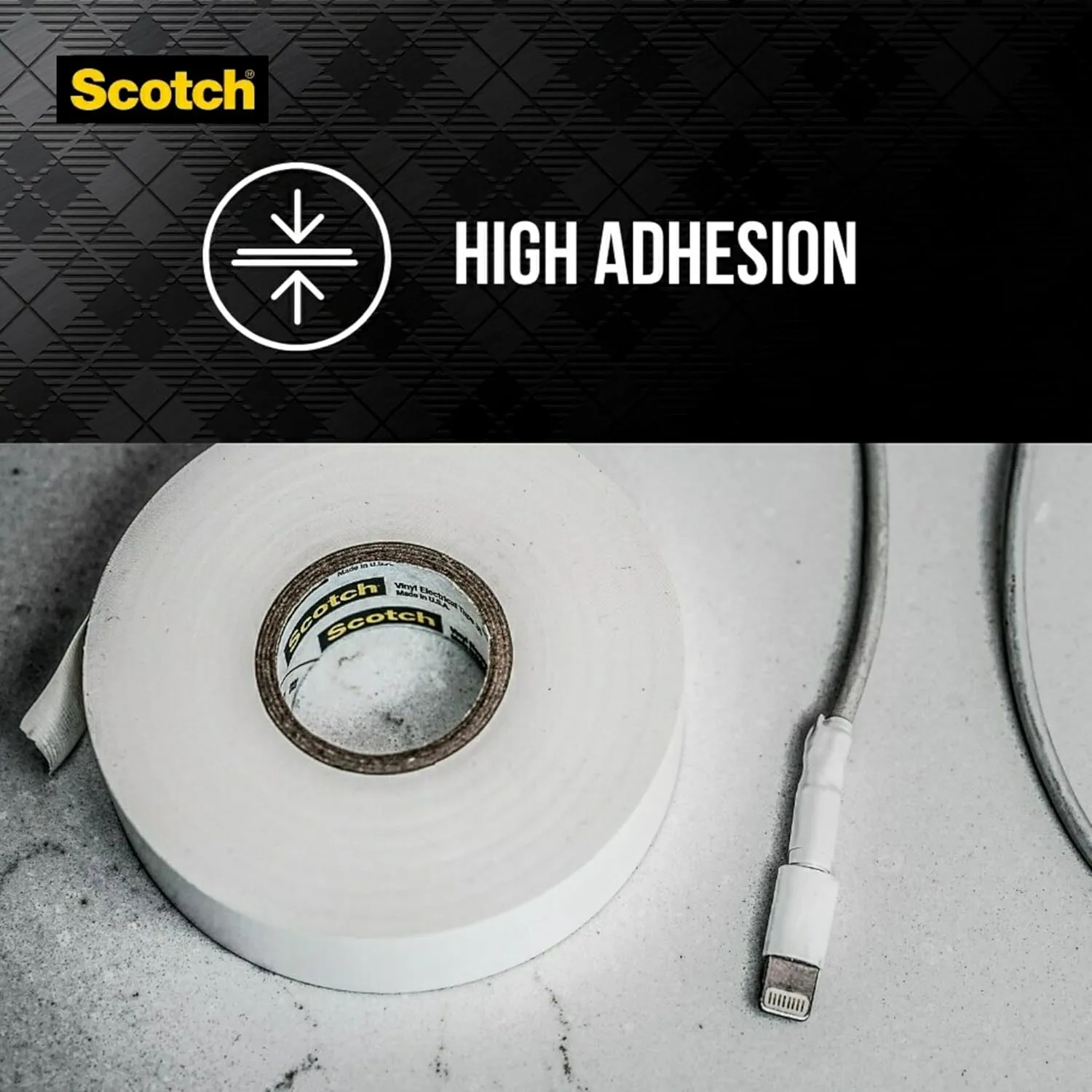

3M Safety 10828 10828-DL-2W Electrical Tape, 3/4" by 66', White, 66 Foot
Customize

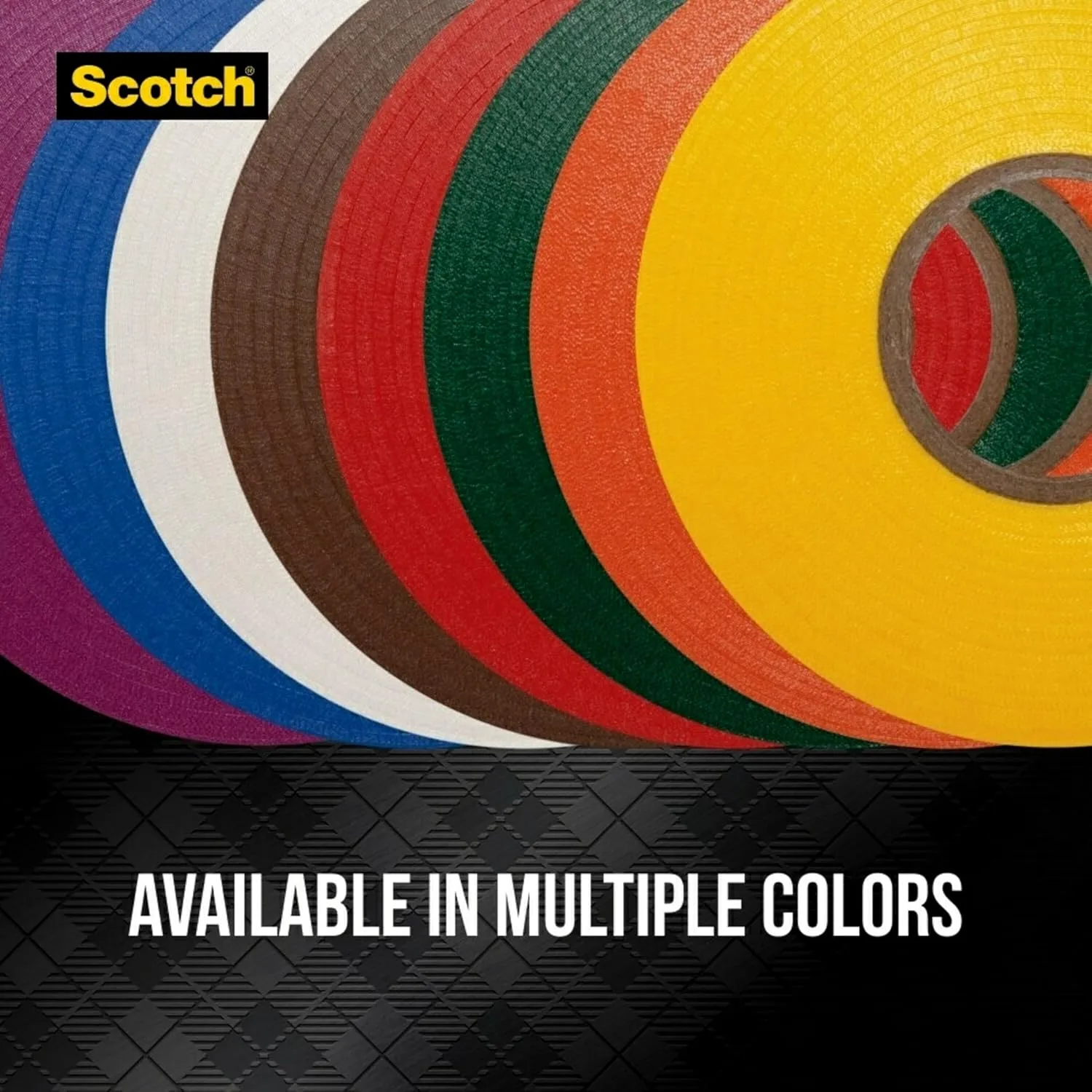

PRODUCT DESCRIPTION Scotch Vinyl Electrical Tape 35 is a US-made, professional-grade, nominal 7-mil (0.178 mm) thick, electrical insulating PVC tape. It is available in 10 fade-resistant colors and composed of an elastic vinyl (PVC) film backing coated on one side with a non-corrosive, rubber-based pressure-sensitive adhesive. In accordance with NFPA 70, National Electrical Code-where flame, sunlight and cold resistance is required-this adhesive is best used as primary insulation on applications up to 600V at a maximum temperature of 80 deg C (176 deg F) and minimum temperature of -10 deg C (14 deg F) on joints and splices in wires and cables. The tape's color-coded system helps identify cables on cell sites, phase coding, motor leads and piping systems to improve safety on industrial, commercial and residential jobs. UL Listed, CSA Listed, and RoHS and Prop 65 compliant, use Scotch Vinyl Electrical Tape 35 for critical indoor and outdoor operations where General Vinyl Electrical tape is not recommended. FROM THE MANUFACTURER Scotch colored electrical tapes are great for wire marking and identification. Tape is stretchy, conformable, vinyl plastic. Flame retardant and weather resistant. U.L and CSA listed. Temperature rating 0-Celcius to 105-Celcius.
- UL listed
- Abrasion and weather resistant
- Stretches to conform to virtually any shape requiring color-coded insulation
- Premium grade, 7 mil electrical tape
- For industrial/occupational use only. Not for consumer sale or use
- COMPLIANCE: CSA and VDE Certified, UL 510 Listed, Prop 65 Compliant, IEC 60454-3-1-6/F-PVCP/90 and RoHS Compliant
- LONG LASTING: Durable tape has a 5 year shelf life
- VERSATILE: Can be used for a variety of applications, including industrial, commercial and residential environments
- MULTI-CLIMATE USE: Resistant to abrasion, moisture, alkalis, acids, corrosion and varying weather conditions
Specifications:
| Materials & Construction | |
| Adhesive Material | Rubber |
| Color | White |
| Material | Polyvinyl Chloride |
| Product Details | |
| Adhesive Material | Rubber |
| Applications | Color Coding; Insulating; Protecting; Safety Coding; Wrapping |
| Item model number | 10828 |
| Number of Items | 1 |

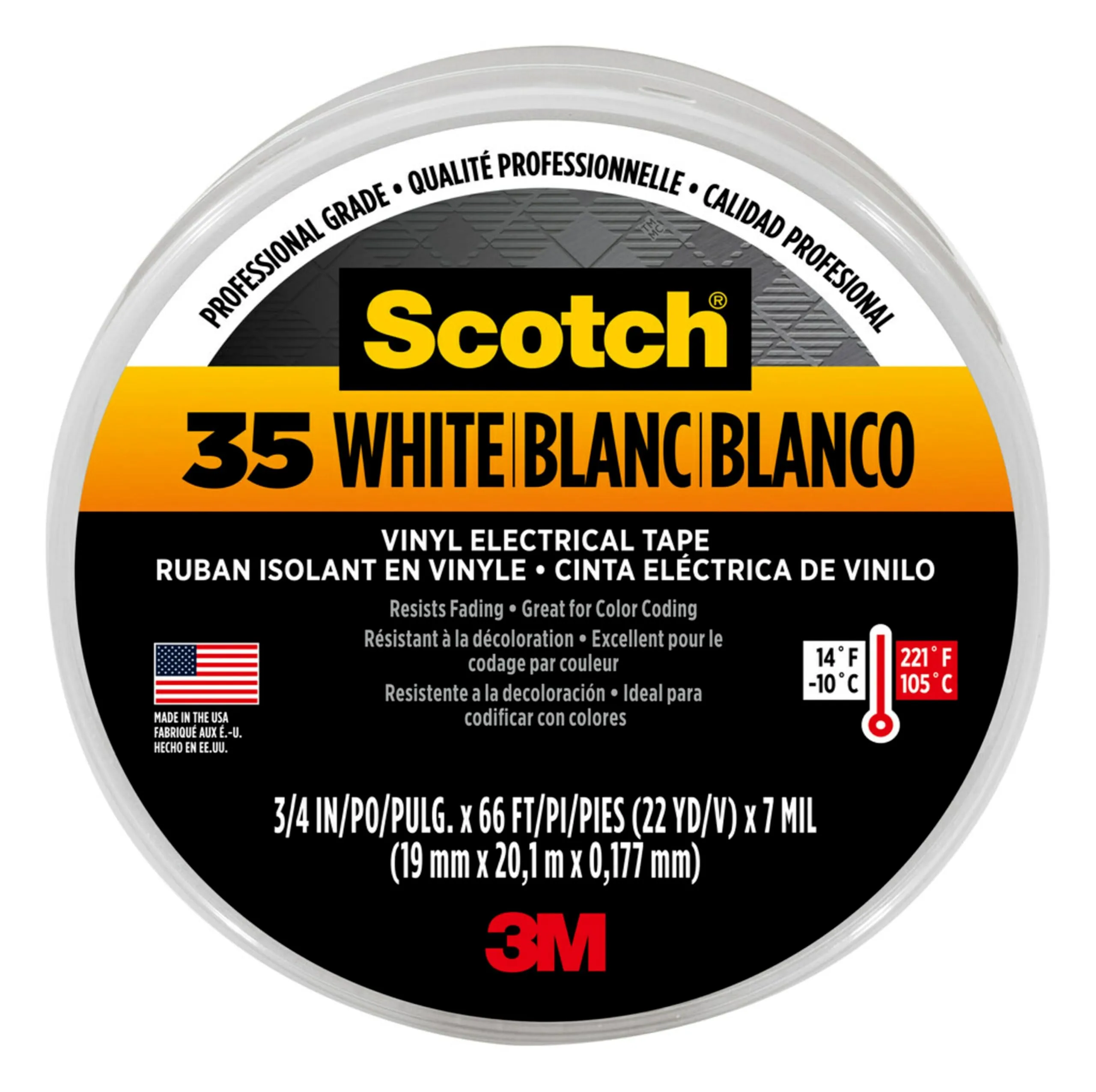

| Product Name | Electrical Tape: 3/4" Wide, 66' Long, 7 mil Thick, White |
| Series | 35 |
| Series Part Number | 35 |
| Standards | Csa Certified; Standard C22.2 No. 197- M1983 Pvc Insulating Tape (File Lr48769); Ul 510 File E129200; Vde 0340-Teil1 |
| Tensile Strength (Lb./Inch) | 17.00 |
| Sizing & Dimensions | |
| Length (Meters) | 792.12 inches |
| Length Ft. | 66.00 |
| Length Range | 12 To 35.9 yd |
| Product Dimensions | 2.5 x 1.9 x 8.8 inches |
| Product Weight | 3.53 ounces |
| Thickness (Mil) | 7.0000 |
| Width (Inch) | 3/4 |
| Technical Specifications | |
| Dielectric Strength (V/Mil) | 1250.00 |
| Maximum Operating Temperature C | 104.44 |
| Maximum Operating Temperature F | 220.00 |
| Minimum Operating Temperature C | 0.00 |
| Minimum Operating Temperature F | 32.00 |
