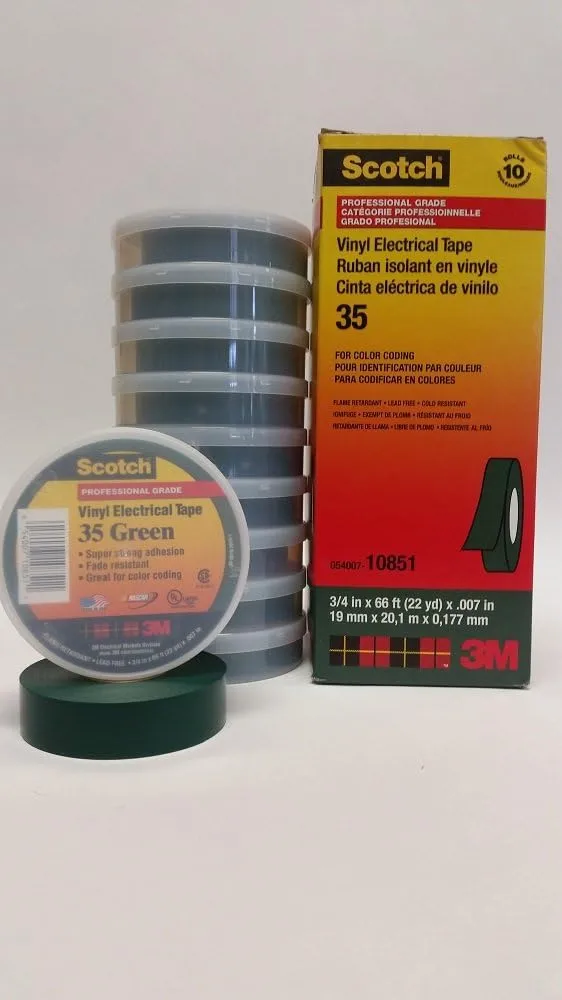

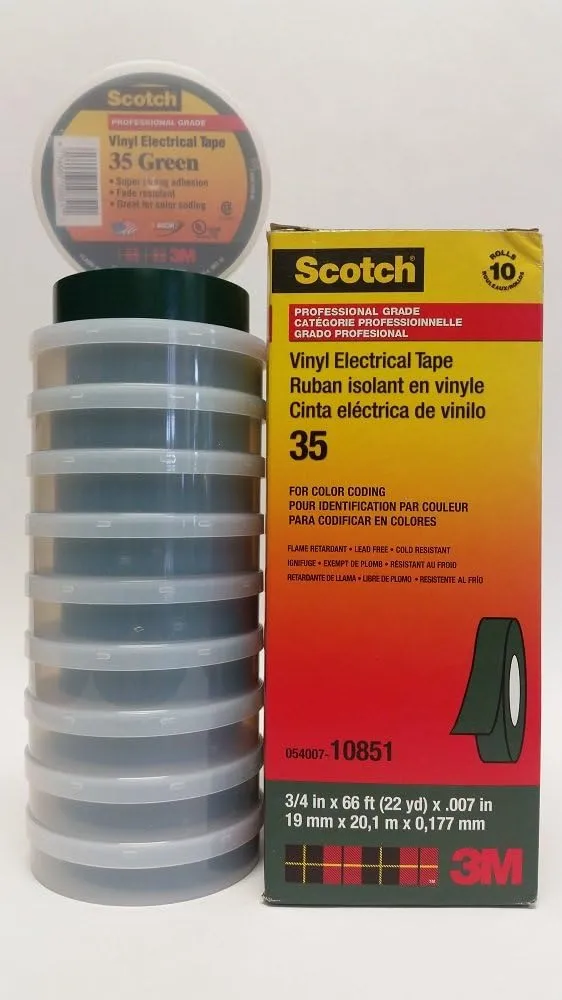

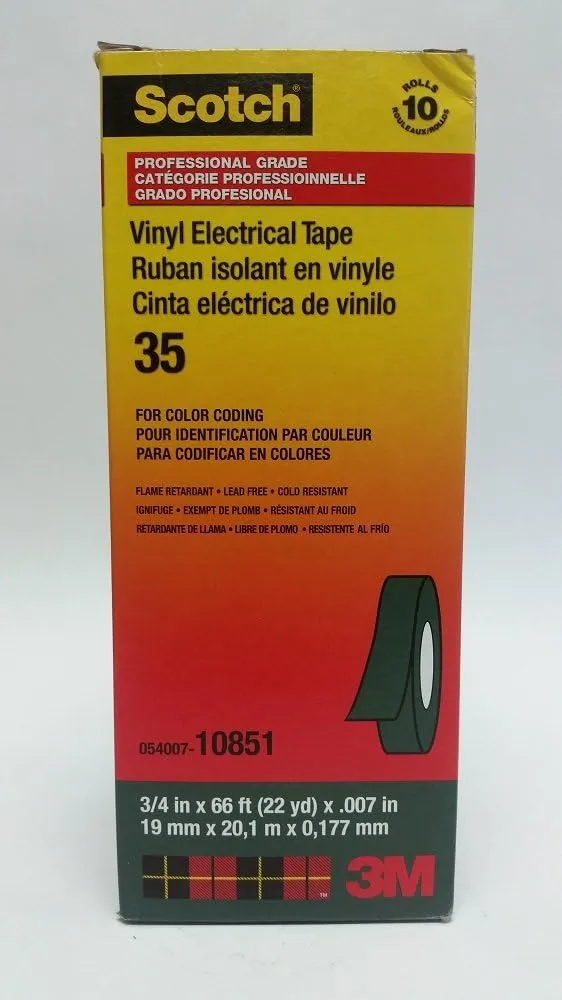

3M 35 3/4" Green Scotch Vinyl Electrical Tape No. 35
Customize
3M Scotch #35 Electrical Tape 10851-BA-10, 3/4-Inch by 66-Foot by 0.007-Inch, Green protects electrical and mechanical applications due to its rubber-resin adhesive and its PVC backing. Tough enough to stand up to the harshest elements including: UV rays, moisture, alkalis, solvents, and many acids. The 3M Scotch #35 electrical tape is great for color-coding motor leads and piping systems. Made out of fire-resistant, durable PVC. 3M Scotch #35 electrical tape is premium grade. Stretches to conform to almost any shape. Abrasion and weather resistant, making it trustworthy compared to other products in its class. UL Listed. This color makes it easy to see the tape from a few feet away. High quality at a reasonable price. Dimensions: 3/4 Inch, x 66 Feet x 7 Millimeters. Warning: This product can expose you to chemicals which is [are] known to the State of California to cause cancer and birth defects or other reproductive harm. Electrical Tape: 3/4" Wide, 66' Long, 7 mil Thick, Green. 32 to 220 °F Operating Temp, 1,250 V/mil, Series 35, Width (Inch): 3/4 , Length Range: 12 to 35.9 Yd , Thickness (mil): 7.0000 , Color: Green , Series: 35 , Series Part Number: 35 , Adhesive Material: Rubber , Tensile Strength (Lb./Inch): 17.00 , Standards: CSA Certified; Standard C22.2 No. 197- M1983 PVC Insulating Tape (File LR48769); UL 510 File E129200; VDE 0340-TEIL1 , Length (Meters): 20.12 , Applications: Color Coding; Insulating; Protecting; Safety Coding; Wrapping , Minimum Operating Temperature F: 32.00 , Maximum Operating Temperature F: 220.00 , Minimum Operating Temperature C: 0.00 , Length Ft.: 66.00 , Maximum Operating Temperature C: 105.00 , Width (mm - 2 Decimals): 18.00 , Dielectric Strength (V/mil): 1250.00
- Stretches to conform to almost any shape for color-coded insulation
- Fire, abrasion and weather resistant
- Great for phase identification or color-coding motor leads as well as piping systems
- Stands up to harsh elements including: UV rays, moisture, alkalis, solvent and many acids
- 3M Scotch #35 Electrical Tape 10851-BA-10, 3/4-Inch by 66-Foot by 0.007-Inch, Green
Specifications:
| Materials & Construction | |
| Color | Green |
| Material | Vinyl, Polyvinyl Chloride |
| Outer Material | Polyvinyl Chloride |
| Product Details | |
| Adhesive Material | Rubber |
| Applications | Color Coding; Insulating; Protecting; Safety Coding; Wrapping |
| Color | Green |
| Compatible Material | Vinyl, Polyvinyl Chloride |
| Dielectric Strength (V/Mil) | 1250.00 |
| Item Package Quantity | 10 |
| Item Thickness | 0.01 Inches |
| Length (Meters) | 20.12 |
| Length Ft. | 66.00 |
| Length Range | 12 To 35.9 yd |
| Number of Items | 10 |
| Part Number | 10851-DL-10 |
| Recommended Uses For Product | Plumbing, Electrical |
| Series | 35 |
| Series Part Number | 35 |
| Special Feature | Weather Resistant |
| Standards | Csa Certified; Standard C22.2 No. 197- M1983 Pvc Insulating Tape (File Lr48769); Ul 510 File E129200; Vde 0340-Teil1 |
| Tensile Strength (Lb./Inch) | 17.00 |
| Thickness (Mil) | 7.0000 |
| UPC | 054007108511 |
| Water Resistance Level | Waterproof |
| Width (Inch) | 3/4 |
| Sizing & Dimensions | |
| Length | 792 inches |
| Product Dimensions | 0.75"W x 0.28"Th |
| Size | 3/4" x 66 ft |
| Weight | 4.9 ounces |
| Width | 0.75 inches |
| Technical Specifications | |
| Dielectric Strength (V/mil) | 1250.00 |
| Maximum Operating Temperature C | 105.00 |
| Maximum Operating Temperature F | 220.00 |
| Minimum Operating Temperature C | 0.00 |
| Minimum Operating Temperature F | 32.00 |
| Standards | CSA Certified; Standard C22.2 No. 197- M1983 PVC Insulating Tape (File LR48769); UL 510 File E129200; VDE 0340-TEIL1 |
| Tensile Strength (Lb./Inch) | 17.00 |
