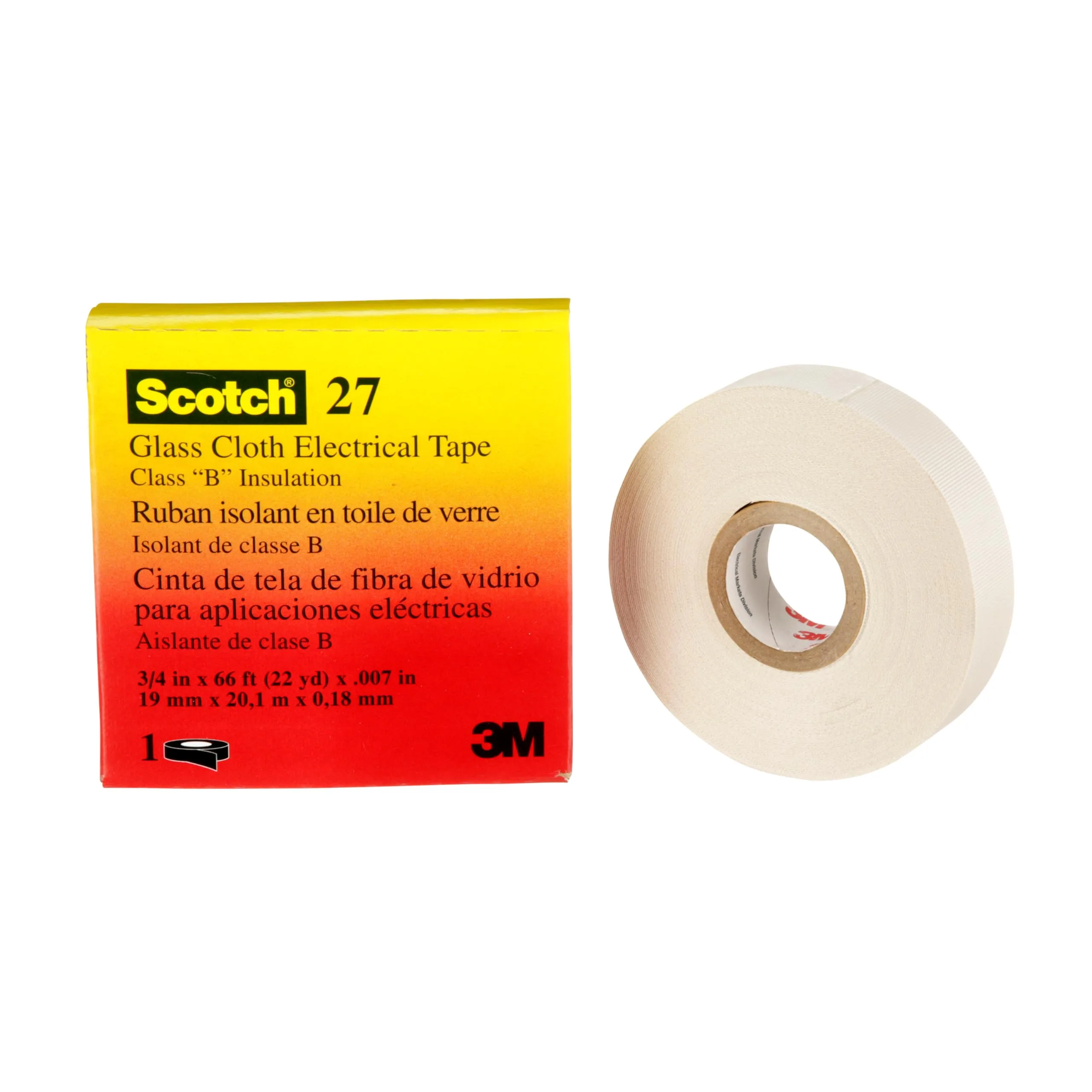

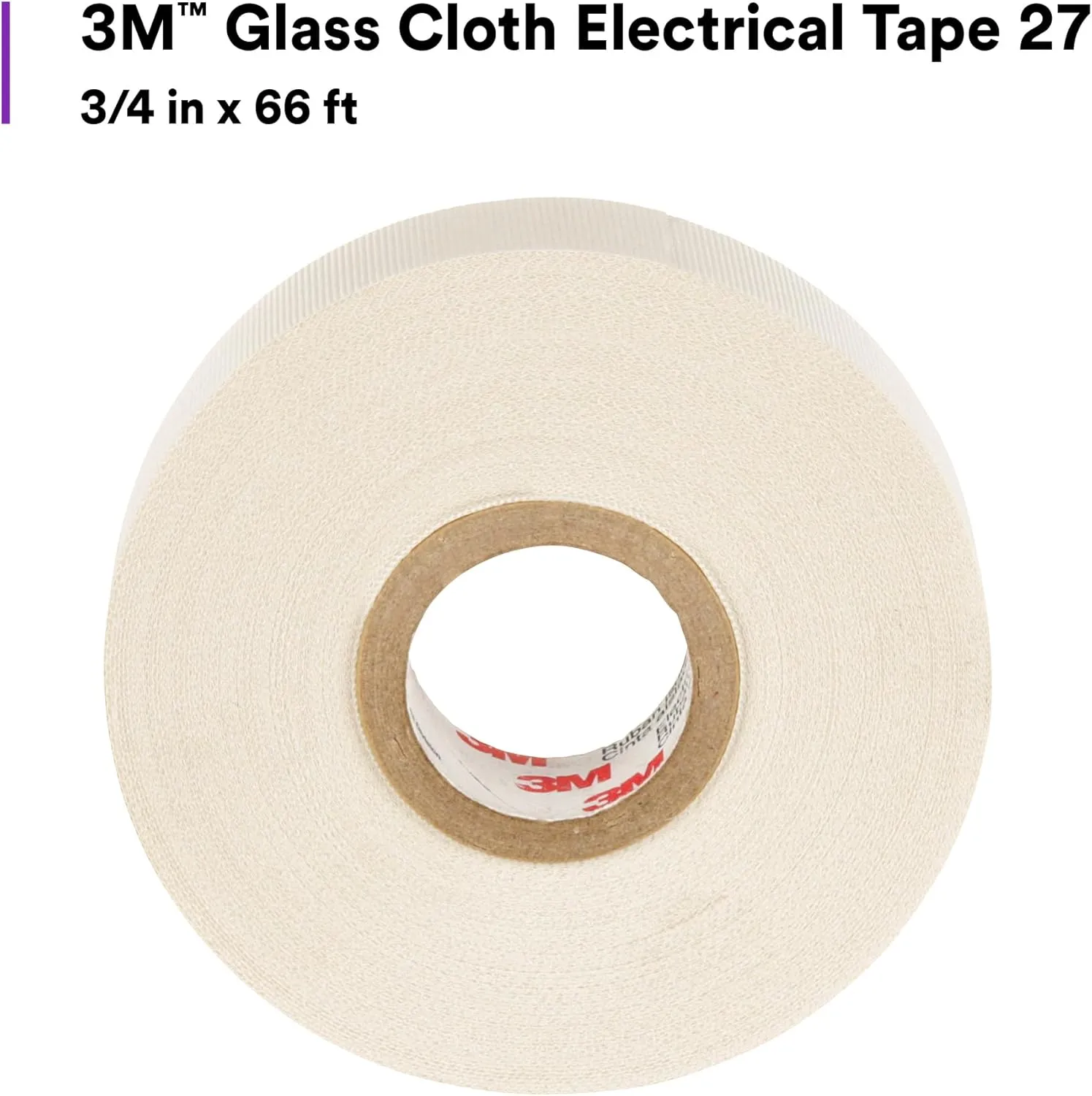

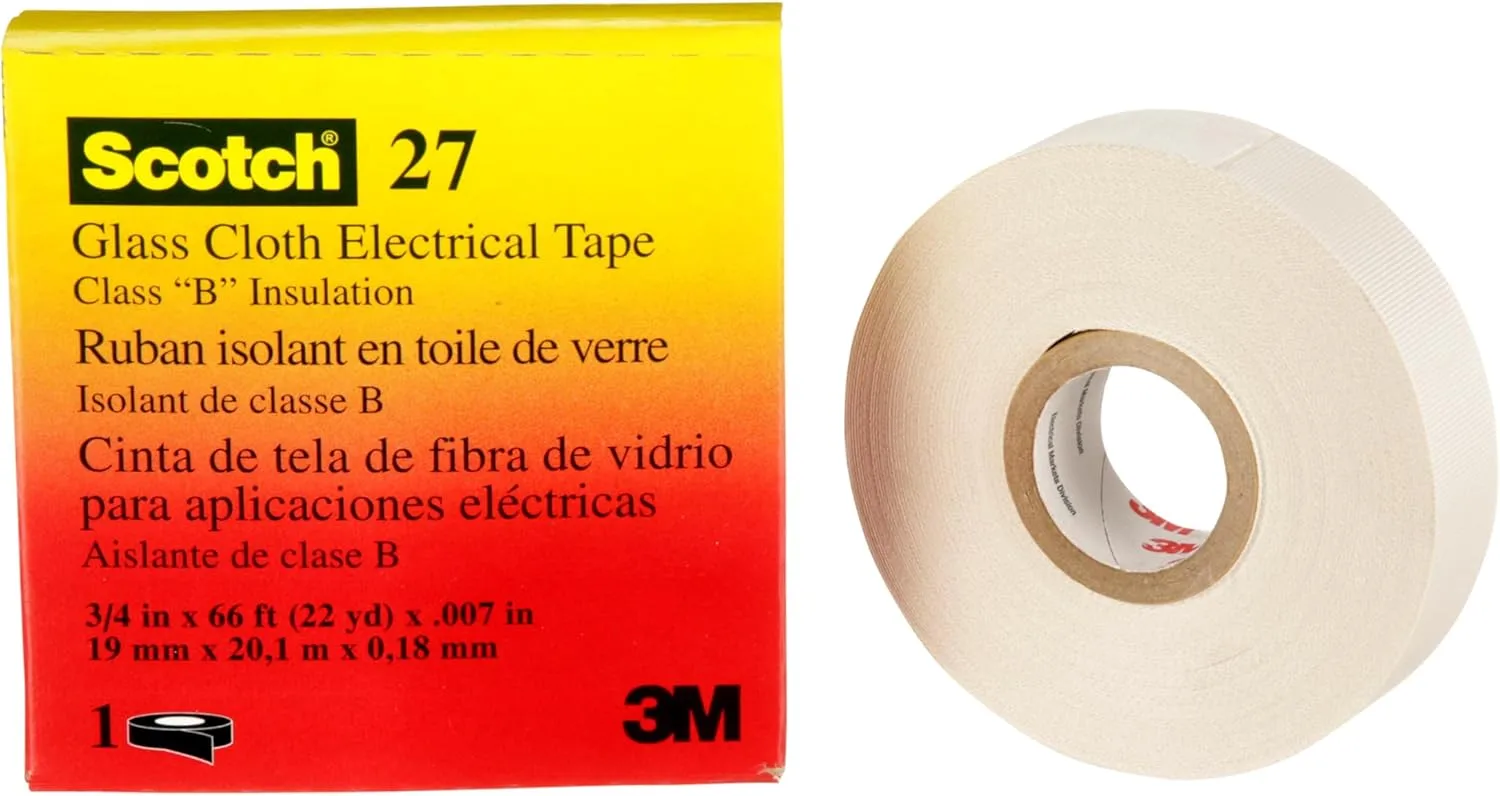

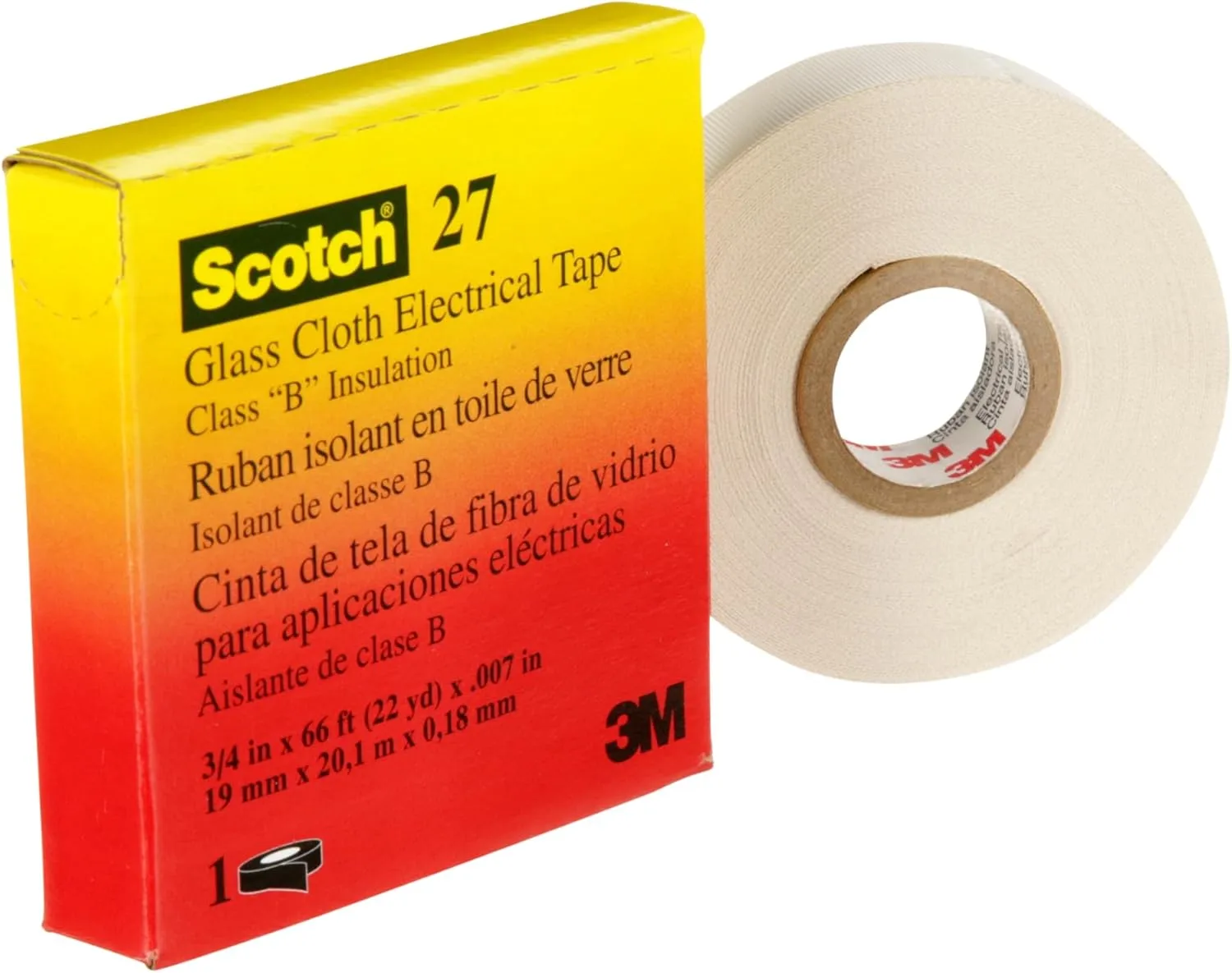

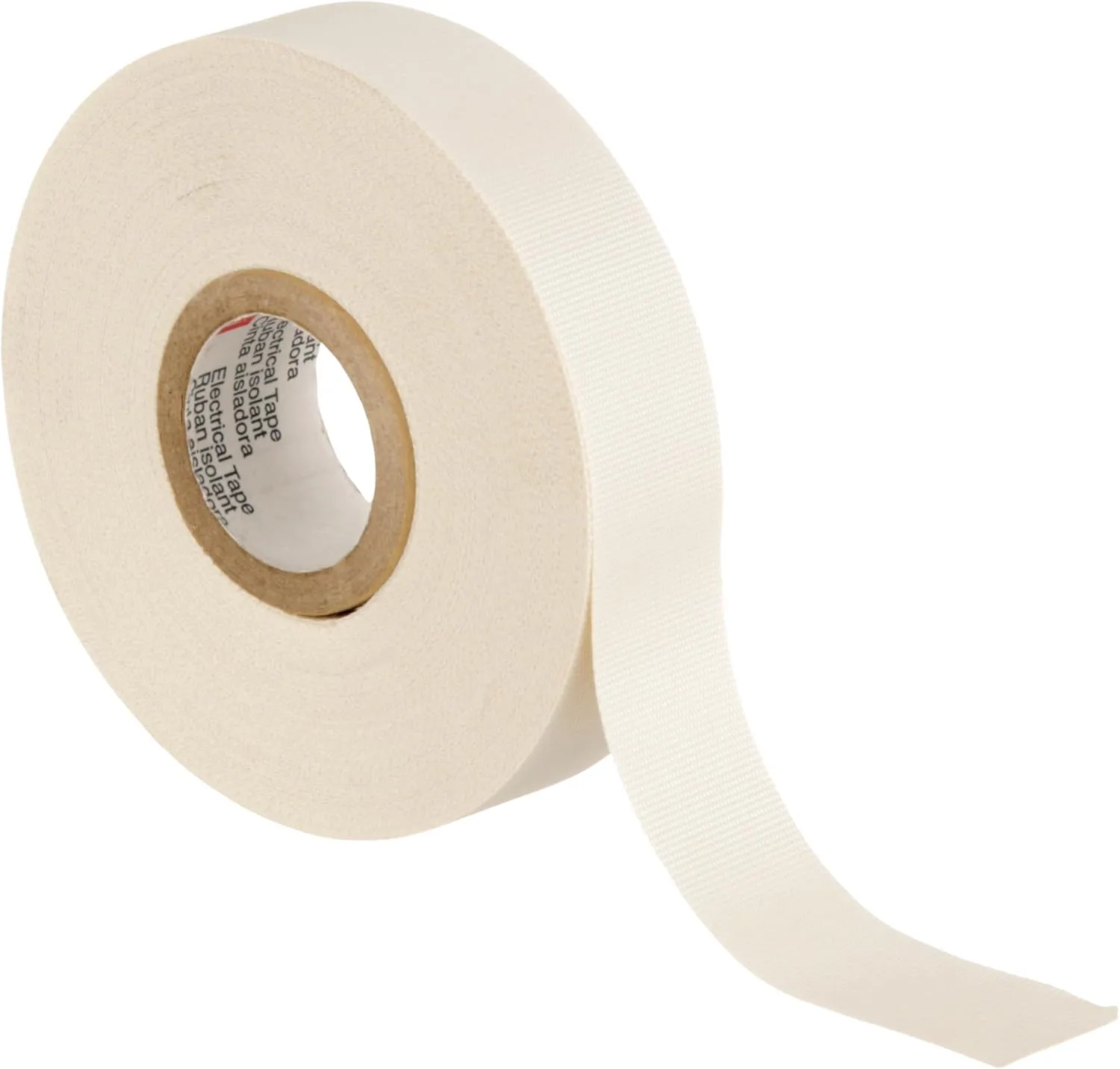

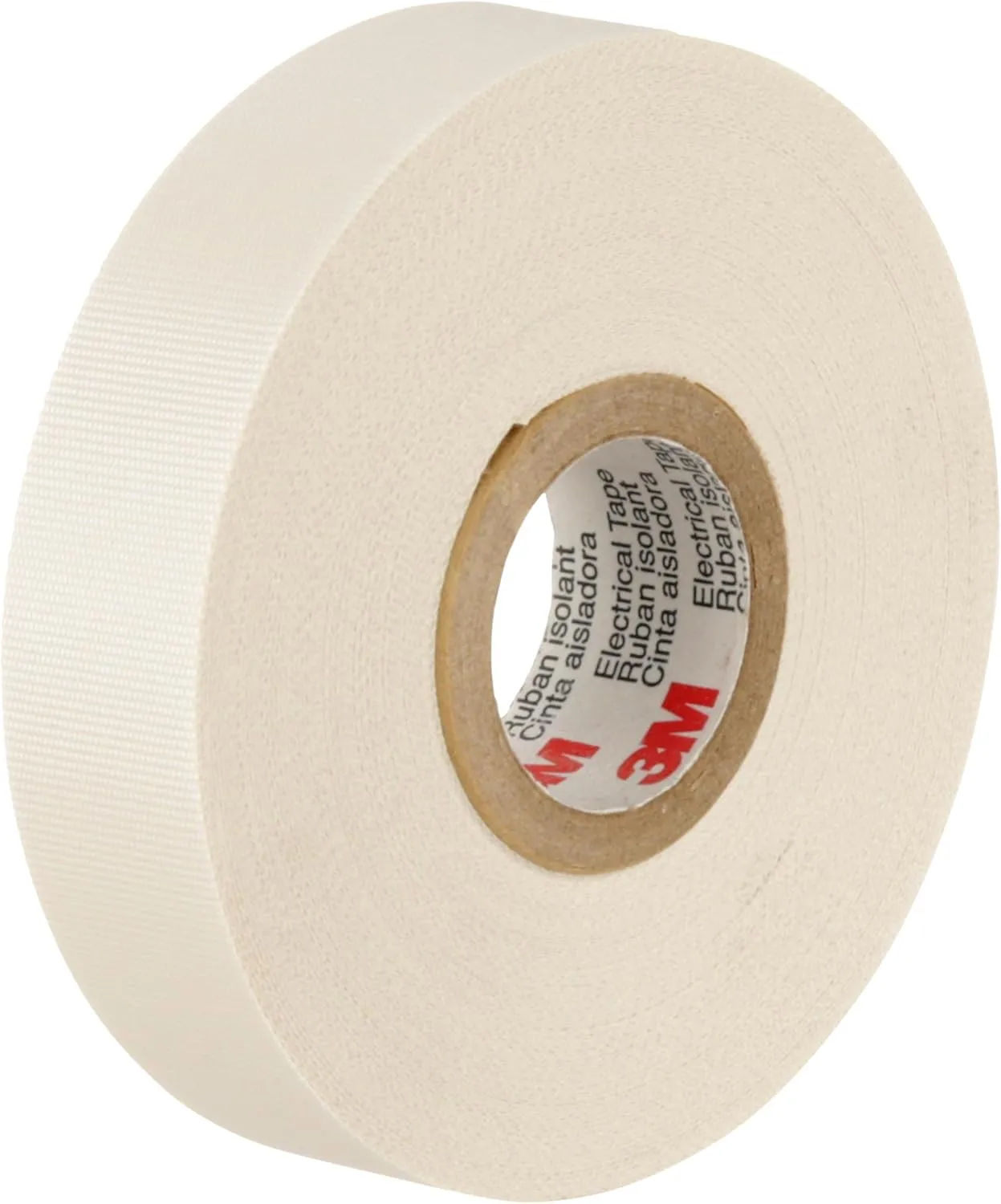

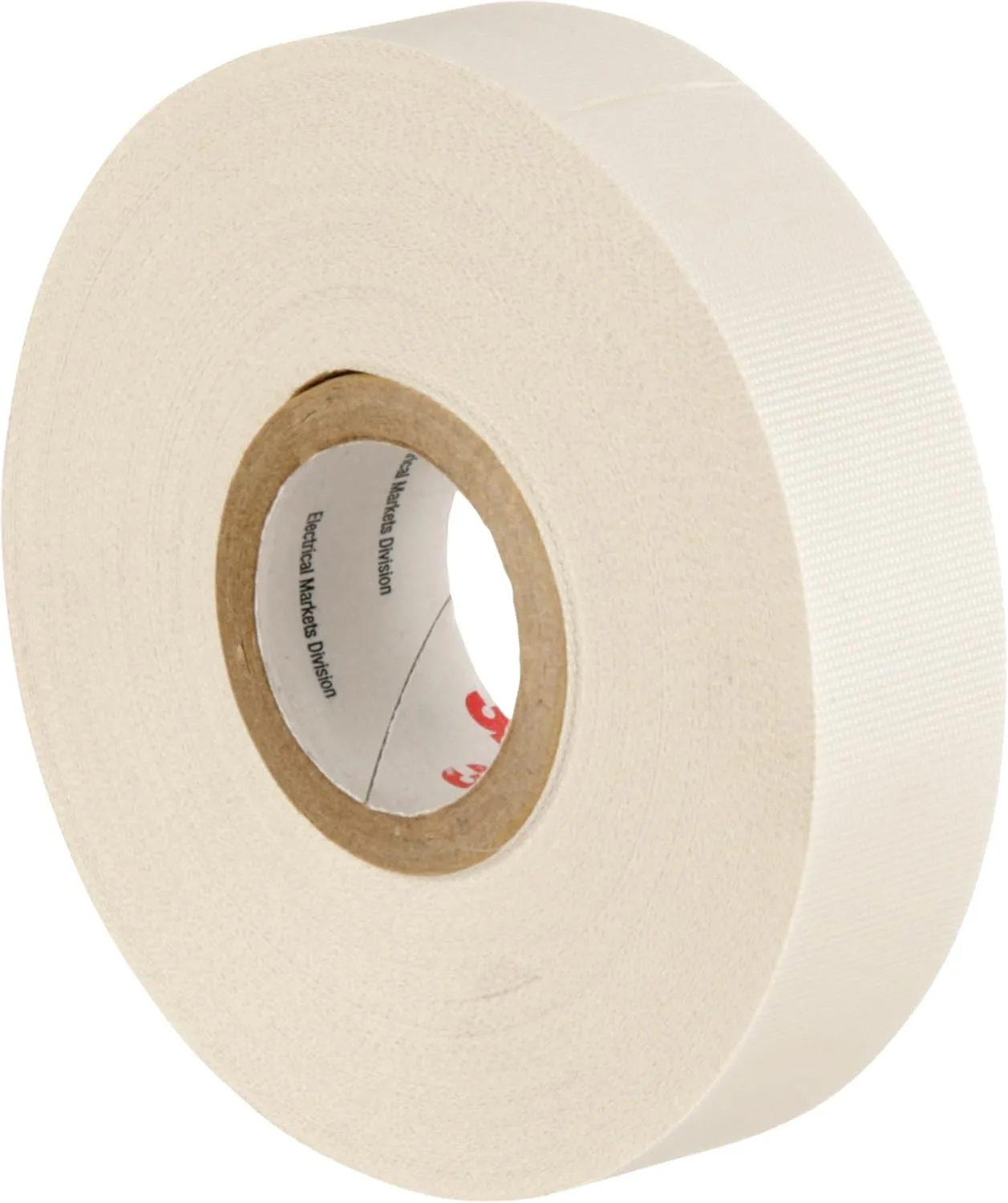

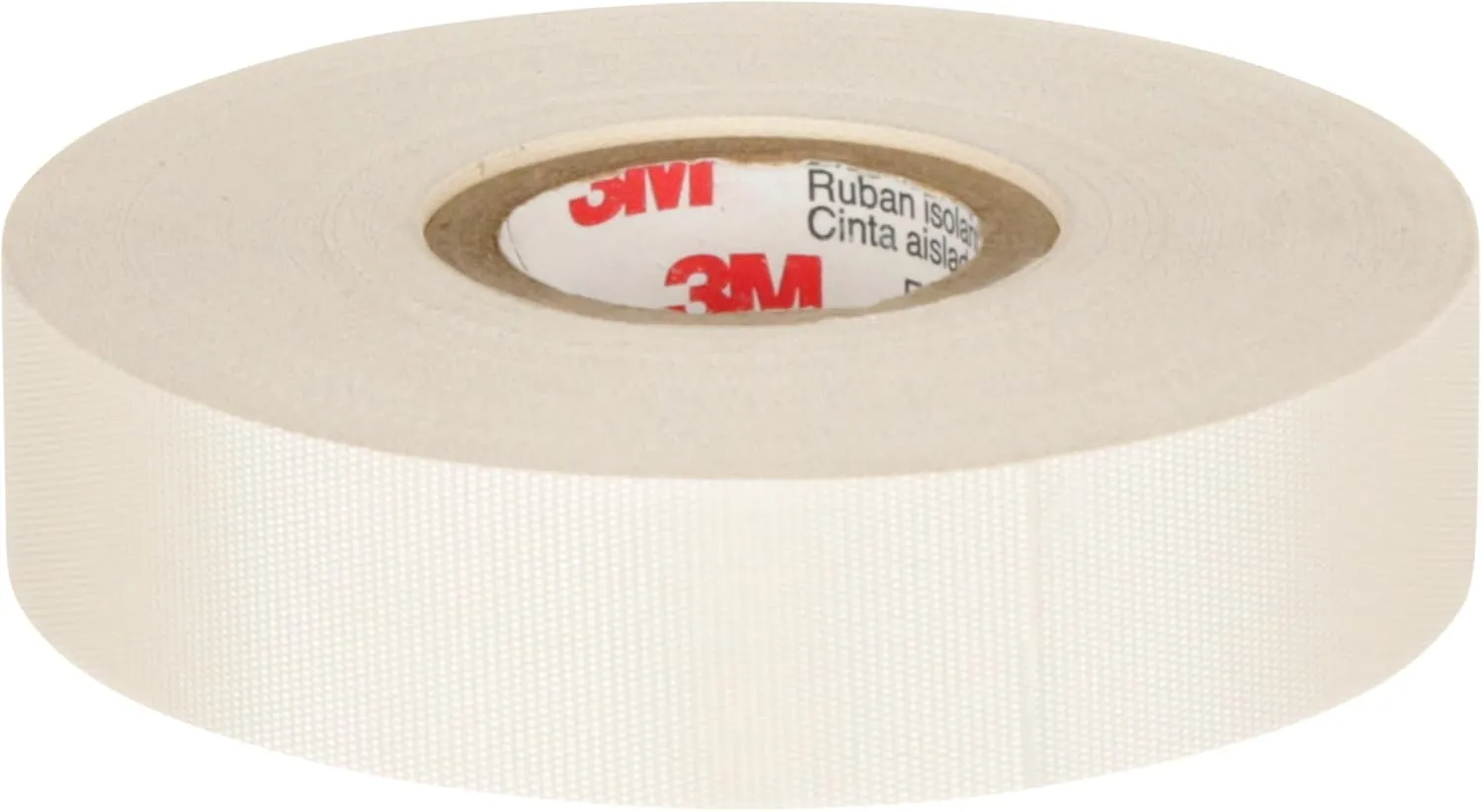

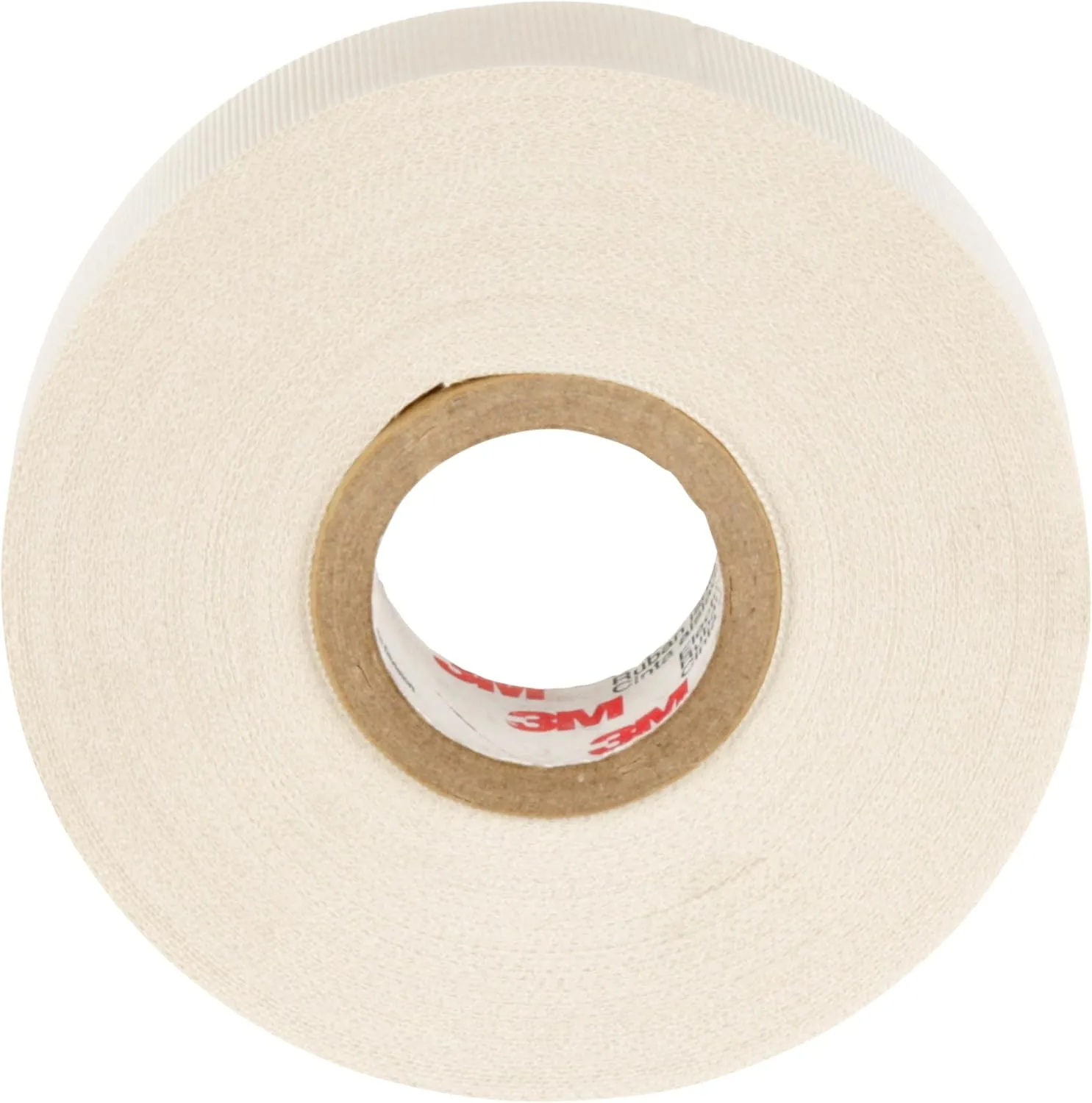

3M Glass Cloth Electrical Tape 27, 3/4 in x 66 ft, 1 Roll, Non-Corrosive Adhesive, Pressure Sensitive, High Temperature
Customize

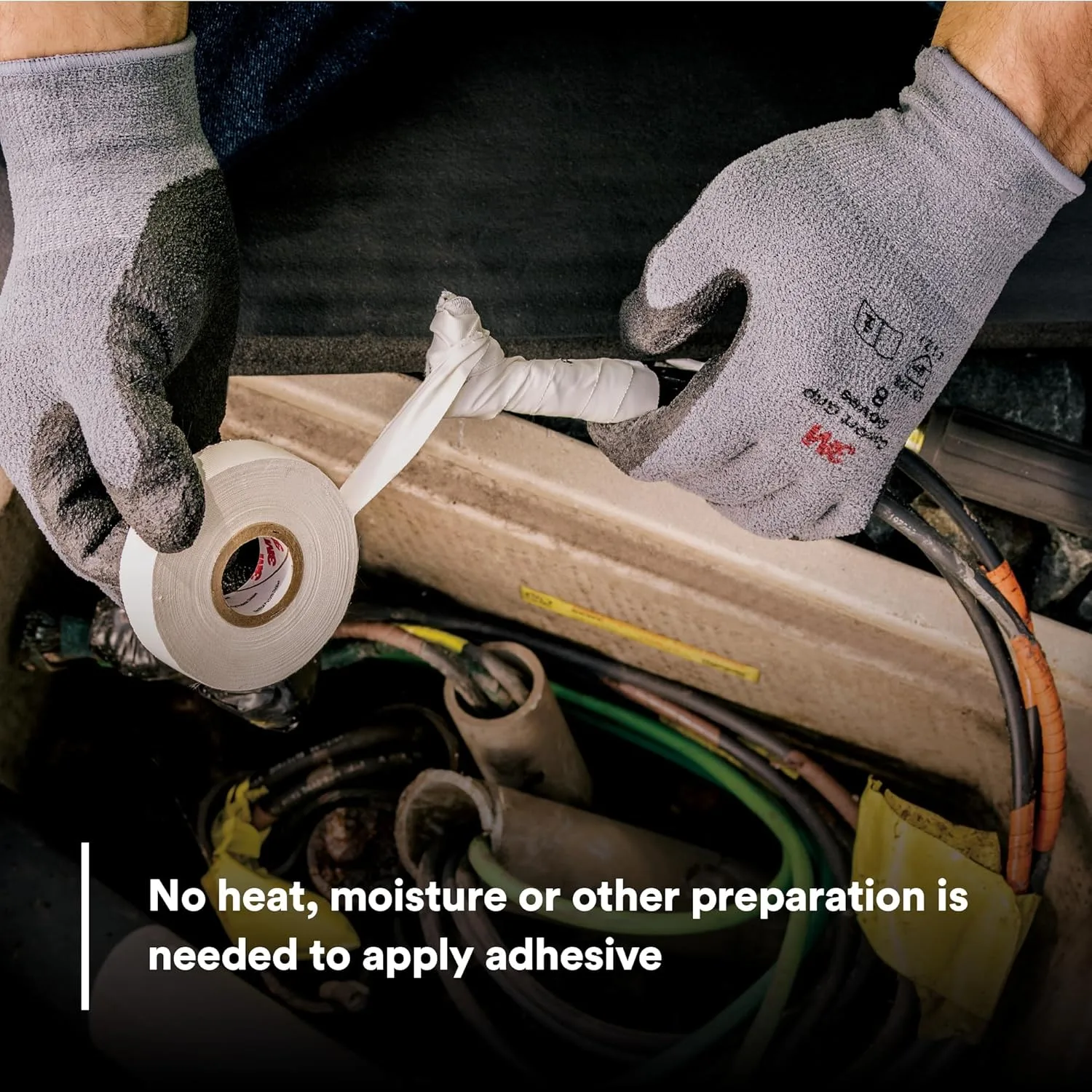

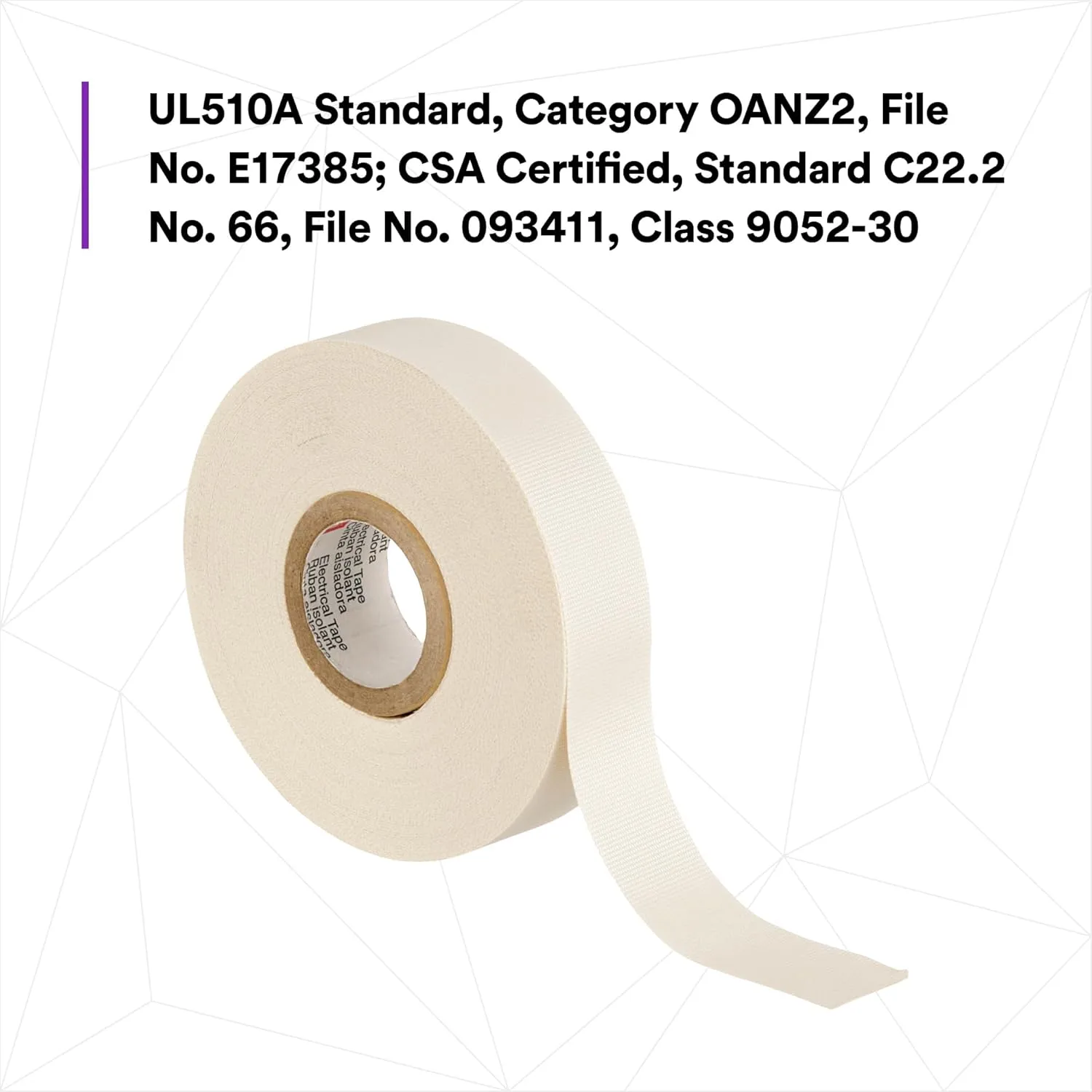

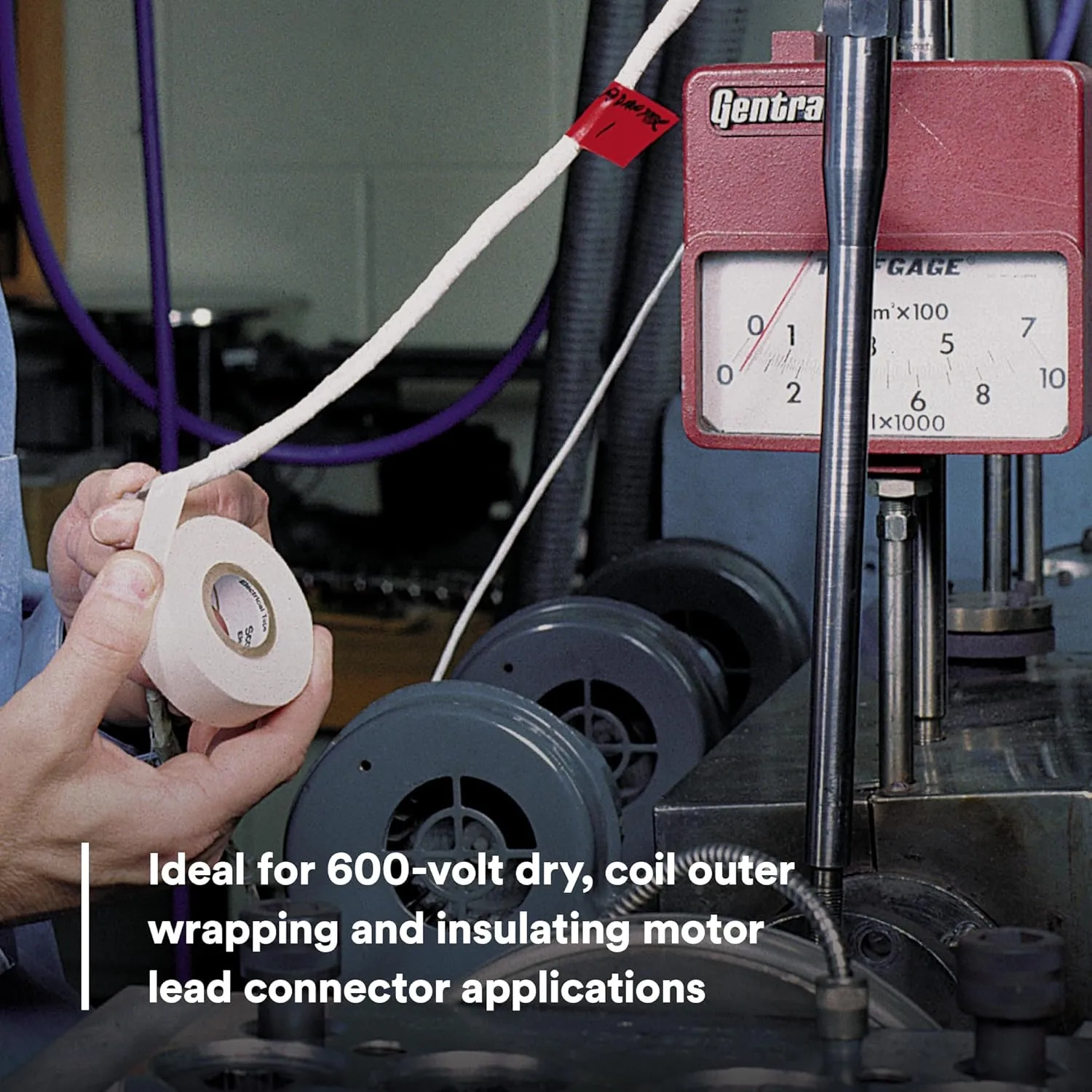

3M Glass Cloth Electrical Tape 27 is a white, insulating tape used for 600-volt dry, coil outer wrapping and insulating motor lead connector applications. This durable tape is 7.25-mil (0.184 mm) thick and constructed with a 5-mil (0.127 mm) glass cloth backing, coated on one side with a thermosetting rubber adhesive that helps provide long-lasting results. The adhesive is ready to use, with no moisture, heat or solvents needed for application. This tape is used for continuous operation not exceeding a 150 °C (302 °F) UL listing or 130 °C (266 °F) CSA listing. It is UL Component recognized (UL510A Standard, Category OANZ2, File No. E17385) and CSA certified (Standard C22.2 No. 66, File No. 093411, Class 9052-30). For more details on regulatory compliance, visit www.3m.com/regs. When you need an electrical tape that can handle tough electrical insulating and wrapping jobs, count on 3M Glass Cloth Electrical Tape 27.
- For industrial/occupational use only. Not for consumer sale or use.
- UL RECOGNIZED: UL Listed, CSA Certified.
- CONFORMABLE: Suitable for complex tape applications
- PERFORMACE: Designed to operate in 600 volt dry applications requiring high mechanical strength and resistance to high temperatures
- INSULATES A VARIETY OF WAYS: Use as coil cover, anchor, banding, core layer and crossover insulation
- GLASS CLOTH BACKING: Optimally insulates with no shrinking or burning
- PROVIDES A STRONG BOND: At extreme temperatures ranging from low temperature to 302F (up to 150C)
Specifications:
| Materials & Construction | |
| Color | White |
| Material | Glass Cloth, Rubber Adhesive |
| Outer Material | Glass Cloth |
| Product Details | |
| Adhesive Material | Rubber |
| Applications | Heat Shielding; Insulating; Splicing |
| Length Range | 12 To 35.9 yd |
| Series | 27 |
| Series Part Number | 27 |
| Standards | Csa Certified; File Lr93411; Ul File E17385 |
| Tensile Strength (Lb./Inch) | 150.00 |
| Unspsc Code | 31201502 |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 3.8 inches |
| Product Dimensions | 3.8 x 3.8 x 1 inches; 1.6 ounces |
| Product Weight | 1.6 ounces |
| Size | 3/4 in x 66 ft |
| Weight | 3.76 ounces |
| Width | 3.8 inches |
| Technical Specifications | |
| Length (Meters) | 20.12 |
| Length Ft. | 66.00 |
| Maximum Operating Temperature C | 150.00 |
| Maximum Operating Temperature F | 302.00 |
