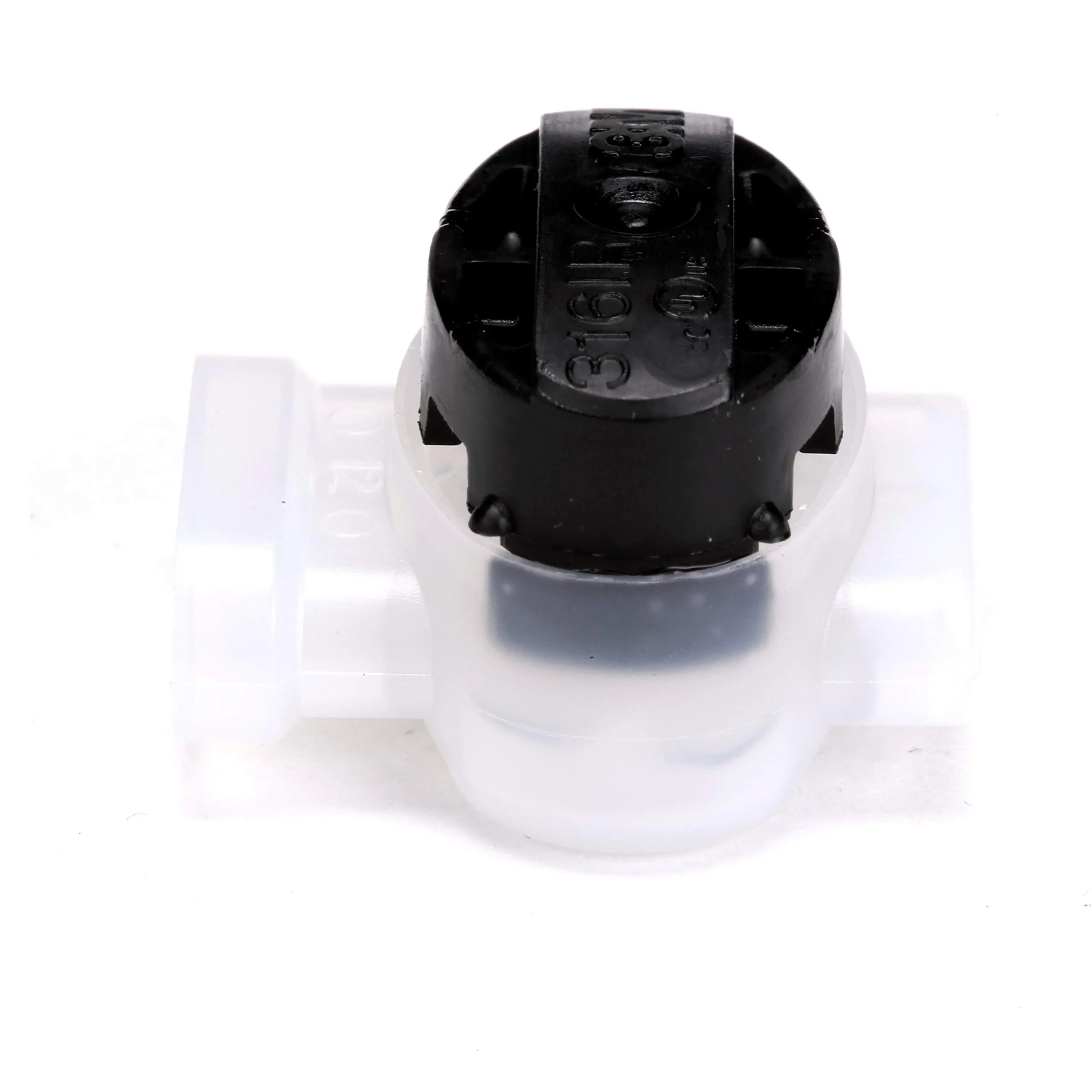

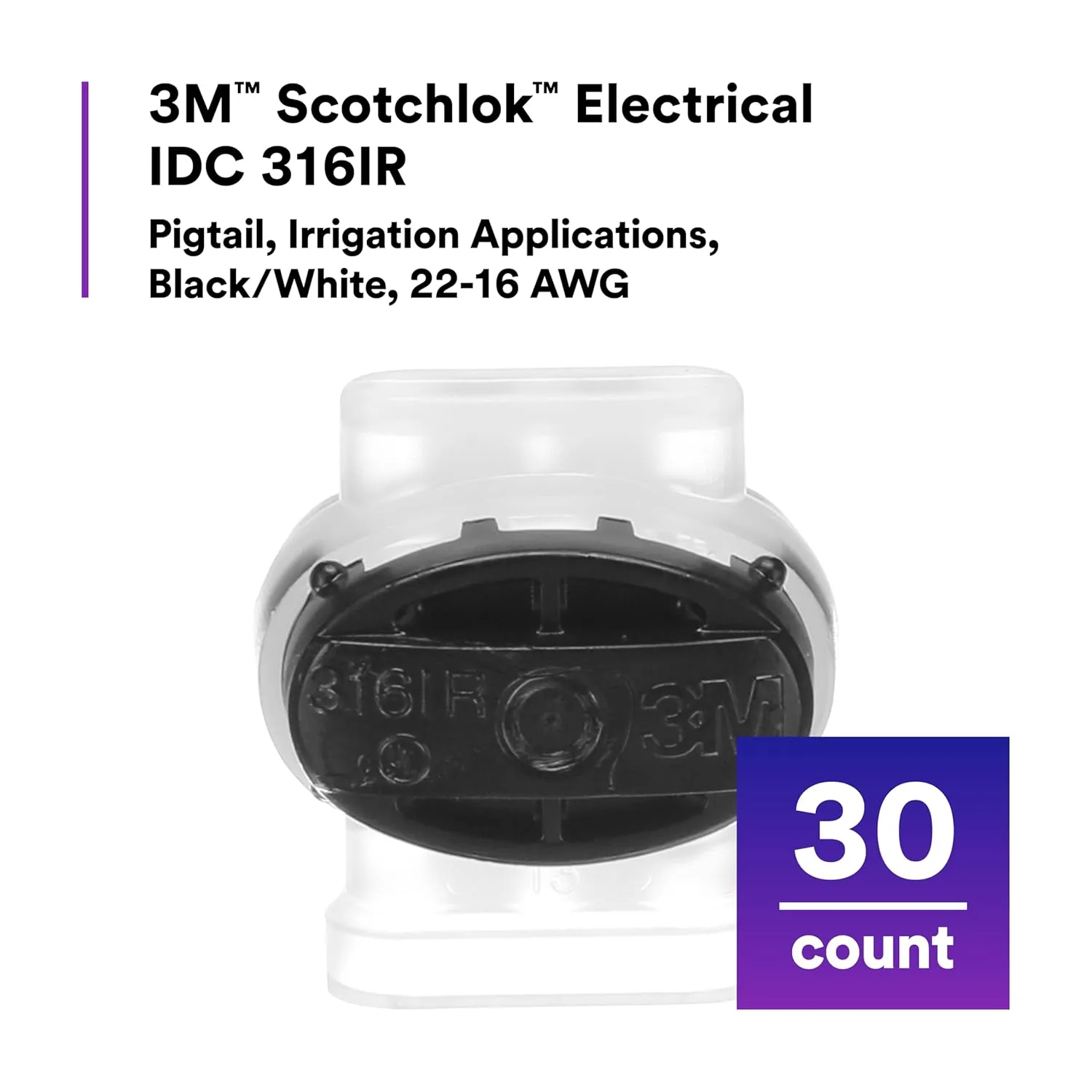

3M Scotchlok Self-Stripping Electrical IDC 316IR, Black/White Color, Pigtail, Irrigation Applications, Moisture Resistant

3M Scotchlok Self-Stripping Electrical IDC 316IR connectors are engineered for reliable pigtail and irrigation connections in moisture-prone environments. The connector uses a brass contact and nylon insulation to provide secure electrical connections for conductors in the 22–16 AWG range. These moisture-resistant IDC connectors are designed to seal and protect connections (up to IPx8 sealing level as indicated by product literature) and are suitable for industrial/occupational use. Product dimensions per pack are approximately 6.5 x 4.5 x 1 inches with a pack weight of 4.66 ounces. UL listed (UL Standard 486C, UL File No. E23438) and CSA certified (CSA Standard C22.2 No. 188‑M1983, CSA File No. LR15503).

• For industrial/occupational use only. Not for consumer sale or use

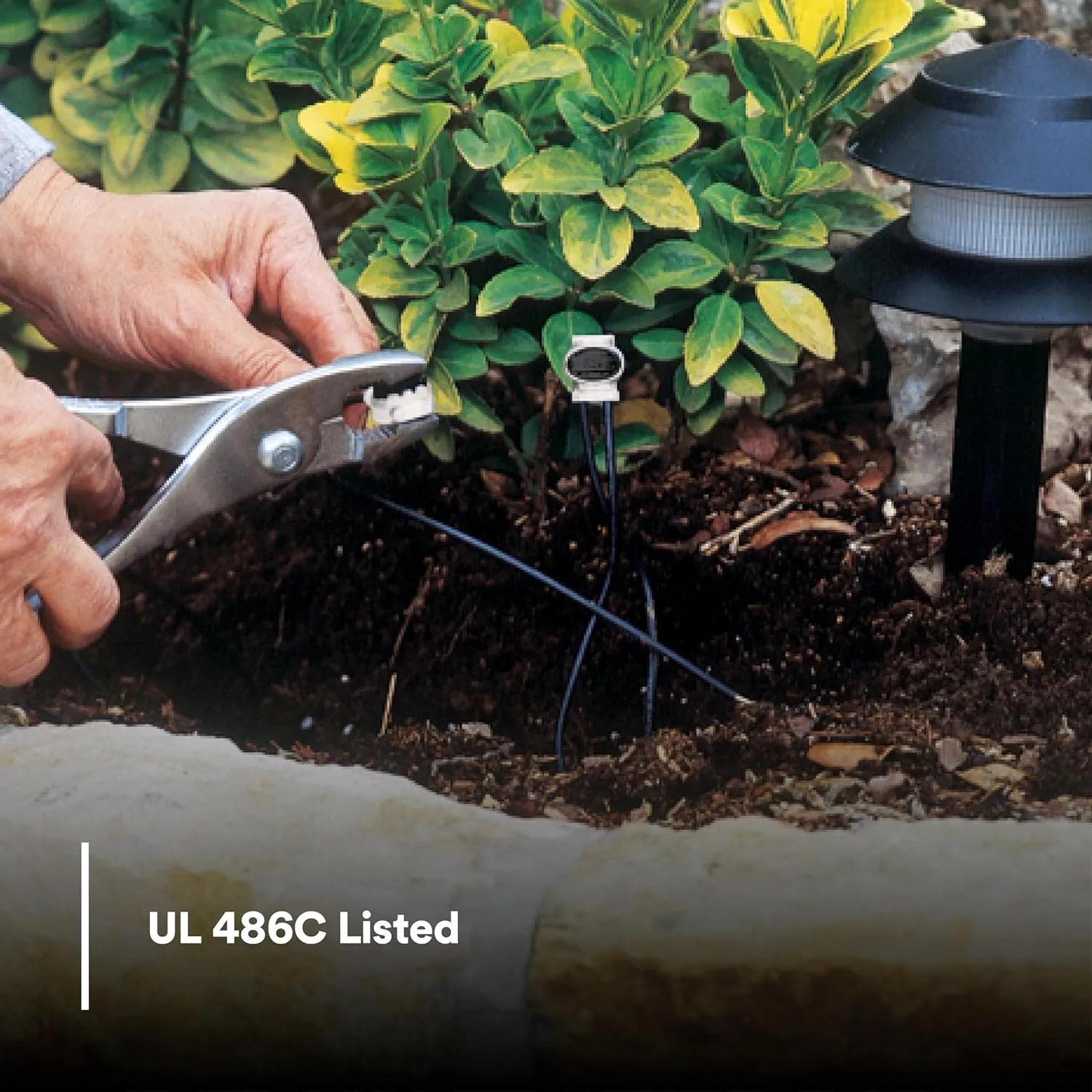

• UL LISTED AND CSA CERTIFIED: UL 486C Listed and CSA 22.2 Certified
• COMPLIANCE INFORMATION: For more compliance information, visit www.3m.com/regs

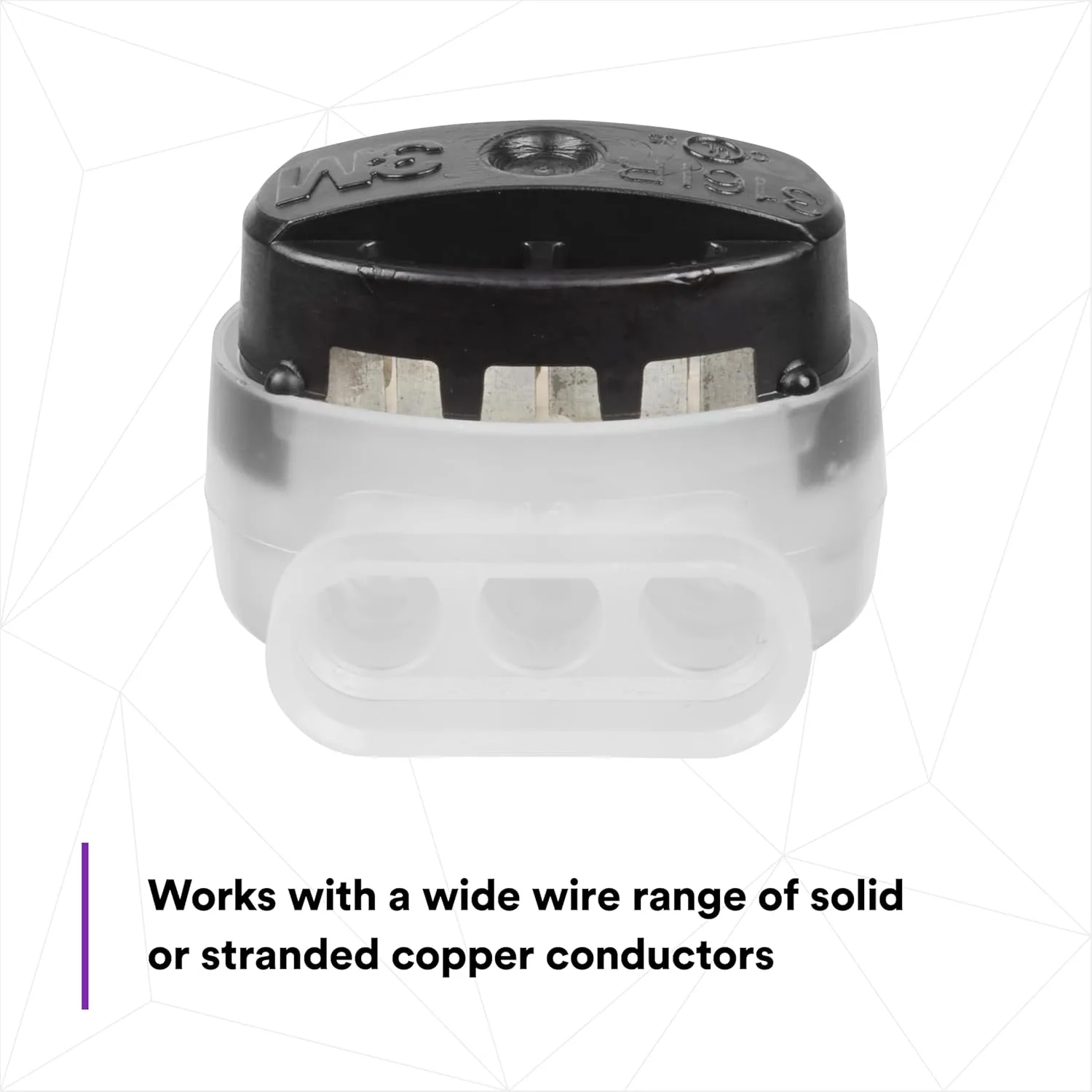

• WIRE RANGE: Works with a gauge range between 22-16 AWG solid or stranded copper conductors

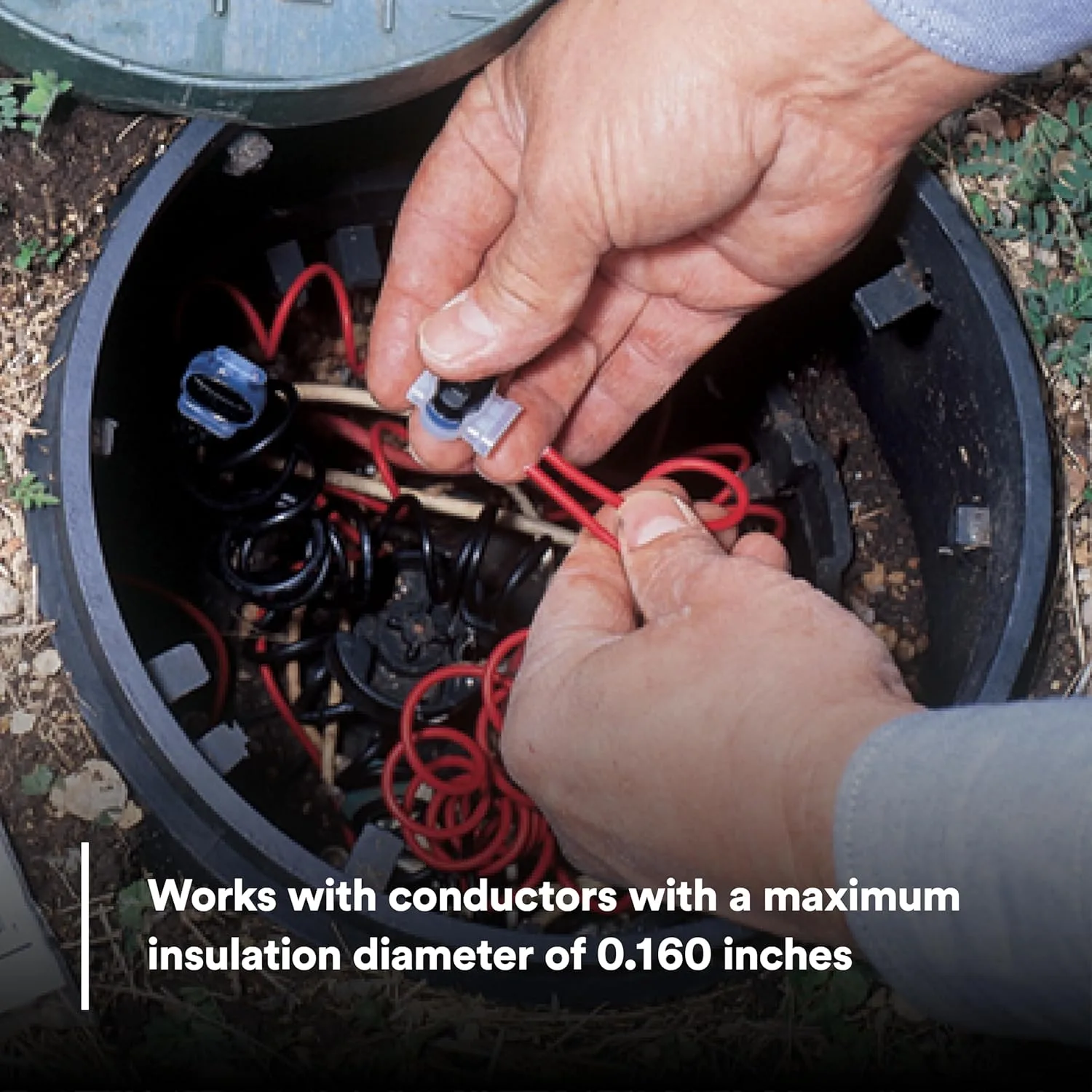

• MAXIMUM INSULATION DIAMETER: Works with conductors with a maximum insulation diameter of .160 inches

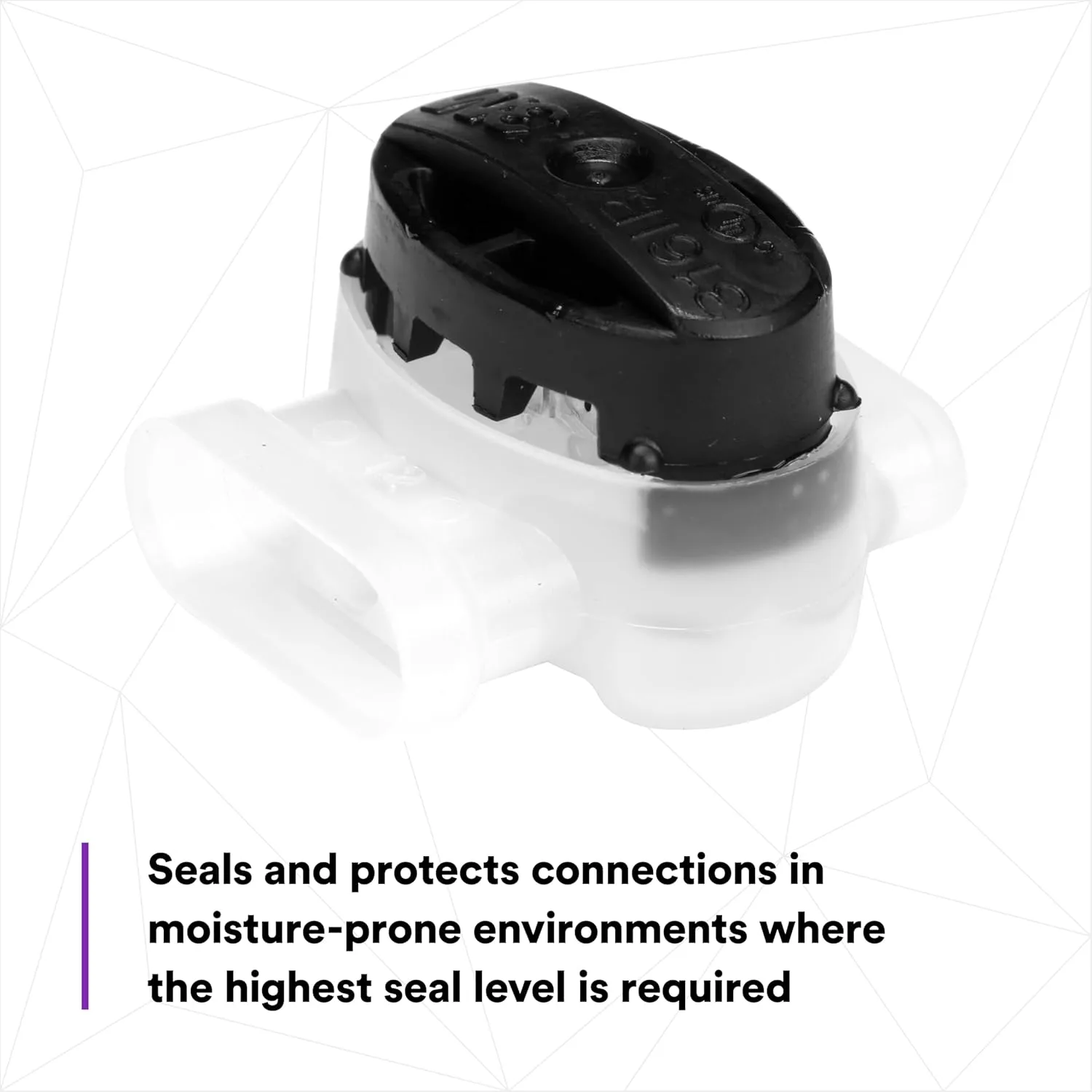

• HIGH PERFORMANCE: Seals and protects connections in moisture-prone environments where the highest seal level is required (up to IPx8)
