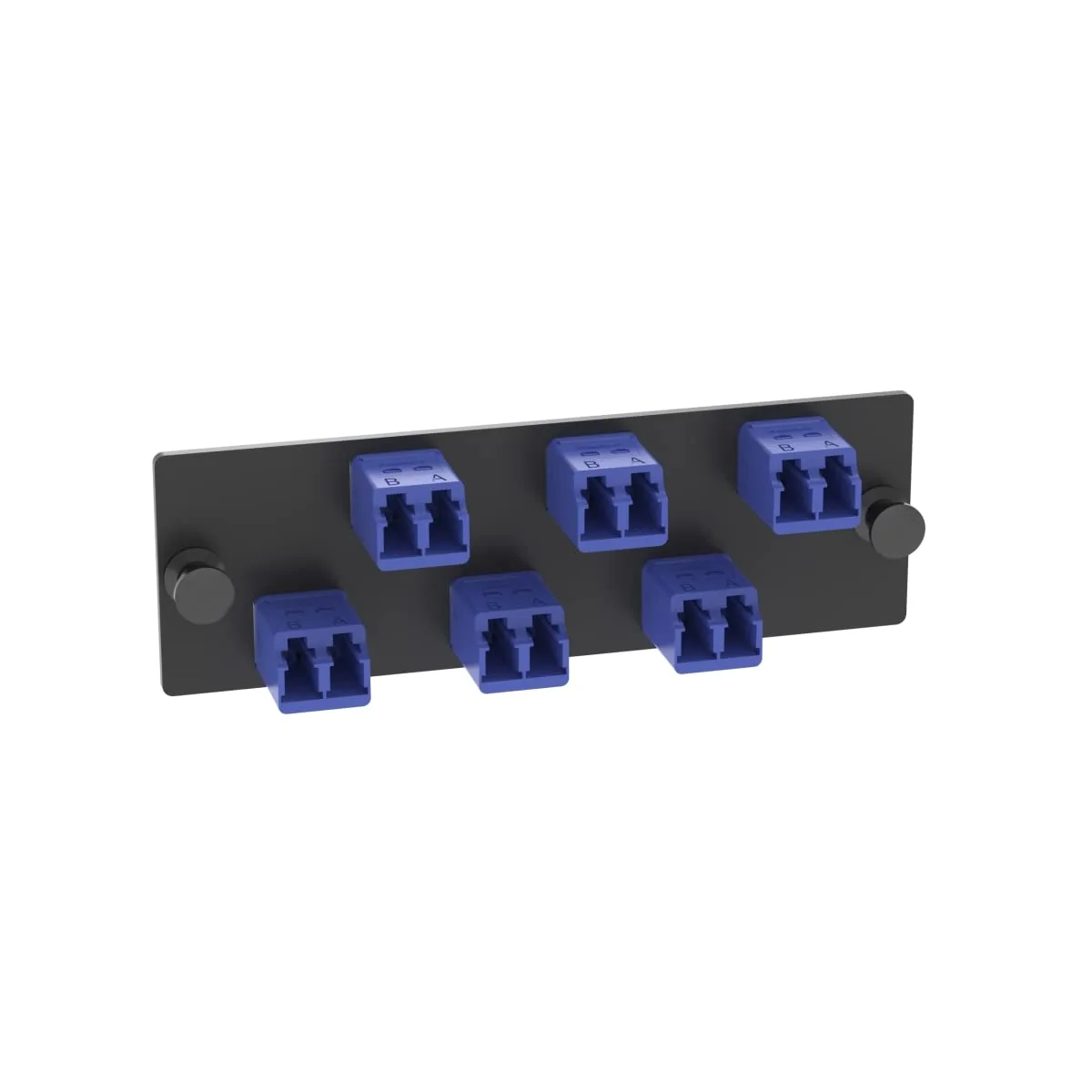

Panduit FAP6WBUDLCZ Single-Mode 6-Port Fiber Adapter Panel with Zirconia Ceramic Split Sleeve, Blue
Customize
LC OS1/OS2 FAP loaded with six LC duplex single mode fiber optic adapters (Blue) with zirconia ceramic split sleeves. Loaded with TIA/EIA-604 FOCIS-10 compatible adapters. Exceed TIA/EIA-568-B.3 requirements. Snap quickly into the front of all Optical components. LC fiber adapter panels are Sr./Jr. to conserve enclosure space. Accepts FOCIS-10 compatible senior LC connectors at either end and FOCIS-10 junior LC connectors at the inside end for behind the wall applications. Both ends Accepts FOCIS-10 compatible senior LC connectors. Junior end also accepts FOCIS-10 compatible junior (fixed ferrule/spring less) LC. Choice of phosphor bronze or zirconia ceramic split sleeves to fit specific network requirements; zirconia ceramic split sleeves are recommended for OS1/OS2 single mode applications. Every adapter is laser marked with Q.C. number to assure 100% traceability. LC adapters are also available in Quick Net Pre-Terminated Cassettes, Mini-Com Modules, or separately to provide a complete LC system solution. Panduit is a world-class manufacturer committed to innovation and excellence. Today, Panduit is recognized as a leading manufacturer of high-quality products for wiring and communications applications. This reputation gives the company a powerful advantage in today's competitive worldwide marketplace. (ProductDatabase note: Lc Fiber Adapter Panel Os1/os2 Lc Duplex Blue)
- Both ends Accepts FOCIS-10 compatible senior LC connectors
- Accepts FOCIS-10 compatible senior LC connectors at either end and FOCIS-10 junior LC connectors at the inside end for behind the wall applications
- LC fiber adapter panels are senior/junior to conserve enclosure space
- Snap quickly into the front of all Optical components
- Loaded with TIA/EIA-604 FOCIS-10 compatible adapters
Specifications:
| Materials & Construction | |
| Color | Blue Adapter |
| Product Details | |
| Cable Type | Fiber Optic |
| Compatible Devices | Fiber Optic Cable, Networking Equipment, Router, Switch |
| Connector Gender | Female-to-Female |
| Connector Type | Optical |
| Is Discontinued By Manufacturer | No |
| Item model number | FAP6WBUDLCZ |
| Model Number | FAP6WBUDLCZ |
| Special Feature | Data Transfer, High Speed |
| Sizing & Dimensions | |
| Height | 1.2 inches |
| Length | 5 inches |
| Product Dimensions | 5 x 5 x 1.2 inches |
| Weight | 1.6 ounces |
| Width | 5 inches |
| Technical Specifications | |
| Special Feature (summary) | High Speed data transfer |
