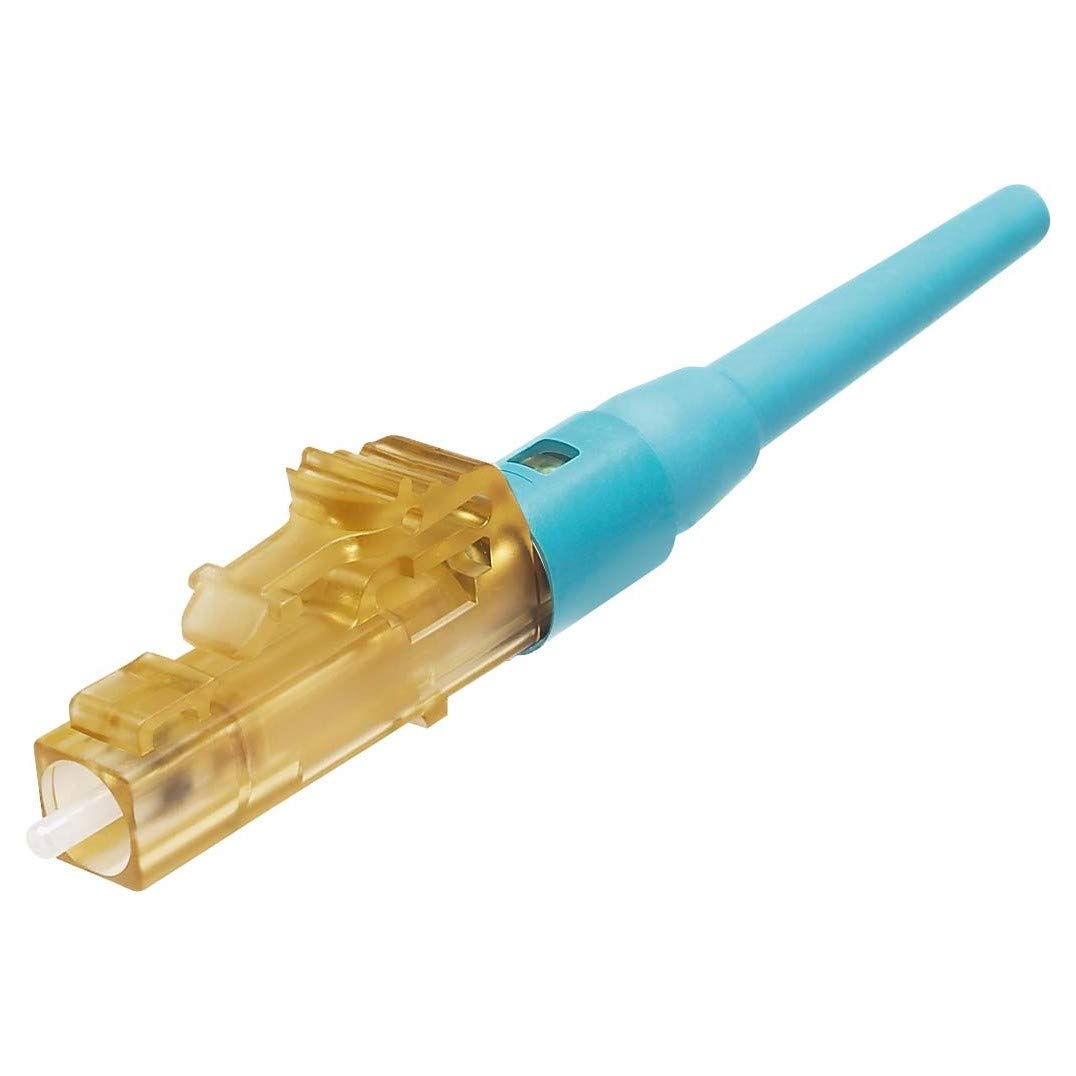

LC 50/125m OM3/OM4 Multimode Simplex Fiber Optic Connector for 900m tight-buffered fiber installation. Each duplex connector includes two connector body/ferrule assemblies, two crimp sleeves, two dust caps, one duplex clip and depending on the part number ordered, two boots for 1.6mm - 2.0mm jacketed cable, two boot for 3.0mm jacketed cable, or two boots for 900μ m buffered fiber. TIA/EIA-604 FOCIS-10 compatible connectors. Exceed TIA/EIA-568-B.3 requirements. Insertion loss: 0.10dB average (multimode and single mode). Return loss: >20dB (multimode), >40dB (single mode). Non-optical disconnect maintains data transmission under tensile loads for jacketed cable. Panduit is a world-class manufacturer committed to innovation and excellence. Today, Panduit is recognized as a leading manufacturer of high-quality products for wiring and communications applications. This reputation gives the company a powerful advantage in today's competitive worldwide marketplace.
- LC duplex clip available separately for duplexing two simplex Panduit LC connectors
- For 250μm coated fiber termination, use 250 micron fiber build-up tube kit or fan-out kits
- Fiber cable type tight-buffered recommended
- Non-optical disconnect maintains data transmission under tensile loads for jacketed cable
- TIA/EIA-604 FOCIS-10 compatible connectors
Specifications:
| Materials & Construction |
| Color | Aqua |
| Product Details |
| Cable Type | Fiber Optic |
| Compatible Devices | Server, Router, Switch, Storage Device |
| Connector Type | Optical |
| Is Discontinued By Manufacturer | No |
| Item model number | FLCSMCXAQY |
| Special Feature | High Speed |
| Sizing & Dimensions |
| Height | 3.7 inches |
| Length | 4.2 inches |
| Product Dimensions | 4.2 x 4.2 x 3.7 inches |
| Weight | 0.32 ounces |
| Width | 4.2 inches |
