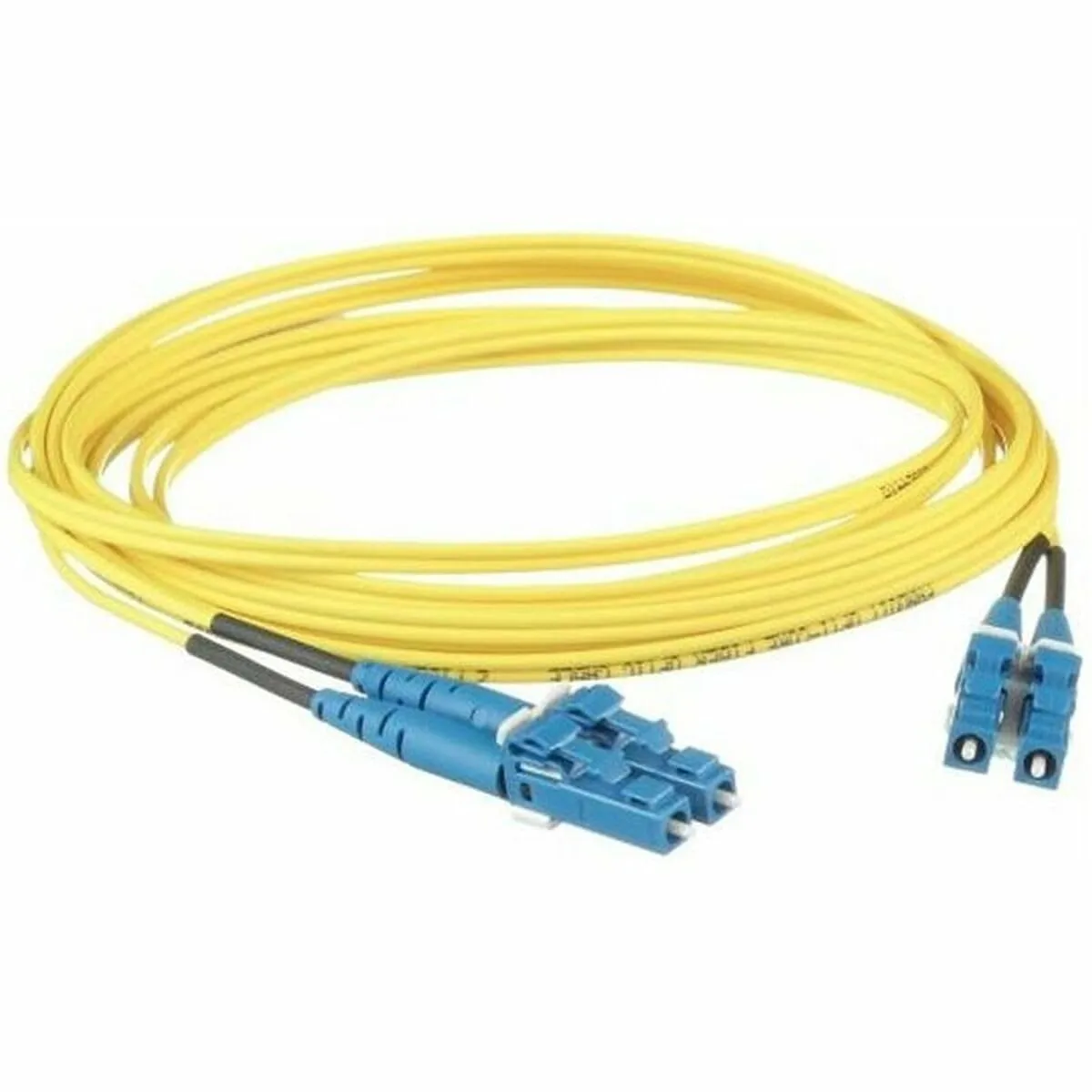

Panduit F92ELLNLNSNM005 LC Patch Cords
PANDUIT 5 m OS2 2-fiber LC-LC duplex patch cord with 1.6 mm LSZH jacket — low smoke zero halogen, tested for up to 10 Gb/s; ideal for data center and enterprise fiber connections.
$67.86
Customize
UPC
74983921652 Available Quantity
51 GSA Item
No GSA Compliant
Yes Product Details
Panduit F92ELLNLNSNM005 LC-LC duplex patch cord — 5 meter OS2, 2-fiber patchcord with 1.6 mm LSZH jacket. Insertion loss data recorded for every multimode patch cord. Backward compatible for use with all 50/125µm system requirements. Insertion loss per connection: 0.10 dB typical (multimode), 0.25 dB max. (Om1, Om2 and standard Om3, Om4), 0.15 dB max. Pass all TIA/EIA-568-B.3 performance requirements. Patch cords are tested to support network transmission speeds up to 10 Gb/s for link lengths up to 550 meters with an 850 nm source per IEEE 802.3ae 10GbE standard. Standard pack quantity: 1.
- Insertion loss data recorded for every multimode patch cord
- Backward compatible for use with all 50/125µm system requirements
- Insertion loss per connection: 0.10Db typical (multimode), 0.25Db max. (Om1, Om2 and standard Om3, Om4), 0.15Db max
- Pass all tia/eia-568-b.3 performance requirements
- Patch cords are tested to support network transmission speeds up to 10 gb/s for link lengths up to 550 meters with an 850Nm source per ieee 802.3Ae 10 gbe standard
Specifications:
| Product Details | |
| Cable Type | Ethernet |
| Compatible Devices | Router, Switch, Server, Networking Device |
| Connector Type | RJ45 |
| Item model number | F92ELLNLNSNM005 |
| Recommended Uses For Product | Connecting fiber optic networking devices in data centers and enterprise networks, Extending fiber optic signal transmission range in long-distance and high-speed data communication See more |
| Standard Pack Qty | 1 |
| Sizing & Dimensions | |
| Length | 196.85 inches |
| Product Dimensions | 16.26 x 12.01 x 1.97 inches; 1.41 ounces |
| Size | 5 meters |
| Weight | 1.41 ounces |
| Technical Specifications | |
| Insertion loss per connection | 0.10Db typical (multimode), 0.25Db max. (Om1, Om2 and standard Om3, Om4), 0.15Db max. |
| Network Transmission Support | Up to 10 Gb/s for link lengths up to 550 meters with an 850Nm source (IEEE 802.3ae 10GbE) |
