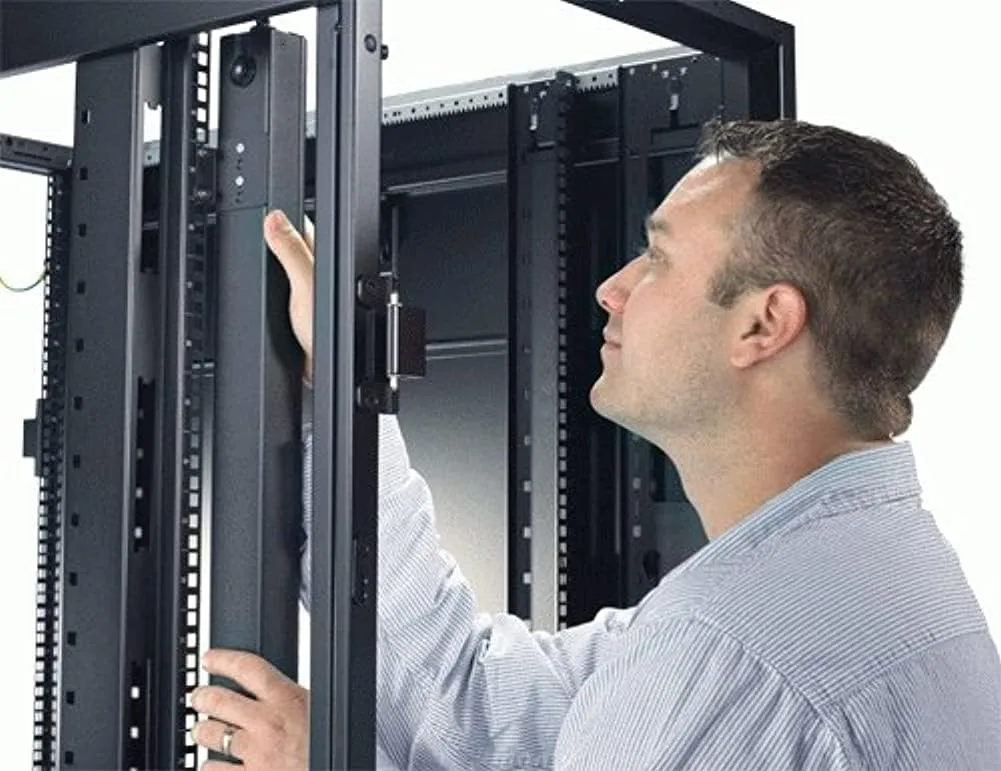

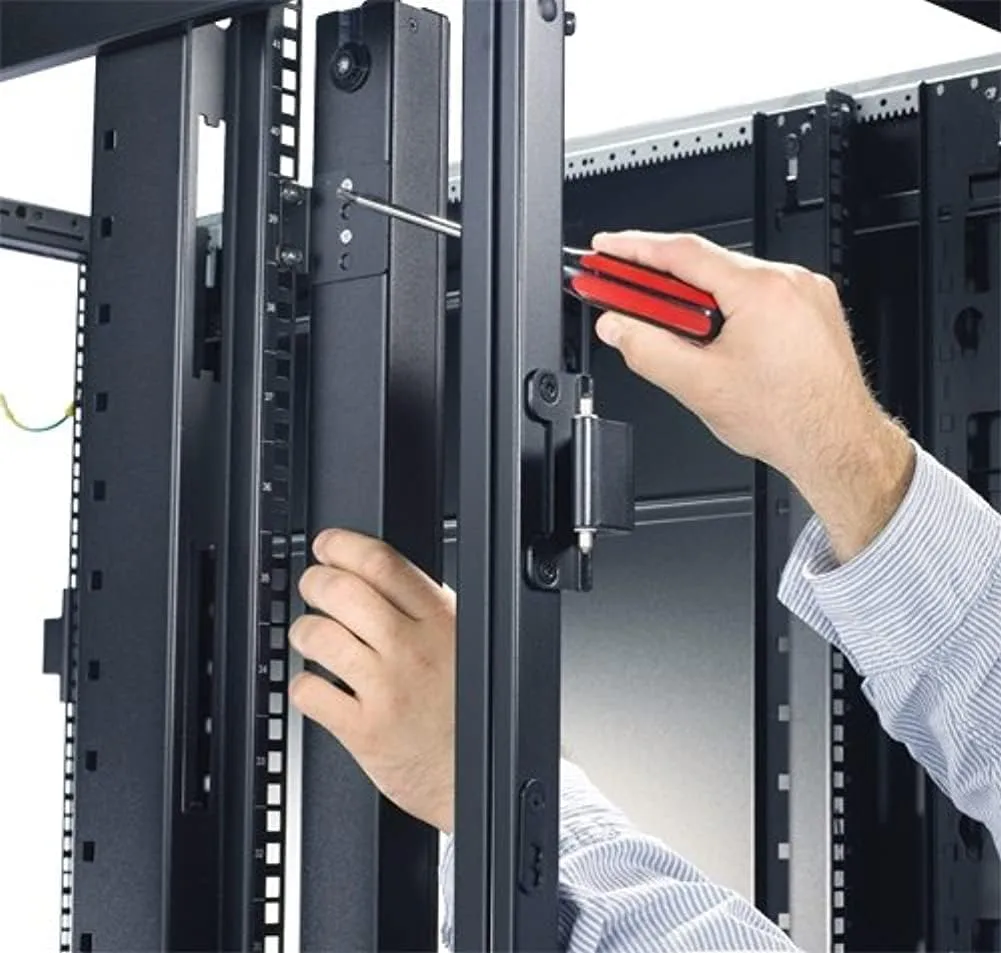

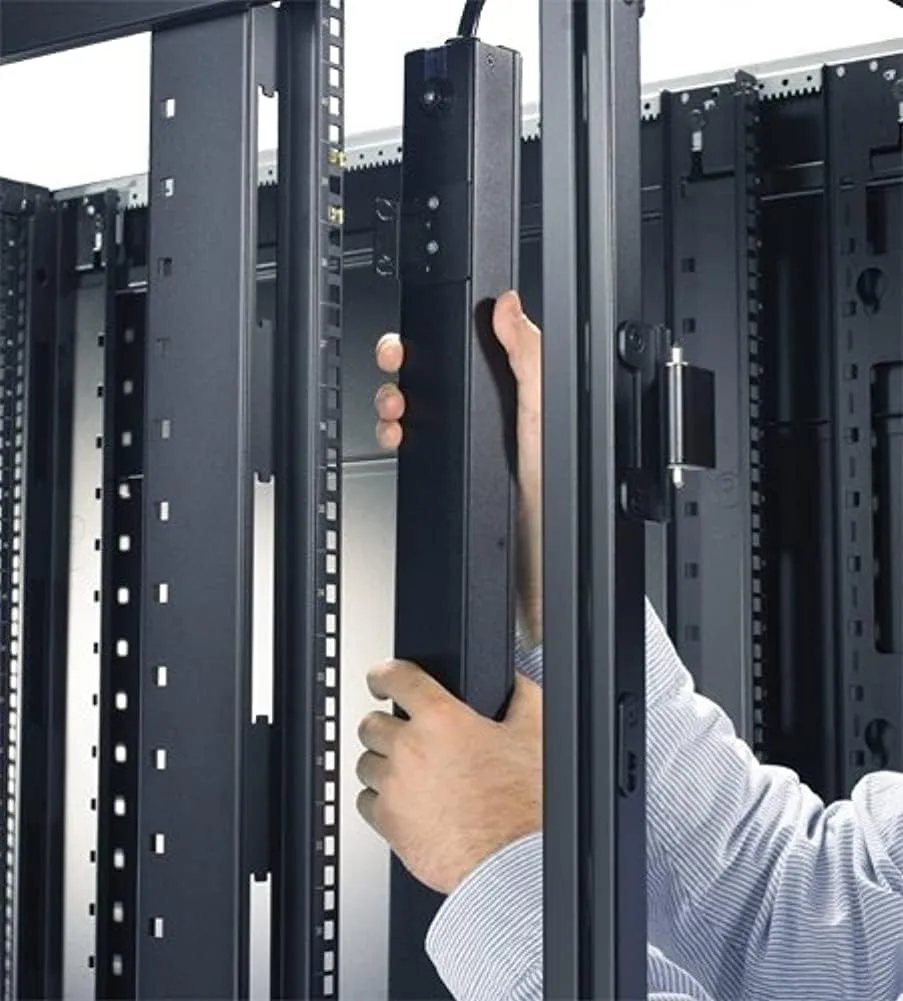

The APC AP7530 Basic Rack PDU is a Zero U vertical rack-mount power distribution unit designed for reliable power delivery in data center and rack environments. It features a metal housing in black finish, a 10 ft power cord with a NEMA L5-20P input plug, and 24 NEMA 5-20R output receptacles. The AP7530 supports 20A at 120V (nominal), providing robust power distribution for servers and networking equipment. The unit is tool-less mountable with cord retention brackets and includes an installation guide and rack mounting hardware. Product build and marketing materials indicate a load capacity listed as 2400 VA; legacy product database listings reference 1920 W load capacity. Item model number AP7530. Date first available: June 25, 2003. Discontinued by manufacturer: Yes.
| Materials & Construction | |
| Color | Black |
| Material | Metal |
| Outer Material | Metal |
| Product Details | |
| Battery Cell Composition | NiCAD |
| Input Receptacle | NEMA L5-20P |
| Is Discontinued | Yes |
| Load Capacity | 2400 VA |
| Model Number | AP7530 |
| Output Receptacles | 24 x NEMA 5-20R |
| Power Cord Length | 10 ft |
| Style | Zero U, Vertical |
| Voltage | 120 Volts |
| Sizing & Dimensions | |
| Height | 2.2 inches |
| Length | 64 inches |
| Product Dimensions | 64 x 1.7 x 2.2 inches |
| Size | 64 x 1.7 x 2.2 inches |
| Weight | 11 pounds |
| Width | 1.7 inches |
| Technical Specifications | |
| Load Rating | 2400 VA |
| Voltage Rating | 120 Volts |
| Warranty | See manufacturer for warranty information |
