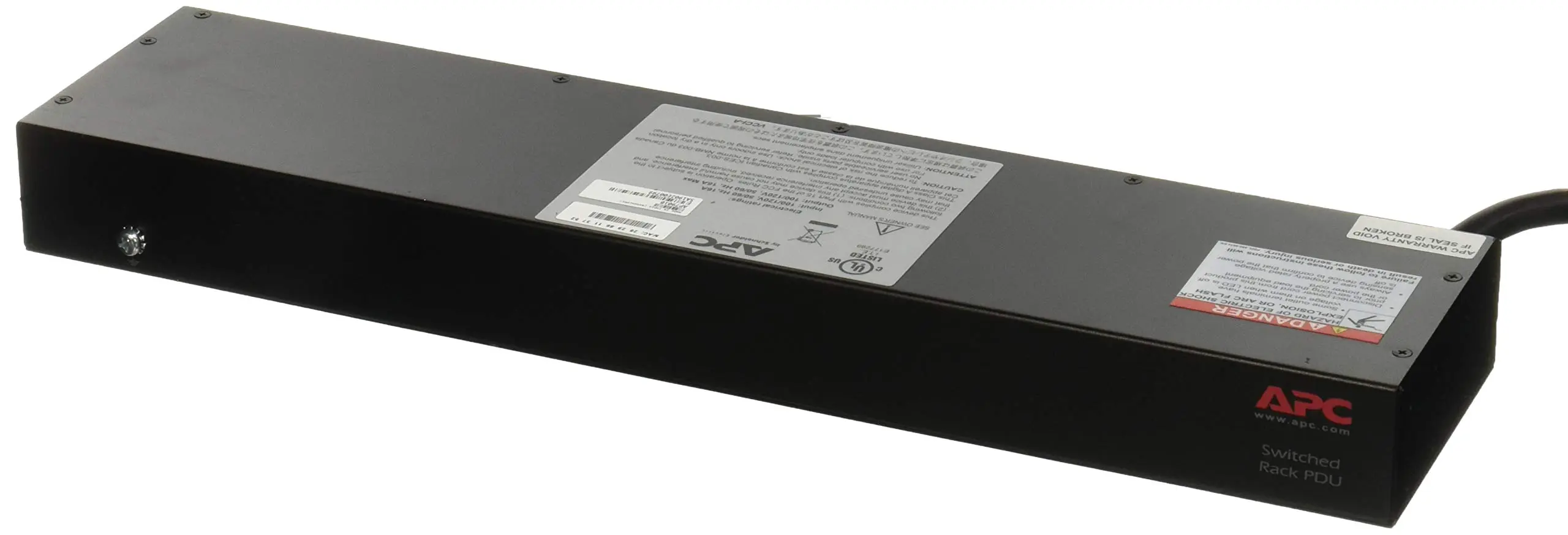

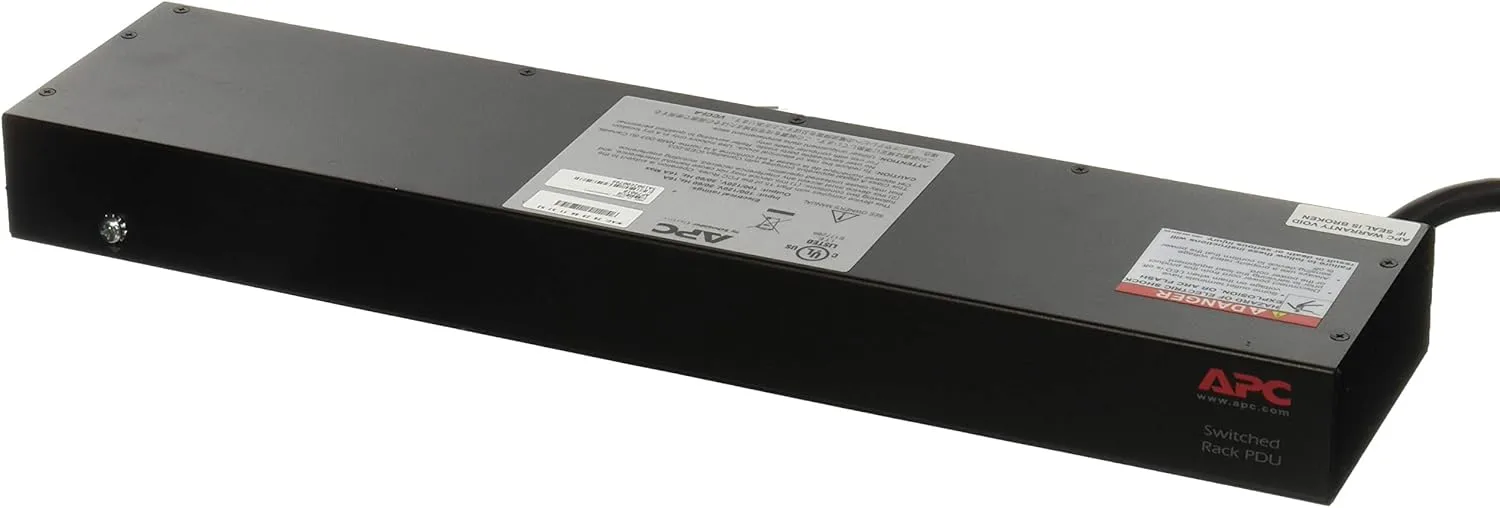

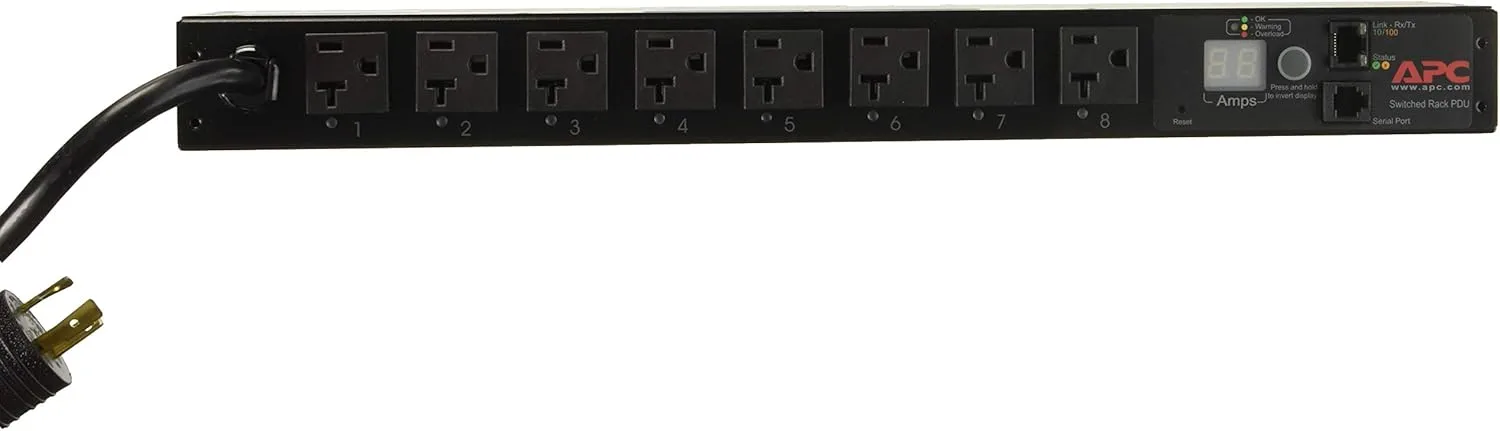

APC AP7901B Switched Rack PDU (1U) provides rack-mountable, switched power distribution for data center and IT equipment. Features include (8) NEMA 5-20R outlets, 120V / 20A capacity, local current monitoring via a digital display, configurable power-on/off sequencing (power delays) and remote individual outlet control. Designed to provide redundant rack-mount power to single-corded equipment. Technical details include 1U form factor, IEC C19 connector type, 120 Watts output wattage (spec listings), cooling by air, and compact dimensions for standard 19-inch enclosures.
| Product Details | |
| Batteries | 1 Product Specific batteries required. (included) |
| Compatible Devices | Personal Computer |
| Connector Type | IEC C19 |
| Form Factor | 1U Rack-Mountable |
| Is Discontinued By Manufacturer | No |
| Sizing & Dimensions | |
| Height | 13.5 inches |
| Length | 2.75 inches |
| Product Dimensions | 2.75 x 18.5 x 13.5 inches |
| Weight | 5 pounds |
| Width | 18.5 inches |
| Technical Specifications | |
| Cooling Method | Air |
| Current Rating | 5 Amps |
| Output Wattage | 120 Watts |
| Wattage | 15 watts |
