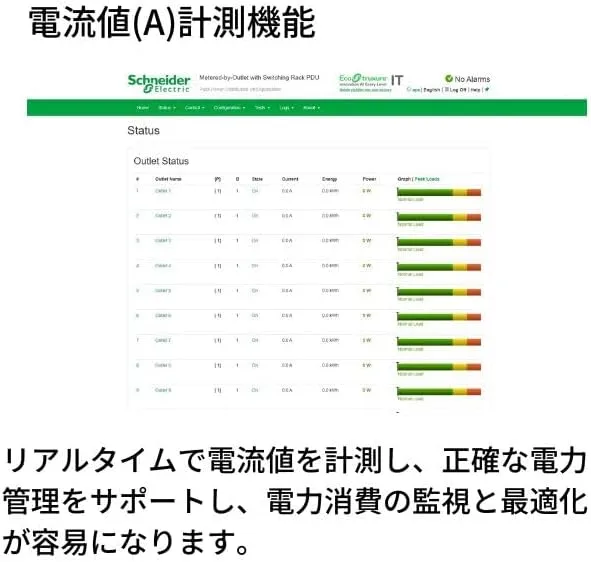

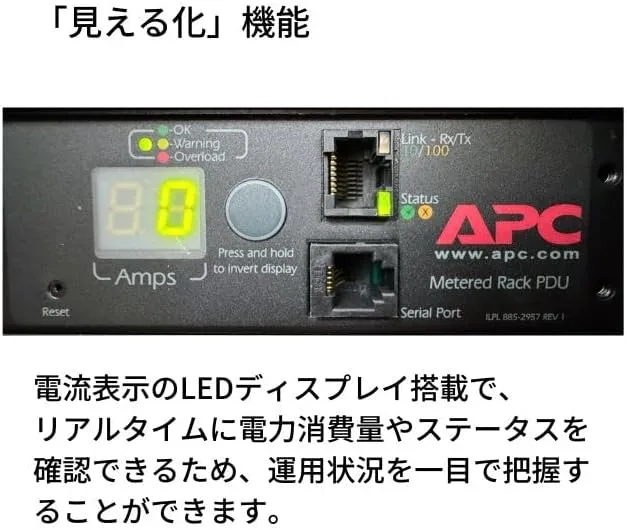

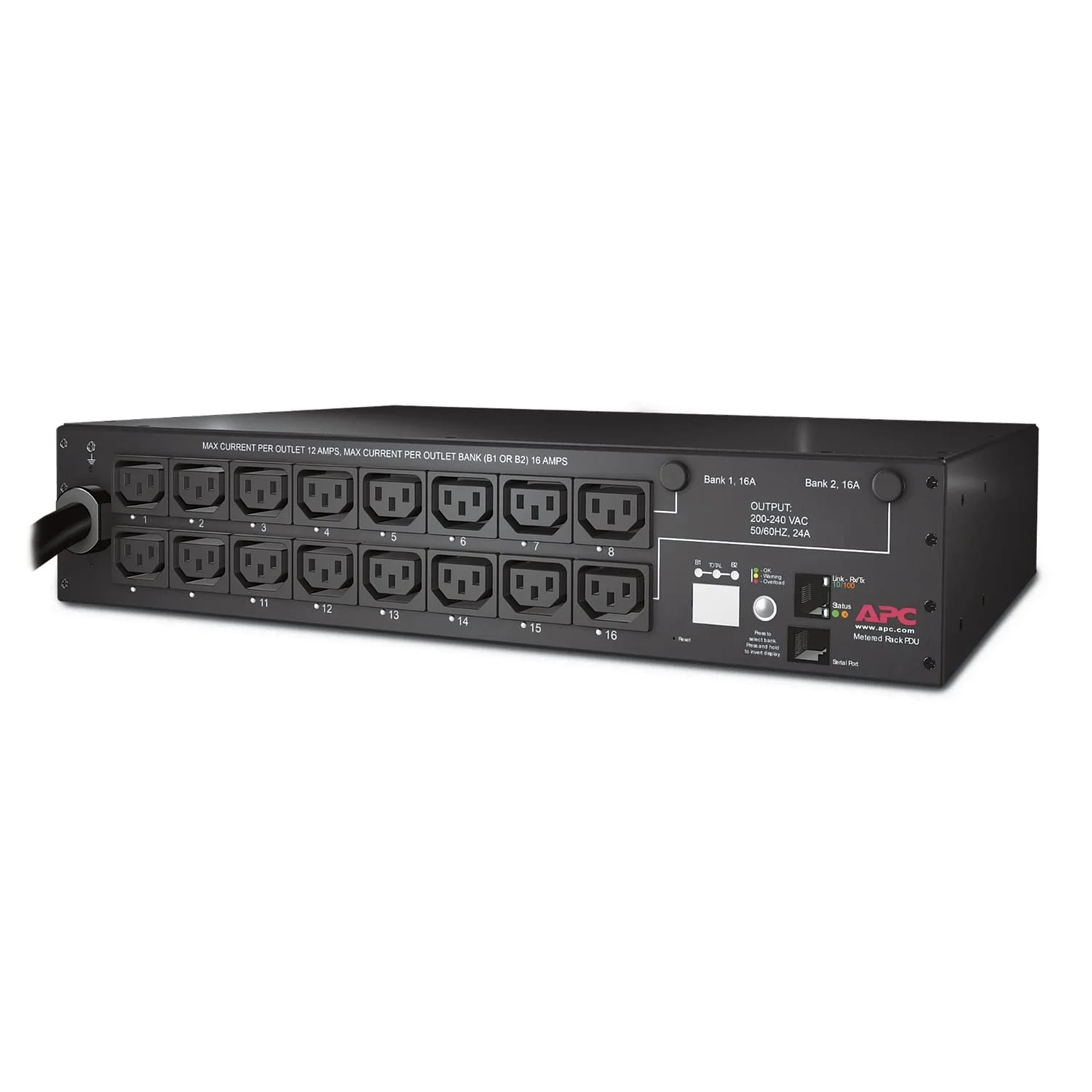

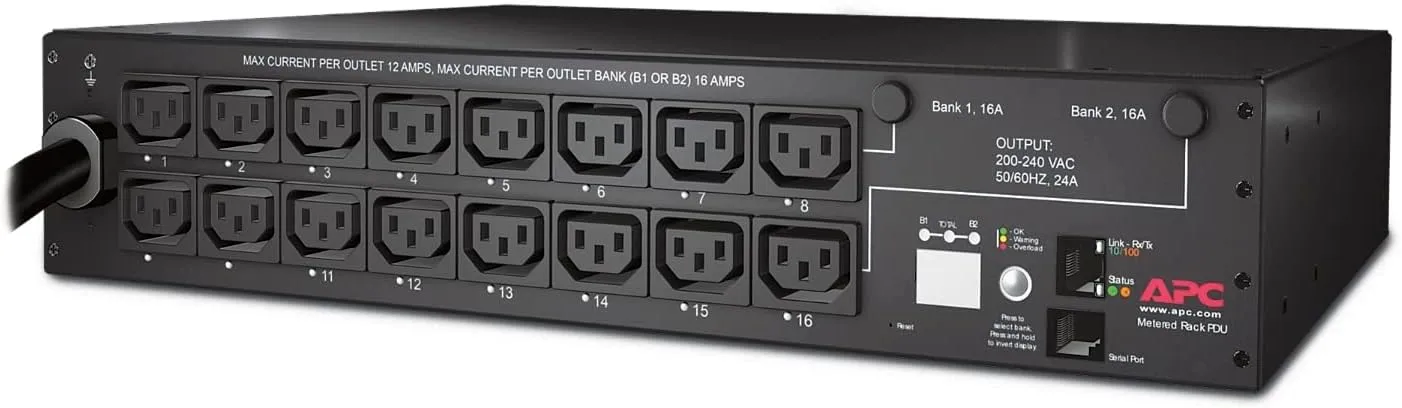

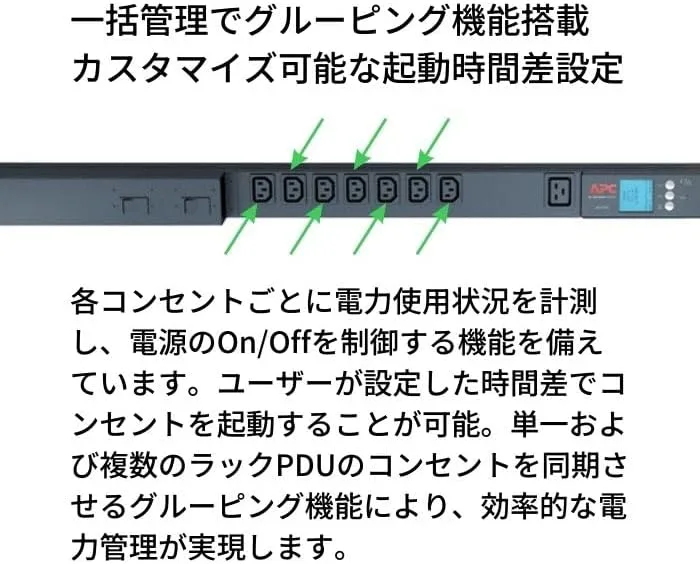

The APC AP7911B switched Rack PDU provides centralized power distribution for rack-mounted IT equipment. It features 16 IEC 60320 C13 receptacles and a single NEMA L6-30P input plug to support up to 30A (200–230 V AC). The 2U form factor conserves rack space and improves cable management. The unit supports remote monitoring and switched outlet control for enhanced power management and high-power applications. Color: Black. Cord length: 12 ft. Dimensions (Product): 3-33/64 in. X 17-31/64 in. X 10 in. Warranty: 2-Year Limited. Environmental compliance includes RoHS and REACH declarations with documentation available from Schneider Electric.
| Product Details | |
| Color | Black |
| Compatible Devices | Personal Computer |
| Connector Type | IEC C13 |
| Cooling Method | Air |
| Cord Length | 12 ft |
| Environmental Compliance | Restriction Of Hazardous Substances (Rohs) |
| Form Factor | 2U |
| Green Premium | Yes |
| Maximum Input Current | 30 V |
| Mercury Free | Yes |
| Mount Type | Rack-Mountable |
| Optimized Energy Efficiency | Yes |
| Output Wattage | 6000 Watts |
| Pdu Type | Switched |

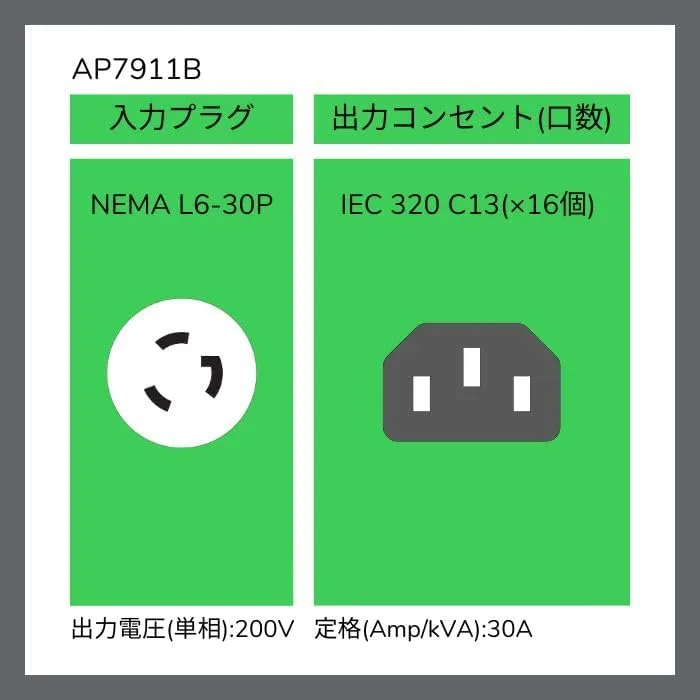

| Plug/Connector Detail | 1 X Nema L6-30p |
| Plug/Connector Type | Nema L6-30p |
| Receptacle Detail | 16 X Iec 60320 C13 |
| Receptacle Type | Iec 60320 C13 |
| Series | AP7911B |
| Voltage | 208 Volts |
| Wattage | 6000 watts |
| Sizing & Dimensions | |
| Height | 5.3000 inches |
| Length | 20.3000 inches |
| Product Dimensions | 10 x 17.48 x 3.5 inches |
| Weight | 13.93 pounds |
| Width | 20.3000 inches |
