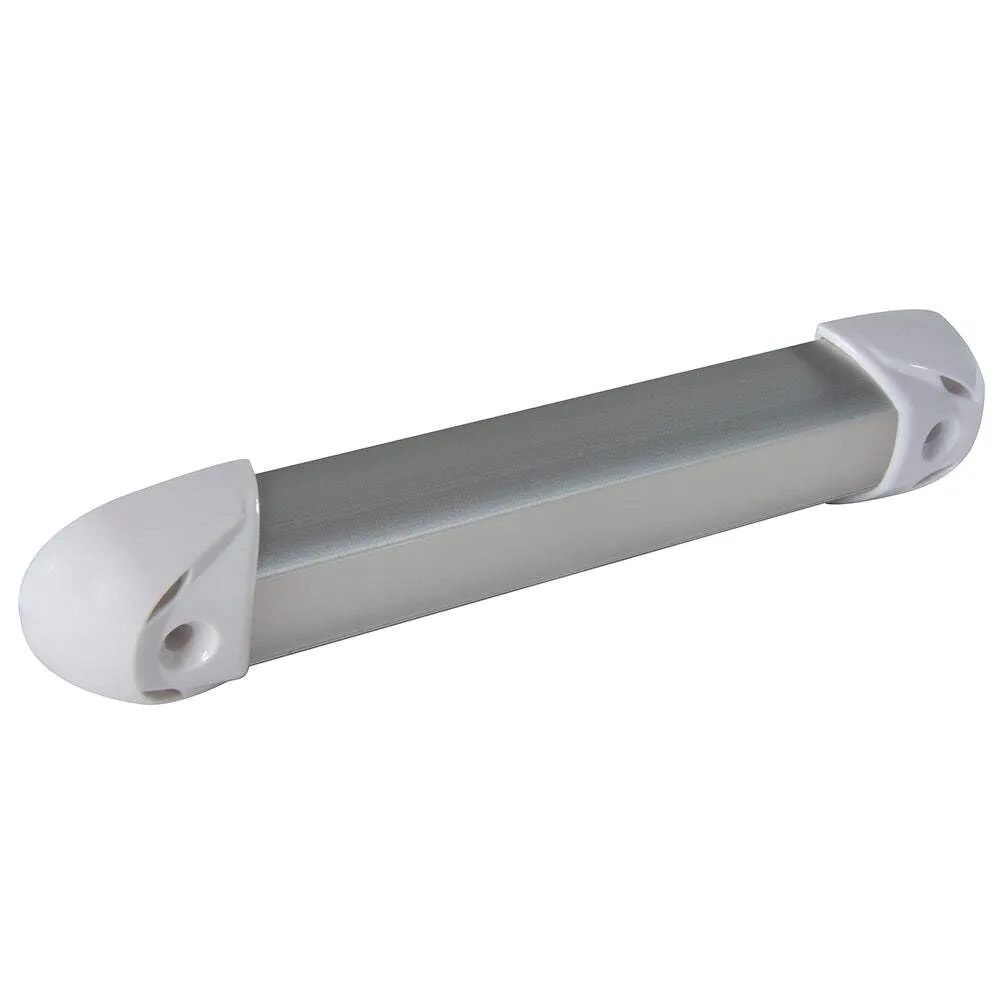

LUMITEC MiniRail2 6" LED Utility Light - Non Dimming
Customize

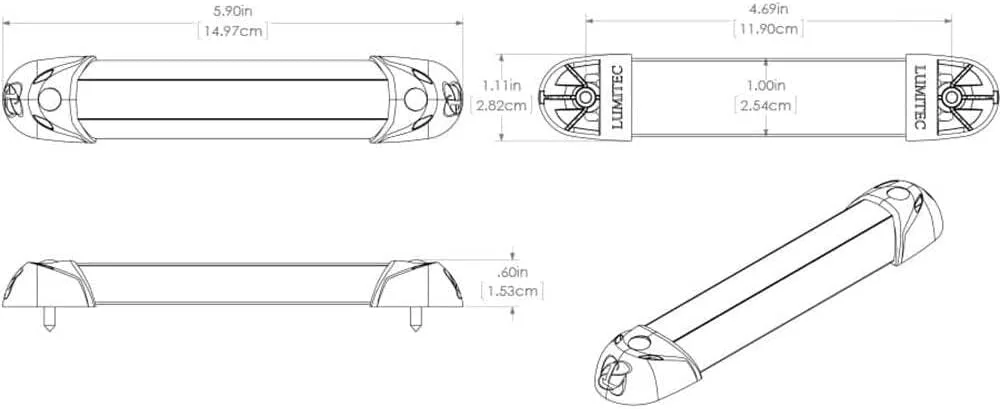

MiniRail2 6" LED Light by LUMITEC is a small, versatile, marine-rated luminaire made in the USA. The fixture is IP67 compliant for water and dust resistance and is built for interior and exterior ship and vehicle use. Electrical specs: 10-30V DC (12/24V), 12V DC amps ~360mA, 24V DC amps ~200mA, Rated Watts: 6. Optical and mechanical specs include an acrylic lens, white housing, Correlated Color Temperature ~5000K (White), Color Rendering Index 70+, and Lumens (White) ~145. Operating temperature range is approximately -35°C to +55°C (-31°F to +131°F). The MiniRail2 mounts to flat or curved surfaces, has a compact footprint (Width: 5.90" / 14.97 cm; Height: 1.11" / 2.82 cm; Depth: 0.60" / 1.53 cm) and is non-dimmable (third-party dimmer - 3PD capable). Available outputs: White, Red, Blue. WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm (P65).
- Extended 5-Year Warranty: Lumitec is the first and only LED manufacturing company in the United States to offer a 5-year warranty across the complete line of our extreme environment LED products.
Specifications:
| Materials & Construction | |
| Outer Material | Polycarbonate |
| Product Details | |
| Assembly Required | No |
| Auto Part Position | Outer |
| Automotive Fit Type | Universal Fit |
| Housing | White |
| Included Components | Mini Rail2 Light, 6", White |
| Led Color | White |
| Lens Color | Clear |
| Lens Material | Polycarbonate |
| Special Feature | Water and Dust Resistant (IP67) |
| Style | White (Dimming 3PD Only) |
| Voltage - Input Range (Volts) | 12/24v |
| Wattage | 6 watts |
| Sizing & Dimensions | |
| Package Weight | 3.17 ounces |
| Technical Specifications | |
| Special Feature | Water and Dust Resistant (IP67) |
| Wattage | 6 watts |
