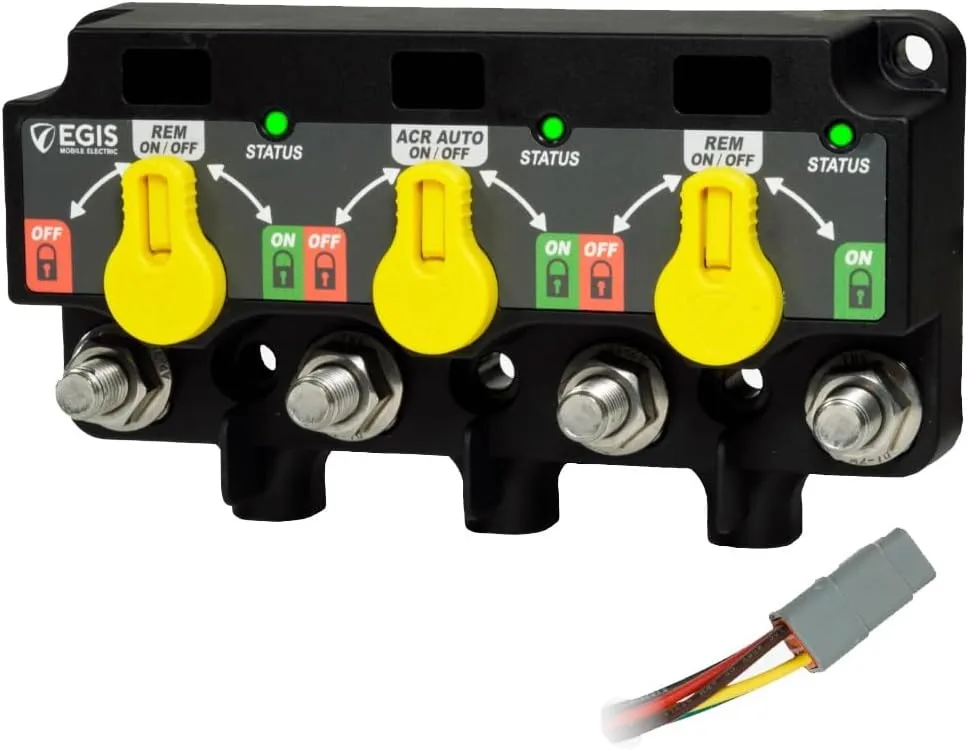

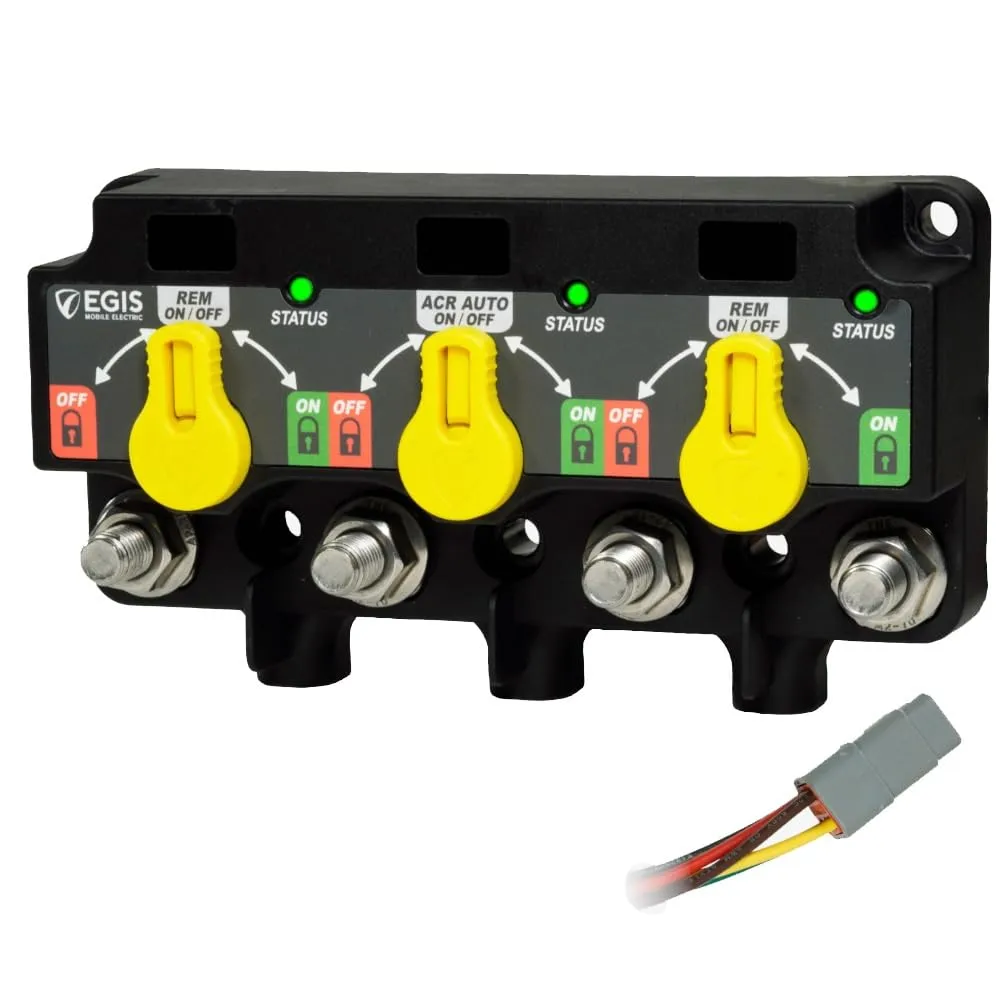

Egis XD Series Triple Flex 2 Relay-ACR-Relay w/Knobs & 3X DTM Connector
Customize
XD Series Triple Flex 2 Relay-ACR-Relay with Knobs & 3X DTM Connector. The Egis relay replaces three individual high-amp relays with one compact module, reducing space significantly, eliminating the cost of external link cable connections, eliminating the risk of link cable connections vibrating loose, and providing clear, unambiguous awareness of how to operate manual controls and what state the manual controls have forced the relay into. Applications: Designed to replicate common multi-battery switching and charge management functions - common dual battery load switching via the outer relays and a central automatic charging relay to share charge current are easily implemented. Multiple automatic charging relays (ACR) into one device - for 3-4 battery systems that require 2 or 3 ACRs, a single three-relay ACR provides drastic improvements in off-state quiescent current draw, space used, and reduces unnecessary interconnection cables. Expandable with link and cross-link busbars to additional dual, triple, or single XD relays - supports 3 or 4 battery systems with standard busbar interconnect accessories. Features: Bullet-proof construction - sealed to IP67/IP6K9K, high temperature electronics and materials allow mounting anywhere; stainless steel cable lug studs; large mounting holes accept 1/4-20 / M6 attachment hardware. Intuitive manual control option simplifies operation and increases awareness of the state of the manual override and whether the device is being left in a locked-off or locked-on state (not available on competitive solutions). Simple programming via dip switches gives each relay function significant flexibility for OEMs and installers. 35-75% reduction in mounting space and product weight via advanced bi-stable solenoid design and multiple solenoid assemblies that replace common electrical system layouts. Plug and play compatible with legacy competitor products - single, dual, and triple relay options are available with DTM/ATM connector pins compatible with ML Series bi-stable relays (This relay has 3x DTM connectors). 90-95% less off-state current compared to competitive products and system solutions that require multiple devices for similar functionality. Great Product.
- Great Product
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Connector Type | Dtm |
| Included Components | Great Product |
| Model Name | 8830-1535 |
| Mounting Type | Screw Mount |
| Number of Items | 1 |
| Operation Mode | Automatic |
| Specification Met | Ip67, Compatible With Industry Standards |
| UPC | 850035199619 |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 3 inches |
| Length | 8 inches |
| Product Dimensions | 8 x 4 x 3 inches |
| Size | 8 x 4 x 3 inches |
| Weight | 2.6 pounds |
| Width | 4 inches |
| Technical Specifications | |
| Included Components Detail | Great Product |
| Mounting and Compatibility | Screw Mount; compatible with DTM/ATM connector pins |
