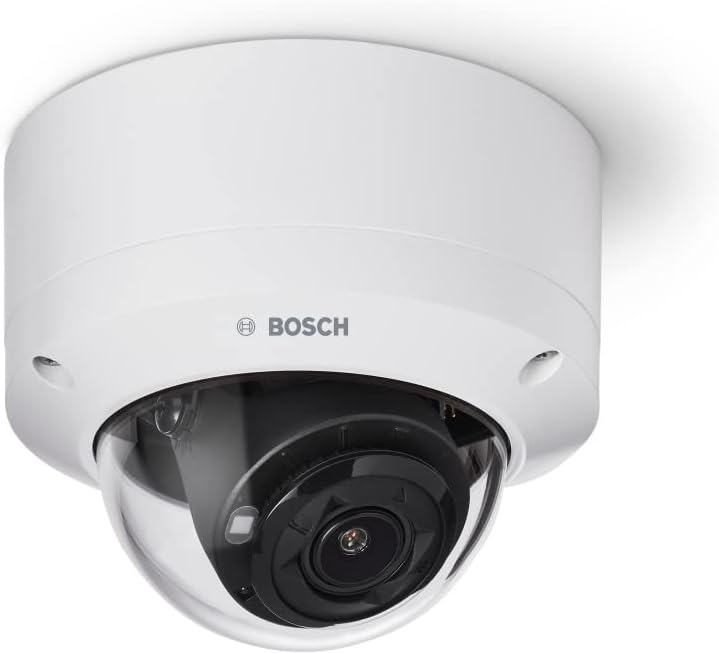

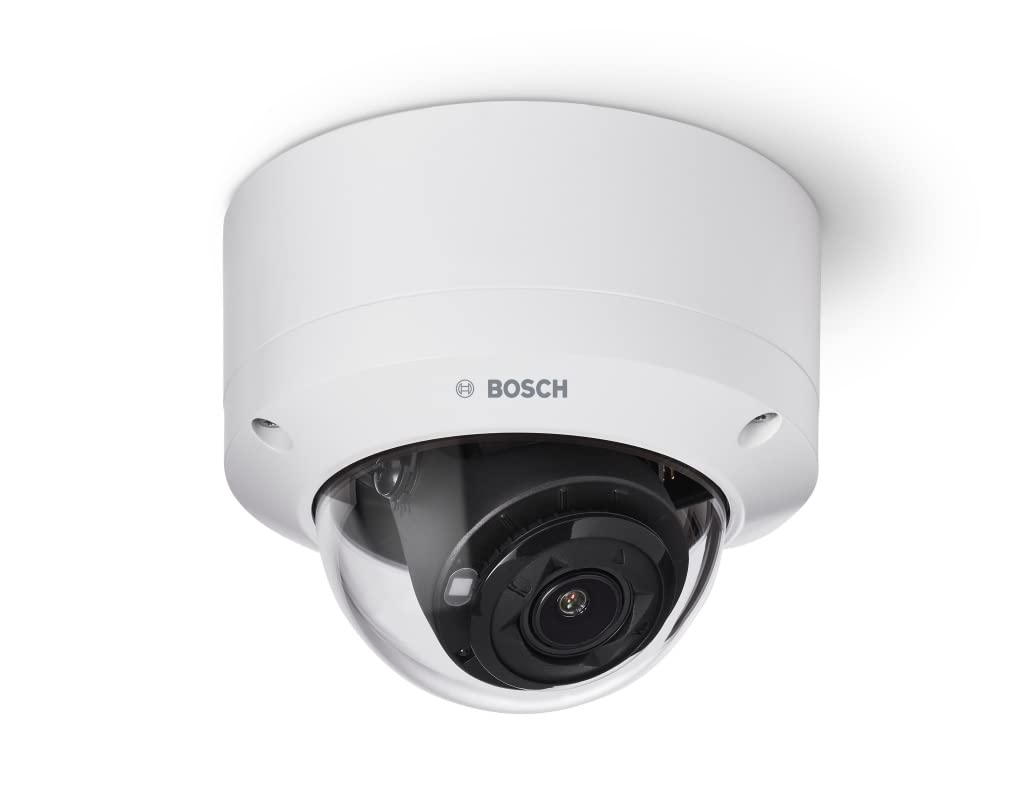

Bosch NDV-5702-AL 5100i Flexidome-Series 2MP Indoor IR Fixed Dome Camera, 3.2-10.5mm Varifocal Lens, NDAA Compliant, IP54
Customize
The camera is a versatile and professional surveillance camera for indoor monitoring. It delivers exceptional image quality, starlight performance and HighDynamic Range at resolution up to 4K ultra HD for highly detailed image for demanding security and surveillance network requirements. Built-in Intelligent Video Analytics Pro (IVA Pro) enriches full situational awareness and triggers relevant alerts.The cameras offer a 1/2.7’’ or 1/2.8’’ sensor and HDR technology at HD 1080p, 5 MP, or 8 MP resolution with a built-in active infrared illuminator that provides high performance in extreme low-light environments. The modular structure design uses a click and rotate mechanism on mounting plate or base that requires no hardware to secure the camera to housing for fast installation, including compatibility with various mounting options.Specifications:✔️Product Series: 5100i✔️Effective Camera Resolution: 2MP✔️Maximum Aperture: f/1.6✔️Video Formats: H.264, H.265, MJPEG✔️Minimum Focal Length: 3.20 mm✔️Field of View: 57° - 105° 18° - 31°✔️Maximum Frame Rate: 60 fps✔️Optical Zoom: 3.3x✔️Maximum Focal Length (mm): 10.5✔️Maximum Video Resolution: 1920 x 1080✔️Longest Shutter Speed: 1/25 Second✔️Input Voltage: 40 VDC✔️Physical Characteristics: 148 x 122 mm (5.83 x 4.8 in.)✔️Weight (Approximate): 920 g (2.03 lb)✔️Impact Protection Rating: IK10, IP54
- ✅Built-in intelligent IR illuminator with up to 45 m (148 ft) viewing distance
- ✅High Dynamic Range to see every detail in both bright and dark areas of the scene
- ✅IVA Pro brings highly reliable deep-learning based detection of persons and vehicles to scenes ranging from sterile zones to crowded and congested
- ✅Starlight camera technology with excellent lowlight performance
- ✅Up to 4K ultra HD for highly detailed image
Specifications:
| Materials & Construction | |
| Color | White |
| Form Factor | Dome |
| Low light technology | Starlight |
| Product Details | |
| Connectivity Protocol | Ethernet |
| Connectivity Technology | Wireless |
| Control Method | App |
| Controller Type | Iris |
| Effective Video Resolution | 1080 Pixels |
| Form Factor | Dome |
| Included Components | User Guide |
| Indoor/Outdoor Usage | Indoor |
| Item model number | NDV-5702-AL |
| Light Source Type | Infrared |
| Model Name | IP fixed dome camera |
| Photo Sensor Technology | CMOS |
| Power Source | Corded Electric |
| Recommended Uses For Product | Indoor Security |
| Unit Count | 1.0 Count |
| Video Capture Format | H.264, H.265, MJPEG |
| Sizing & Dimensions | |
| Height | 4.8 inches |
| Length | 5.83 inches |
| Product Dimensions | 5.83 x 5.83 x 4.8 inches |
| Weight | 2.03 pounds |
| Width | 5.83 inches |
| Technical Specifications | |
| Alert Type | Motion Only |
| Frame Rate | 30 fps |
| Impact Protection Rating | IK10 |
| International Protection Rating | IP54 |
| Light Source Type | Infrared |
| Max Shutter Speed | 1/25 Seconds |
| Maximum Frame Rate | 60 fps |
| Night Vision Range | 45 Meters |
| Video Capture Resolution | 2 MP |
| Voltage | 40 Volts (DC) |
| Wattage | 10.5 watts |
| Zoom Type | Fixed |
