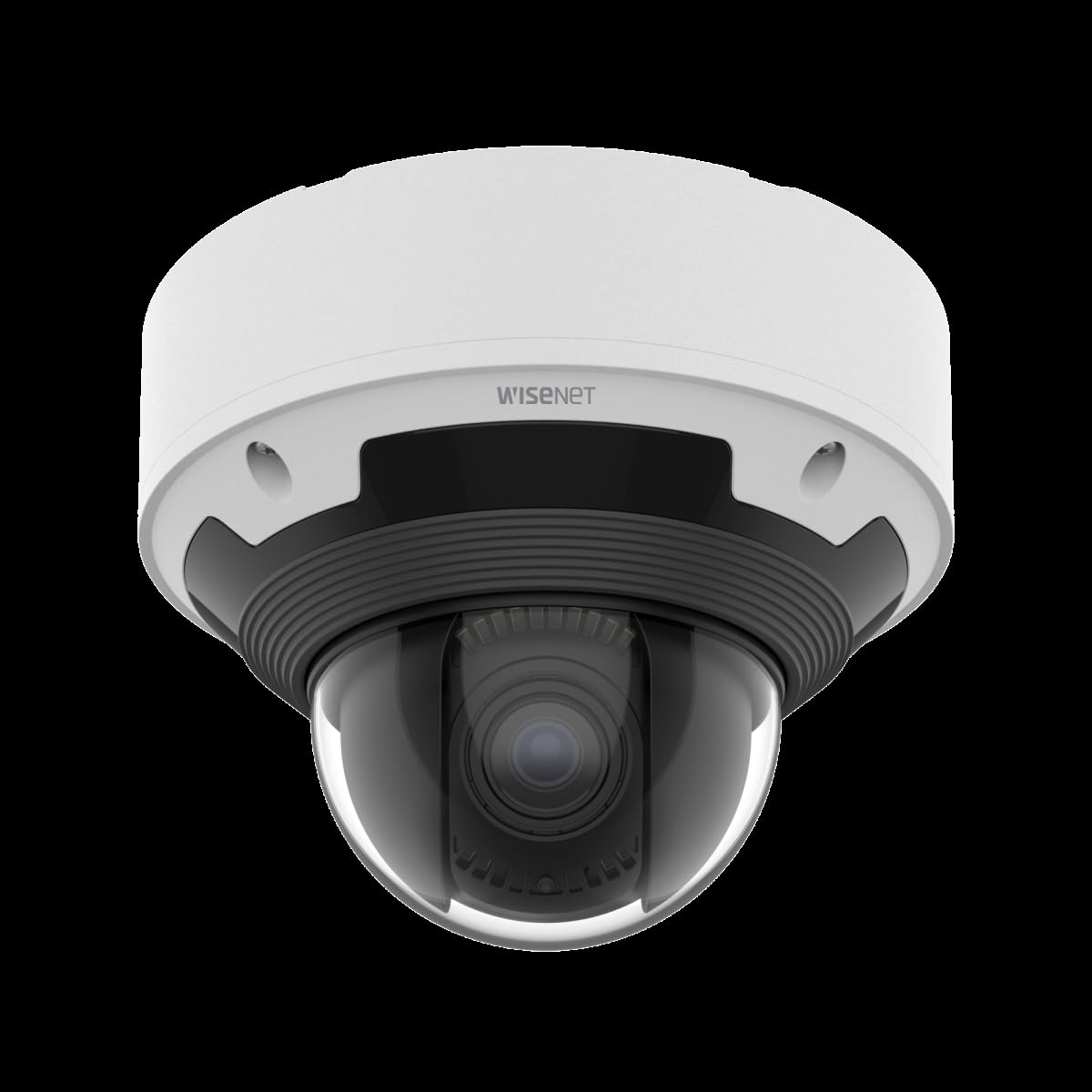

POWERED BY WN7, X-PLUS 4K IR Outdoor Vandal Dome AI PTRZ Camera
Customize
The HANWHA XNV-9083RZ is a professional 4K IR outdoor vandal dome camera, Powered by the WN7 X-Plus platform. Designed for demanding outdoor surveillance, it features AI-based analytics, motorized varifocal 4.4–9.3 mm (2.1x) lens with PTRZ remote lens adjustment, and triple codec support (H.265/H.264/MJPEG). The sensor supports 3840 x 2160 resolution at up to 30 fps, with high sensitivity (0.04 Lux color, 0 Lux with IR LED) and a built-in IR LED providing up to 15 m of night visibility. The camera delivers Day & Night operation with ICR, extreme WDR (120 dB) and robust protections including IP66 / IP6K9K / NEMA4X and IK10 vandal resistance. Power-over-Ethernet (PoE) simplifies installation; the camera is available in White and is optimized for outdoor surveillance deployments, offering advanced object detection (persons, faces, vehicles, license plates), perimeter detection (line/virtual zone), audio detection, and additional AI-based alarm events.
- 8801089211453
- XNV-9083RZ
Specifications:
| Materials & Construction | |
| Color | White |
| Product Details | |
| Language | English |
| Type of item | CD-ROM |
| Sizing & Dimensions | |
| Height | 0.79 inches |
| Length | 3.94 inches |
| Product Dimensions | 17.44 x 11.23 x 7.48 inches |
| Product Weight | 7.0 pounds |
| Weight | 2.2 pounds |
| Width | 0.79 inches |
| Technical Specifications | |
| AI Features | Object detection (persons/faces/vehicles/license plate), line/virtual zone, input/output, walking, audio detection, sound rating, shock detection, appear/disappear |
| Frame Rate | Up to 30 fps |
| IR Range | Up to 15 m |
| Lens | Motorized varifocal 4.4 ~ 9.3 mm (2.1x) |
| Lens Control | PTRZ (remote lens adjustment) |
| Protections | IP66 / IP6K9K / NEMA4X / IK10 |
| Resolution | 3840 x 2160 |
| Sensitivity | 0.04 Lux (color); 0 Lux (IR LED) |
| Sensor | CMOS 1/1.8 |
| Video Codec | H.265 / H.264 / MJPEG |
| WDR | Extreme WDR (120 dB) |
