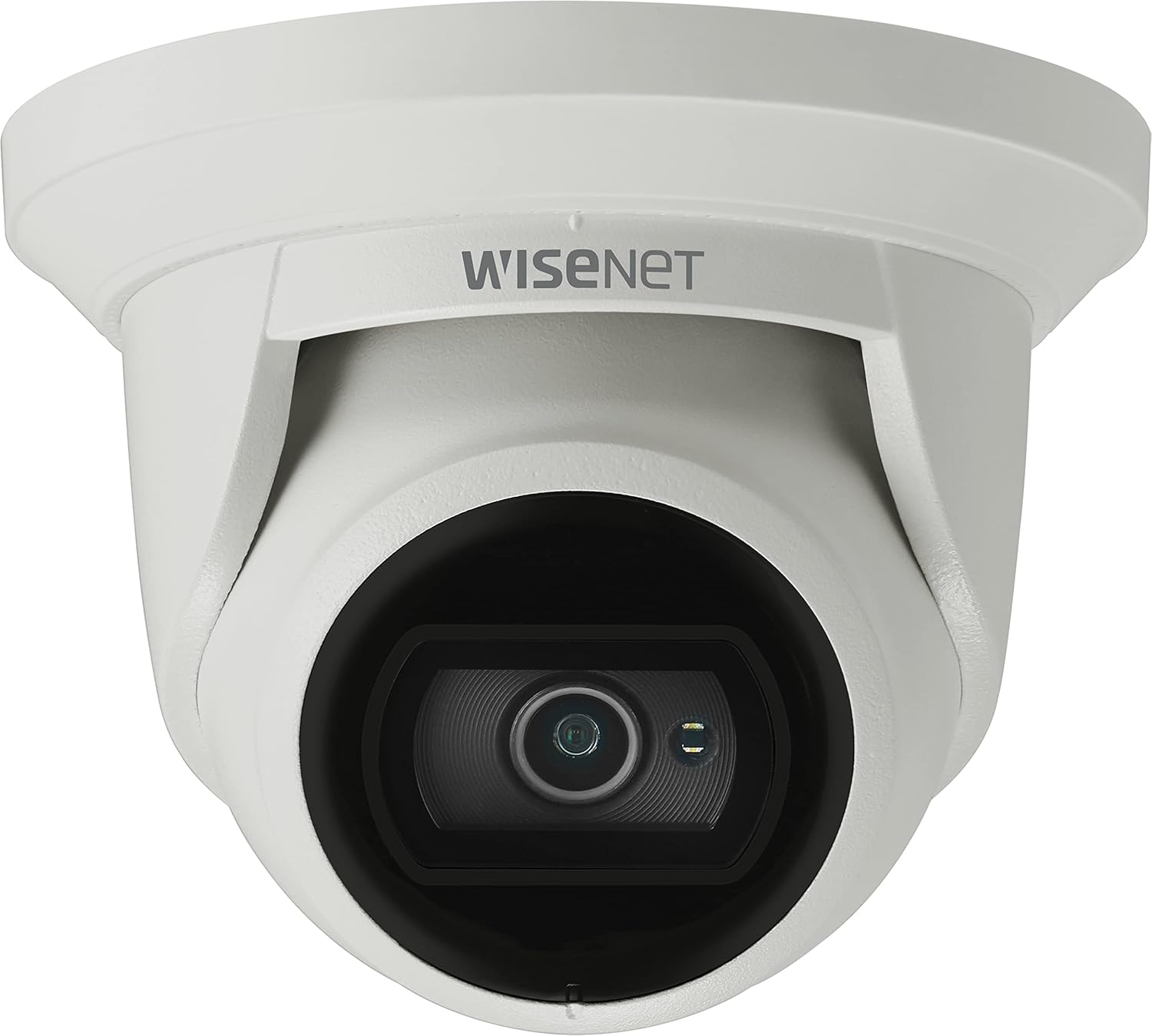

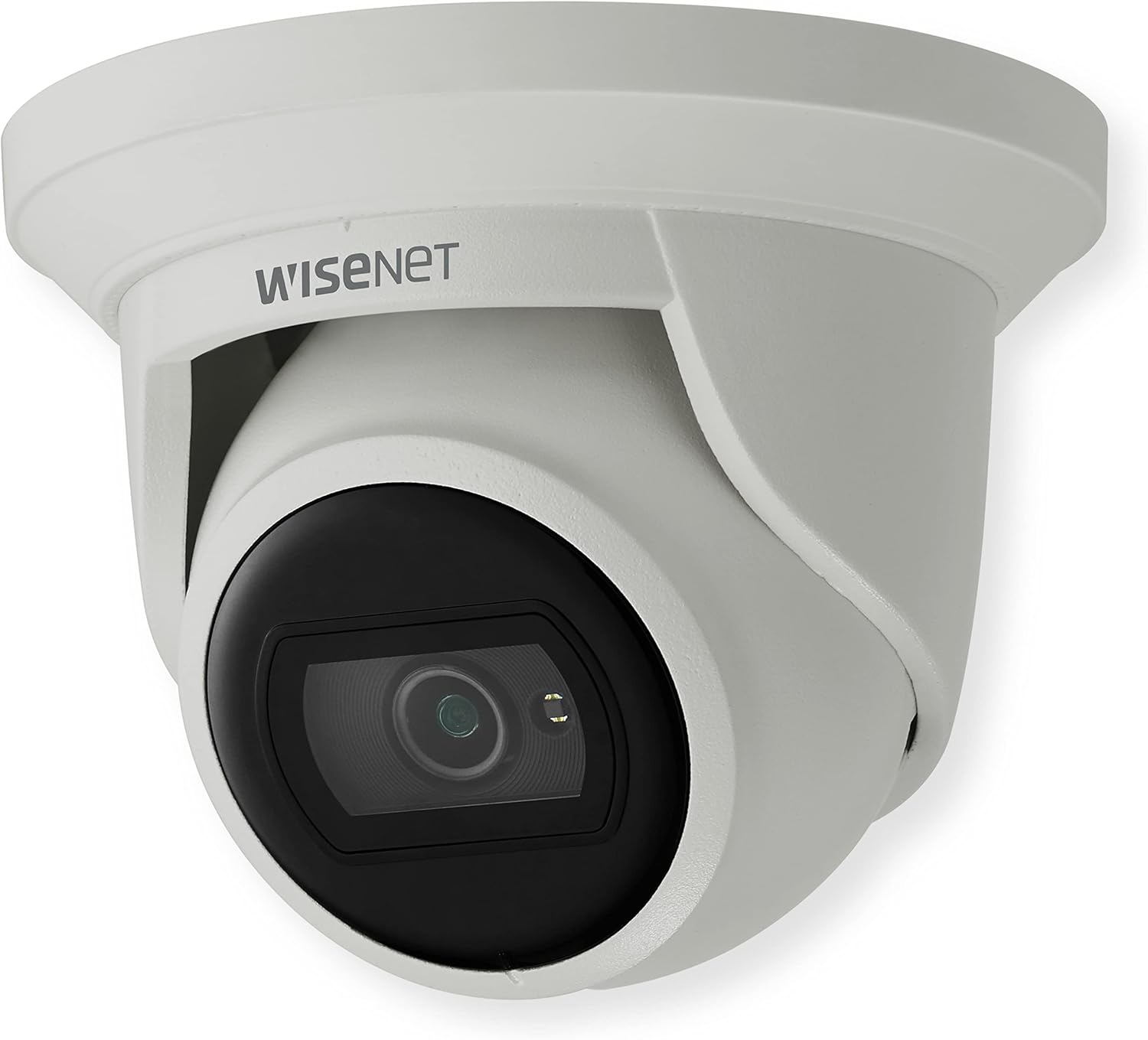

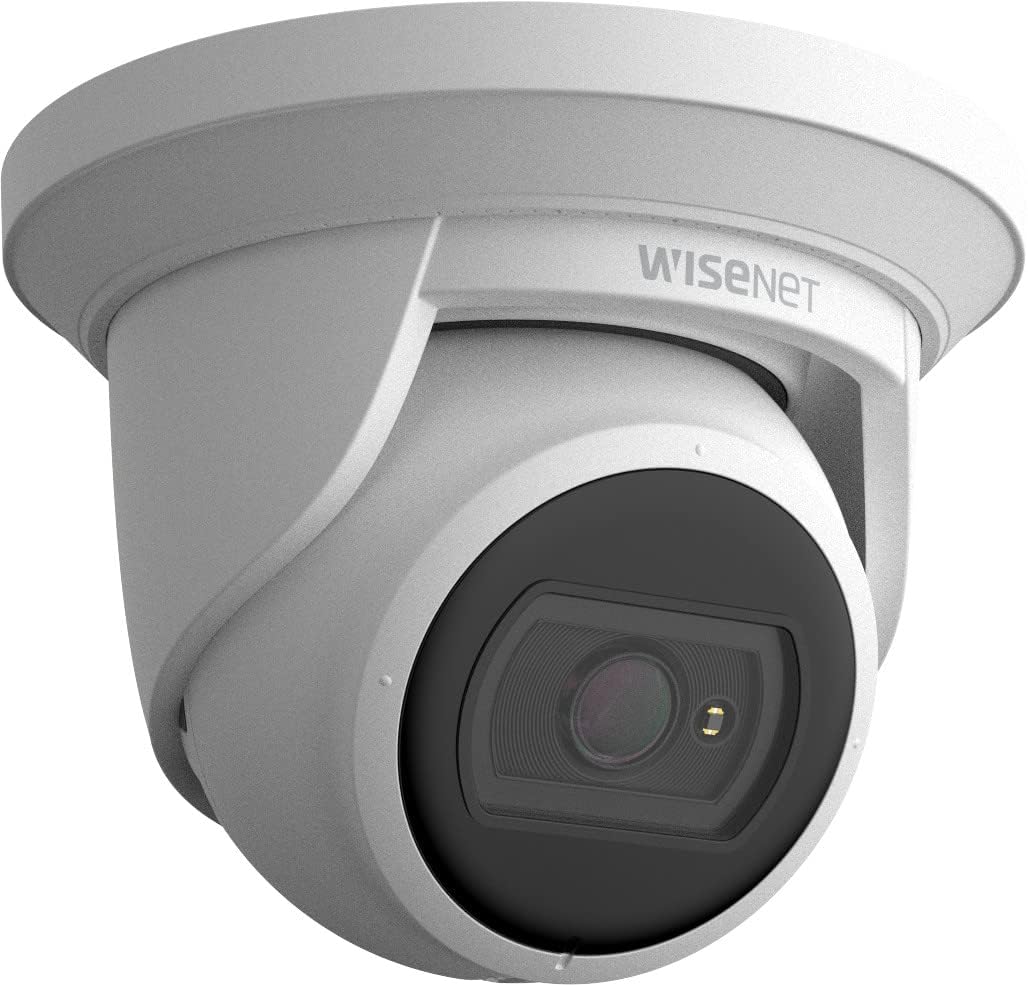

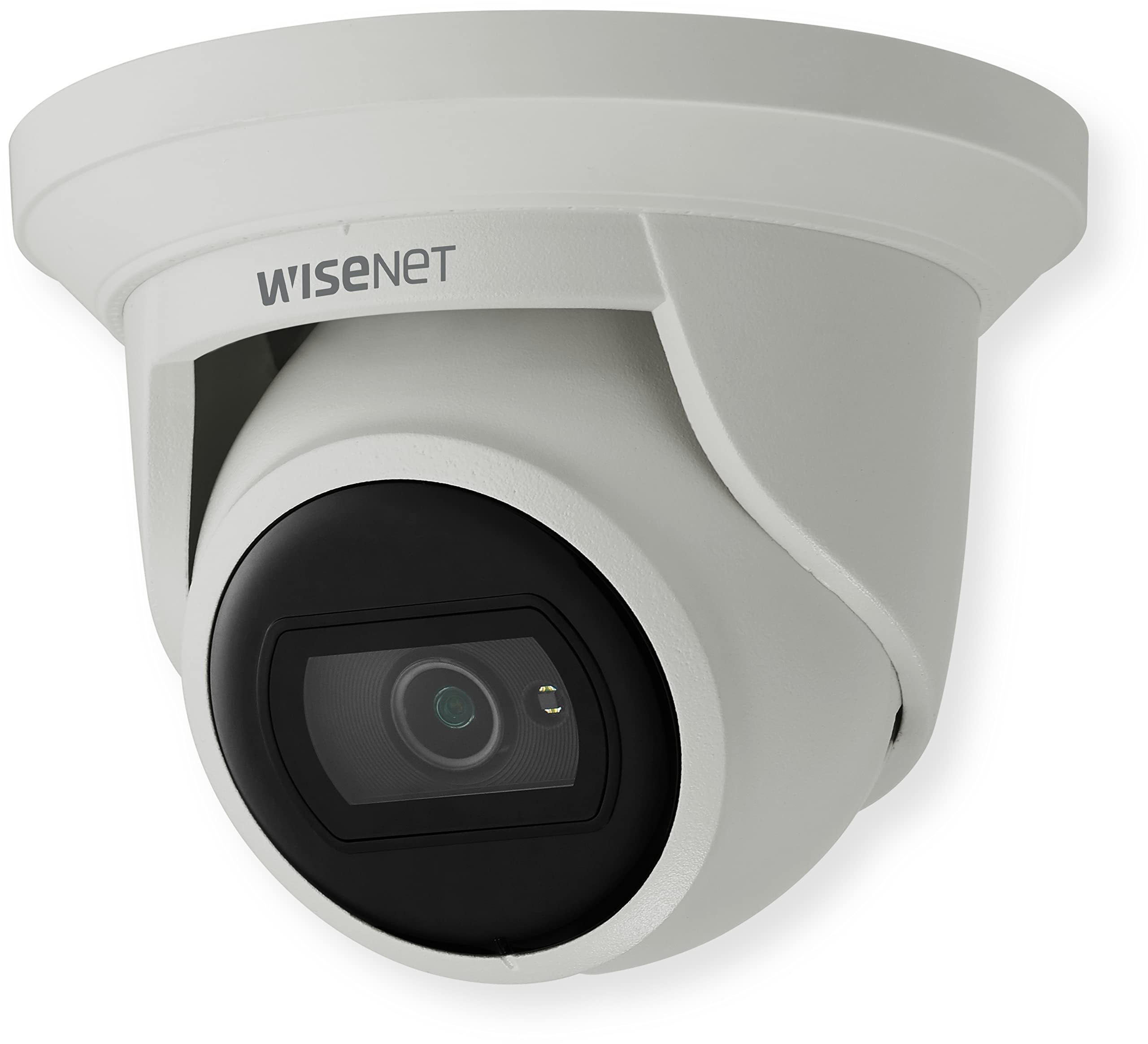

HANWHA ANE-L6012R Wisenet 2MP Super-Compact IR Flateye Camera, 1920 x 1080 Resolution, Built-in 3mm Fixed Lens
Customize
Wisenet ANE-L6012R 2MP Super-Compact IR Flateye Camera, 1920 x 1080 Resolution, Built-in 3mm Fixed Lens, 30 fps at All Resolutions, Built-in Micro SD/SDHC Memory SlotKey Features:- 2 megapixel (1920 x 1080) resolution- Built-in 3mm fixed lens- 30fps@ all resolutions (H.265/H.264)- H.265/H.264, MJPEG codec supported, Multiple streaming- Day & Night (ICR), WDR (120dB)- Virtual Line Crossing/Directional Detection, Enter/Exit, Tampering, Motion detection- Micro SD/SDHC memory slot (Max. 32GB), PoE- Hallway view, WiseStream II support- IR viewable length 20m- IP67,IK10 supportSpecifications:- Imaging Device: 1/2.8" CMOS- Resolution: 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360- Max. Framerate: H.265/H.264 : Max. 30fps/25fps(60Hz/50Hz) MJPEG : Max. 10fps- Focal Length (Zoom Ratio): 3mm fixed focal- Angular Field of View: H: 107.7° / V: 59.0° / D: 126.7°- Focus Control: Fixed- Pan / Tilt / Rotate Range: 0°~350° / 0°~67° / 0°~355°- Day & Night: Auto(ICR)- Wide Dynamic Range: 120dB- Motion Detection: 4ea, rectangler zones- Privacy Masking: 6ea, rectangular zones- Video Rotation: Flip, Mirror, Hallway view(90˚/270˚)- Alarm Triggers: Analytics- Ethernet: RJ-45- Analytics: Motion detection, Tampering, Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction)- Webpage Language: English- Edge Storage: Micro SD/SDHC 1slot 32GB- Memory: 512MB RAM, 256MB Flash- Input Voltage: PoE(IEEE802.3af, Class3)- Power Consumption: Max 6.6W, Typical 4.8W- Color / Material: White / Plastic, Aluminum- Dimensions: 4.92 x 4.92 x 3.44 inches- Overall Weight: 1.3 pounds
- Day & Night (ICR), WDR (120dB)
- H.265/H.264, MJPEG codec supported, Multiple streaming
- 30fps@ all resolutions (H.265/H.264)
- Built-in 3mm fixed lens
- 2 megapixel (1920 x 1080) resolution
Specifications:
| Materials & Construction | |
| Color | White |
| Material | Plastic, Aluminum |
| Product Details | |
| Alert Type | Motion Only |
| Connectivity Protocol | Wi-Fi |
| Controller Type | Iris |
| Form Factor | Cube |
| Mounting Type | Wall Mount |
| Number of Items | 1 |
| Photo Sensor Technology | CMOS |
| Recommended Uses For Product | Outdoor Security |
| Room Type | Hallway |
| Unit Count | 1.0 Count |
| Video Capture Format | MJPEG, MP4 |
| Video Capture Resolution | 1080p, 480p |
| Wattage | 6.6 watts |
| Wireless Communication Technology | Wi-Fi |
| Sizing & Dimensions | |
| Height | 3.44 inches |
| Length | 4.92 inches |
| Product Dimensions | 4.92 x 4.92 x 3.44 inches |
| Weight | 1.39 pounds |
| Width | 4.92 inches |
| Technical Specifications | |
| International Protection Rating | IP67 |
| Special Feature | Motion Sensor |
