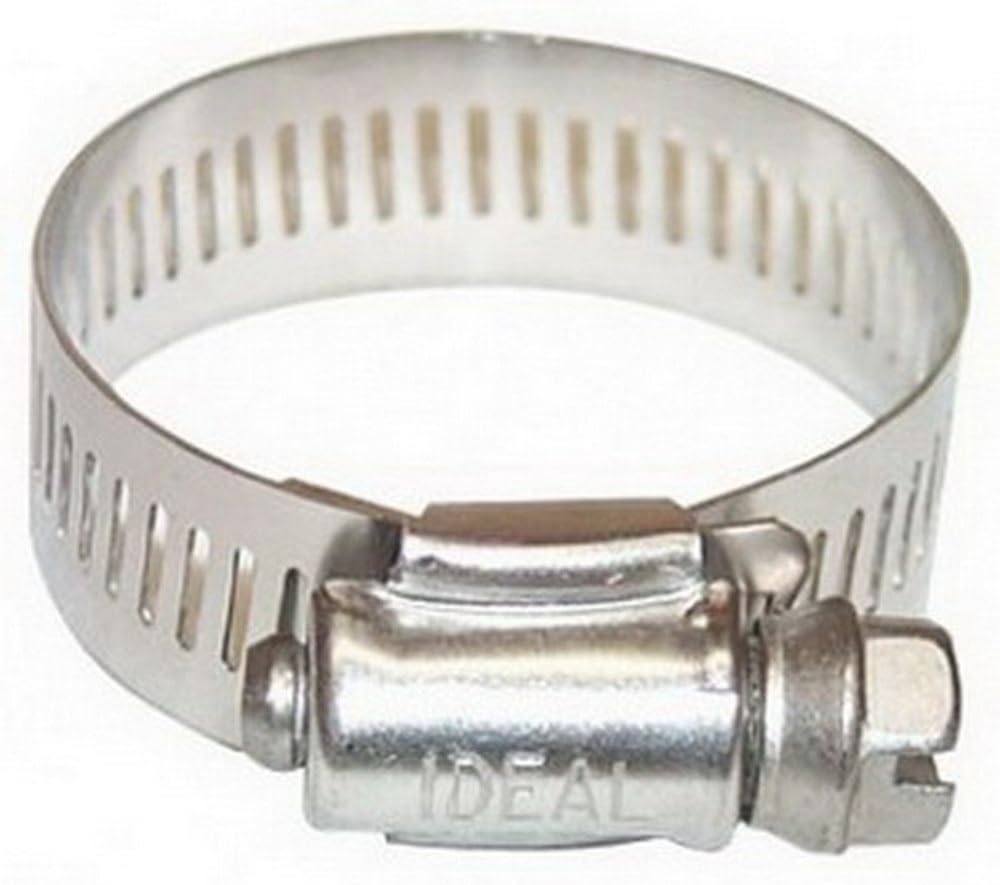

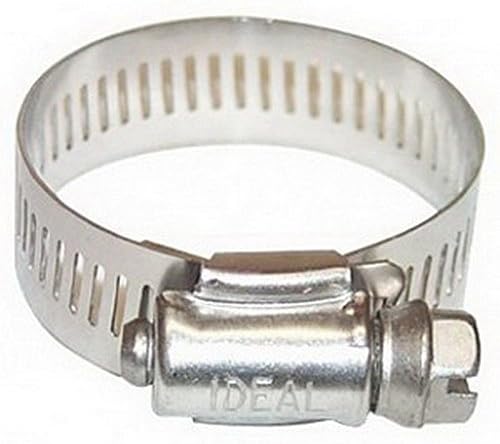

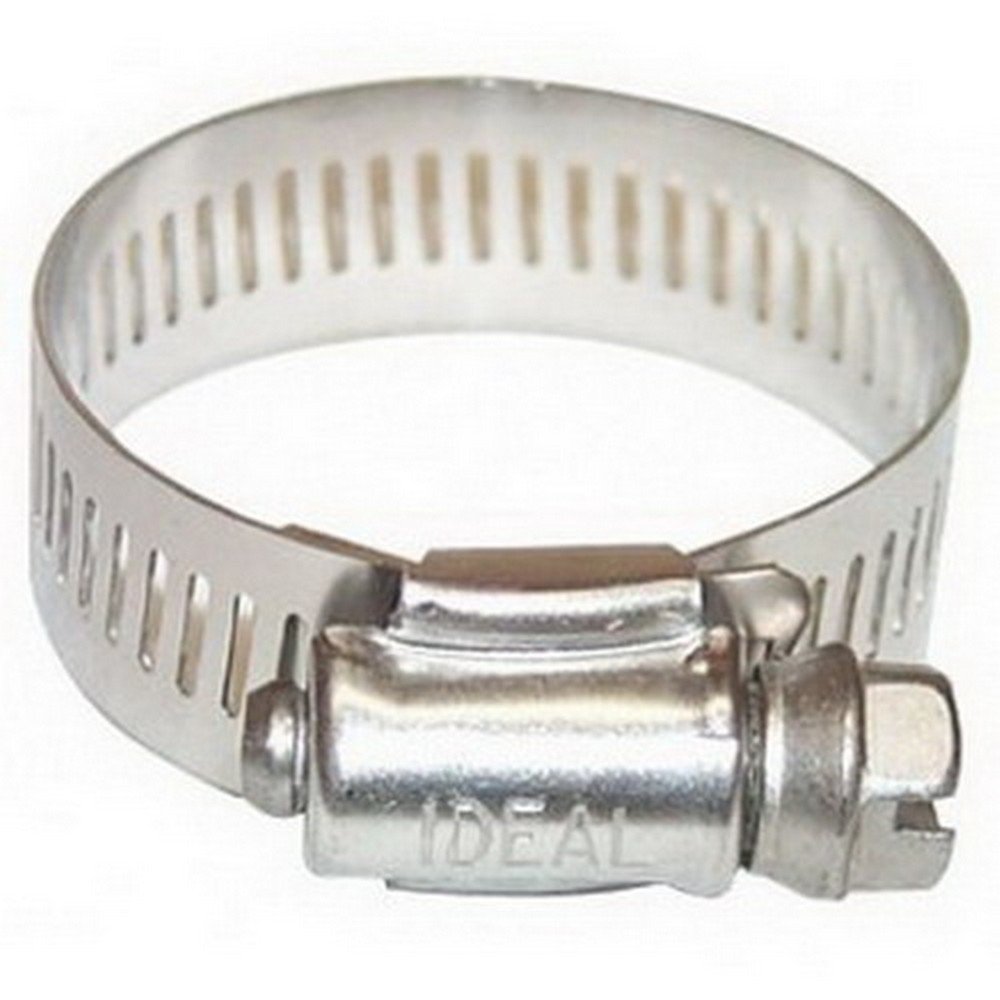

Ideal-Tridon 6260651 '62M Series' Micro-Gear 5/16" Band 201/301 Stainless Steel Clamp
Customize
Worm Gear Clamp: SAE 6, 5/16 to 7/8" Dia, Stainless Steel Band 5/16" Wide, Stainless Steel Housing, Stainless Steel Screw, Series 350, Clamp Type: Miniature Worm Drive, Minimum Diameter (Fractional Inch): 5/16, Maximum Diameter (Inch - Fraction - 4 Decimals): 7/8, Band Material: Stainless Steel, Band Width: 0.3125in, Band Width (Inch): 5/16, SAE Size: 6, Drive Type: Hex, Housing Material: Stainless Steel, Screw Material: Stainless Steel, Hex Size: 0.2500in, Hex Size (Inch): 1/4, Series: 350, Material Grade: 301, Width (Inch): 5/16, Size: 5/16 in, Screw Type: Hex Head, Material: Stainless Steel, Number Of Pieces: 10. MINI CLAMPS are tiny, tough, precision engineered miniature clamps for tenacious connections on small diameter hose and tubing. Made of extra high nickel alloy stainless steel (300 series). Seals only with 10 pounds of tightening torque. Slotted, 7/4 inch hex-headed screw. Slim line construction for easy installation in confined areas. Engineered to withstand high pressure and marine environmental conditions. Comes 10 to the box. Min Diam 5/16 inch Max Diam 7/8 inch.
- This clamp has 1/4 inch hex-head screw, steel plated -SAE 6
Specifications:
| Materials & Construction | |
| Band Material | Stainless Steel |
| Housing Material | Stainless Steel |
| Material | Stainless Steel |
| Screw Material | Stainless Steel |
| Product Details | |
| Clamp Type | Miniature Worm Drive |
| Drive Type | Hex |
| Hex Size | 0.2500in |
| Hex Size (Inch) | 1/4 |
| Material Grade | 301 |
| Number Of Pieces | 10 |
| Screw Type | Hex Head |
| Series | 350 |
| UNSPSC Code | 31171712 |
| Sizing & Dimensions | |
| Band Width | 0.3125in |
| Band Width (Inch) | 5/16 |
| Height | 1.56 inches |
| Item dimensions L x W x H | 2.63 x 1.88 x 1.56 inches |
| Length | 2.63 inches |
| Minimum Diameter (Fractional Inch) | 5/16 |
| Product Dimensions | 2.63 x 1.88 x 1.56 inches |
| Size | 5/16 in |
| Tensile Strength | 10 Pounds |
| Weight | 0.32 ounces |
| Width (Inch) | 5/16 |
| Width | 1.88 inches |
| Technical Specifications | |
| Global Trade Identification Number | 00078575626062 |
| Tensile Strength | 10 Pounds |
| UPC | 078575626062 |
