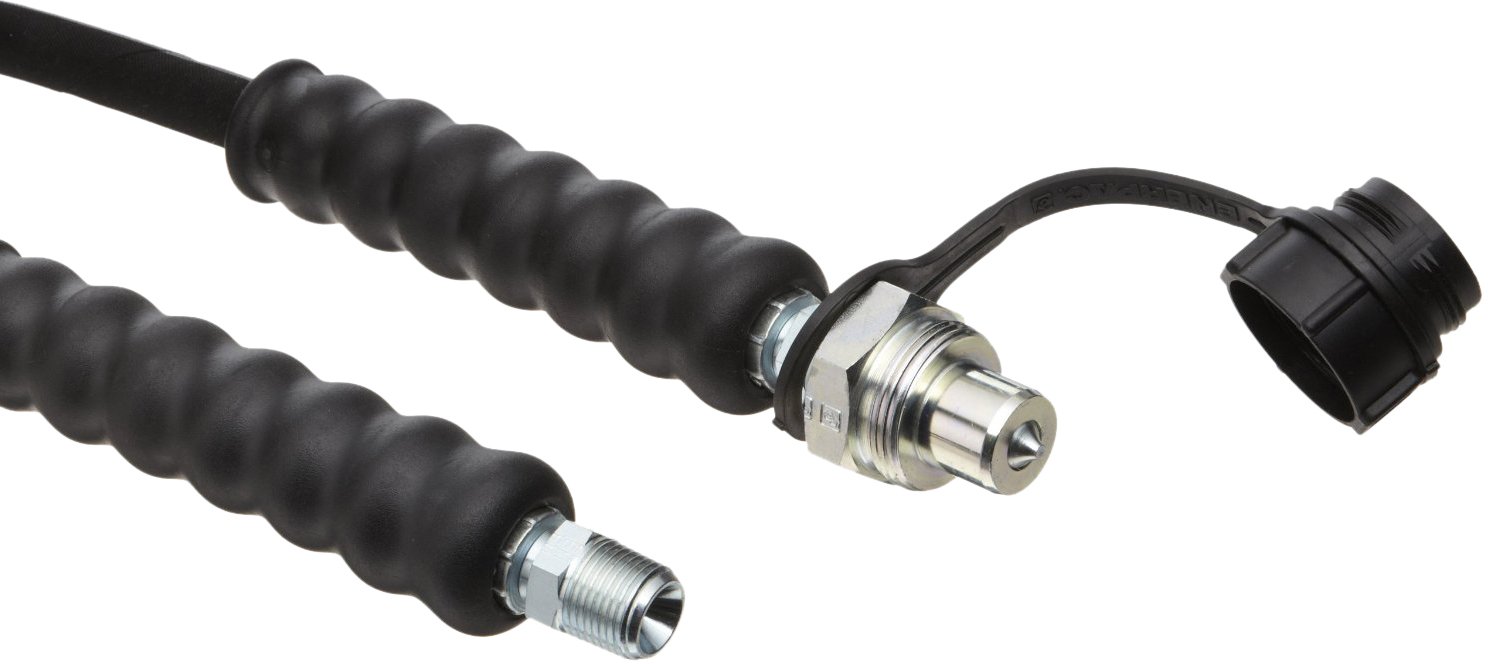

Enerpac HC-9206 6' High Pressure Hydraulic Hose CH-604 Coupler 3/8" Thread
Customize
This Enerpac HC-7206 hydraulic hose is for use with high-pressure applications such as hydraulic jacks and has a maximum working pressure of 10,000 (pounds per square inch) psi. It is 6' in length, with an outer rubber jacket for resistance to abrasion and two layers of steel wire braids for strength and resistance to expansion. It has a rubber strain relief crimped on each end for improved life and durability, with a 3/8" NPTF (National Pipe Thread Fuel) fitting on one end and a CH-604 fitting on the other.Industrial hoses transfer or convey air or liquid in hose systems. When selecting industrial hoses, use the STAMPED method to help determine the type of hose needed:S = Size (ID, OD, and length)T = Temperature (maximum and minimum temperatures of material being transported)A = Application (industry or process)M = Material (to be conveyed, type and concentration)P = Pressure (maximum working pressure)E = Ends (type of end connectors or couplings on hose)D = Delivery method (volume and velocity)The inside diameter of the hose must be adequate to keep pressure loss to a minimum and avoid damage to the hose due to heat generation or excessive turbulence. The hose must be capable of withstanding the minimum and maximum temperatures that occur within the hose system. Some applications require specialized oils or chemicals to be conveyed through the system. In this case, hose selection must ensure compatibility of the hose tube, cover, couplings and O-rings with the fluid used. Industrial hoses are used in systems such as air compressors, automatic manufacturing operations, aircraft controls, and tire installation in industries including agriculture, mining, road construction, firefighting, and aviation.Enerpac manufactures high-pressure tools and equipment for industrial applications. The company, founded in 1910, is headquartered in Menomonee Falls, WI.
- 3/8" NPTF x CH-604 fittings
- Rubber strain relief crimped on both ends for improved life and durability
- Two layers of steel wire braids for strength and resistance to expansion
- Heavy duty rubber jacket for resistance to abrasion
- Maximum working pressure of 10,000 psi
Specifications:
| Materials & Construction | |
| Color | Black |
| Construction | Two layers of steel wire braids with heavy duty rubber jacket and rubber strain reliefs |
| Hose Material | Rubber |
| Outer Material | Rubber |
| Product Details | |
| End One | 3/8 Npt |
| Maximum Working Pressure (Bar) | 700.00 bar |
| Maximum Working Pressure (Psi - 3 Decimals) | 10000 |
| Model Number | HC-9206 |
| National Stock Number | 4720-00-617-7690 |
| Opposite Hose End | Ch-604 |
| Pressure Rating | 10000 psi |
| Series | H900 |
| Thread Size (Inch) | 3/8 |
| Thread Standard | Nptf |
| Sizing & Dimensions | |
| Inside Diameter | 0.25 inches |
| Length | 72 inches |
| Outside Diameter | 0.0591 inches |
| Product Dimensions | 72"L x 0.38"W |
| Size | 1/4" ID x 6' OAL |
| Weight | 2.4 pounds |
| Width | 0.38 inches |
| Technical Specifications | |
| Maximum Pressure | 10000 Pound per Square Inch |
