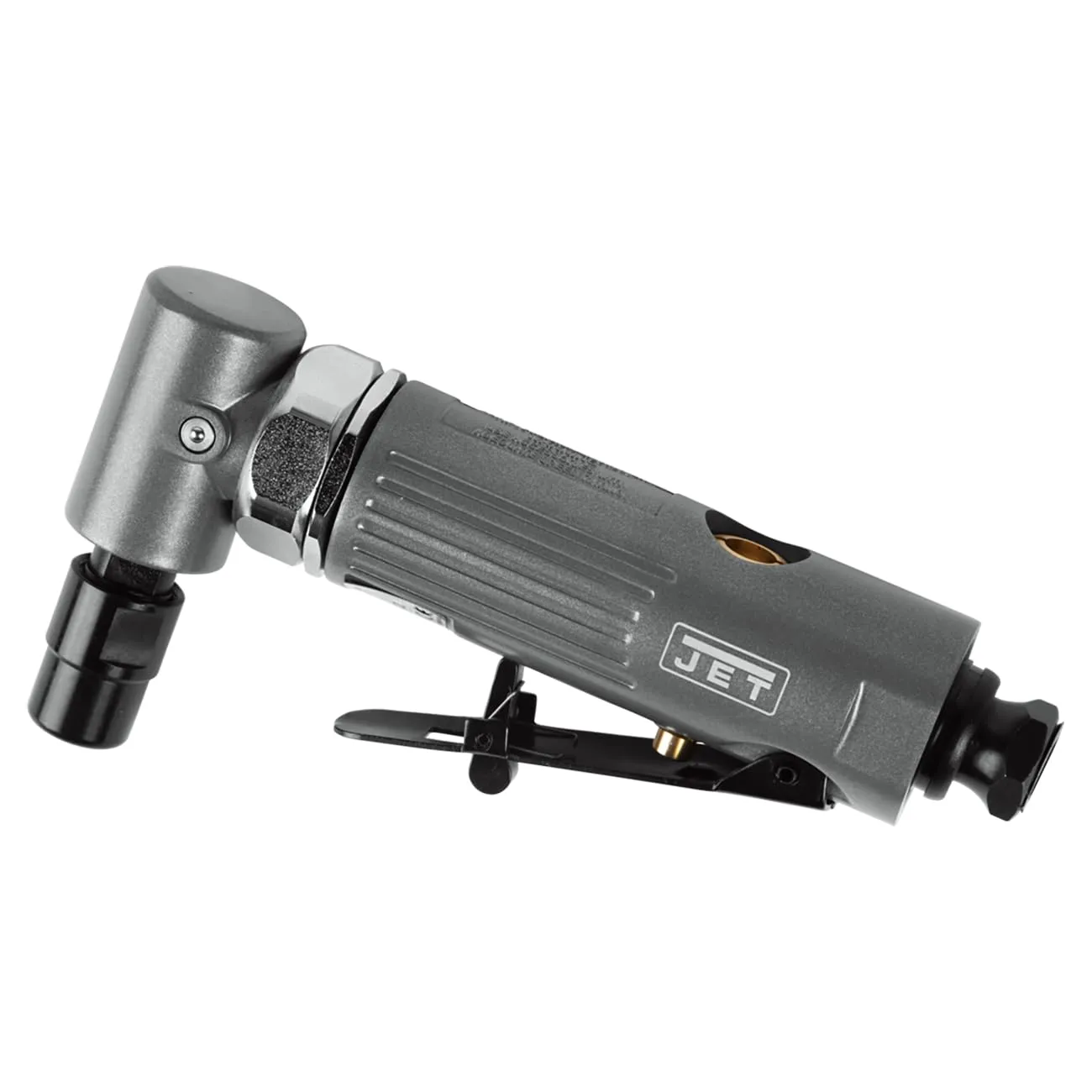

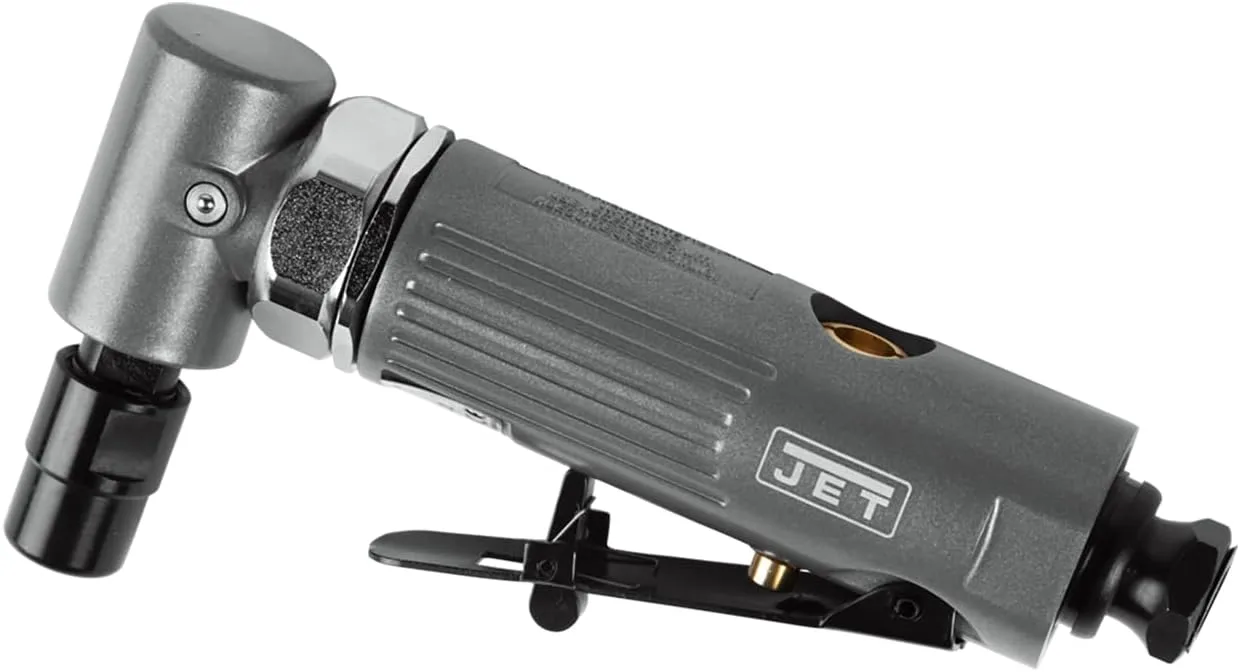

JET 1/4-Inch Pneumatic Right-Angle Die Grinder, 22000 RPM (JAT-403), Gray Right Angle Aluminum
Customize

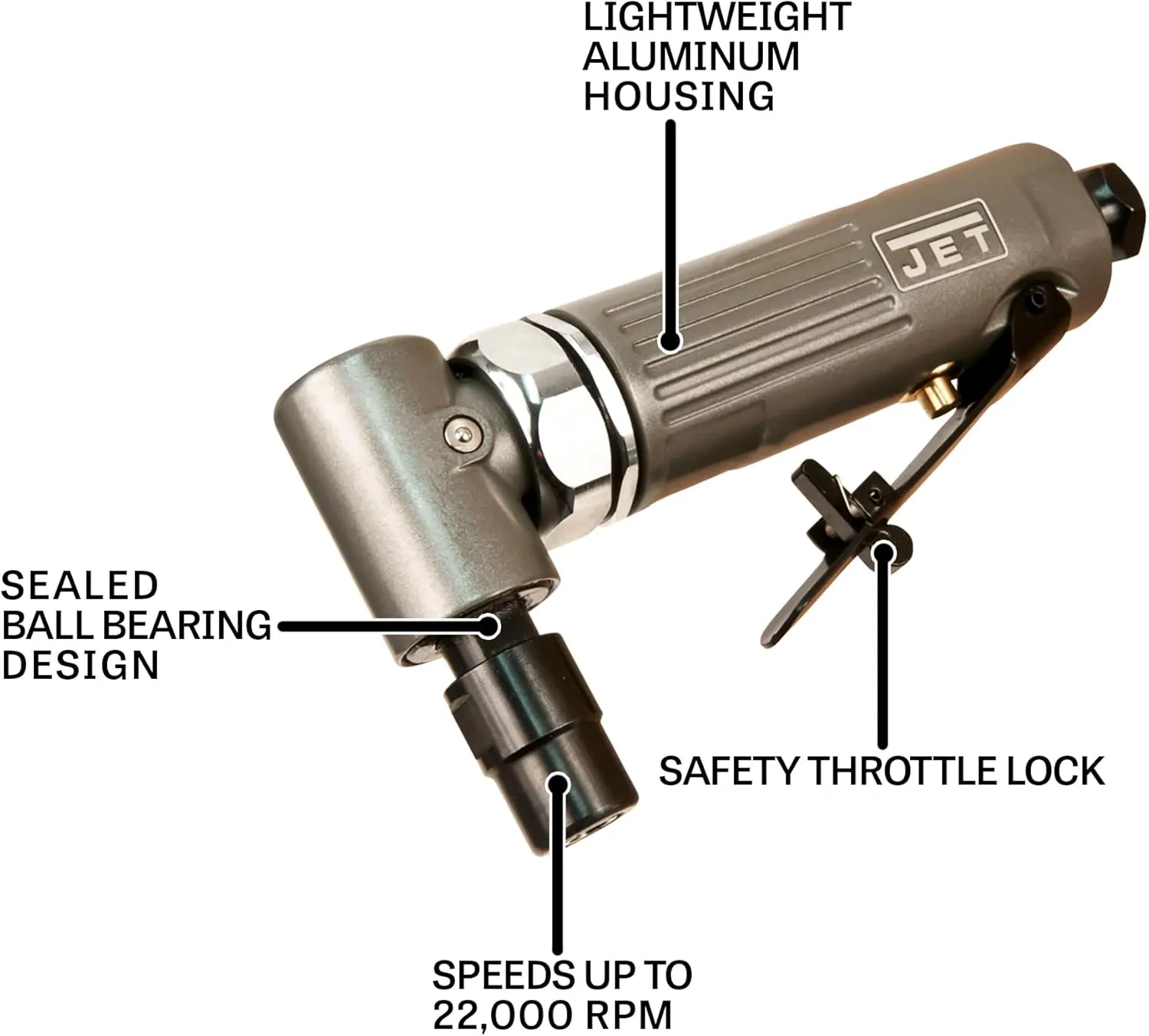

The JAT-403 JET 1/4-Inch Pneumatic Right-Angle Die Grinder is a compact, high-speed pneumatic grinder designed for tight spaces and precision work. Delivering up to 22,000 RPM and 0.3 horsepower, the tool features a 1/4" collet and variable-speed throttle for precise speed control. Built with a right-angle aluminum head and sealed ball bearing design for durability and smooth operation, the grinder includes safety throttle lock to prevent accidental engagement and a rear exhaust. Air consumption is 3.00 CFM at 90 psig. The tool ships with wrenches (x2), a manual, and warranty card. CE certified standards and a built-in regulator enhance user control. Product dimensions (item): 7.74 x 3.78 x 2.05 inches; item weight: 1.32 pounds. Manufacturer part number 505403. Ideal for reaching tight or angled grinding jobs in metalworking and finishing applications.
- Variable-speed throttle ramps up to maximum RPM

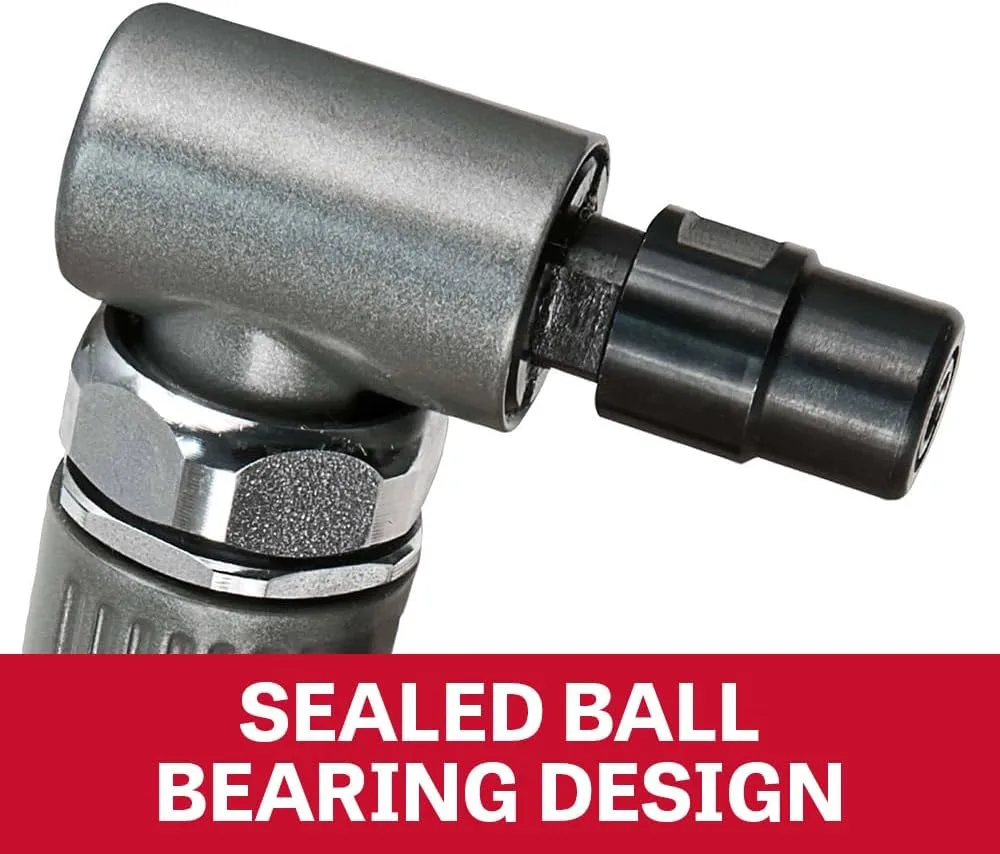

- Sealed ball bearing design keeps out contaminants promoting smooth operation

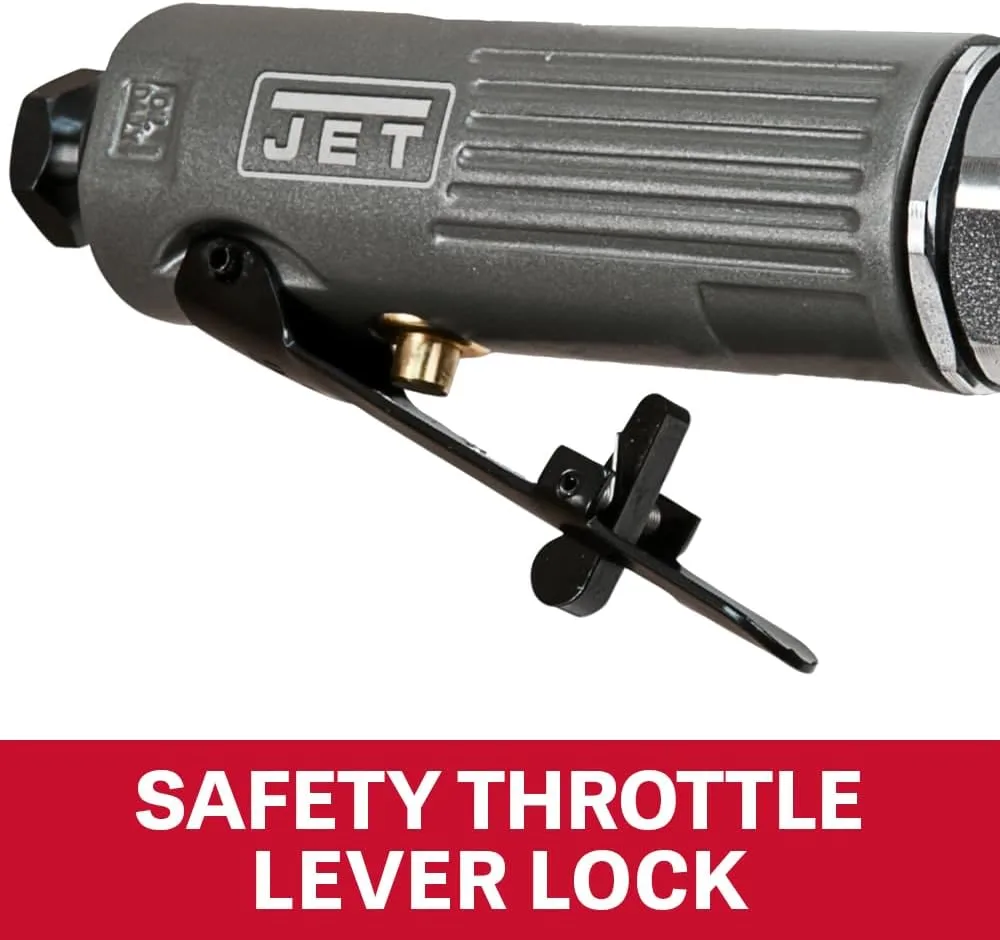

- Safety throttle lock prevents accidental engagement
- Right-angle head design for reaching tight or angled grinding jobs

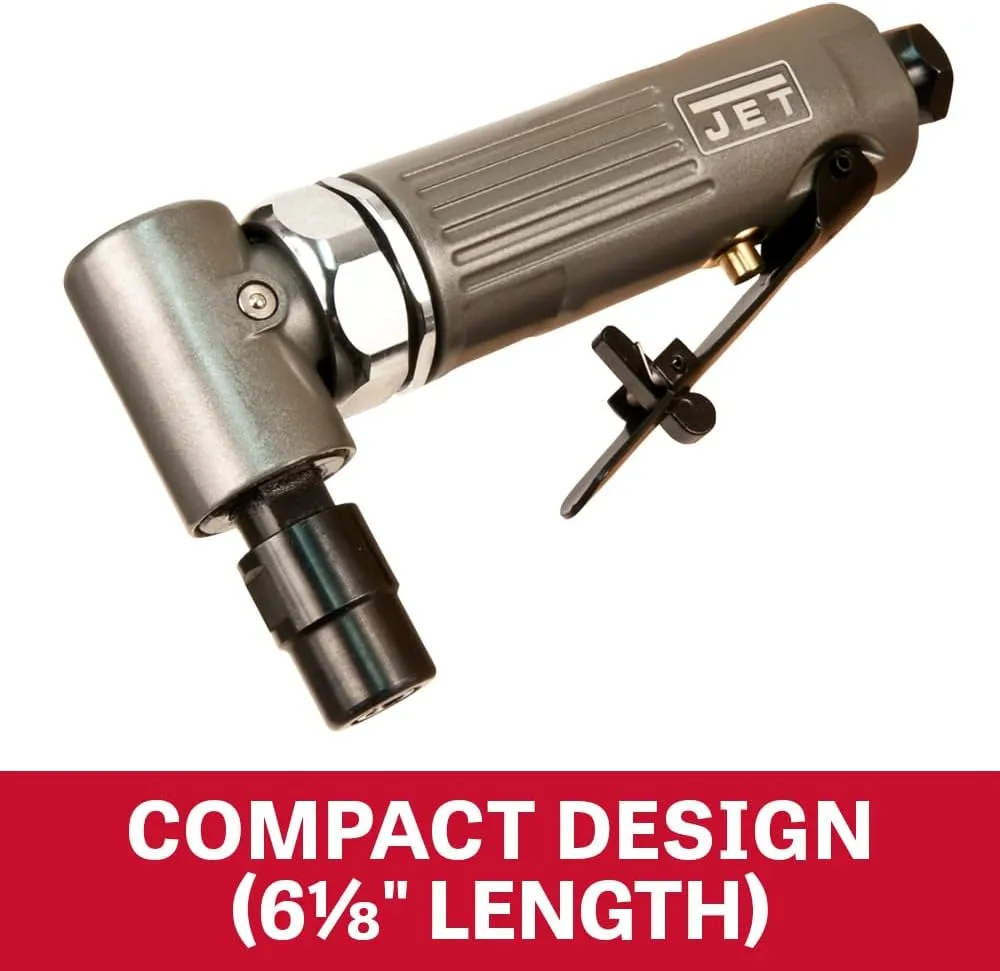

- Mini, compact body design is perfect for tight jobs
- Built-in air regulator for precise speed control
Specifications:
| Materials & Construction | |
| Color | Gray |
| Material | Metal |
| Outer Material | Aluminum |
| Pattern | Aluminum |
| Product Details | |
| Horsepower | 0.30 |
| Included Components | Die Grinder, Wrenches (x2), Manual, Warranty Card |
| Item model number | JAT-403 |
| Item Package Quantity | 1 |
| Maximum Rotational Speed | 22000 RPM |
| Pattern | Aluminum |
| Power Source | Pneumatic |
| Sound Level | 99 Decibels |
| Special Feature | Lightweight, Variable Speed |
| Standards | Ce Certified |
| Style | Right Angle |
| Warranty Description | 2 Year |
| Sizing & Dimensions | |
| Height | 2.05 inches |
| Length | 7.74 inches |
| Product Dimensions | 7.74 x 3.78 x 2.05 inches |
| Size | 1/4 inch collet |
| Weight | 1.32 pounds |
| Width | 3.78 inches |
| Technical Specifications | |
| Air Consumption Cfm | 3.00 |
| Air Pressure (Psig) | 90.00 |
| Collet Size (Inch) | 1/4 |
| Exhaust Location | Rear |
| Handle Type | Straight |
| Head Angle | 90 |
| Speed (Rpm) | 22000 |
| Speed Range (Rpm) | 18000 To 24999 |
| Throttle Type | Lever |
