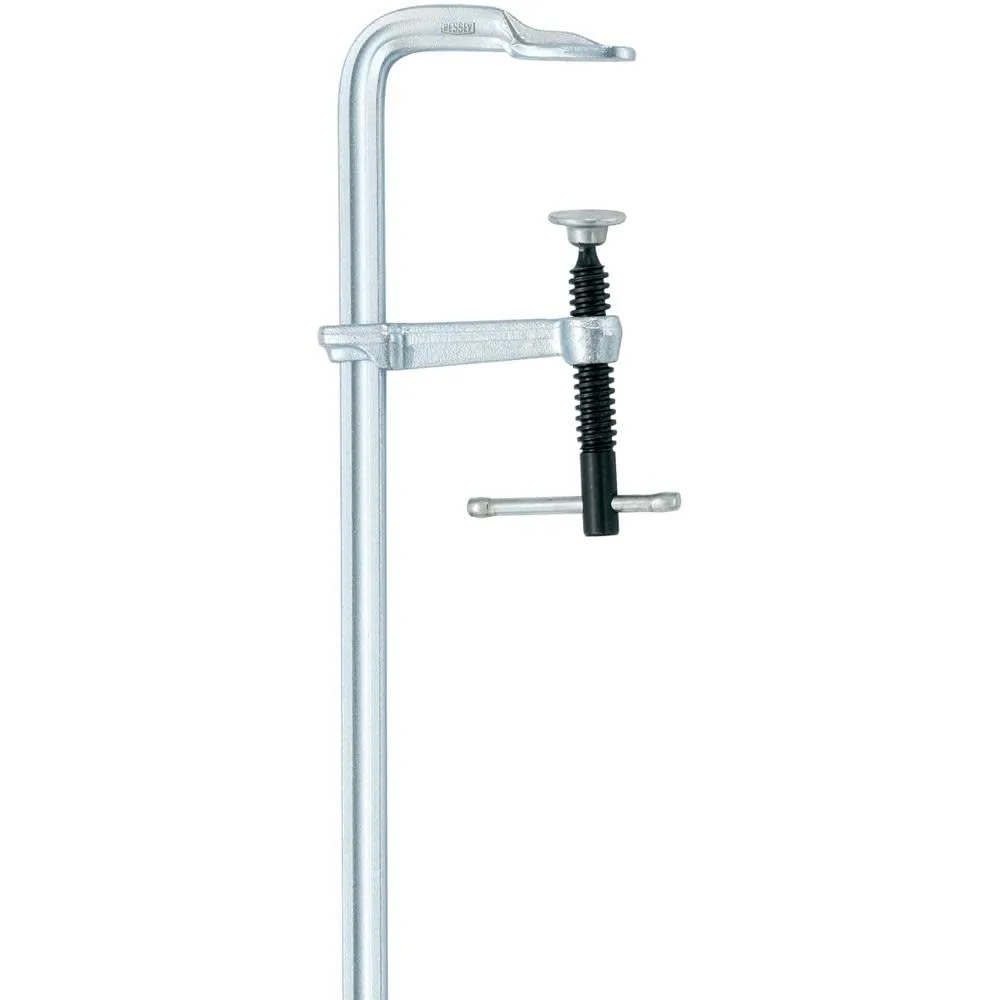

BESSEY MMS-4 Sliding Arm Bar Clamp - 4 in Capacity, 2-1/4 in Throat
Customize
PRODUCT DESCRIPTION A single sliding arm clamp can do the work of many different sizes of "C" clamp and, can do it nine times faster! The MMS series are very popular tools. Thay are th smallest of the all-steel shop floor line-up of clamps. These small clamps are great to have in your tool bag as they are light weight yet can be depended upon to create 400 ponds of clamping force time & time again. Designed & manufactured for years of dependable service. The MMS series may be small in comparison to other all-steel industrial clamps, but they are still packed with the features you've come to expect from a Bessey. Designed & manufactured for years of dependable service, these clamps are made in BESSEY's own German production facilities and, from steel that comes from BESSEY's own European steel mills BESSEY. Simply better. FROM THE MANUFACTURER The Mighty Mini all steel sliding arm moves to position itself right next to your workpiece to support the Acme threaded screw. Stronger and 9 times faster than a C-clamp. General Purpose, Light Duty All Steel Sliding Arm Clamp. 4" Capacity, 2-1/4" Throat Depth, 660 lbs Clamping Pressure.
- Does the work of c-clamps … but does it 9x faster
- Steel sliding T-bar handle
- Drop forged, electro-galvanized steel sliding arm
- After bending and forming of the fixed jaw the rails are heat treated for maximum strength
- Clamp rail and fixed jaw are created from a single piece of BESSEY cold drawn steel
- Standard swivel pressure pads built for solid dependable performance
Specifications:
| Materials & Construction | |
| Color | Zinc Galvanized |
| Material | Alloy Steel |
| Pad Material | Steel |
| Spindle Material | High Carbon Steel |
| Product Details | |
| Clamp Type | F-Style |
| Finish | Electrogalvanized |
| Frame Material | Steel |
| Handle Material | Forged Steel |
| Handle Style | T-Handle |
| Includes | Standard Crimped On Swivel Pads; Standard Rail Profile |
| Model Number | MMS-4 |
| Pad Material | Steel |
| Pad Type | Standard |
| Series | Mms |
| Spindle Material | High Carbon Steel |
| Style | MMS-4, 4 In.. |
| Sizing & Dimensions | |
| Height | 1.33 inches |
| Length | 4 inches |
| Maximum Capacity (Inch) | 4.0000 |
| Product Dimensions | 4 x 2 x 1.33 inches |
| Rail Length (Inch) | 4.00 |
| Rail Size (Inch) | 17/32 X 1/4 |
| Spindle Diameter (Decimal Inch) | 0.4650 |
| Throat Depth (Decimal Inch) | 2.2500 |
| Throat Depth (Inch) | 2-1/4 |
| Weight | 11.84 ounces |
| Width | 2 inches |
| Technical Specifications | |
| Clamping Pressure | 400lb |
| Included Components | Unit^Instruction Guide |
| Item Package Quantity | 1 |
| Power Source | Hand Powered |
| Tensile Strength | 660 Pounds |
