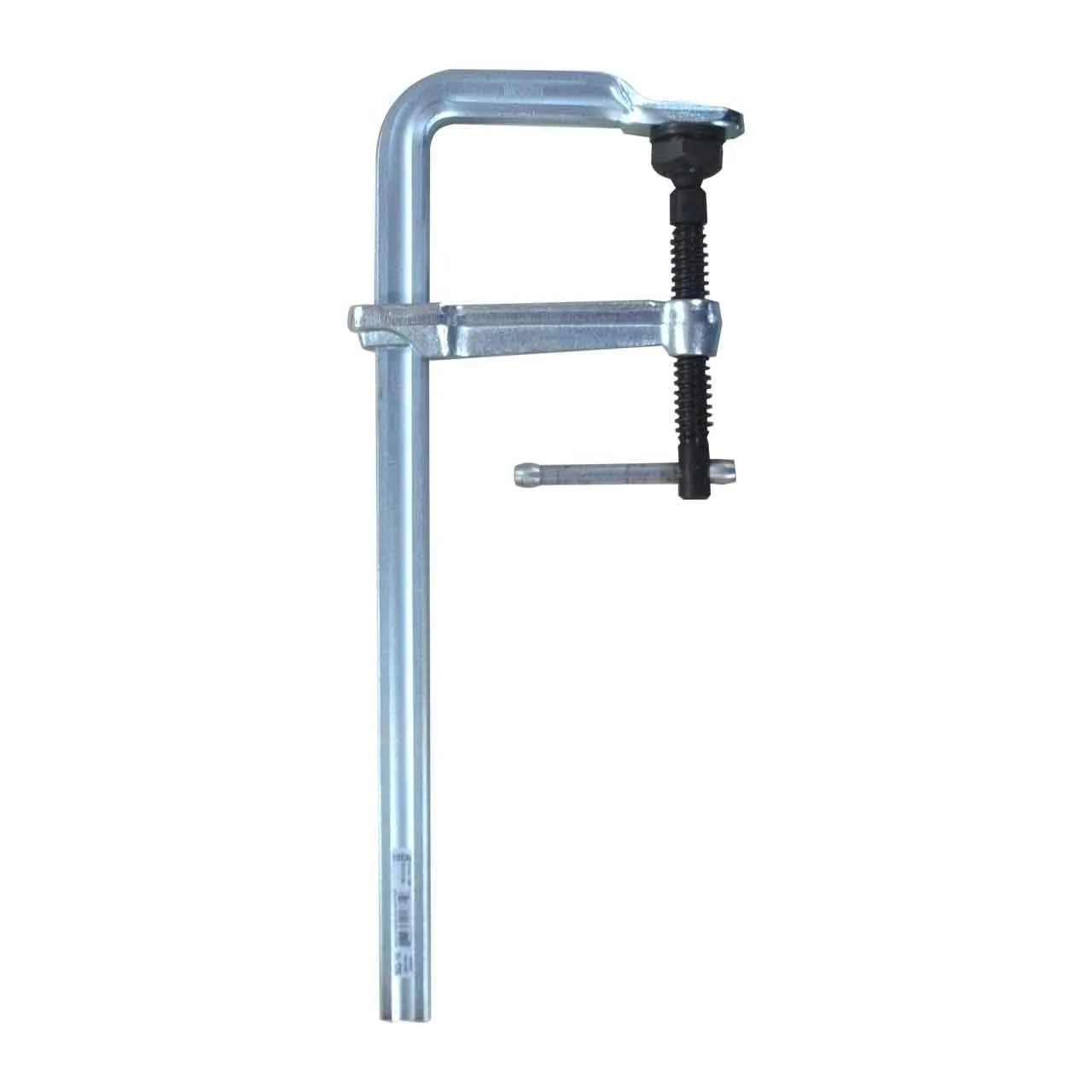

BESSEY SQ-16 Sliding Arm Bar Clamp, 16" Capacity, 5-1/2" Throat
Customize
This Bessey SQ Series Regular-Duty F-Style Welding Bar Clamp is an all-steel clamp that delivers dependable performance. The perfect mix of size and strength, this clamp is designed to do the work of a standard C-clamp but do it up to 9 times faster. The sliding arm moves directly to the point of application and from there a quick tightening handle system will have you working in seconds. 16in. clamping capacity; 5 1/2in. throat depth; 2660-lb. clamping force. Product features include a heavy-duty pad, steel pad material, high carbon steel spindle, forged steel handle, electrogalvanized finish, and Series SQ. Includes heavy-duty pad and standard rail profile. Suitable for shop and welding applications where fast, reliable clamping is required.
Specifications:
| Materials & Construction | |
| Color | Zinc-plated |
| Finish | Electrogalvanized |
| Frame Material | Steel |
| Handle Material | Forged Steel |
| Material | Alloy Steel |
| Pad Material | Steel |
| Spindle Material | High Carbon Steel |
| Product Details | |
| Clamp Type | F-Style |
| Finish | Electrogalvanized |
| Frame Material | Steel |
| Handle Material | Forged Steel |
| Handle Style | T-Handle |
| Includes | Heavy-Duty Pad; Standard Rail Profile |
| Pad Material | Steel |
| Pad Type | Heavy-Duty |
| Rail Length (Inch) | 16.00 |
| Rail Size (Inch) | 1-3/16 X 19/32 |
| Series | Sq |
| Spindle Diameter (Decimal Inch) | 0.7750 |
| Spindle Material | High Carbon Steel |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 21 inches |
| Maximum Capacity (Inch) | 16.0000 |
| Product Dimensions | 21 x 8 x 2 inches |
| Throat Depth (Decimal Inch) | 5.5000 |
| Throat Depth (Inch) | 5-1/2 |
| Weight | 7.4 pounds |
| Width | 8 inches |
| Technical Specifications | |
| Clamping Pressure | 2660lb |
| Tensile Strength | 2660 Pounds |
