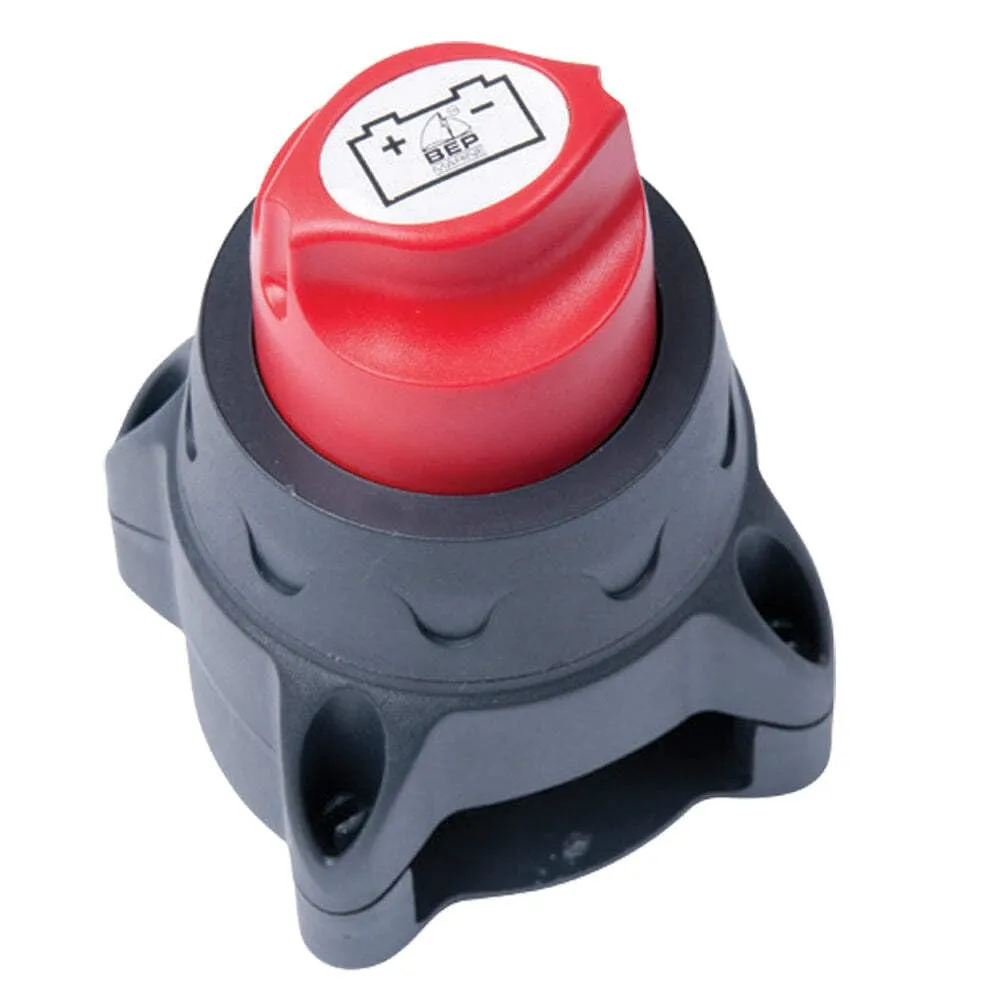

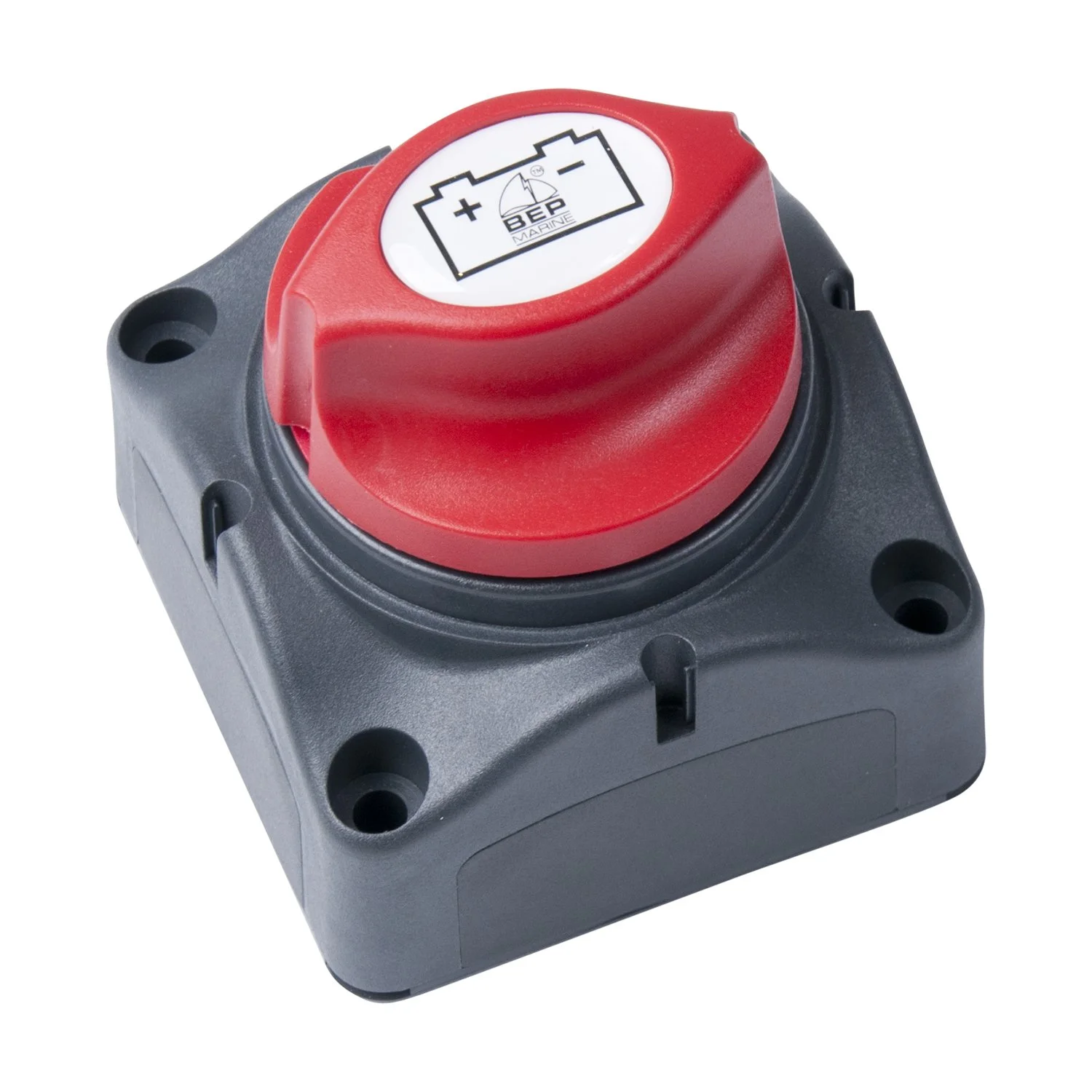

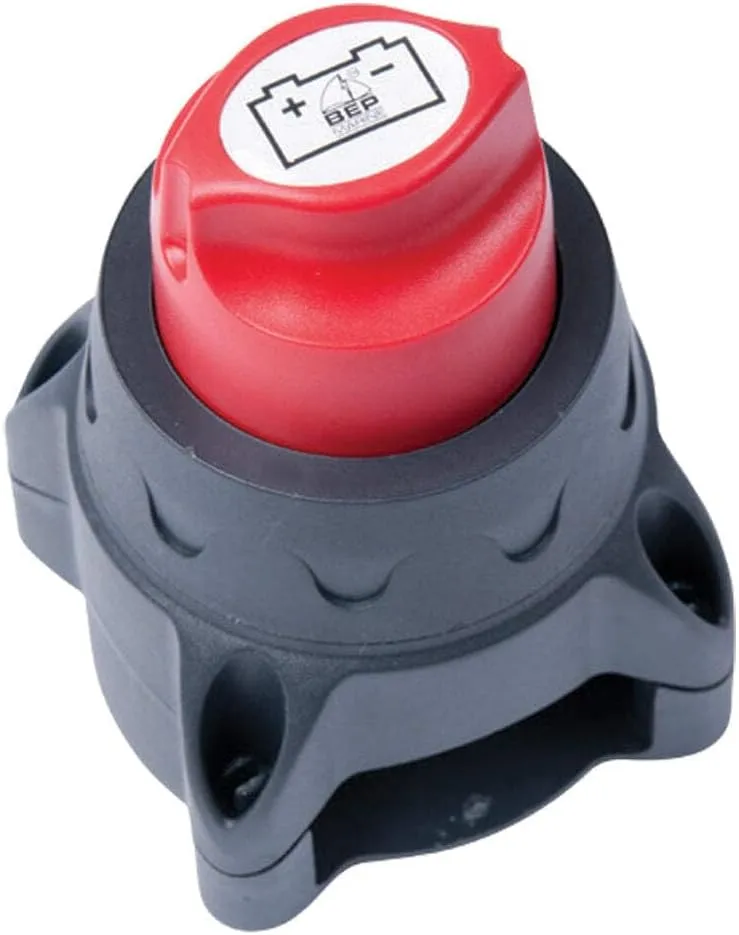

BEP Battery Switches and Selector Switches
Customize

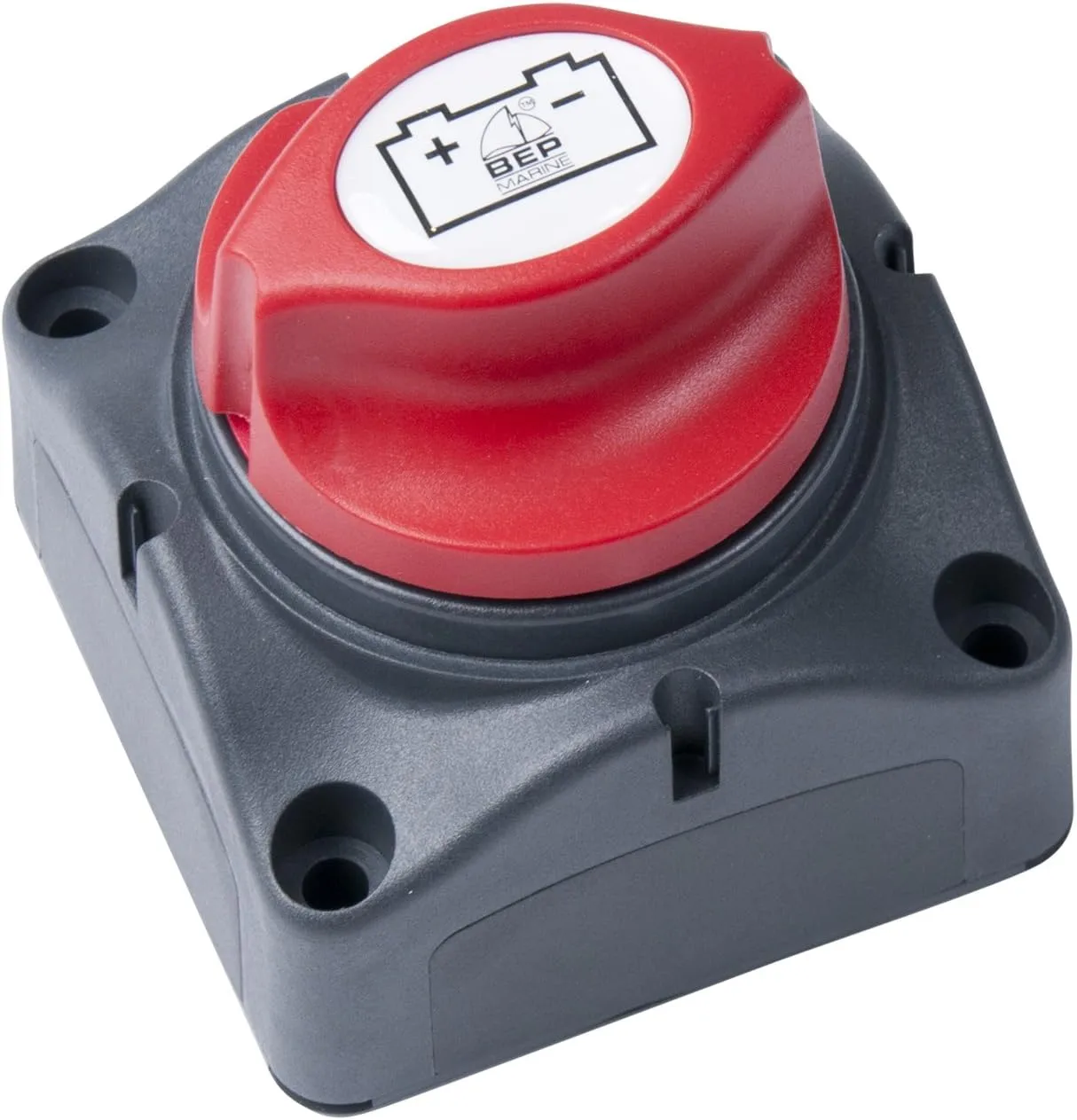

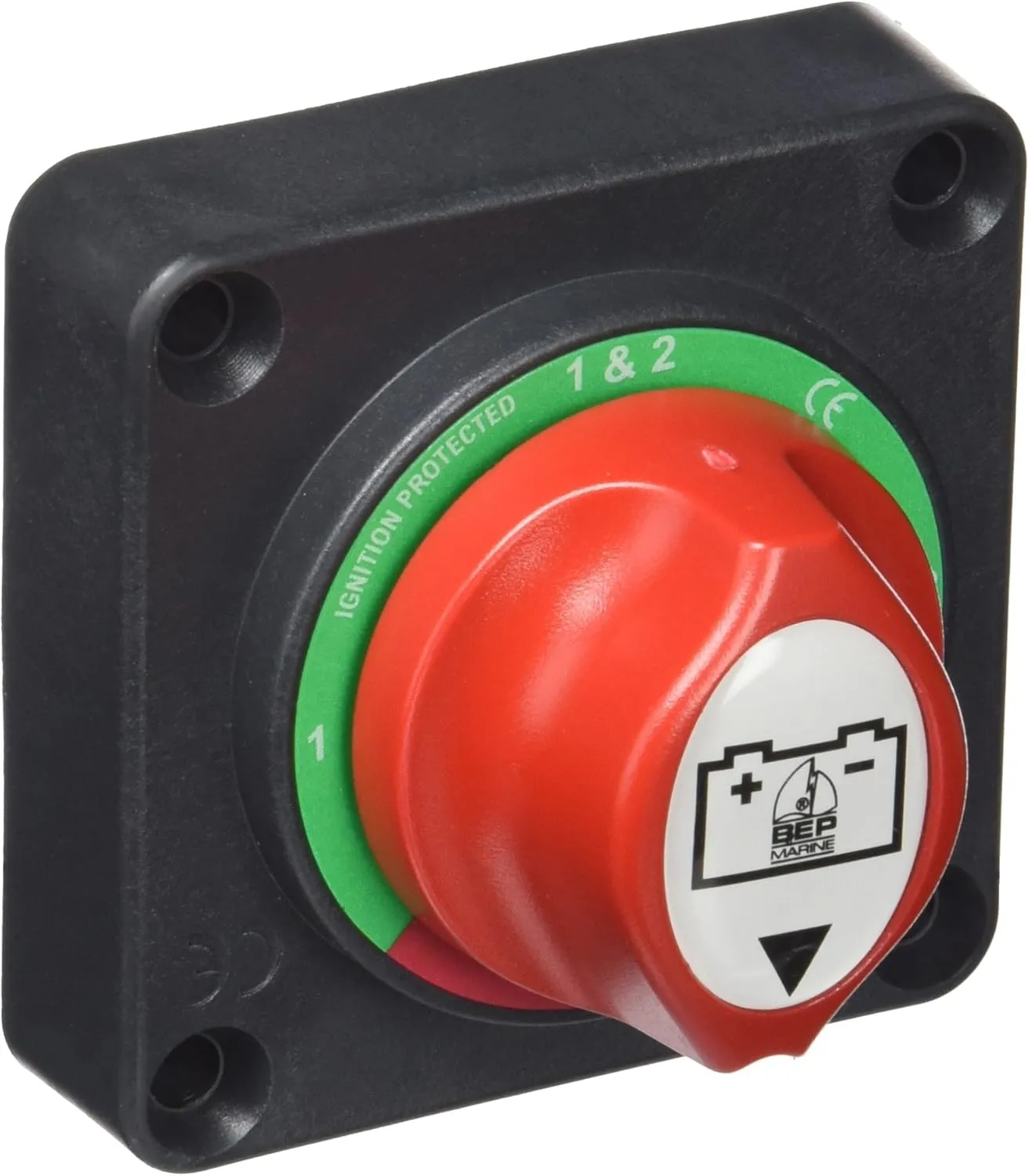

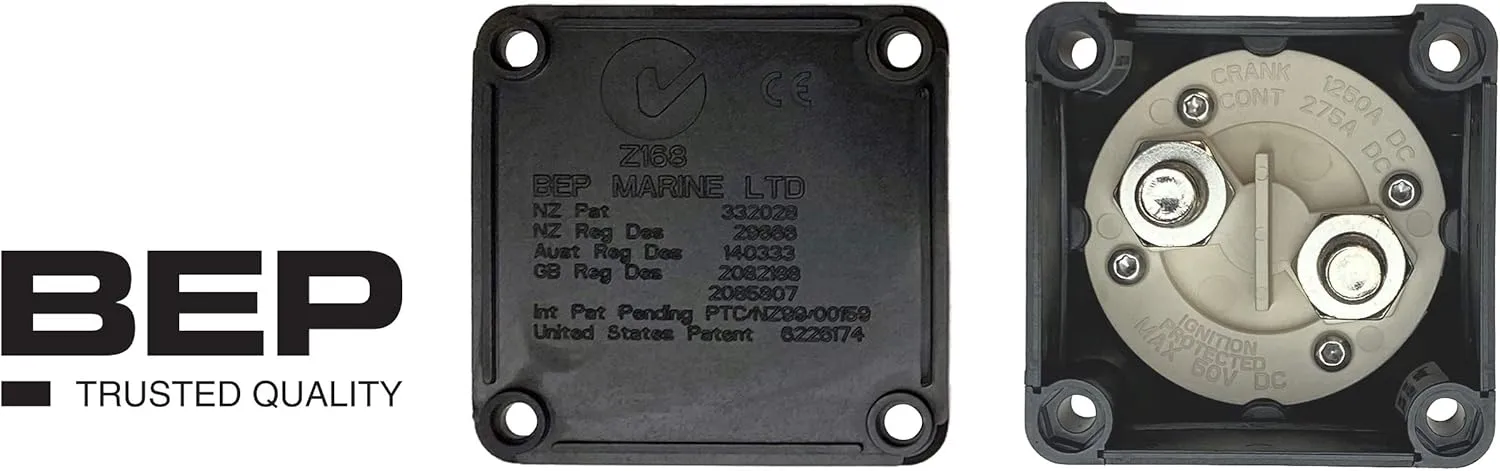

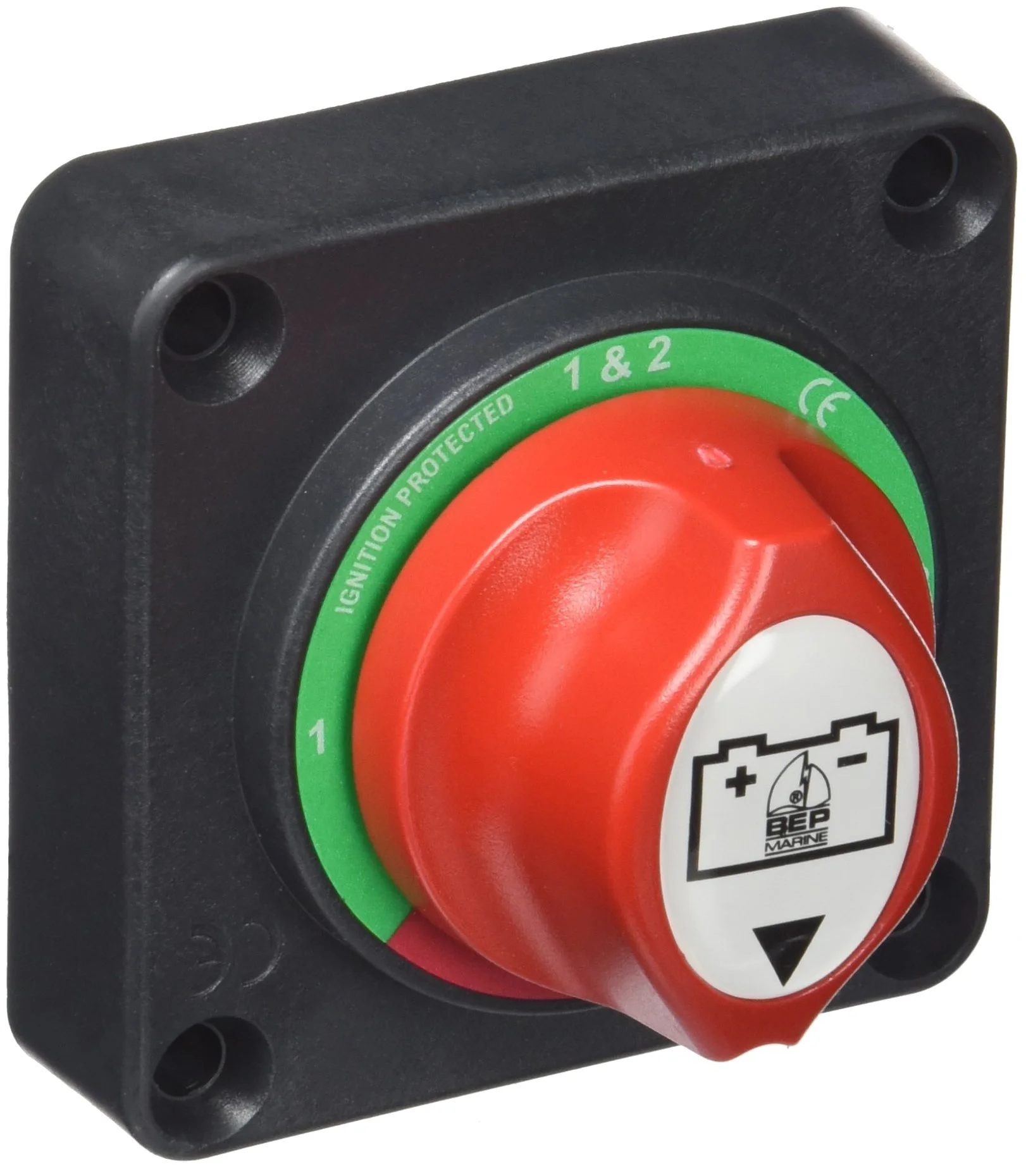

BEP battery switches and selector switches provide a range of compact, panel- and recess-mount solutions for marine, automotive and battery management systems. Common features across the range include removable keys or control knobs with interchangeable labeling, removable rear covers to insulate terminals and meet ABYC requirements, removable side plates for larger cable access, and tin-plated copper studs (with some models using stainless contacts). Many models fit the standard 2.1" (52 mm) gauge hole cutout and offer surface or recess mounting options. Continuous ratings in the family typically include 200A and 275A with specified intermittent and cranking ratings tested to determine terminal temperature rise; all units are ignition-protected and independently tested to UL 1107 procedures. These switches are suited for master disconnect, selector (1-2-Both-Off) and panel-mounted master switch applications where reliable battery isolation and management are required.
- Tin-plated copper studs and nuts
- Available with house knob (OEM # 701B-HB) or with chassis knob (OEM # 701B-CH)

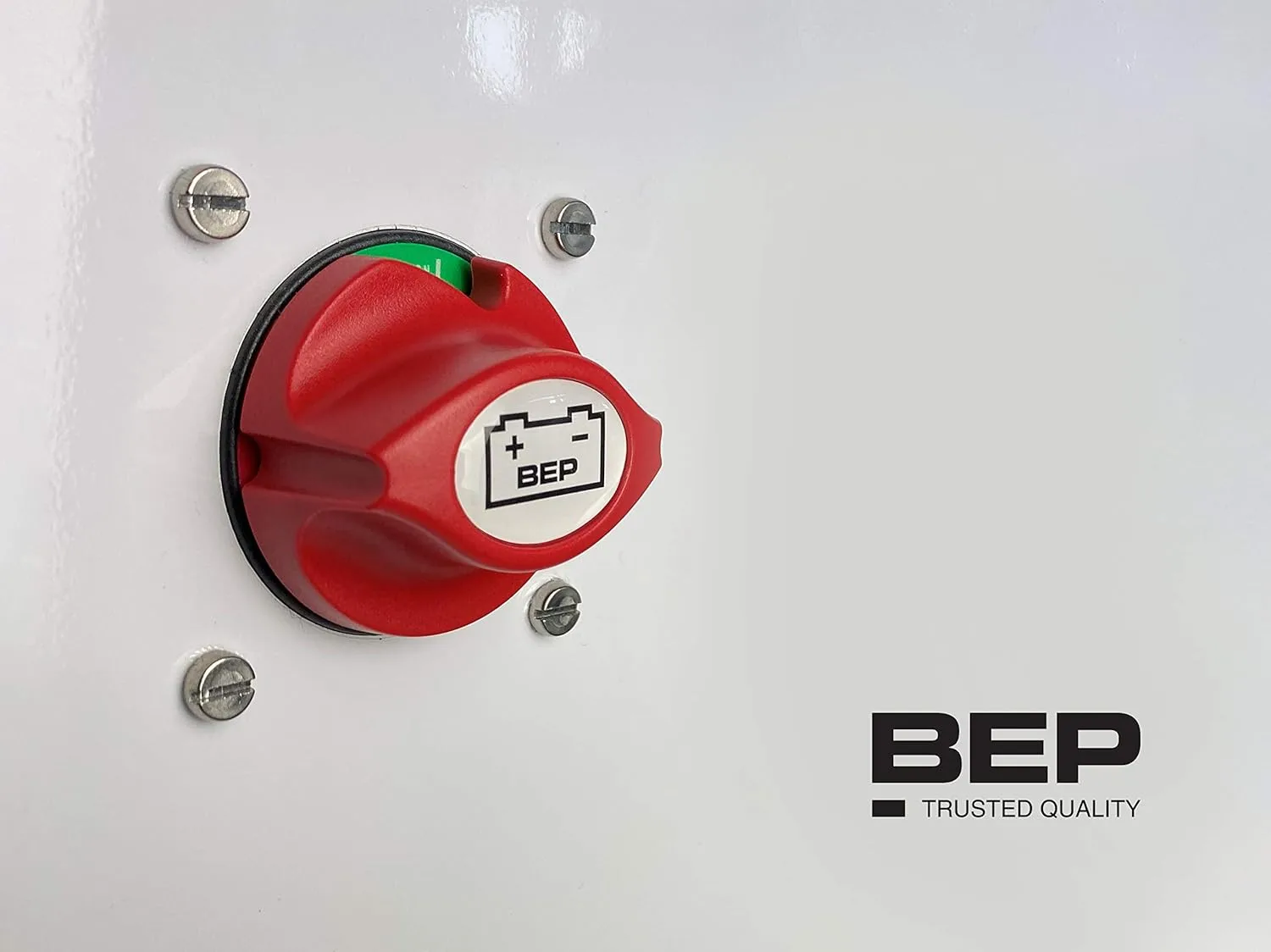

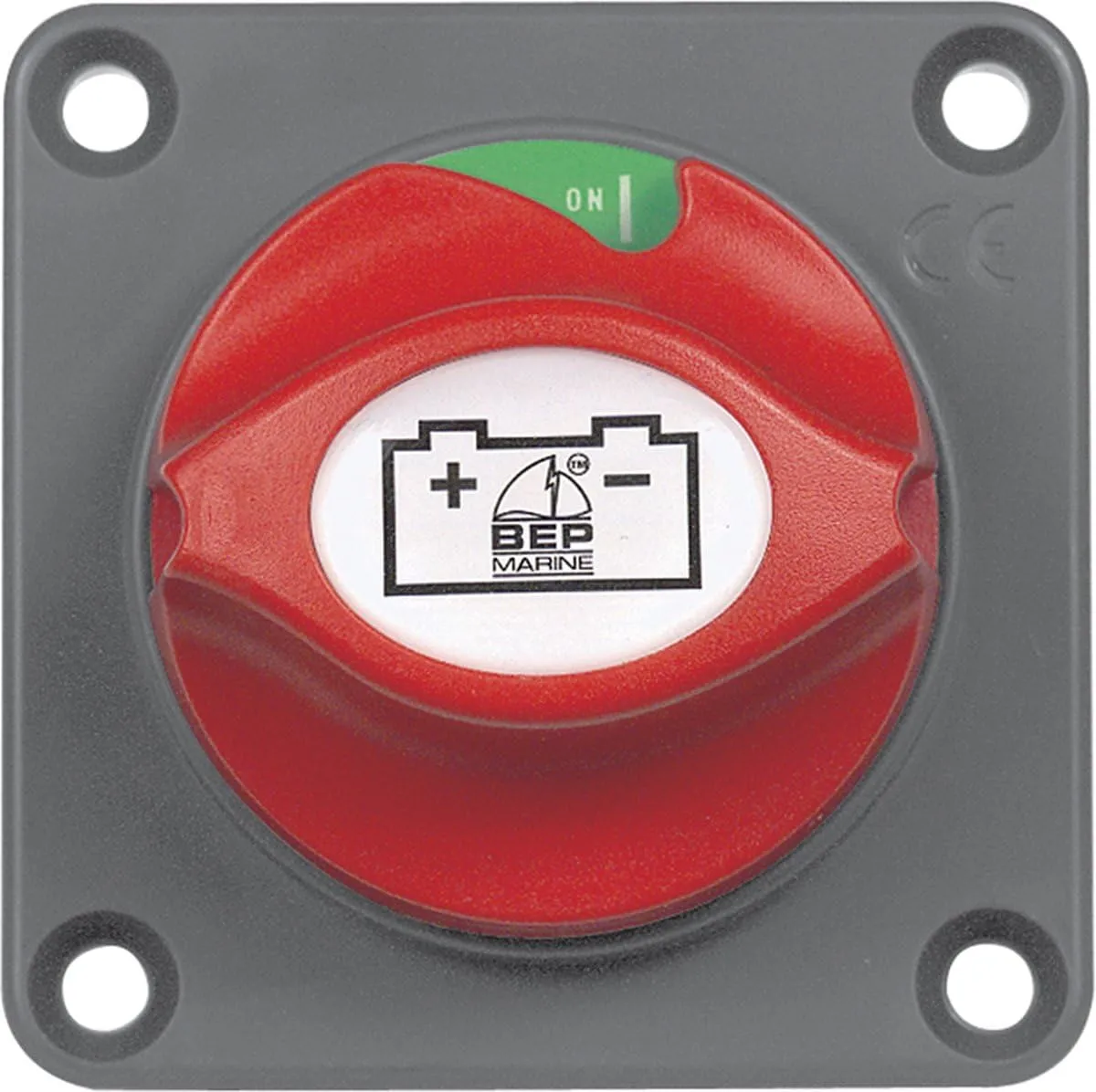

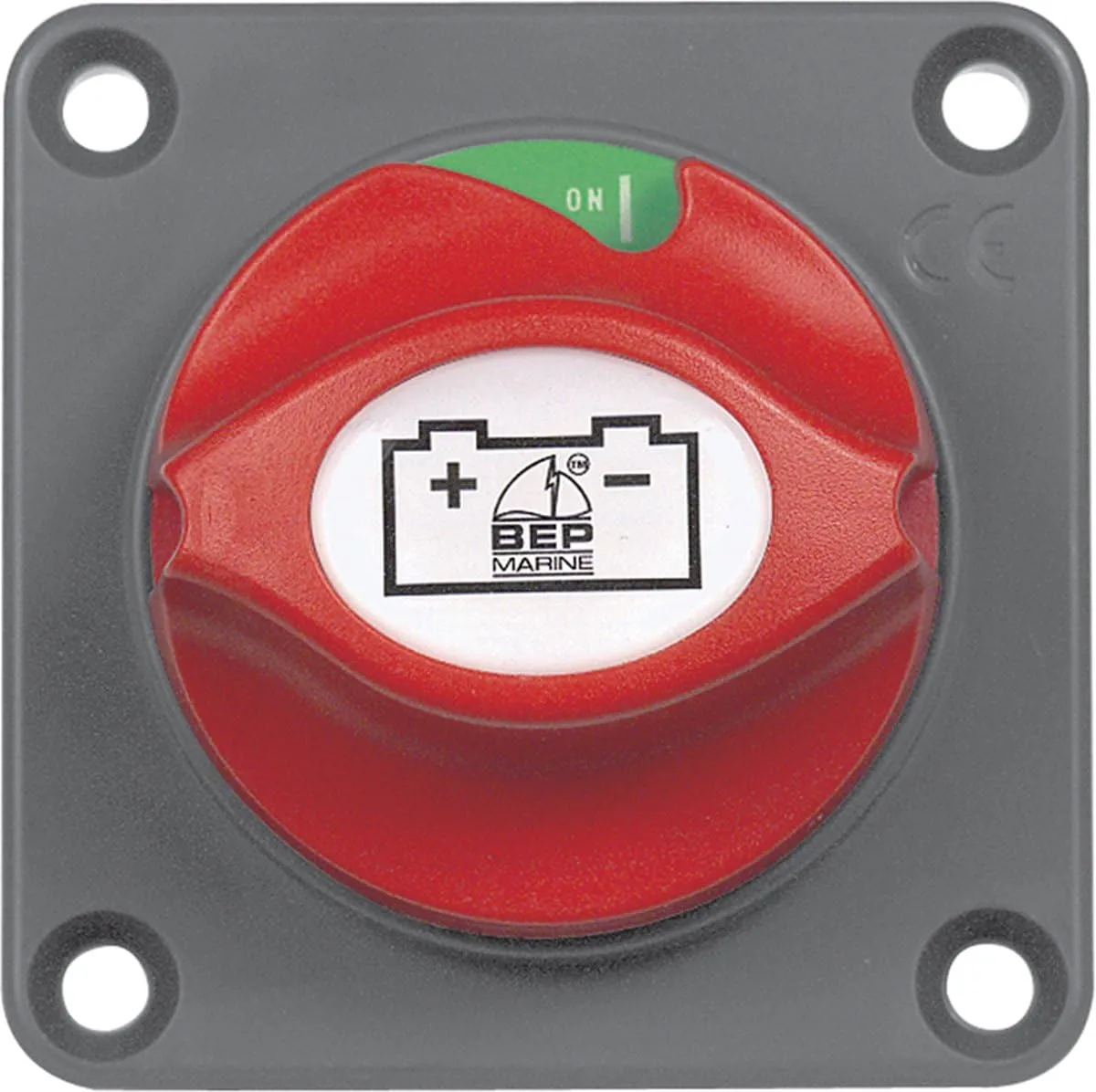

- Designed for panel mounts. Range gives a very compact, versatile solution.
Specifications:
| Product Details | |
| Actuator Type | Rotary |
| Circuit Type | 1-way |
| Connector Type | Crimp |
| Contact Material | Copper |
| Contact Type | Normally Open |
| Control Method | Touch |
| Control Type | Manual |
| Controller Type | Mechanical knob |
| Included Components | Marinco 701 Marine Battery Disconnect Switch |
| International Protection Rating | IP54 |
| Number of Items | 1 |
| Operation Mode | ON-OFF |
| Style (Label) | On-Off |
| Terminal | Screw |
| Unit Count | 1.0 Count |
| Wattage | 13200 watts |
| Sizing & Dimensions | |
| Weight | 5.65 ounces |
| Technical Specifications | |
| Current Rating | 1250 Amps |
| Operating Voltage | 48 Volts |
