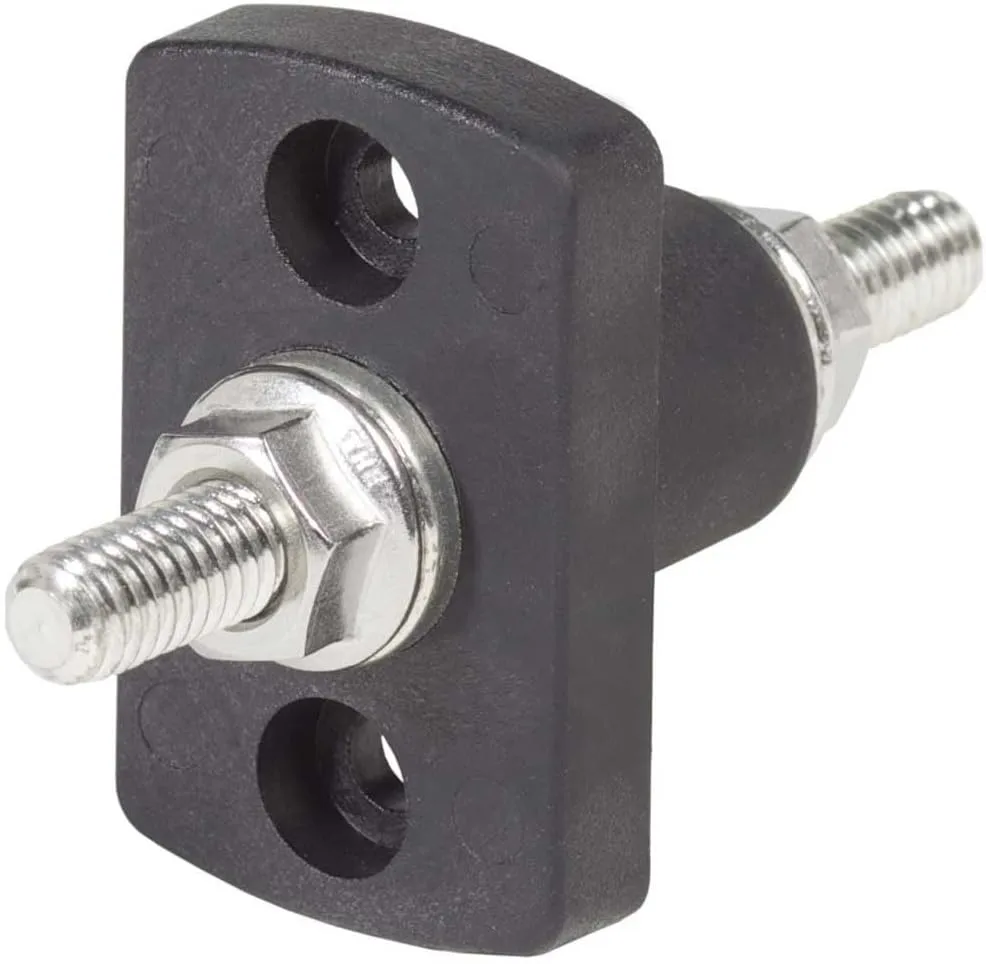

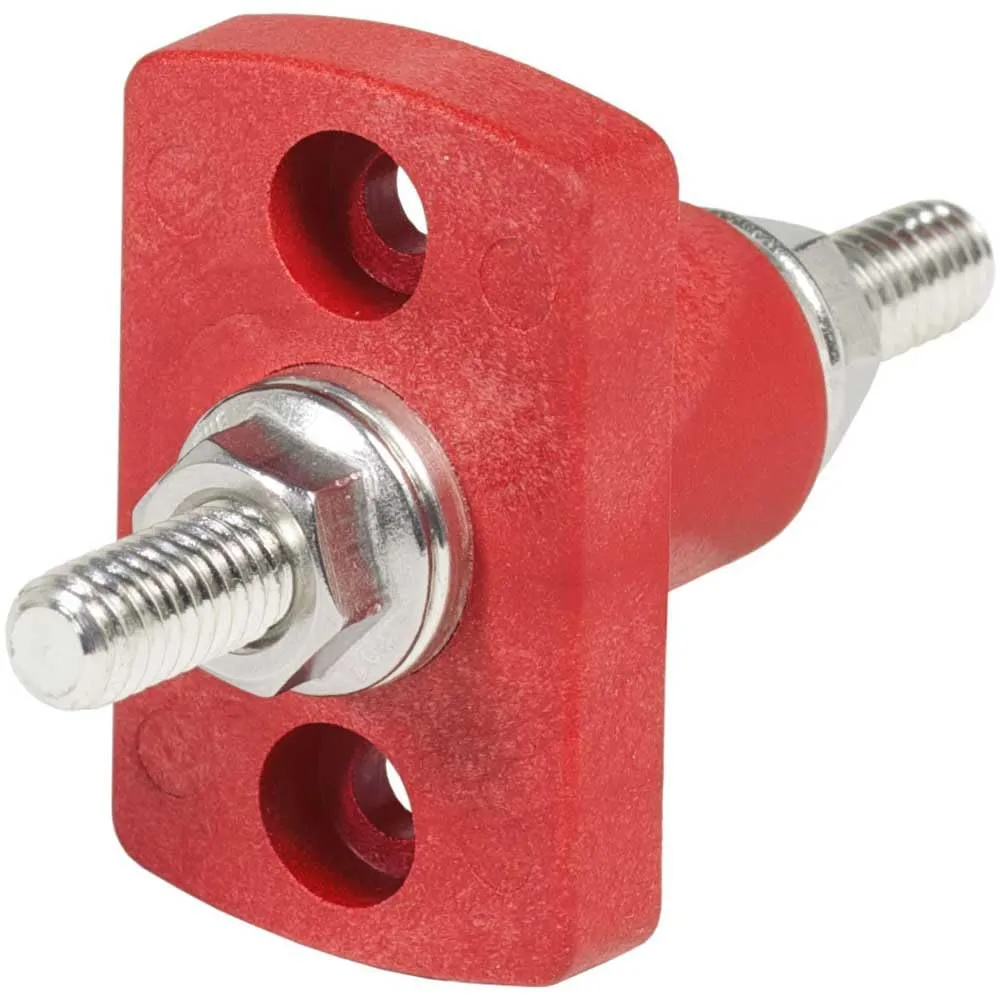

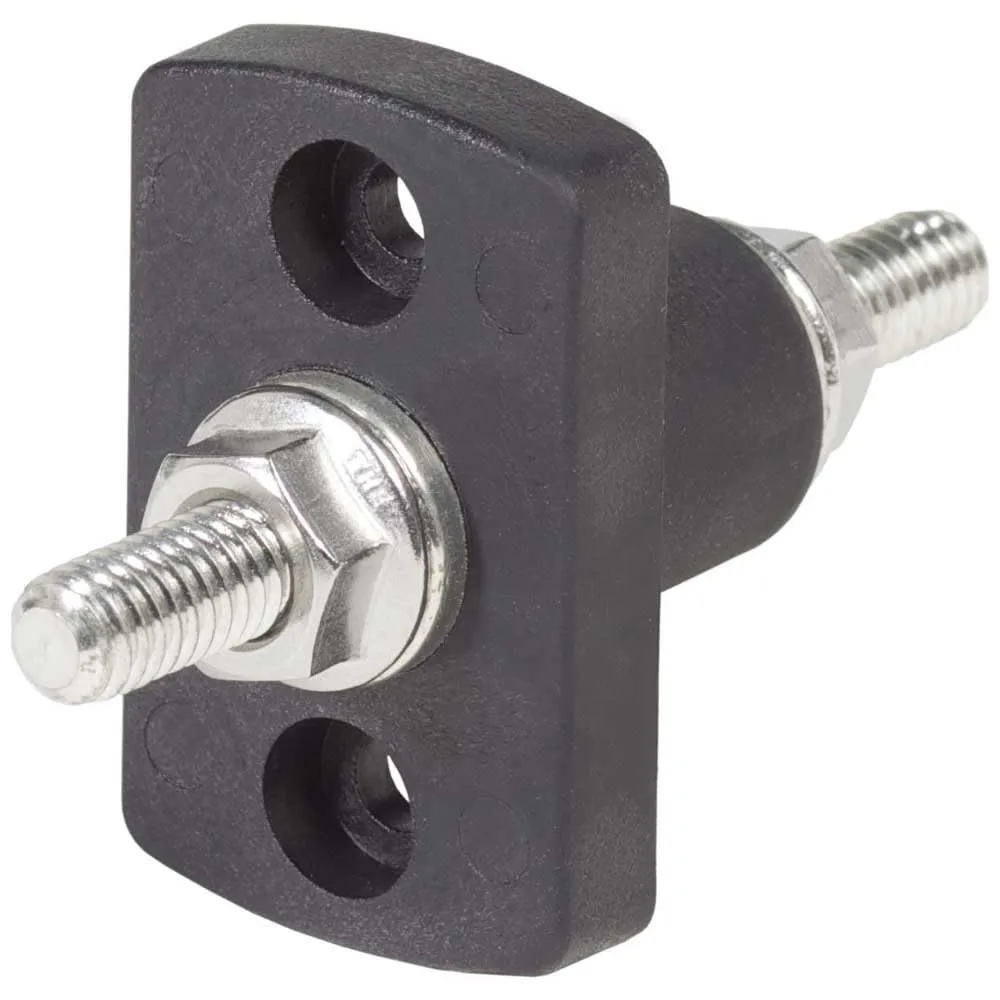

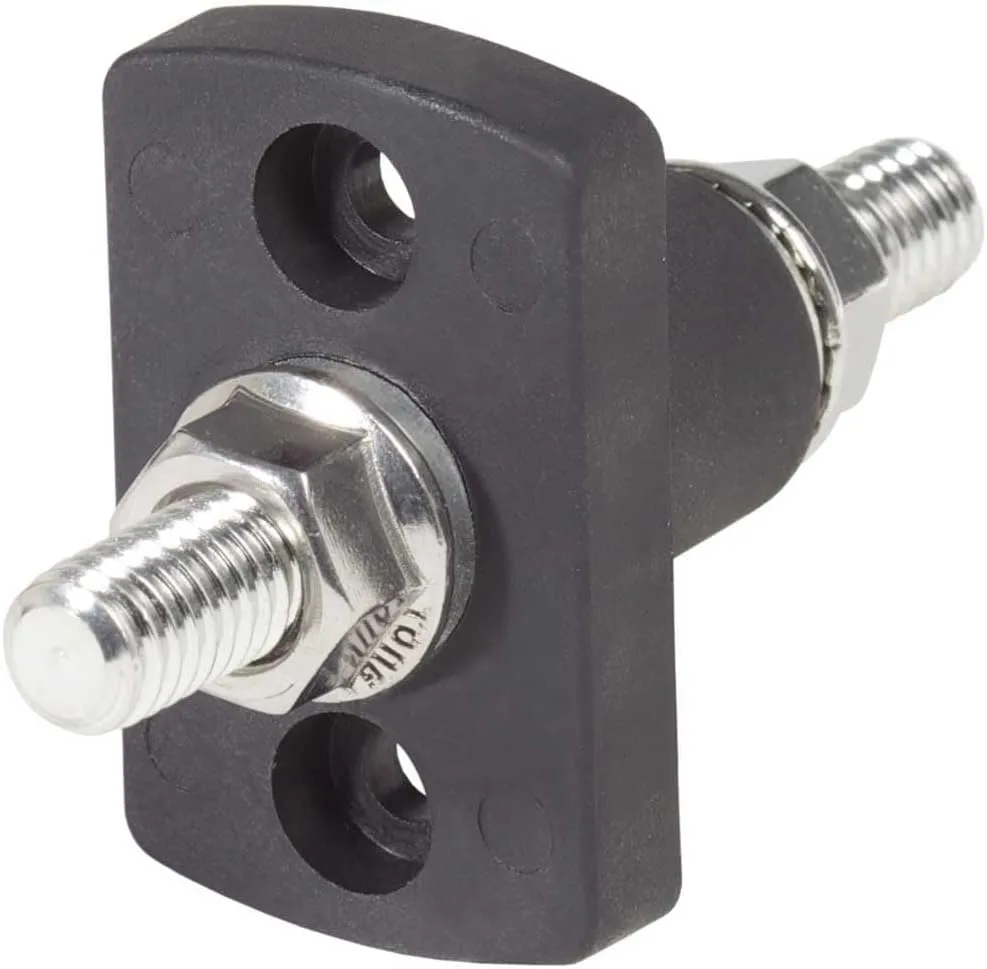

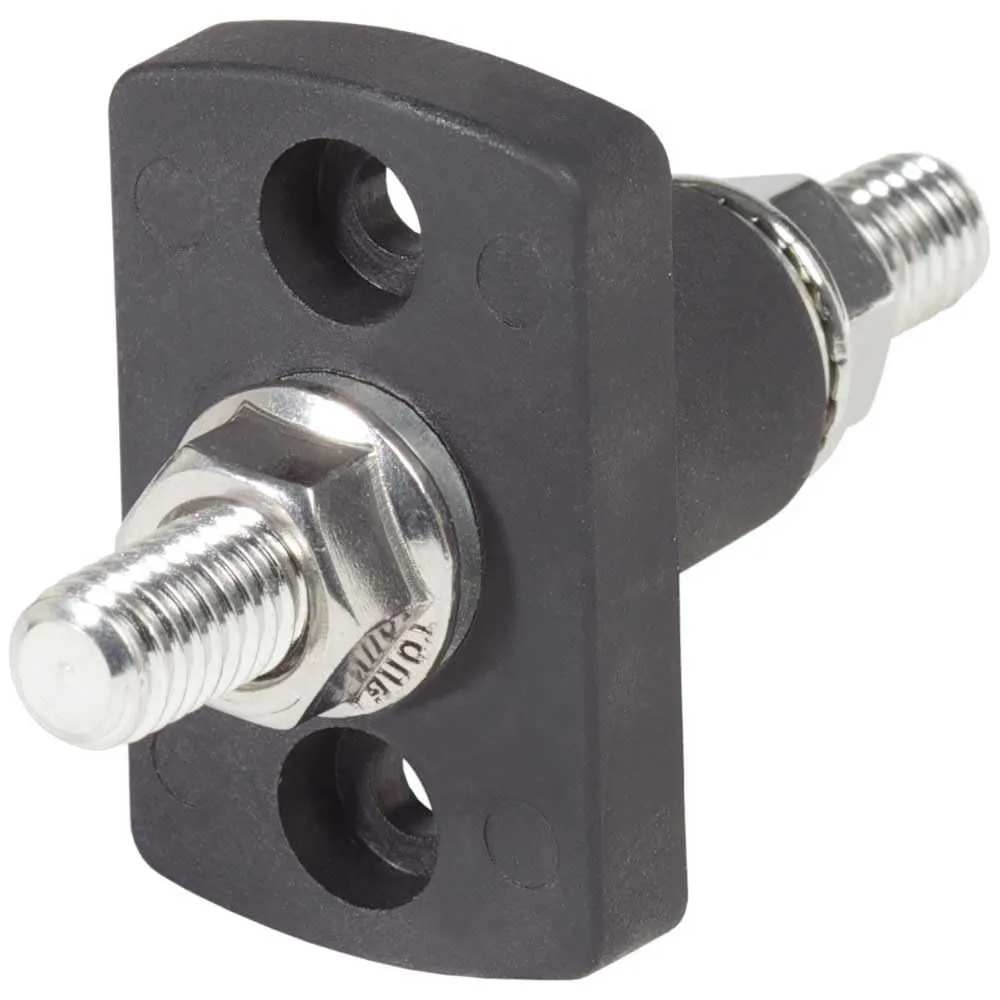

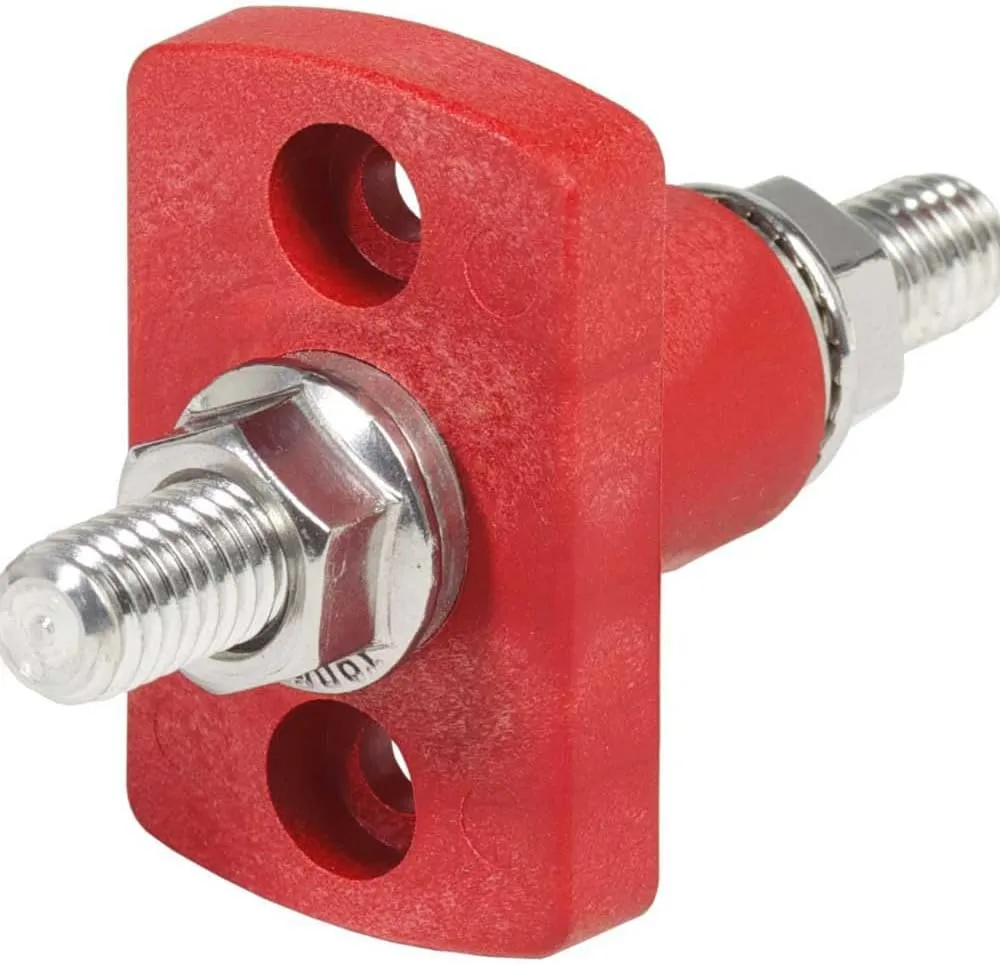

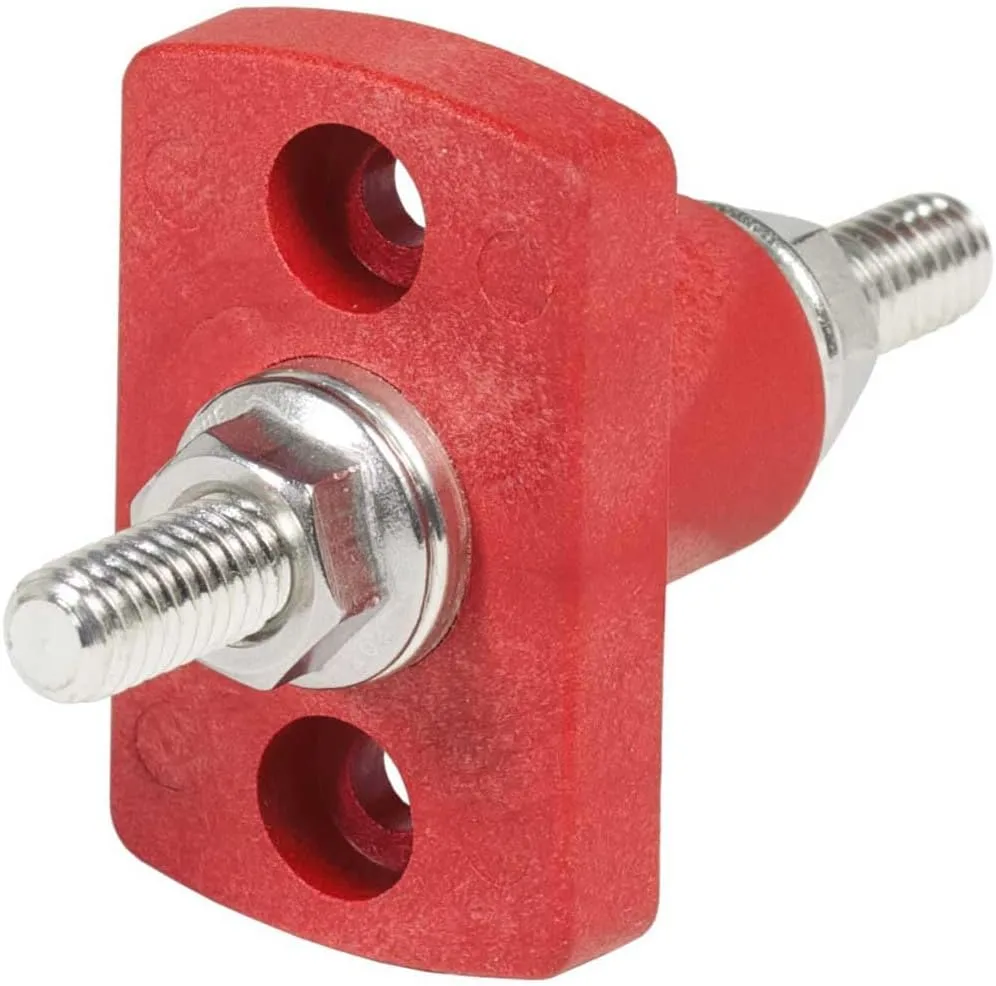

Blue Sea Systems Terminal Feed Through Connector
Customize
Blue Sea Systems Terminal Feed Through Connectors are designed for routing high-current cables through hulls, decks and bulkheads while preventing chafing and providing robust strain relief. Models feature plastic or reinforced thermoplastic insulation with metal contacts (tin-plated copper, brass or stainless steel as used in specific models) and screw terminal studs; mounting faces on larger terminals can be gasketed or bedded to create a watertight installation. All variants are IP66 rated to withstand water from heavy seas and are specified to handle up to 250A and 48V DC. Each unit includes the feed-through stud and related mounting components, and a limited warranty applies on applicable models. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Large cables passed through holes are subject to chafing even when protective grommeting is used. Terminal Feed Through Connectors eliminate chafing and provide excellent strain relief for the cable
- Large size terminals have a mounting face that can be gasketed or bedded to provide a water tight installation
- Rated IP66 — withstands water from heavy seas
- Perfect for passing high current cables through hulls, decks and bulkheads
- 250A, Max voltage: 48V DC
Specifications:
| Materials & Construction | |
| Contact Material | Tin-plated Copper Alloy |
| Insulation Material | Reinforced thermoplastic |
| Outer Material | Plastic |
| Product Details | |
| Connector Type | Through Hole |
| Contact Material | Tin-plated Copper Alloy |
| Included Components | TERM FEED THROUGH STUD 5/16" BLK |
| Insulation Material | Reinforced thermoplastic |
| Specification Met | Ip66 |
| Temperature Rating | 257 degree fahrenheit |
| Terminal | Screw Terminal |
| Warranty | LIMITED WARRANTY |
| Sizing & Dimensions | |
| Weight | 0.80 ounces |
| Technical Specifications | |
| Specification Met | Ip66 |
| Temperature Rating | 257 degree fahrenheit |
| Unit Count | 1.0 Count |
