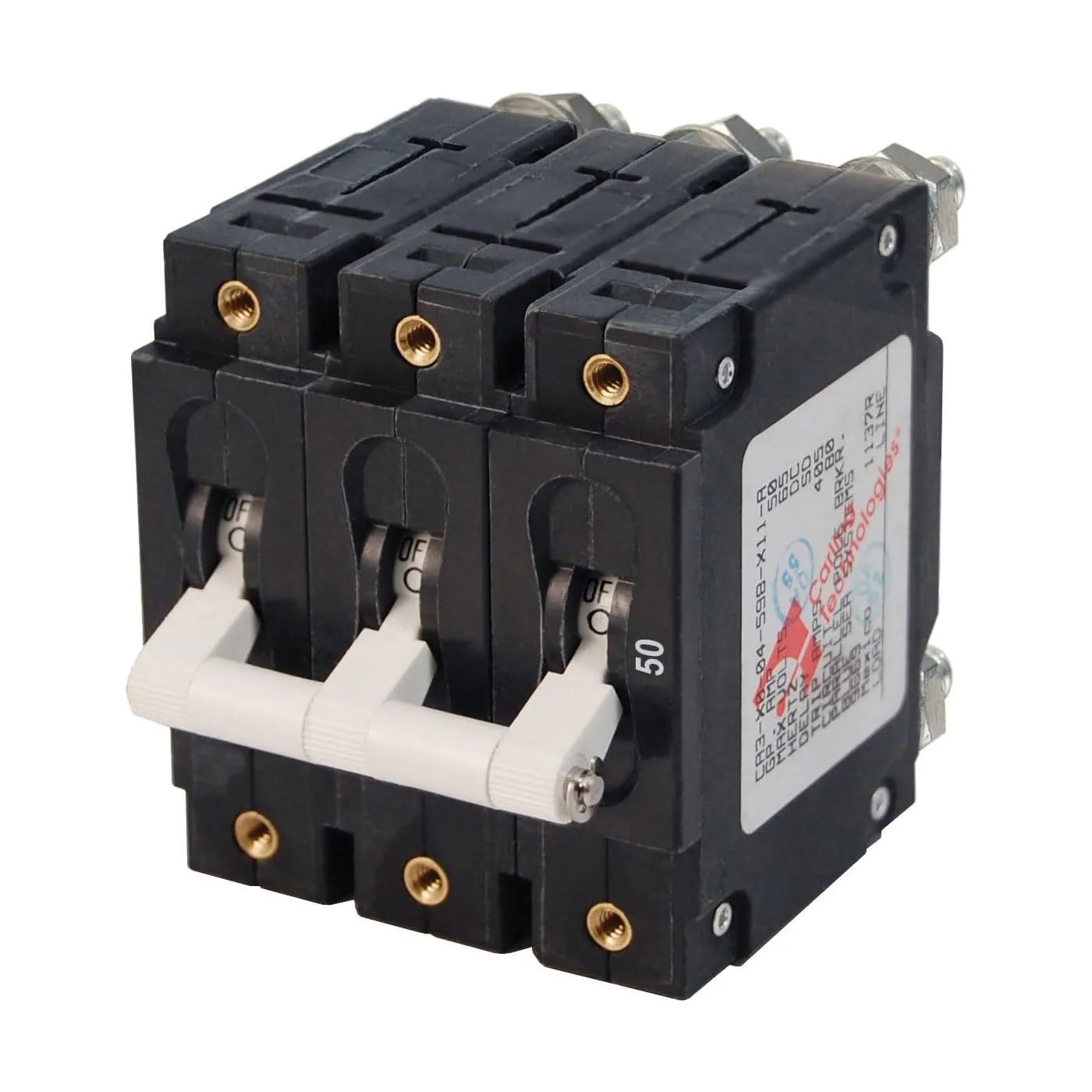

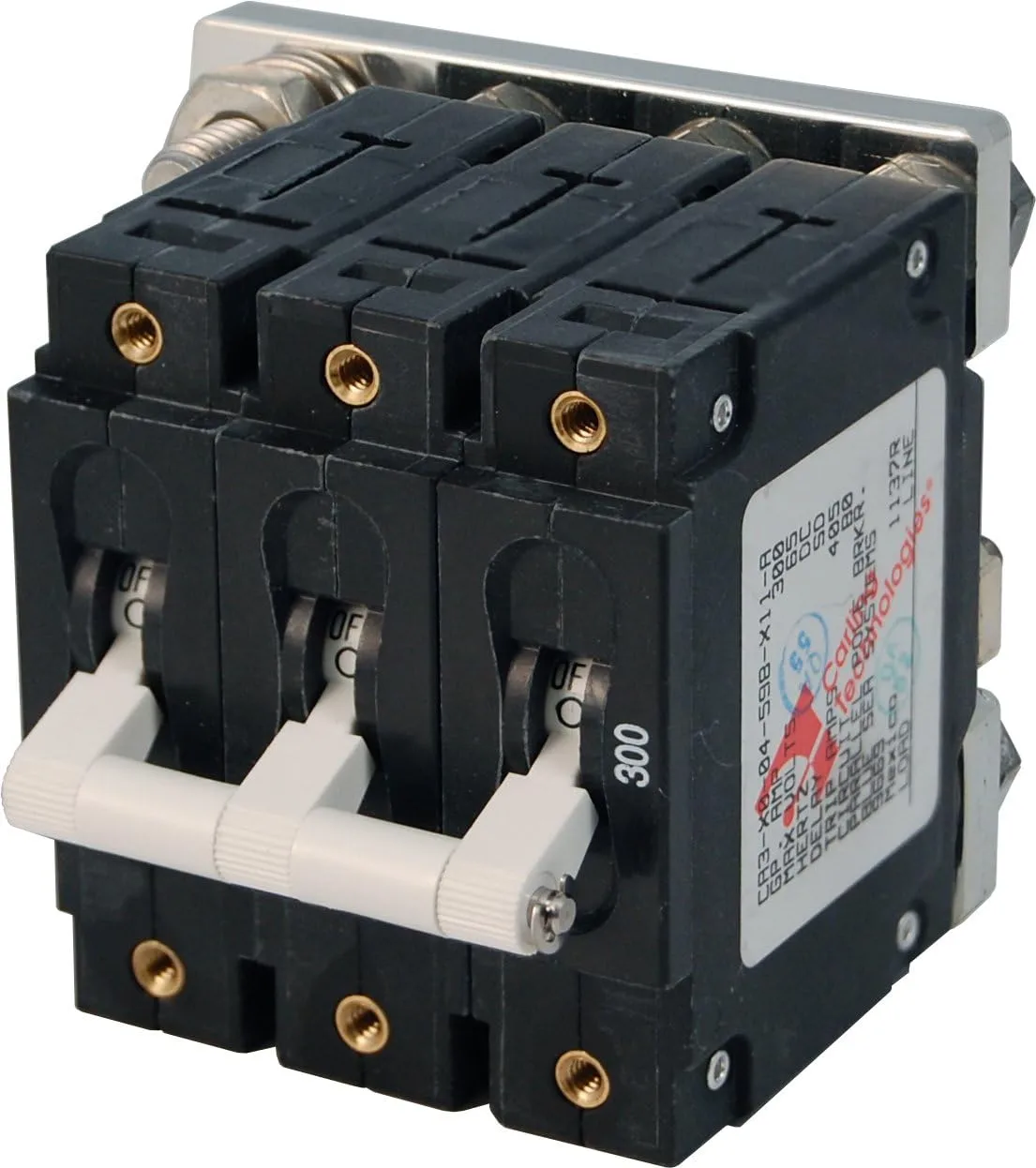

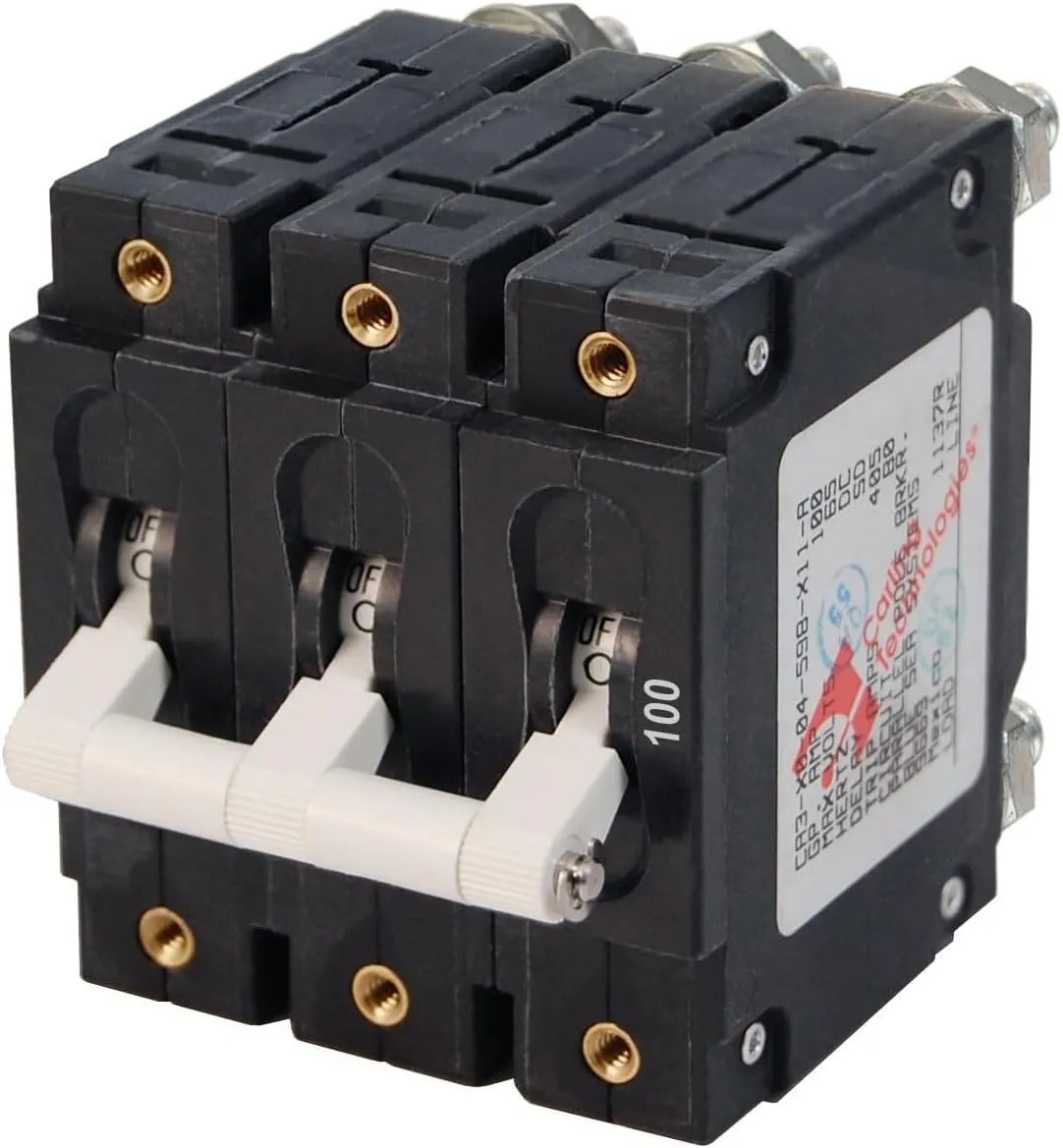

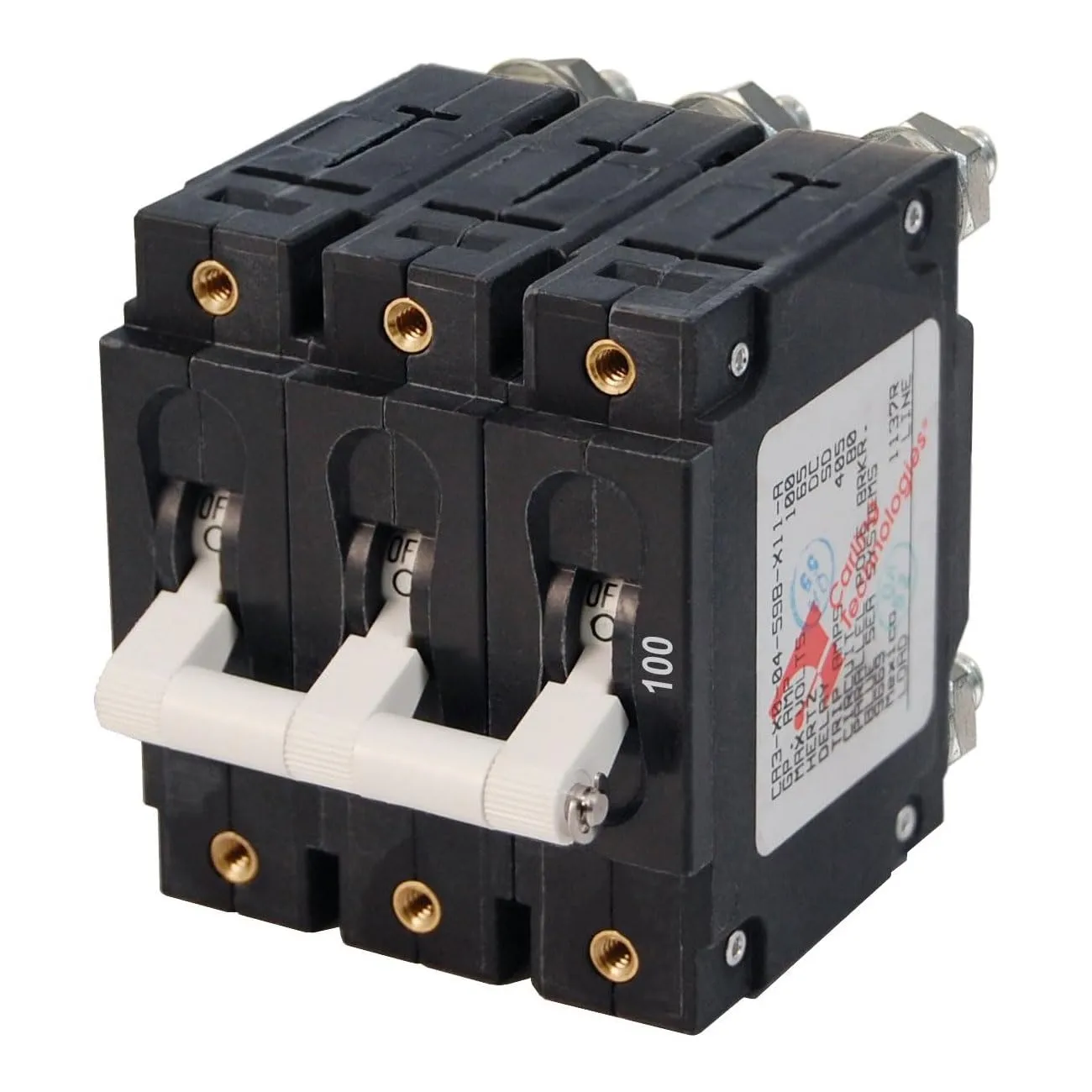

BLUE SEA SYSTEMS C-Series Triple Pole Toggle Circuit Breaker
Blue Sea Systems C-Series triple-pole toggle circuit breaker with Trip-Free operation and 5,000A interrupt capacity for reliable multi-pole protection.
Out of stock Out of stock Out of stock
$247.99 - $338.99
$247.99
$247.99
$338.99
Color
material
Select material
Number Of Poles
Select Number Of Poles
Customize
Available Quantity
2 GSA Item
Yes GSA Compliant
Yes Available Quantity
4 GSA Item
Yes GSA Compliant
Yes Available Quantity
5 GSA Item
No GSA Compliant
Yes Product Details
Blue Sea Systems C-Series triple-pole toggle circuit breakers deliver dependable multi-pole protection with Trip-Free design that cannot be held ON during fault conditions and trips all poles if any pole trips. The C-Series offers a 5,000A interrupt capacity to meet ABYC requirements for 120/240V AC main protection. These breakers are intended for marine and AC/DC applications requiring robust overcurrent protection and are commonly used in main service and equipment protection scenarios. The toggle-style actuation and triple-pole configuration provide straightforward switching and safe multi-pole operation across the product family.
- Max Voltage: 65V DC, Interrupt Capacity: 5,000A @ 65V DC
- Paralleled poles have 5/16" stud on bus
- Provides overcurrent protection for inverters, bow thrusters, and windlasses
- Combines switching and circuit protection into a single device
- "Trip Free" - cannot be held closed after trip
Specifications:
| Product Details | |
| Circuit Breaker Type | Magnetic Hydraulic - trip free |
| Model Name | 7271 |
| Part Number | 7271 |
| Sizing & Dimensions | |
| Weight | 4.8 ounces |
| Technical Specifications | |
| Global Trade Identification Number | 00632085072711 |
| UPC | 632085072711 |
| Warranty | Warranty |
