Blue Sea Systems M2 OLED Digital Meters

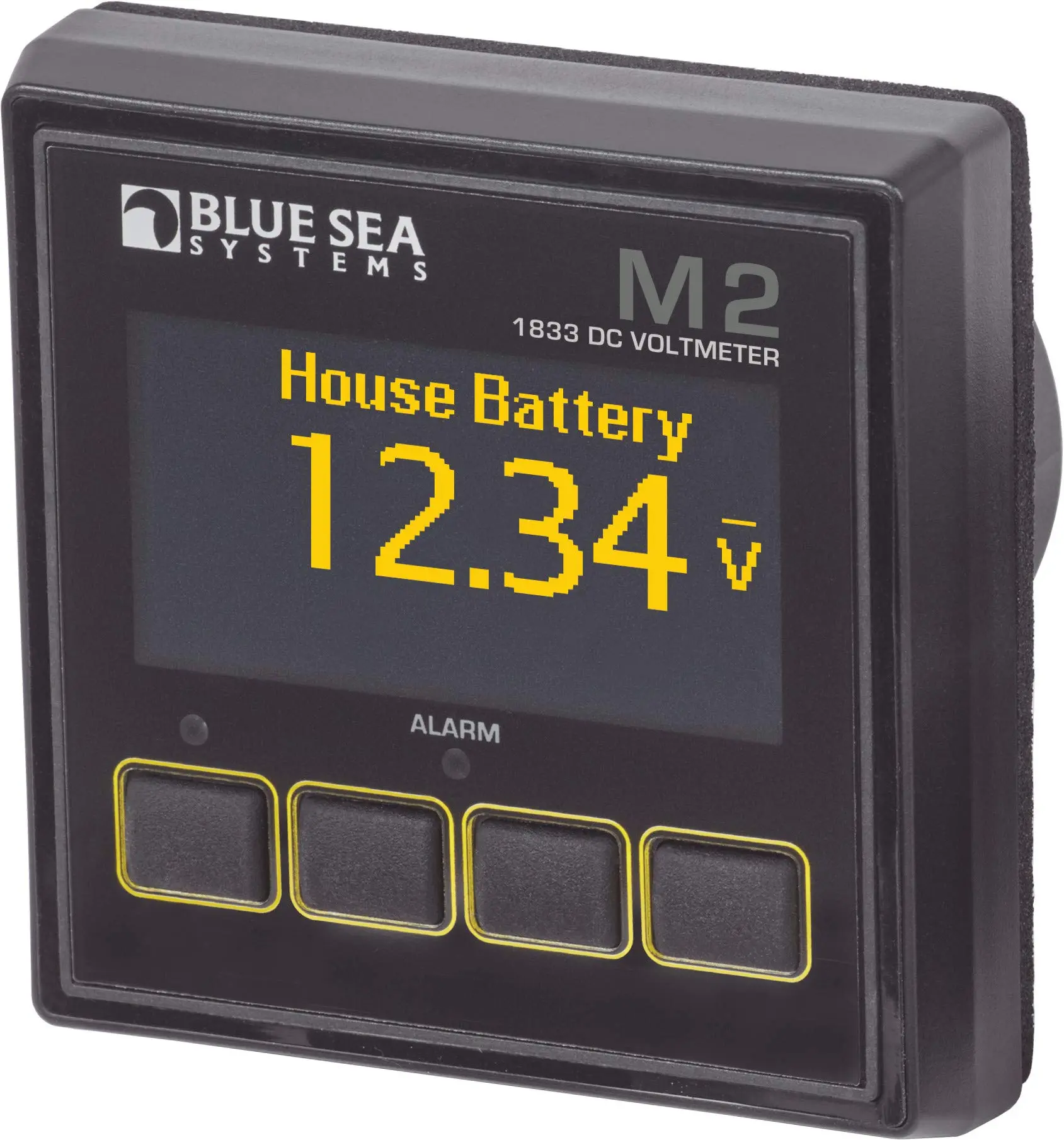

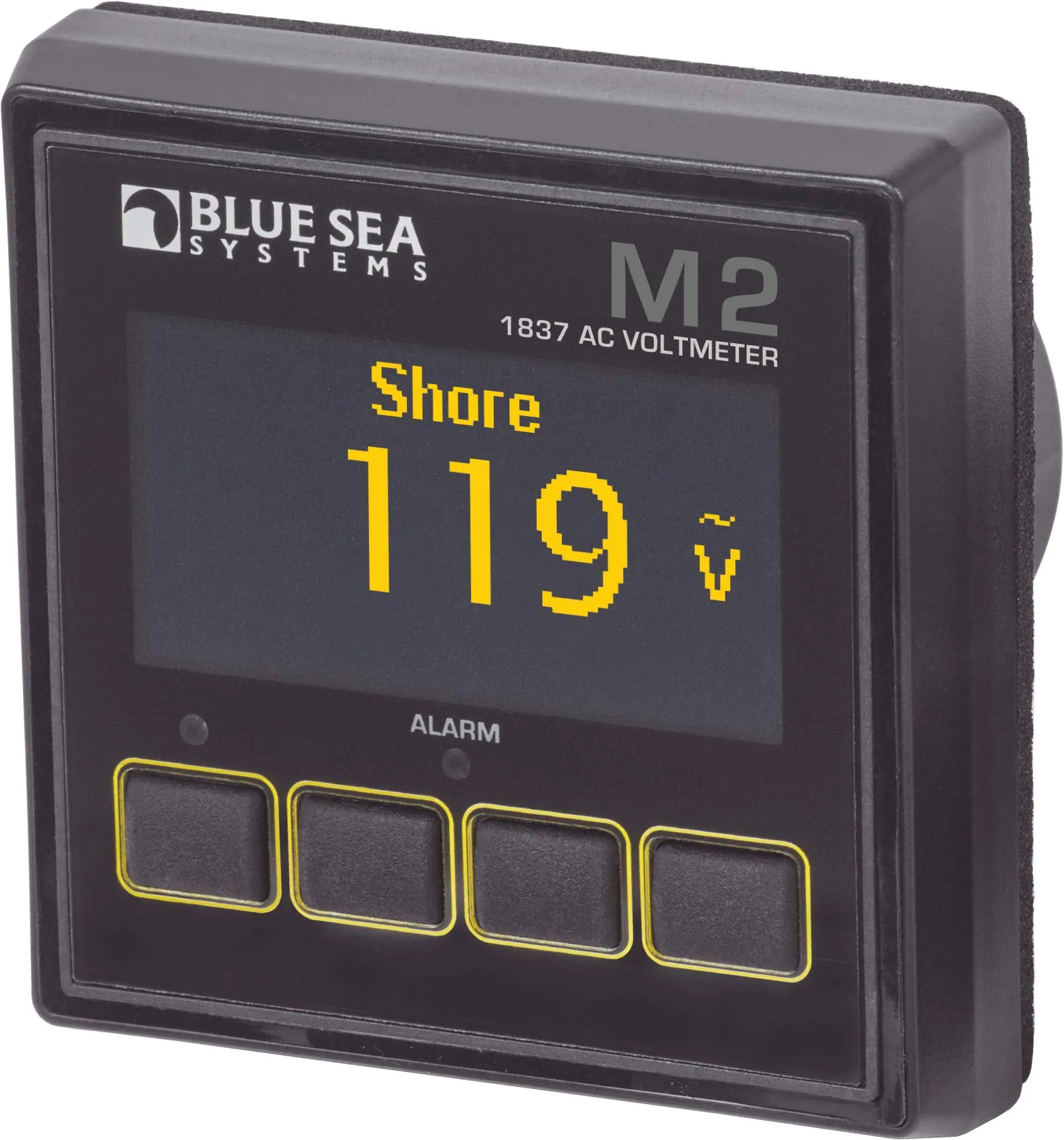

Blue Sea Systems M2 OLED Digital Meters deliver clear, reliable electrical monitoring for marine and automotive systems. The series features bright, auto-dimming OLED displays (display size 55mm x 28mm), IP66 protection, isolated MOSFET relay, adjustable 92dB alarm and low power consumption (minimum ~0.3 W, typical maximum ~1.0 W). Depending on model, functions include DC SoC monitoring with programmable shunt ratios (supports shunts up to 5000A and some models include a 500A shunt), DC voltmeter capability (function range ~8–70V, 0.01V resolution), AC voltmeter capability (50–250V, 1V resolution), and AC multimeter functions measuring amps, volts and Hz (supporting current ranges up to model limits and programmable CT ratios; some models include a 150A AC current transformer). All models accept 7–70V DC input to power the display and electronics and include alarms for high/low voltage and high/low current or frequency as applicable. Ideal for panel installation in boats and vehicles where accurate, daylight-readable monitoring and reliable alarm notification are required. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

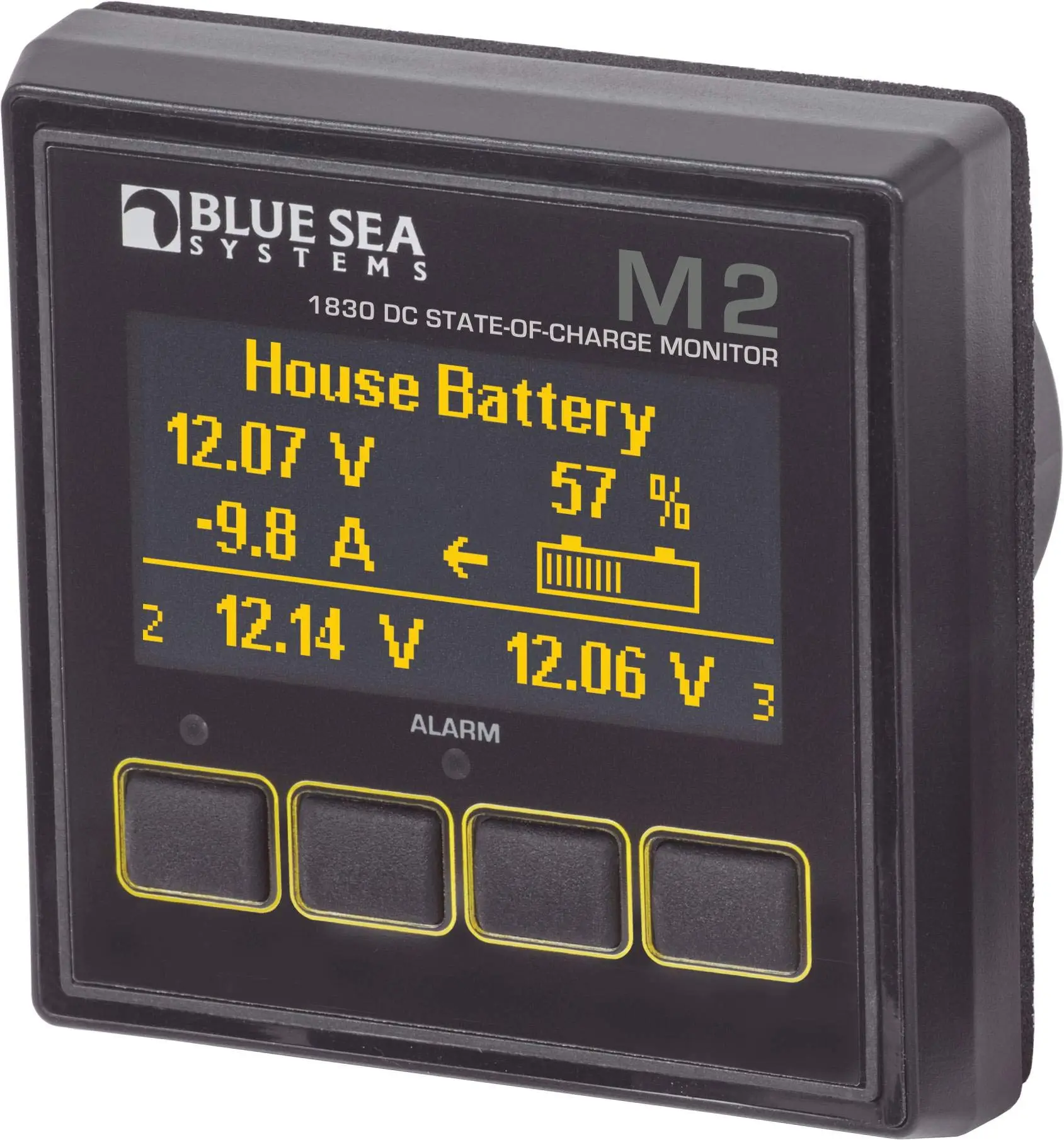

• Accurately measures and monitors State-of-Charge of 1 bank.
• Measures 3 voltages and 1 current. Includes One 500A Shunt
• Adjustable internal 92dB alarm for High Current, High/Low Voltage, Low Battery
• Auto-dimming, bright OLED display is daylight readable, and IP-66 Waterproof
• Input Voltage: 7-70V DC, Function Voltage: 8-70V DC, Supports Shunts up to 5000A DC
