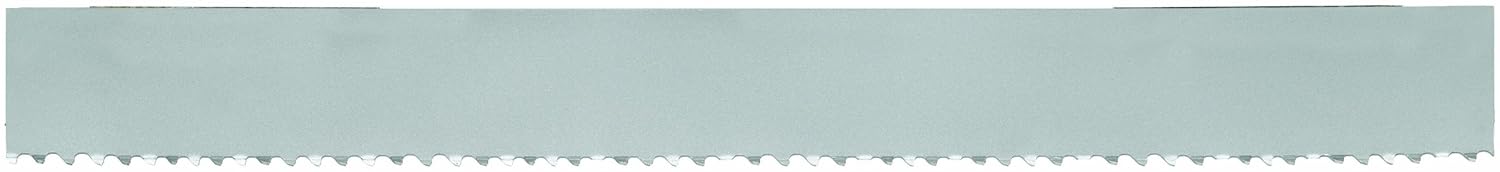

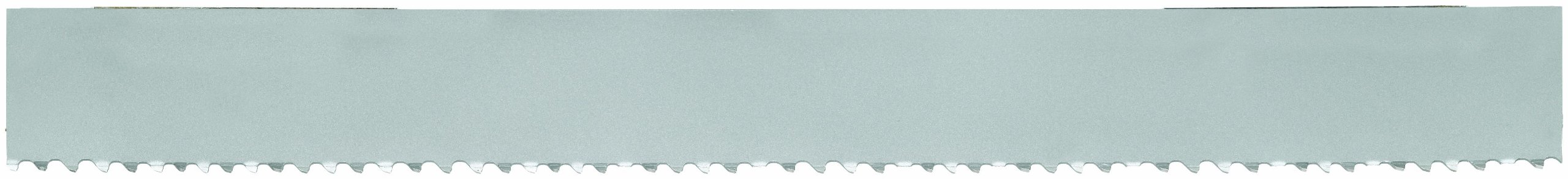

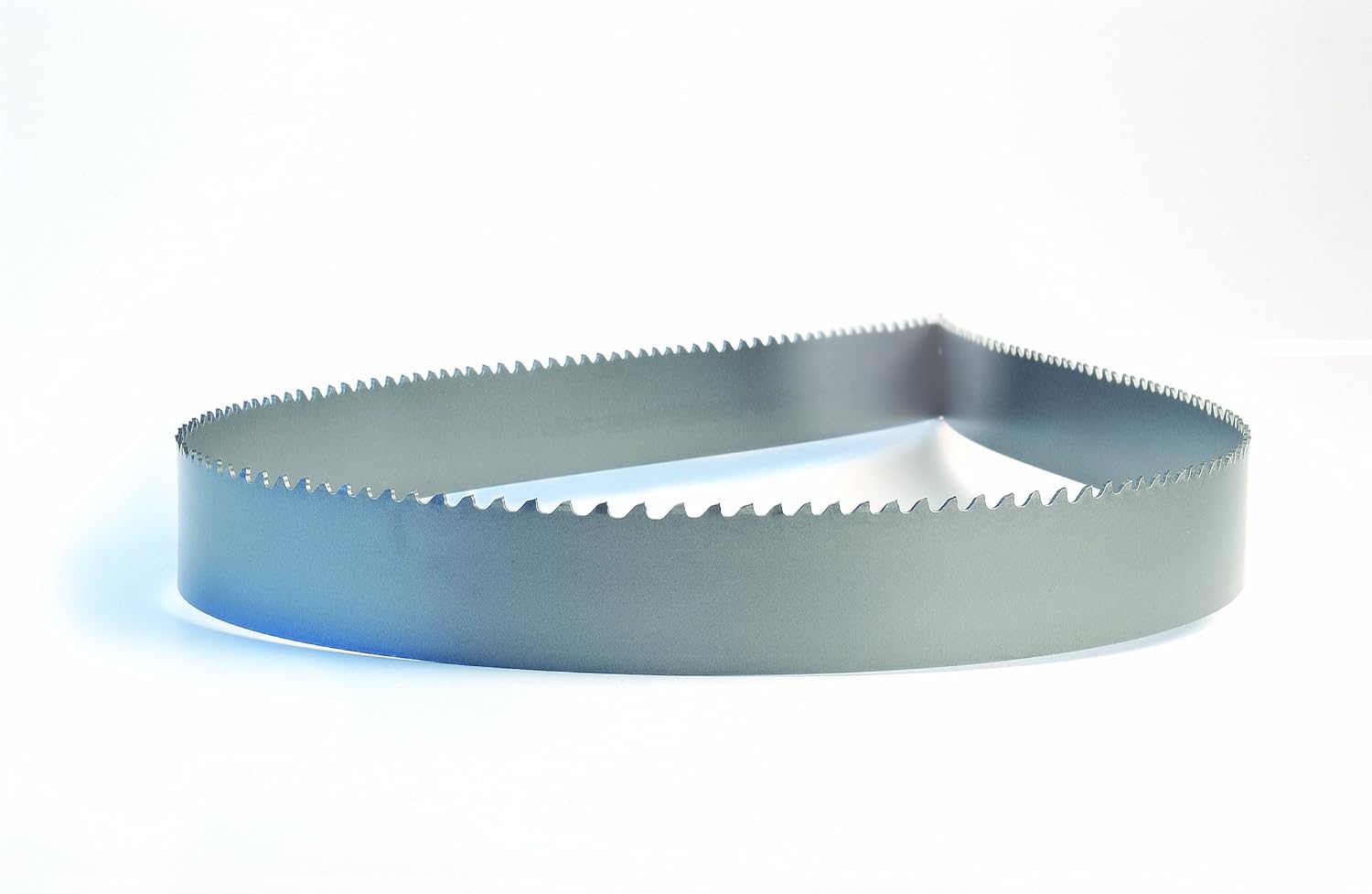

LENOX RX+ Vari-Raker Bimetal Band Saw Blade
Customize
The LENOX RX+ Vari-Raker bimetal band saw blade (RX Plus series) combines welded bimetal construction with M-42 high-speed steel (HSS) teeth for heat and wear resistance. The RX+ vari-tooth design and vari-set pattern reduce strippage at high feed rates while the optimized variable pitch and set sequence lower noise and vibration and help evacuate chips. A positive tooth rake angle and raker set improve cutting performance in carbon and structural steel, and the blade is suitable for cuts in tubular shapes, structural shapes, and tubular bundles. Common physical details across the variants include a 1-1/4 in blade width and ~0.042 in thickness, with kerf widths noted around 0.068–0.070 in. The product is available in multiple lengths and tooth pitch ranges (for example, 174 in and 186 in lengths and 3-4 or 4-6 TPI) to match different band saw applications.
- Made of M-42 high-speed steel for heat and wear resistance
- Optimized variable pitch and set sequence for quiet cutting and low vibration
- Good for cuts in tubular shapes, structural shapes, and tubular bundles
- Bimetal for cutting carbon steel and structural steel
- RX+ tooth design reduces strippage at high feed rates
Specifications:
| Materials & Construction | |
| Outer Material | Bimetal |
| Product Details | |
| Back Type | Spring Steel |
| Blade Material | Bi-Metal |
| Compatible Material | Carbon Steel, Metal |
| Contour Cutting | No |
| Cutting Edge Style | Toothed; Milled; Variable |
| Item Thickness | 0.04 Inches |
| Material Grade | M42 |
| Number of Teeth | 6 |
| Pitch Pattern | Variable |
| Series | Rx Plus |
| Style | Regular Tooth |
| Tooth Form | Variable |
| Tooth Material | High Speed Steel |
| Tooth Rake Angle | Positive |
| Tooth Set | Vari-Set |
| UPC | 082472278286 |
| Sizing & Dimensions | |
| Weight | 3.75 pounds |
| Technical Specifications | |
| Cutting Edge Style | Toothed; Milled; Variable |
| Tooth Rake Angle | Positive |
