TP-Link 8-Port Gigabit PoE/PoE+ Unmanaged Switch
Customize

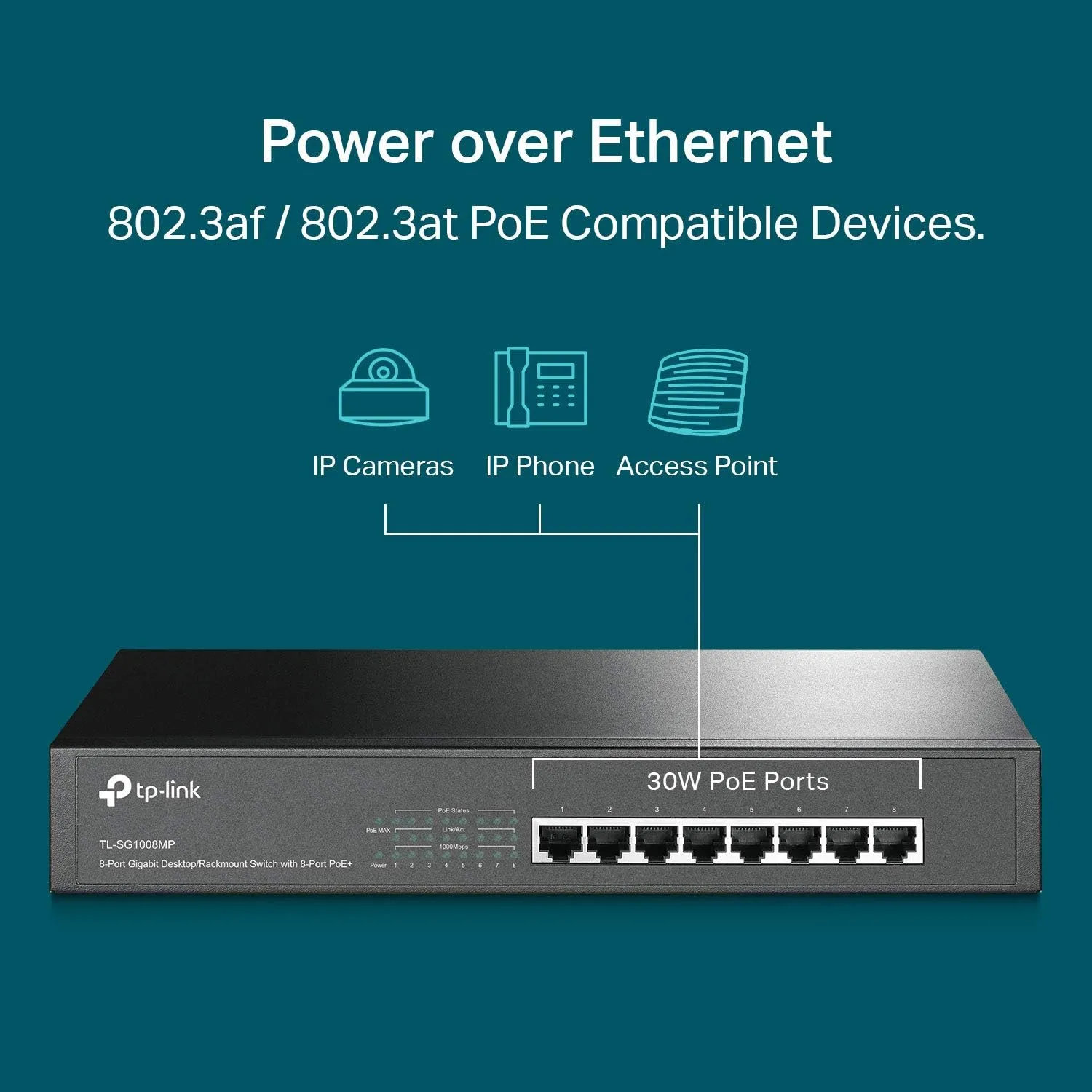

The TP-Link 8-Port Gigabit PoE/PoE+ Unmanaged Switch family provides Gigabit 10/100/1000 Mbps RJ45 connectivity with PoE power delivery to simplify deployment of IP cameras, wireless access points and IP phones. Compliant with IEEE 802.3af/at standards, these plug-and-play switches transfer power and data on a single Ethernet cable and offer auto-negotiation on each port for simple network expansion. Designed for flexible installation, models in this family support desktop, rackmount or wall-mount form factors and feature durable metal cases. Ideal for small offices, branch locations, surveillance setups and home networks, the switches provide reliable wired connectivity and centralized power delivery without the need for software configuration.
- - Backed by our industry-leading 3-year warranty and free US based technical support from 6am to 6pm PST Monday to Fridays, you can work with confidence.
- - IEEE 802.3X flow control provides reliable data transfer.

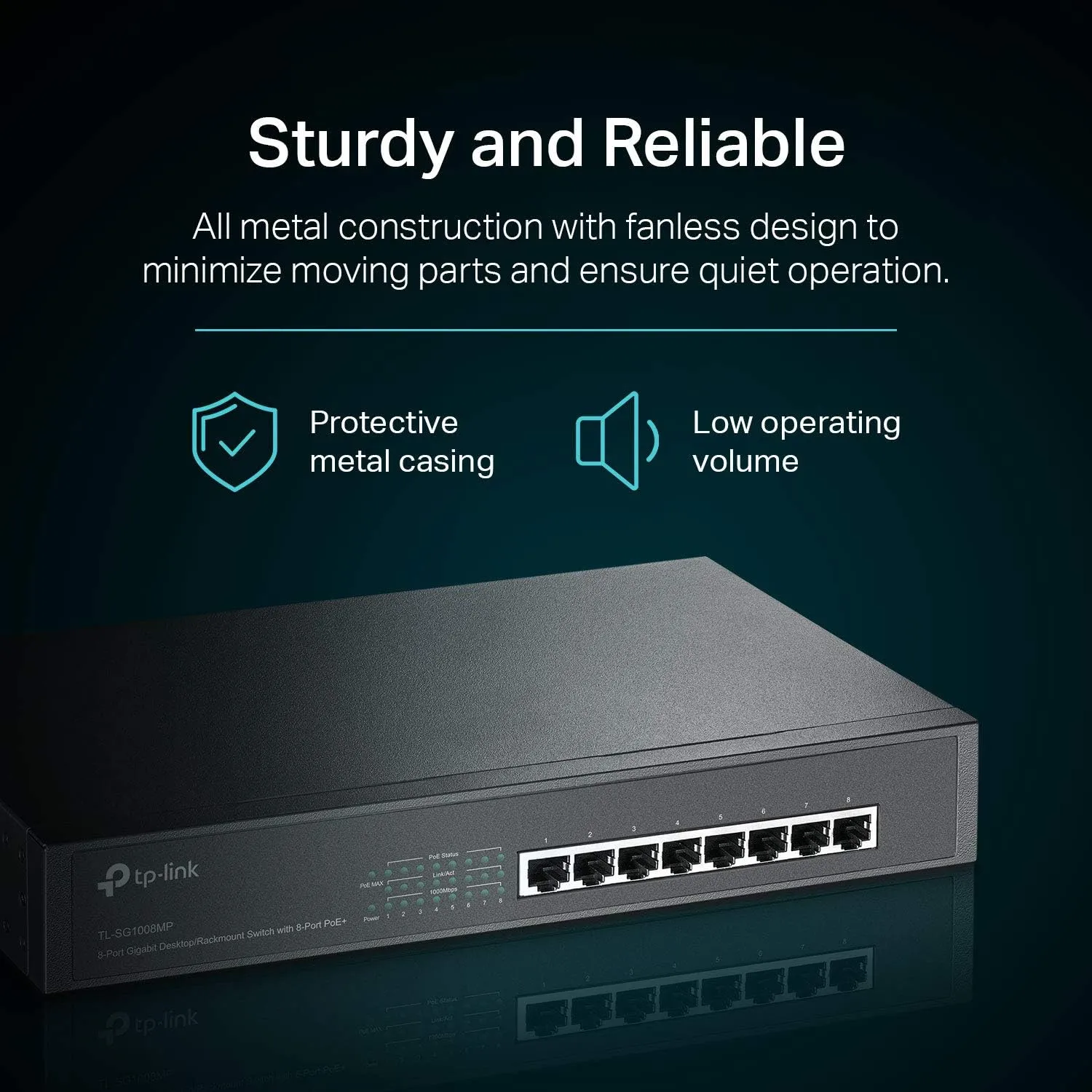

- - Durable metal casing and desktop/rackmount design are well-suited for different environments.
- with Port Priority - When connected devices’ total power consumption is greater than or equal to 153W, lower priority ports are disabled to prevent overloading.

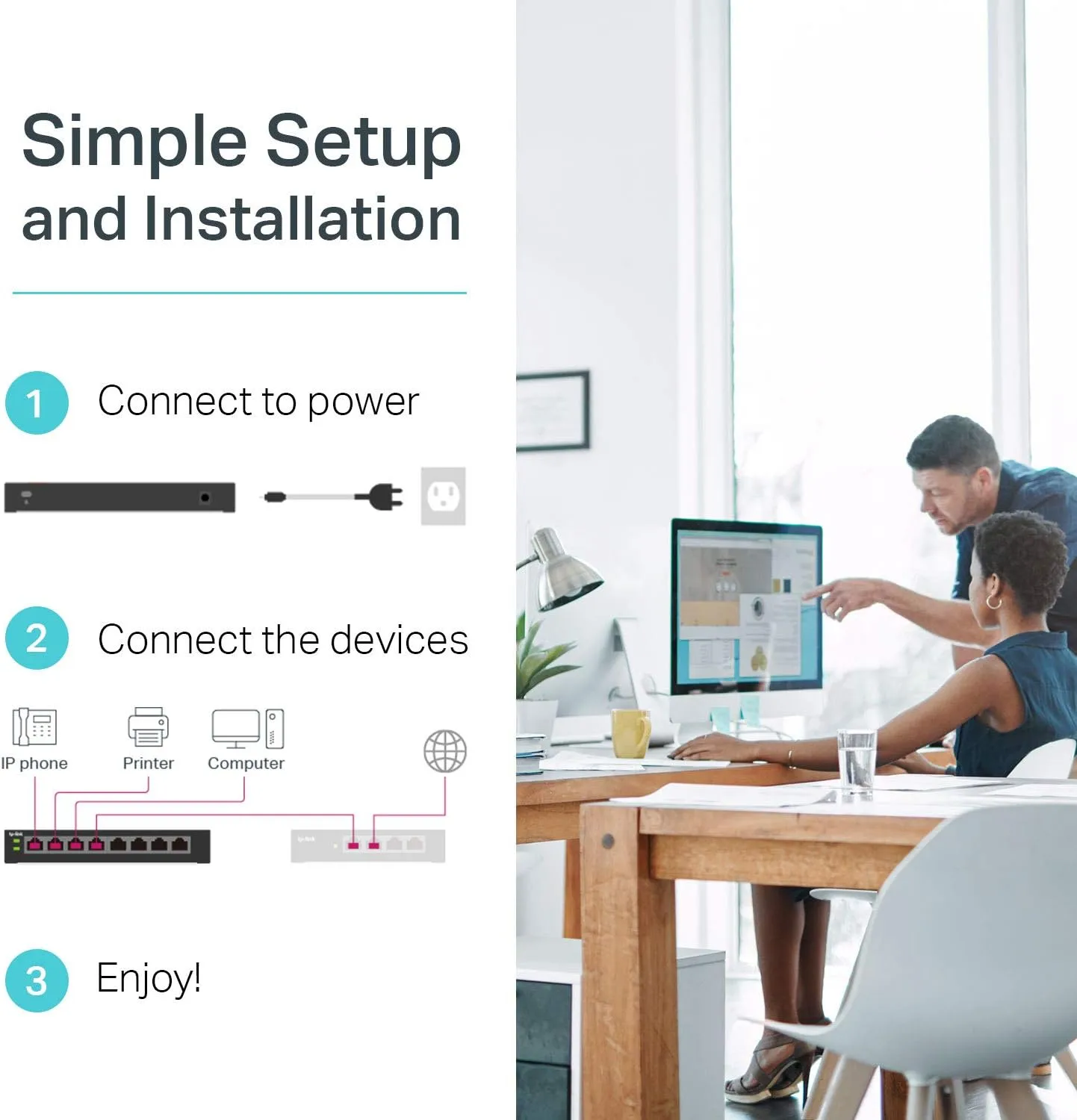

- - Easy setup with no software installation or configuration needed.
- Full Gigabit 8-Port PoE Configuration - 8x PoEplus (802.3at/af) 10/100/1000 Mbps RJ45 ports providing up to 30W per port and total PoE power budget of153W.
Specifications:
| Materials & Construction | |
| Case Material | Metal |
| Product Details | |
| Current Rating | 1 Amps |
| Data Transfer Rate | 1000 Megabits Per Second |
| Environmental Compliance | Restriction Of Hazardous Substances (Rohs) |
| Included Components | TL-SG1008MP, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet |
| Interface Type | RJ45 |
| Maximum Power | 153 Watts |
| Media Type Supported | Twisted Pair |
| Network (Rj-45) | Yes |
| Networking Standards | Ieee 802.3af; Ieee 802.3at; Ieee 802.3x |
| Platform | Not Machine Specific |
| Warranty | 3-Year Limited |
| Sizing & Dimensions | |
| Height | 1.73 inches |
| Length | 11.57 inches |
| Product Dimensions | 11.57"L x 7.09"W x 1.73"H |
| Size | 11.57"L x 7.09"W x 1.73"H |
| Weight | 14.8 ounces |
| Width | 7.09 inches |
| Technical Specifications | |
| Maximum Power | 153 Watts |
| Networking Standards | Ieee 802.3af; Ieee 802.3at; Ieee 802.3x |
