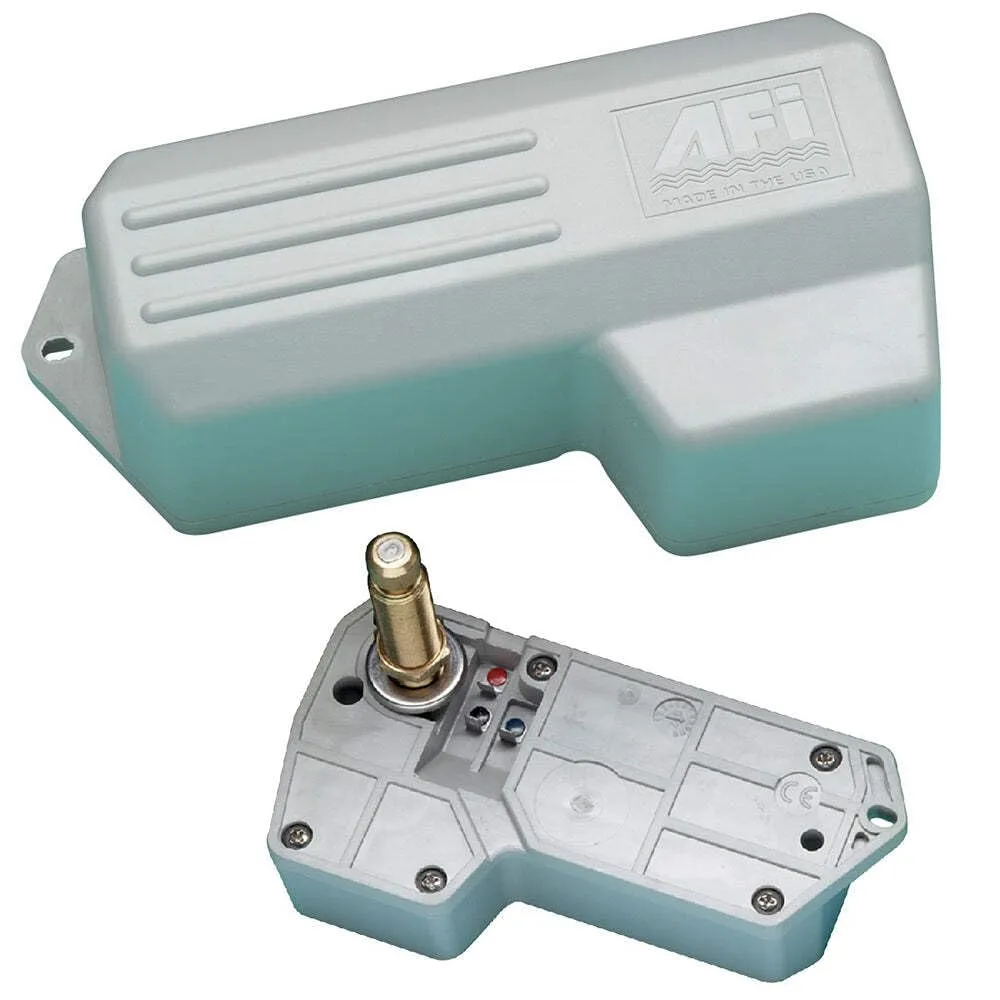

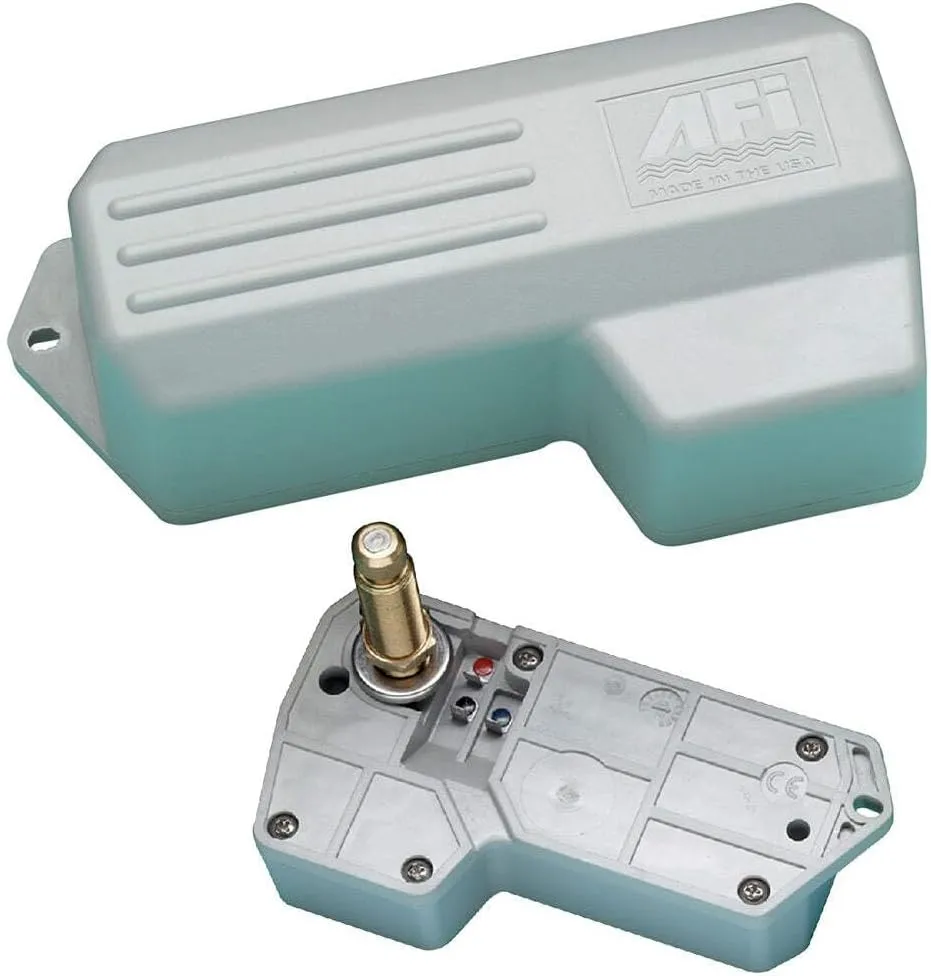

Wiper Motor, 1000 Series, 12V, 2.5" Shaft, 65° Sweep The 1000 Waterproof Wiper Motor has a fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic. It powers 18" Deluxe arm and 18" Deluxe blade combination at sweep sets of 80 degree or less or 16" Deluxe arm and 16" Deluxe blade combinations at a sweep set of 110 degree. Features: Factory pre-set sweep of 80 degree or 110 degree adjustable to 50 degree, 65 degree, 80 degree or 110 degree 0.625" diameter shaft (16 mm) 12 volt heavy-duty motor with anti-rotation drive shaft Knurled drive shaft and solid brass arm drive nut Coast to park with adjustable right or left self parking Retail version includes 5 amp fuse and holder (on/off switch not included) RF shielded circuitry Weight: 1.75 lbs Available in two shaft lengths: 1.5" and 2.5" (includes .5" length of knurled arm fitting) Measures approximately 6.625" L x 3.375"W x 2" D Stall torque: 55 in-lbs (63 kgf/cm; 6.2 Nm) Stall current: 9.8-10.0 amps No load current: 0.8-1.2 amps Great Product.
| Materials & Construction | |
| Color | Multicoloured |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Included Components | Great Product |
| Model Name | 37161 |
| Number of Items | 1 |
| UPC | 035028371610 |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 7 inches |
| Product Dimensions | 7 x 4 x 2 inches |
| Size | Talla única |
| Weight | 1.8 pounds |
| Width | 4 inches |
