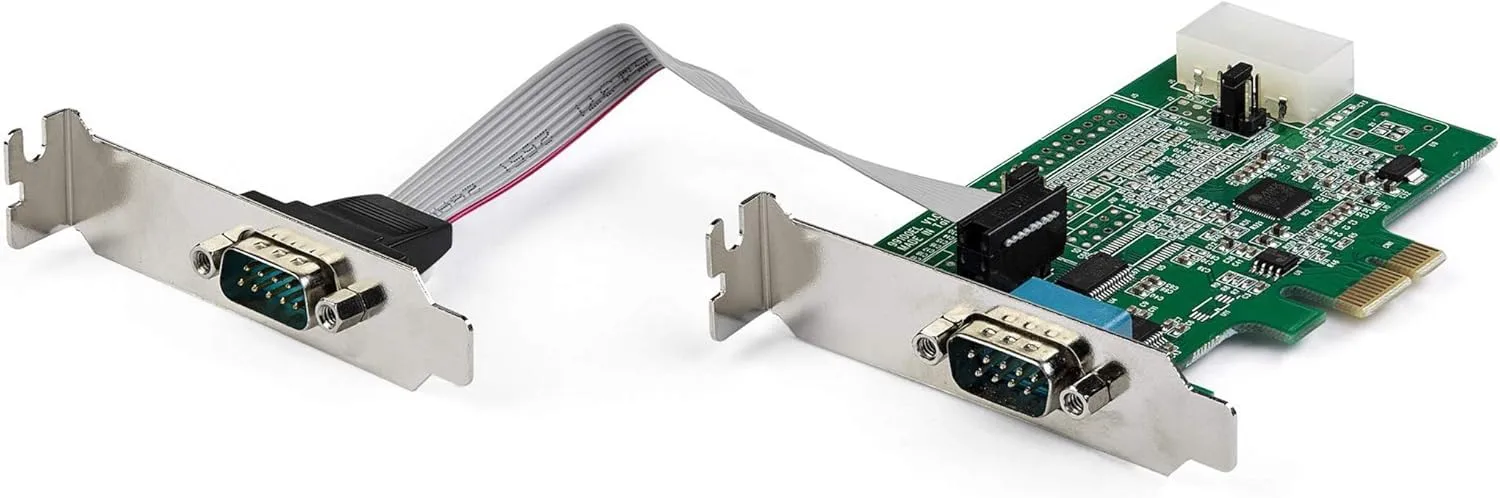

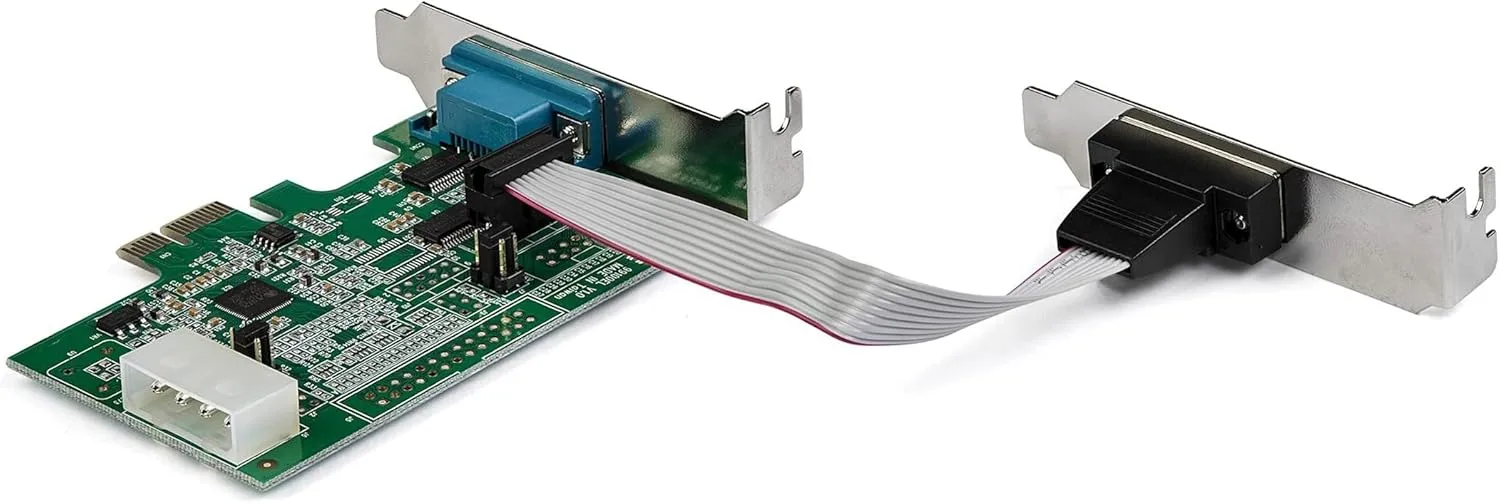

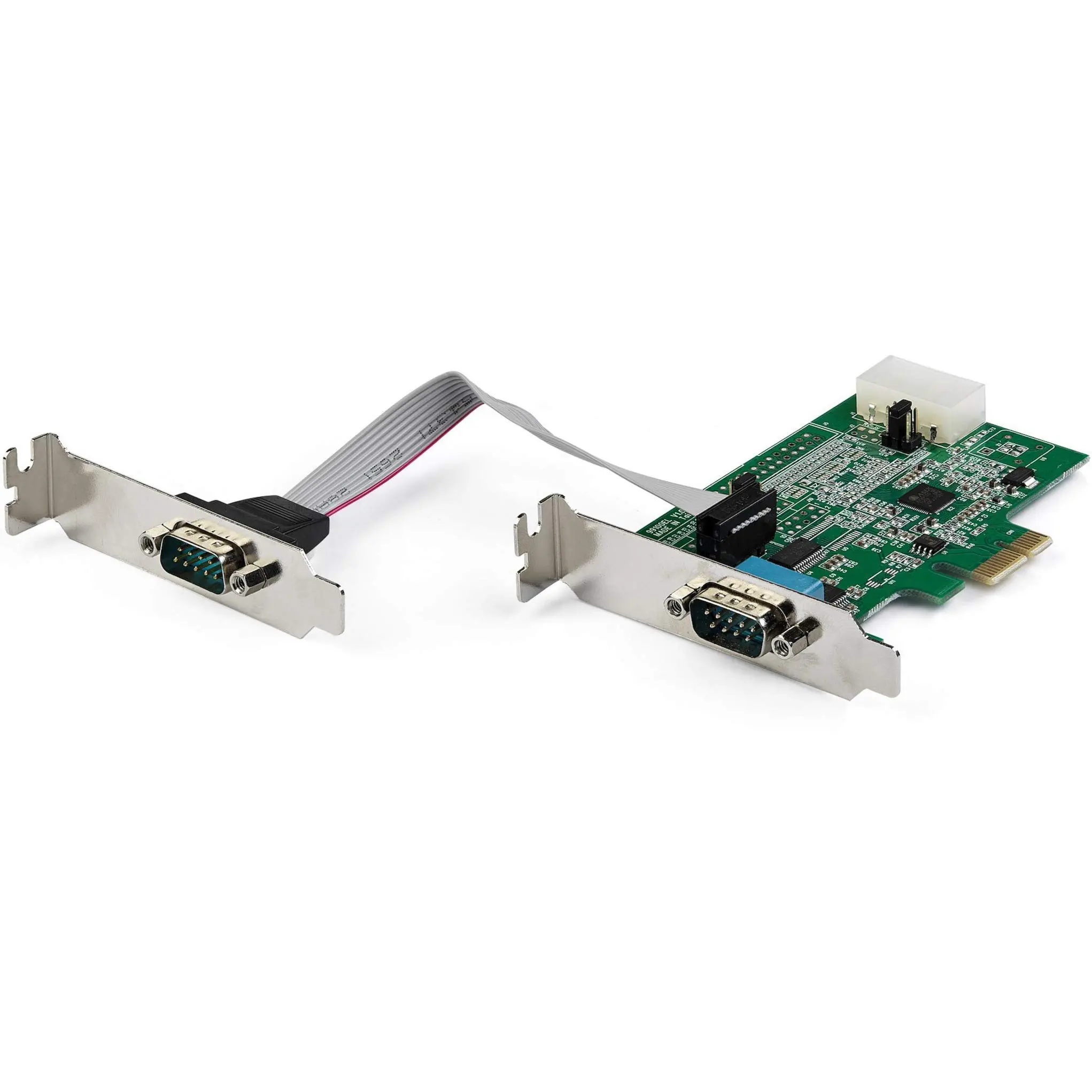

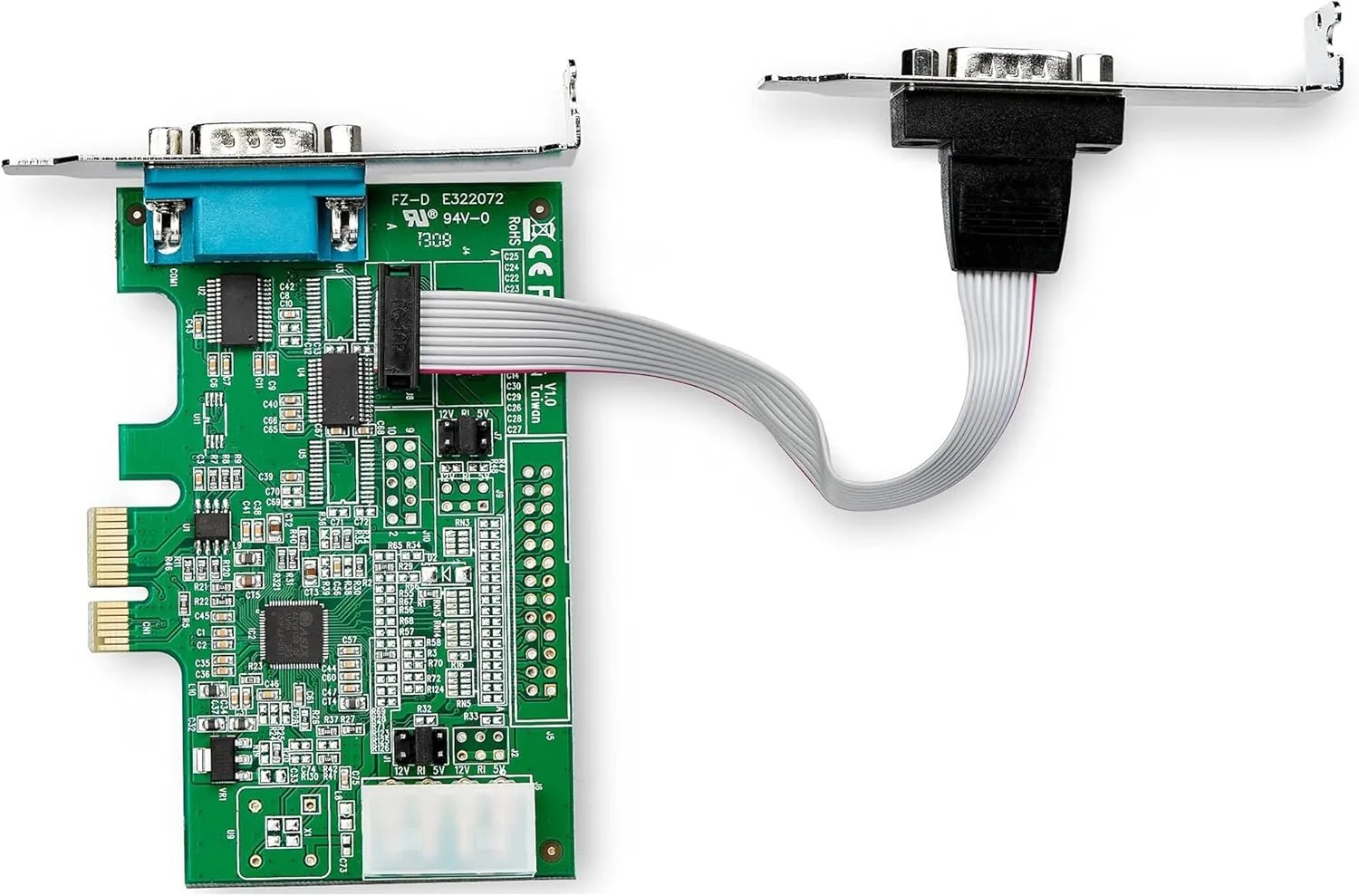

StarTech.com 2-port PCI Express RS232 Serial Adapter Card - PEX2S953LP

StarTech.com 2-Port RS232 Serial Adapter Card with 16950 UART - Low-profile Plug-in Card - 16950 UART - PCI Express x1 - PC, Linux - 2 x Number of Serial Ports External - 1 - TAA Compliant, This RS232 Serial Adapter Card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.4Kbps. Maximum Compatibility With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor. Experience Optimal Technology This PCIe to serial adapter supports the following features: Compatible with industry standard 16950 UART Supports max baud rate of up-to-921.4Kbps Provides 5/12V power output on Pin 9 when external power is connected 256-byte depth FIFO per transmitter and receiver Supports 9, 8, 7, 6, 5 data bits Asix AX99100 chipset PCI Express 1.1 compliant PEX2S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support. More from the Manufacturer

• VERSATILE APPLICATIONS: For standard/low profile desktop/servers w/ uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanner, oscilloscope
• STANDARD PROFILE & LOW PROFILE BRACKET: PCIe multiport serial card comes w/ low profile bracket preinstalled & a full profile bracket is incl for versatile install; supports Windows XP and up & Linux
• OPTIONAL CONFIGURABLE POWER: PCI Express RS232 serial adapter card provides choice of 12v, 5v, or none through pin 9 w/up to 2A total; Each of the 2 ports are individually configurable
• 2 PORT SERIAL CARD: Serial controller card w/16950 UART based on ASIX AX99100, allows 2x DB9 ports w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer & 9th data bit; Upgraded version of our popular card PEX2S952LP
