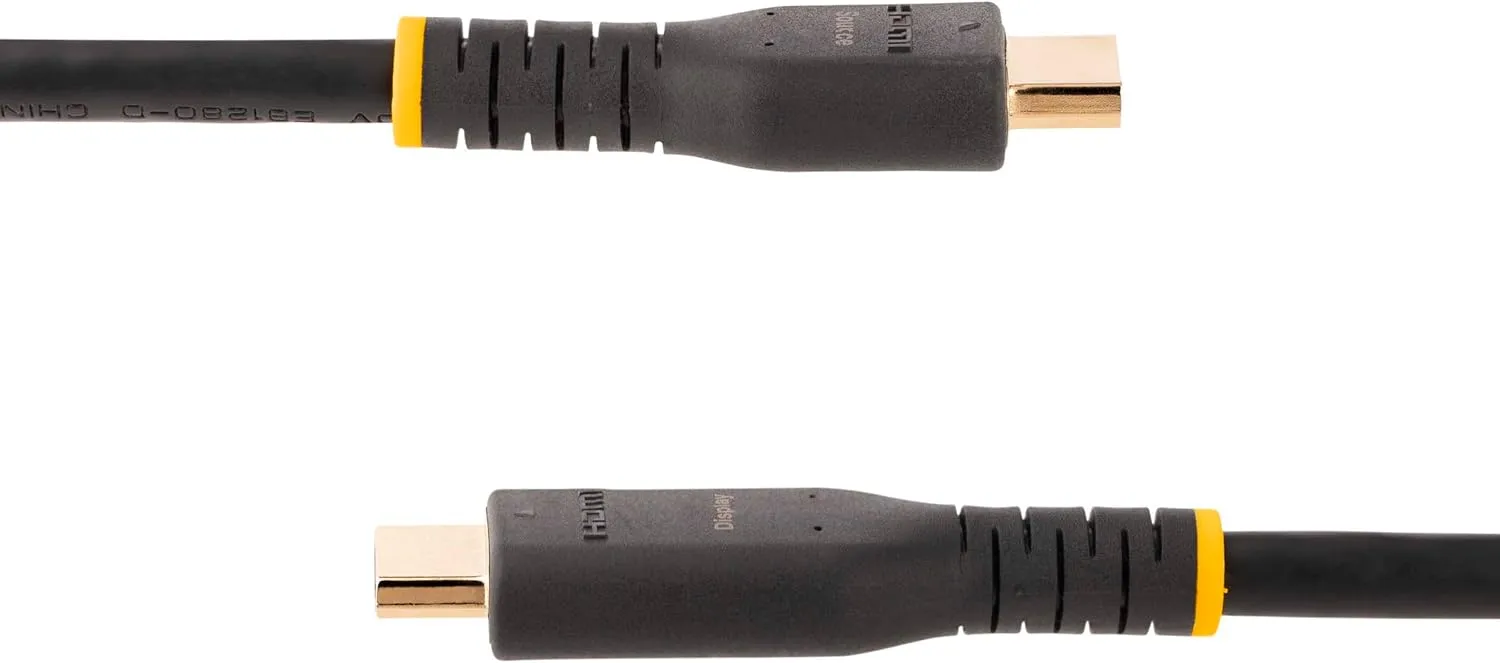

StarTech.com 23ft Active HDMI Cable withEthernet - HDMI 2.0 4K 60Hz UHD - Rugged HDMI Cord withAramid Fiber
Customize
This StarTech.com 23ft (7m) Active HDMI Cable (RH2A-7M-HDMI-CABLE) delivers high-performance HDMI 2.0 connectivity with built-in active amplifier circuitry to extend HDMI signal integrity up to 23 ft (7 m). The rugged design includes an aramid fiber core and a durable Thermoplastic Elastomer (TPE) jacket with strain reliefs to withstand frequent bends and handling. Construction features gold-plated HDMI 2.0 male-to-male connectors, Al-Mylar foil with copper braid shielding, and 28 AWG 100% copper conductors for reliable signal transmission. Supports HDMI 2.0 features including Ethernet, 4K at 60Hz (up to 4096 x 2160p), 18 Gbps bandwidth, HDR10, Dolby Vision, ARC, HDCP 2.2, CEC and extended color spaces. Ideal for conference rooms, offices, classrooms and other AV installations where long, dependable cable runs are required. Backed by a 2-Year Limited warranty and technical support.
- SPECS: 23 feet (7 meters); Color: Black; Version: HDMI 2.0; Connectors: Male to Male; Wire Gauge: 28 AWG; OD: 7.5mm; Cable Jacket: TPE; Shield: Al-Mylar Foil with Copper Braid; Features: ARC, Deep Color, HDCP 2.2, CEC, BT.2020 colorimetry

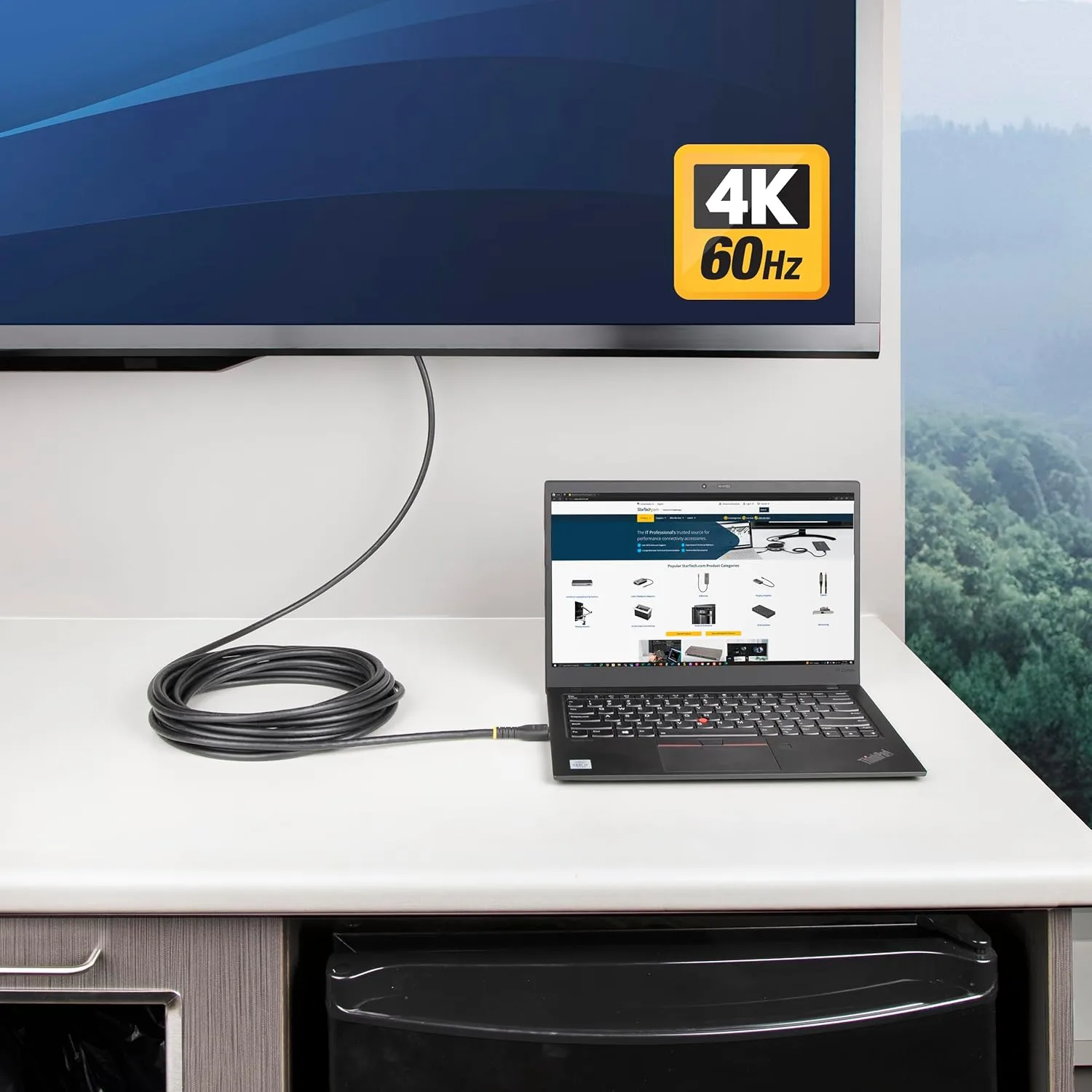

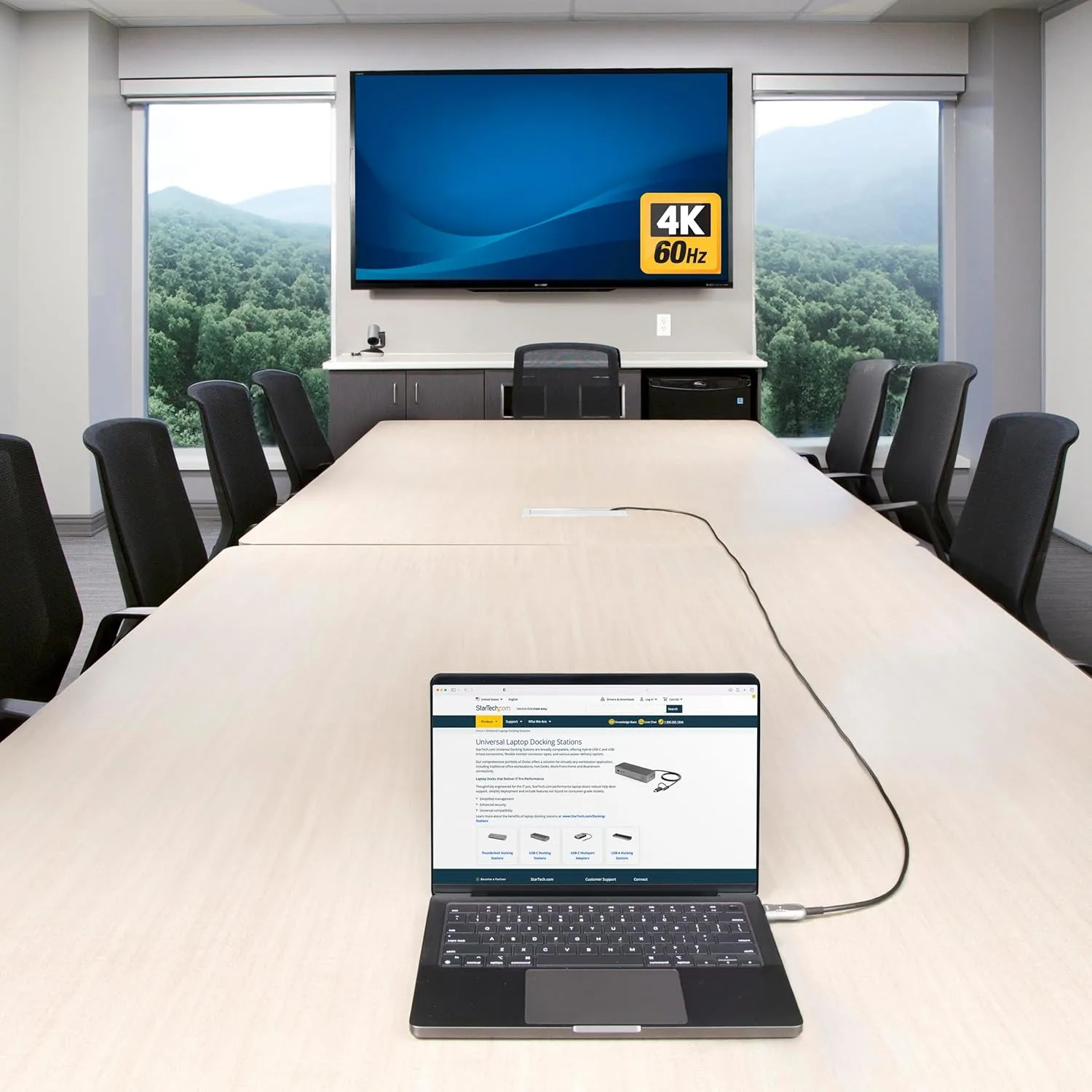

- QUALITY CONSTRUCTION: Gold-plated connectors, and superior EMI shielding with Al-Mylar foil and copper braid improve signal integrity and reliability, deliver 4K 60Hz over long distances; Ideal for conference room, offices, or classrooms
- DURABLE CABLE: 100% copper cable (28AWG) with long lasting TPE jacket and strain reliefs absorbs stress of frequent bends, protecting the core of the rugged UHD HDMI cord; TPE is non-toxic, halogen free and RoHS certified for environmental sustainability
- ACTIVE CIRCUITRY: Active bus-powered amplifier boosts video signals over longer distances to extend HDMI signal up to 23ft (7m); Supports additional color spaces, such as Adobe RGB and YCC601 Color

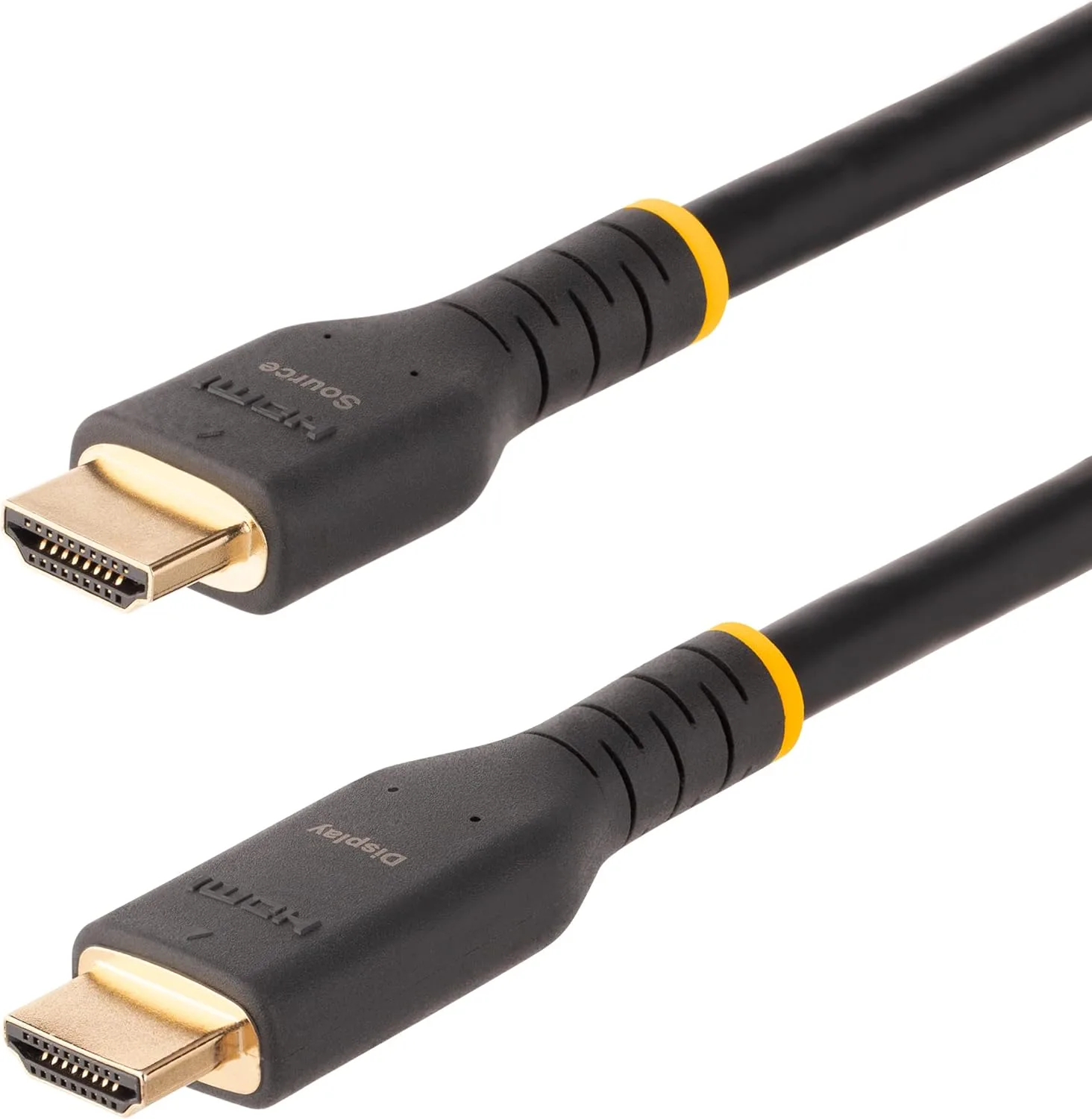

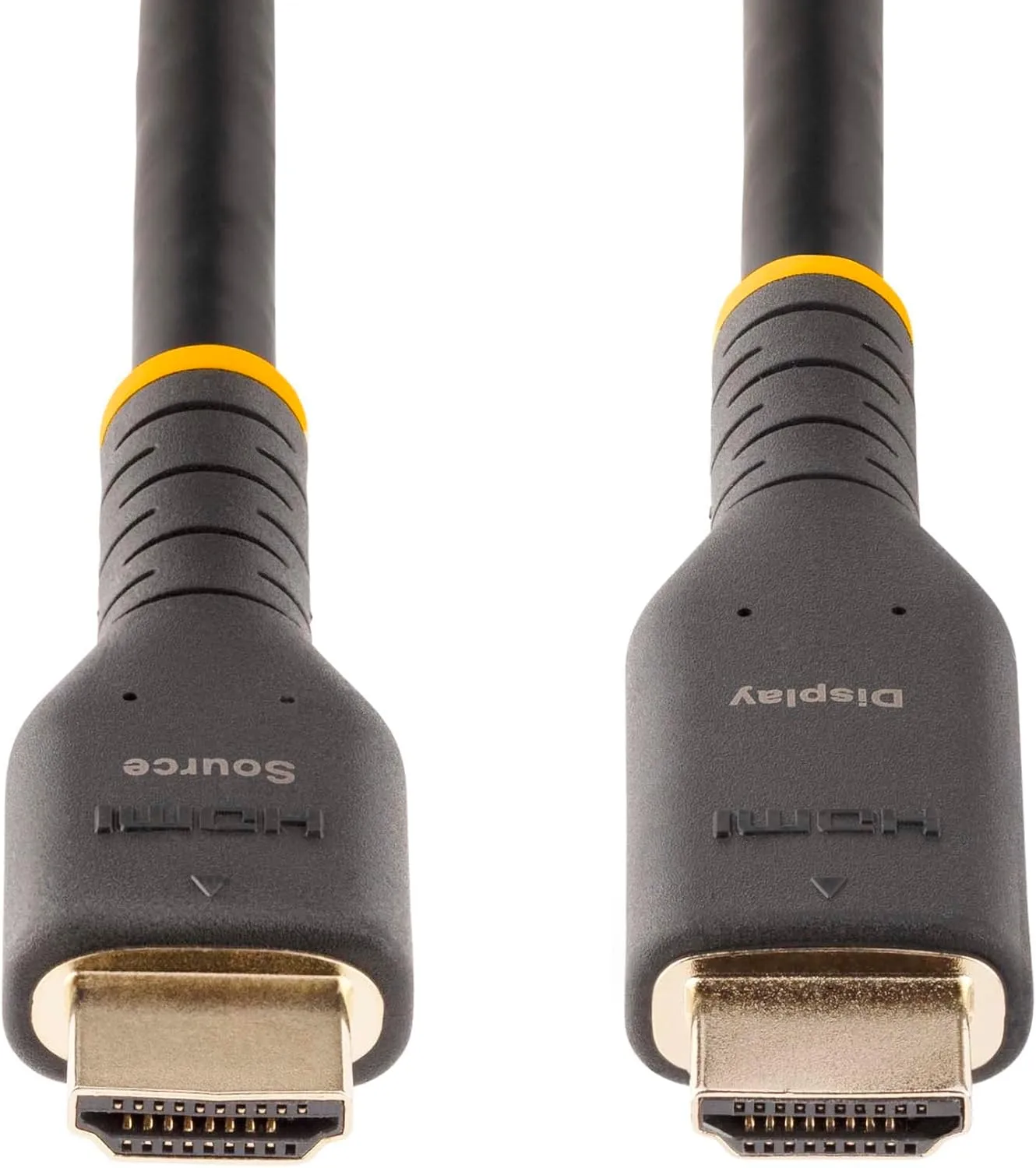

- HIGH PERFORMANCE: 23ft (7m) HDMI 2.0 Cable with Ethernet, 4K 60Hz (up to 4096x2160p), 18Gbps bandwidth, HDR10, and 32 channel multi-stream audio with 1536Hz sampling (5.1/7.1/DD+/Dolby TrueHD/Atmos); Directional cable with source/display labels
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Aramid Fiber, Copper |
| Outer Material | Thermoplastic Elastomer (TPE) |
| Shielding | Yes |
| Product Details | |
| Cable Type | HDMI, Ethernet |
| Compatible Devices | Audio/Video Device |
| Connector Gender | Male-to-Male |
| Connector Type | HDMI |
| Connector Type on First End | 1 x 19-pin HDMI 2.0 Digital Audio/Video - Male |
| Connector Type on Second End | 1 x 19-pin HDMI 2.0 Digital Audio/Video - Male |
| Customer Package Type | sealed anti-static bag |
| Data Transfer Rate | 18 Gigabits Per Second |
| Device Supported | Audio/Video Device |
| Gauge | 28.0 |
| Indoor/Outdoor Usage | Indoor |
| Item model number | RH2A-7M-HDMI-CABLE |
| Number of Items | 1 |
| Number of Pins | 19 |
| Recommended Uses For Product | Audio-Visual |
| Shape | Round |
| Special Feature | High Speed |
| Specification Met | Rohs Certified |
| Unit Count | 1.0 Count |
| Sizing & Dimensions | |
| Height | 0.4 inches |
| Length | 275.6 inches |
| Product Dimensions | 275.6 x 0.8 x 0.4 inches |
| Product Weight | 1.07 pounds |
| Size | 23ft (7m) |
| Weight | 1.02 pounds |
| Width | 0.8 inches |
| Technical Specifications | |
| Features | HDR10, Dolby Vision, ARC, HDCP 2.2, CEC, BT.2020 colorimetry |
| Supported Audio | 32 channel multi-stream audio (5.1/7.1/DD+/Dolby TrueHD/Atmos) |
| Supported Resolution | 4096 x 2160p |
| Warranty | 2-Year Limited |
