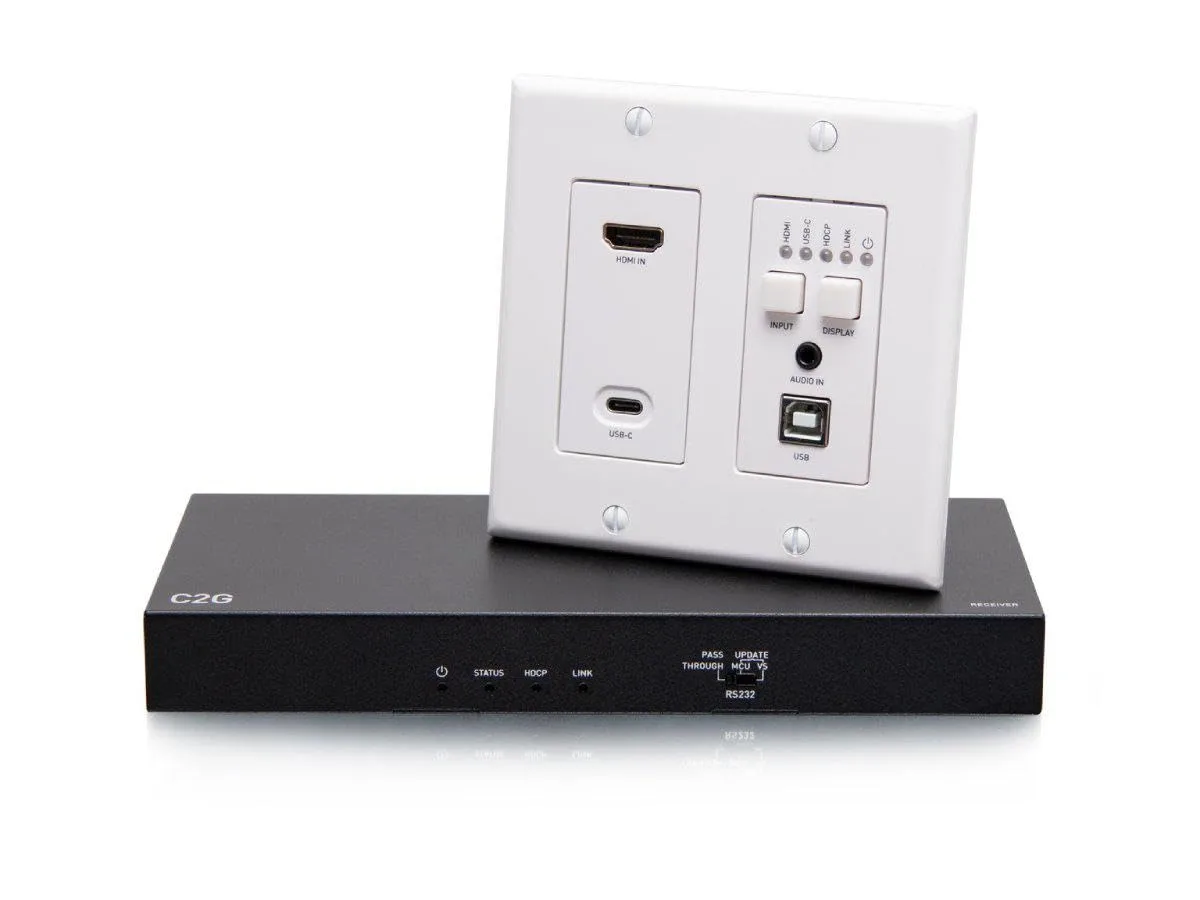

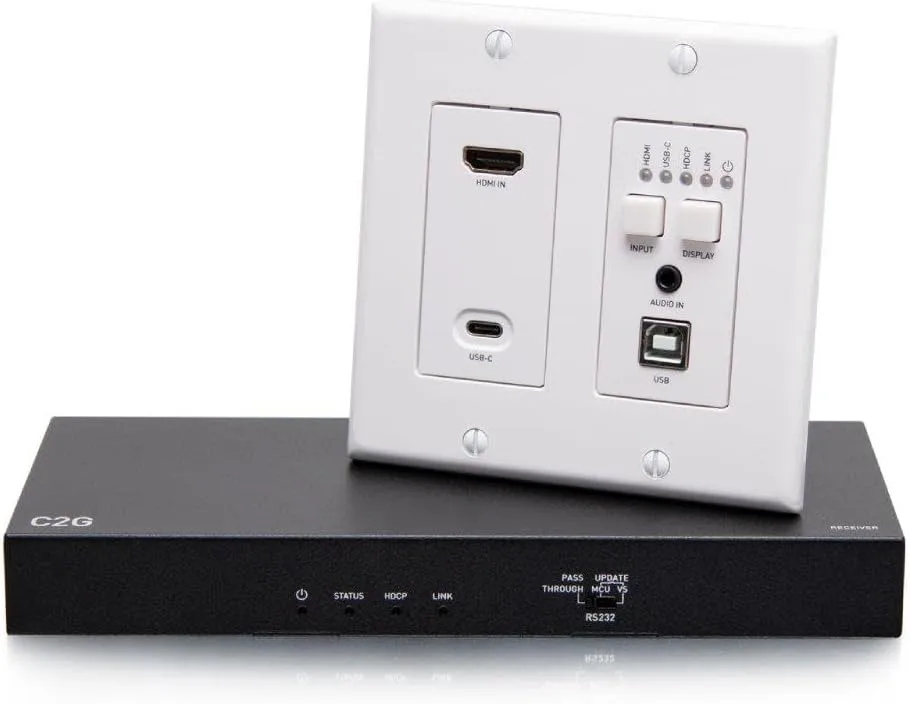

C2G HDBASET HDMI USBC 3.5M Wall Plate to Box

The C2G HDBaseT HDMI + USB-C Wall Plate to Box (3.5M) is a compact transmitter-to-receiver solution for extending HDMI video, USB-C video/data, USB-B to A connectivity, and analog audio over HDBaseT. The wall-plate transmitter supports firmware upgrades and device control via a Micro USB port, one-way Power over HDBaseT (PoH) so the wall plate can be powered by the receiver, and automatic switching (last-in-first-out). It supports USB 2.0 pass-through over HDBaseT (connect up to four USB devices to the receiver), one-way analog audio pass-through, and uses the VS210 HDBaseT chipset for simplified installations. The solution is HDCP 2.2 compliant and can extend 4K@60Hz (4:2:0) up to ~115ft using Cat5e/6 (up to ~130ft with Cat6a) and 1080p@60Hz up to ~200–230ft depending on cable quality. Includes a single-package transmitter wall plate and matching receiver box; ideal for AV distribution in conference rooms, classrooms, and professional AV installations.

• The transmitter supports firmware upgrade and device control via the Micro USB port
• One-way Power over HDBaseT (PoH), so that the wall plate can be powered by receiver
• Supports CEC switch command sent by wall-plate
• Supports USB 2.0 pass through over HDBT up to 230ft, connecting up to 4 USB devices to the receiver
• One-way analog audio pass through from wall-plate transmitter to receiver
• The Transmitter supports automatic switching, following the last-in-first-out rule
• HDBaseT Chipset VS210, for simpler HDBaseT installations
• HDCP 2.2 compliant, to create a secure connection between the source and display
• Extend 4K at 60Hz (4:2:0) up to 115ft and 1080p at 60Hz up to 200ft with Cat 5e/6 cable
• Extend 4K at 60Hz (4:2:0) up to 130ft and 1080p at 60Hz up to 230ft with Cat 6a cable
