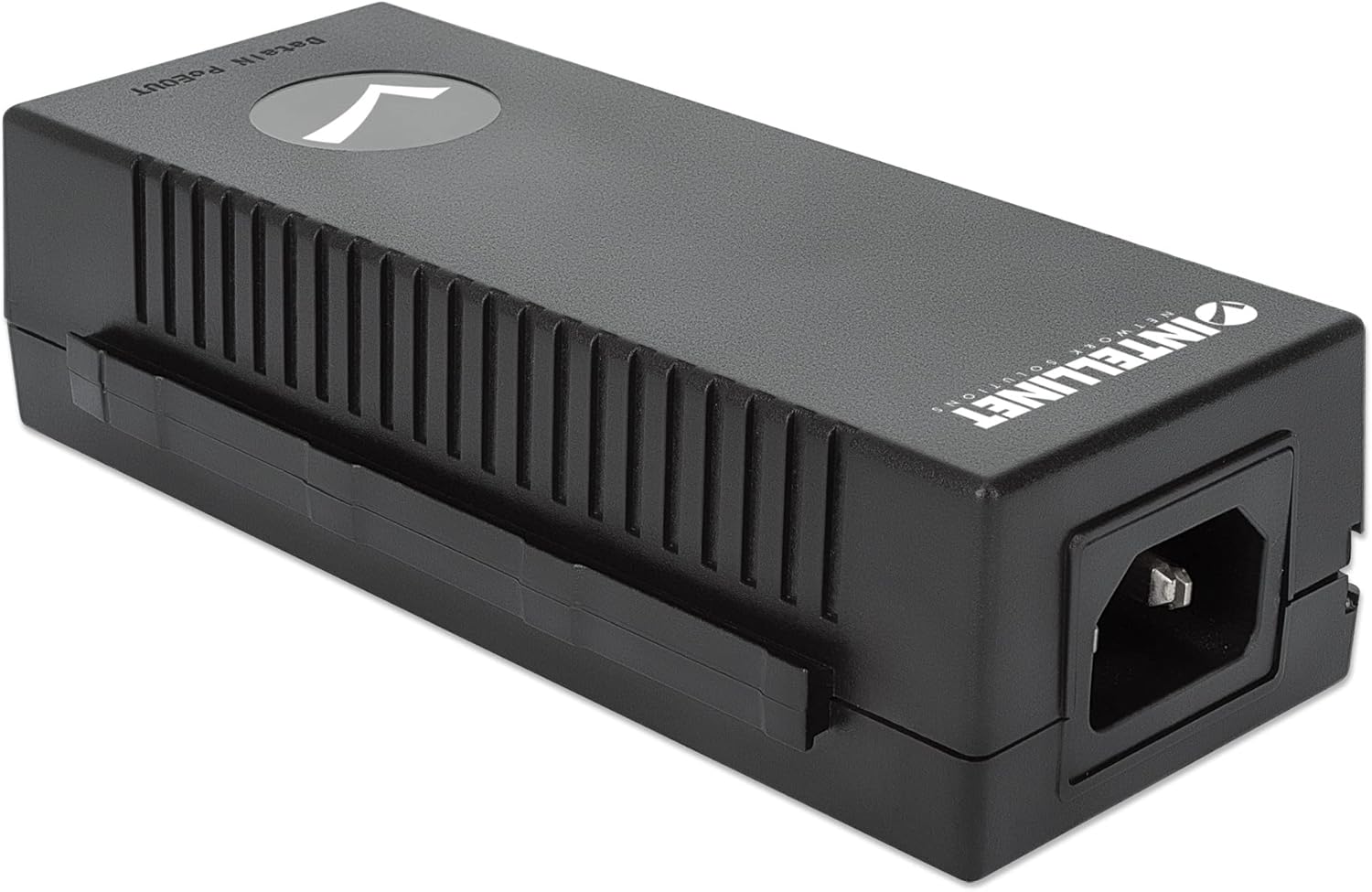

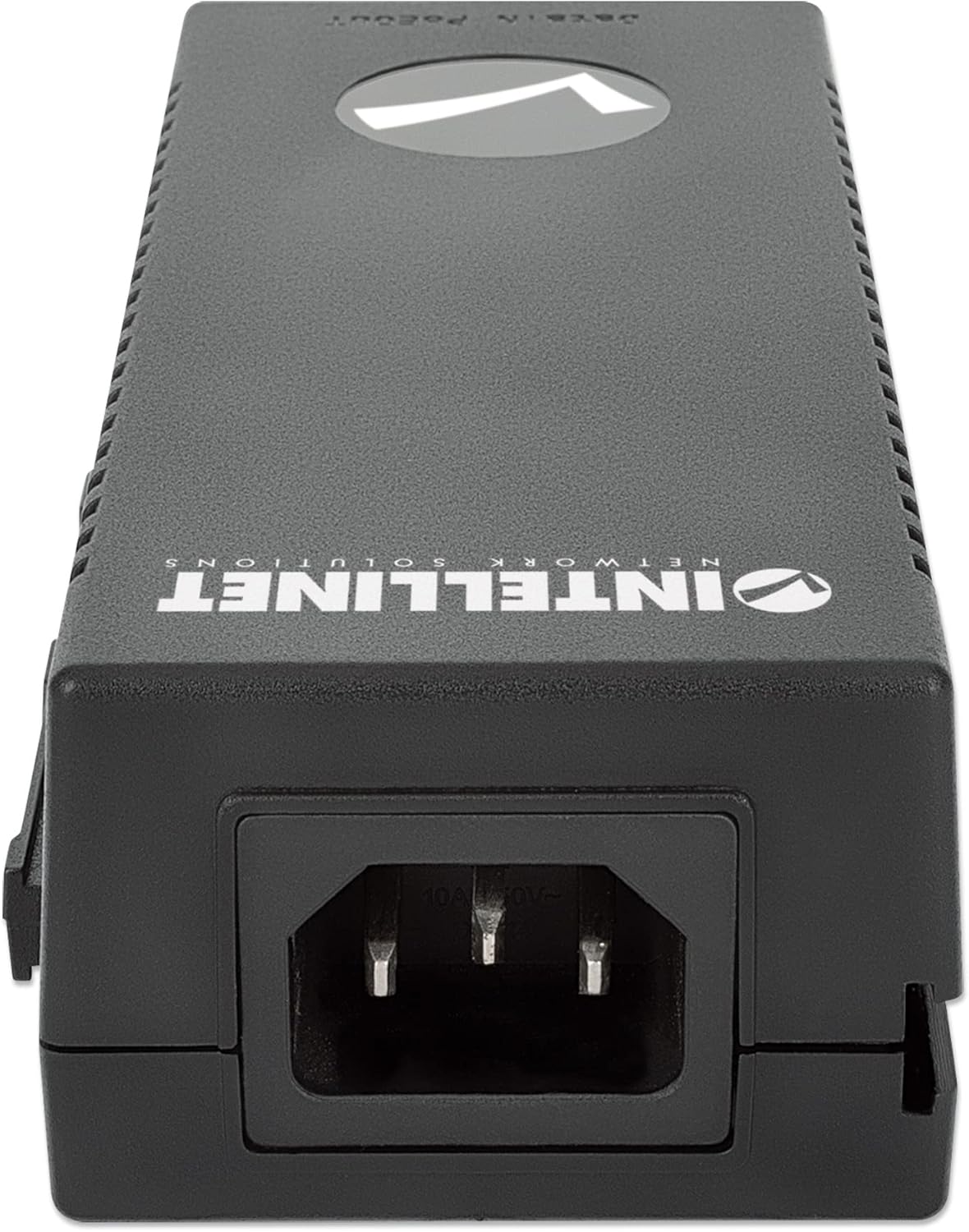

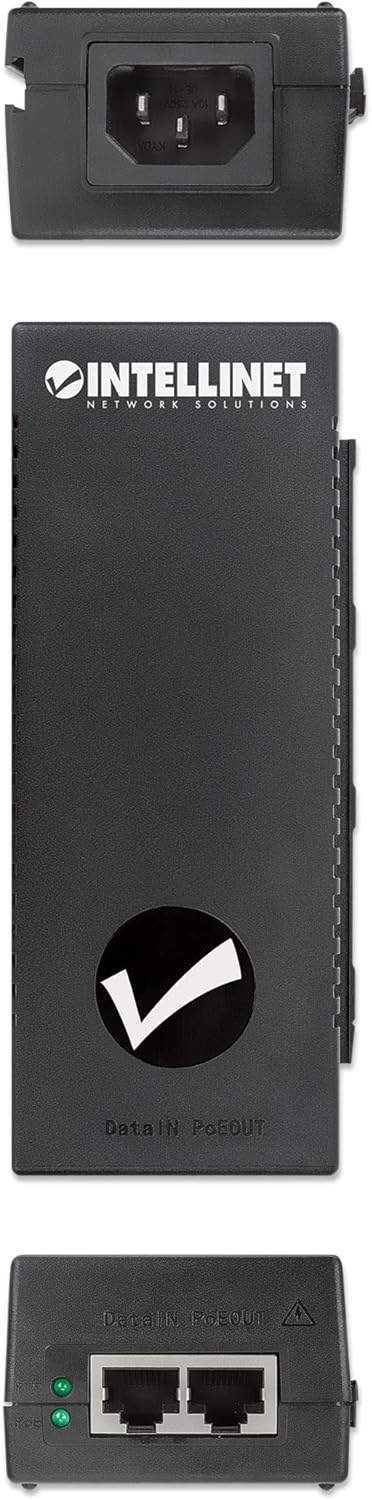

Intellinet 2.5G PoE+ Injector – 2.5Gbps & 30W Power Over Ethernet Output, Supports Distances Up to 328ft
Customize
* Power over Ethernet with output up to 30 watts * Ultra-fast 2.5GBASE-T RJ45 Ethernet port, IEEE 802.3bz compliant * Supports 10/100/1000/2500Mbps data transmission speed * Compatible with IEEE 802.3at/af compliant powered (PD) devices such as network cameras, wireless access points, VoIP phones and more * Support distance: up to 100m * Auto-sensing PoE auto-sensing to ensure power is only sent to IEEE 802.3at/af compliant devices; non-PoE devices receive data only * Equipped with holes for wall installation and four rubber feet for desk use * Built-in guides to slide multiple units together for neat installation * Internal power supply * Fanless design ideal for quiet operation * Save time and money with a system that provides data and power using existing network cables * Plug-and-play installation; no configuration required * Fully NDAA compatible Protectors * Short circuit * Overload * High Voltage standard * IEEE 802.3 (Ethernet 10Base-T) * IEEE 802.3ab (Gigabit Ethernet Twisted Pair) * IEEE 802.3af (Power over Ethernet 802.3at type 1) * IEEE 802.3at (Power over Ethernet 802.3at type 2) * IEEE 802.3u (100Base-TX Fast Ethernet). * IEEE 802.3bz (2.5GBASE-T Ethernet) General Information * Multimedia Support: - 10Base-T Cat3/4/5/5e/6/6a UTP/STP RJ45 - 100Base-TX Cat5/5e/6/6a UTP/STP RJ45 - 1000Base-T Cat5e/6/6a UTP/STP RJ45 - 2.5GBase-T Cat5e/Cat6/6a UTP/STP RJ45 * Ports: - One RJ45 2.5G data input port - One...
- HIGHER-BANDWIDTH & HIGH-POWER INJECTOR: IEEE 802.3at/af-compliant Injector offers PoE+ Output & 2.5 Gigabit Connection. Delivers up to 30 W via Cat5e/6/6a cables to a Powered Device (PD) where it's needed in the network; Supports 10/100/1000/2500 Mbps data rates with additional distance to the PD up to 328 ft. (100 m).
- WIDE APPLICATION/COMPATIBILITY | EASY TO USE: Compatible with all IEEE 802.3at/af-compliant devices like Wi-Fi 6 Access Points, IP cameras, a wireless LAN bridges, VoIP phones and more. Plug-and-play installation; no configuration required.

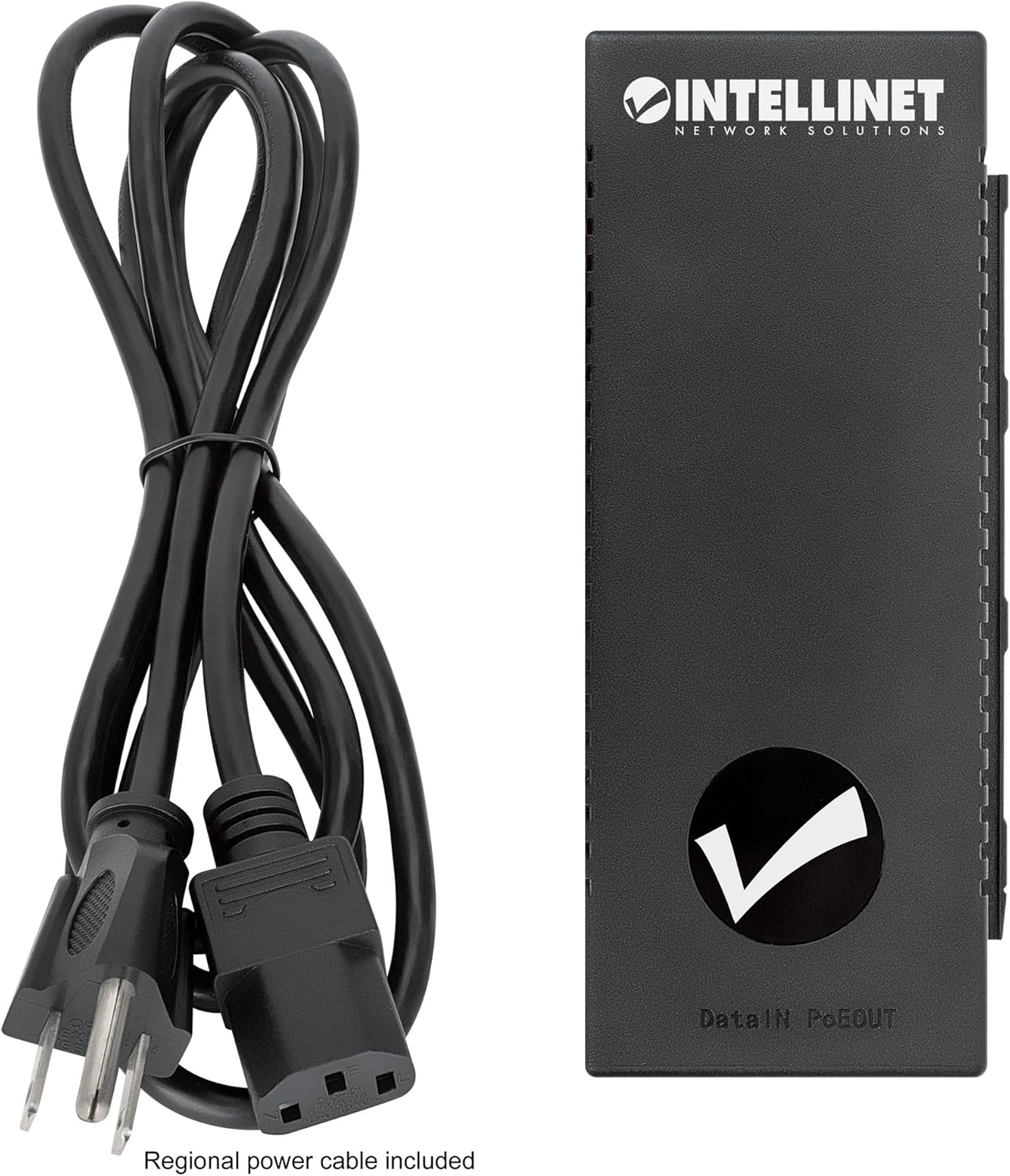

- GREAT WARRANTY | WHAT'S INCLUDED: 3 year mfg warranty. Includes 2.5G PoE+ Injector, power cable, grounding kit, and instructions.

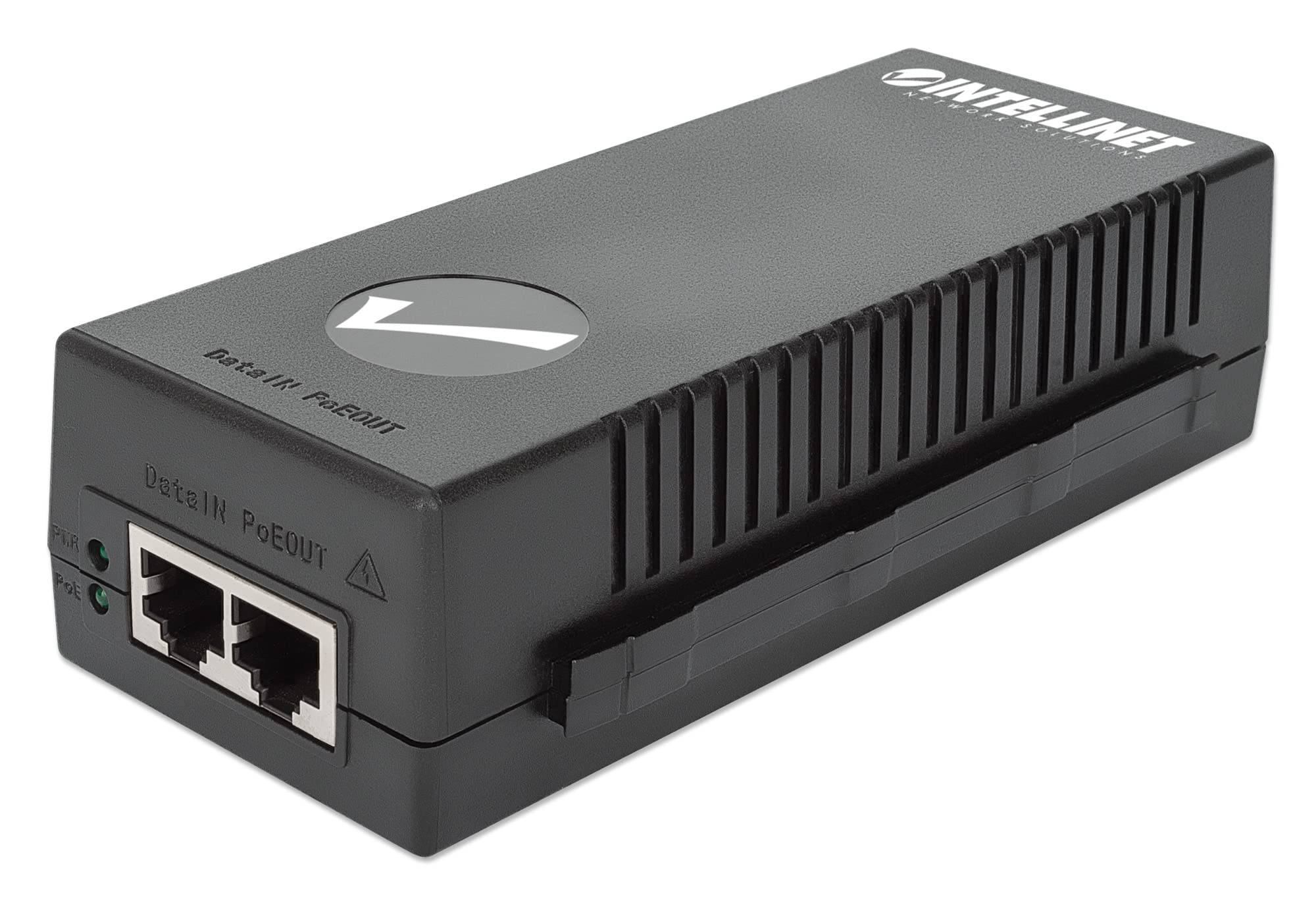

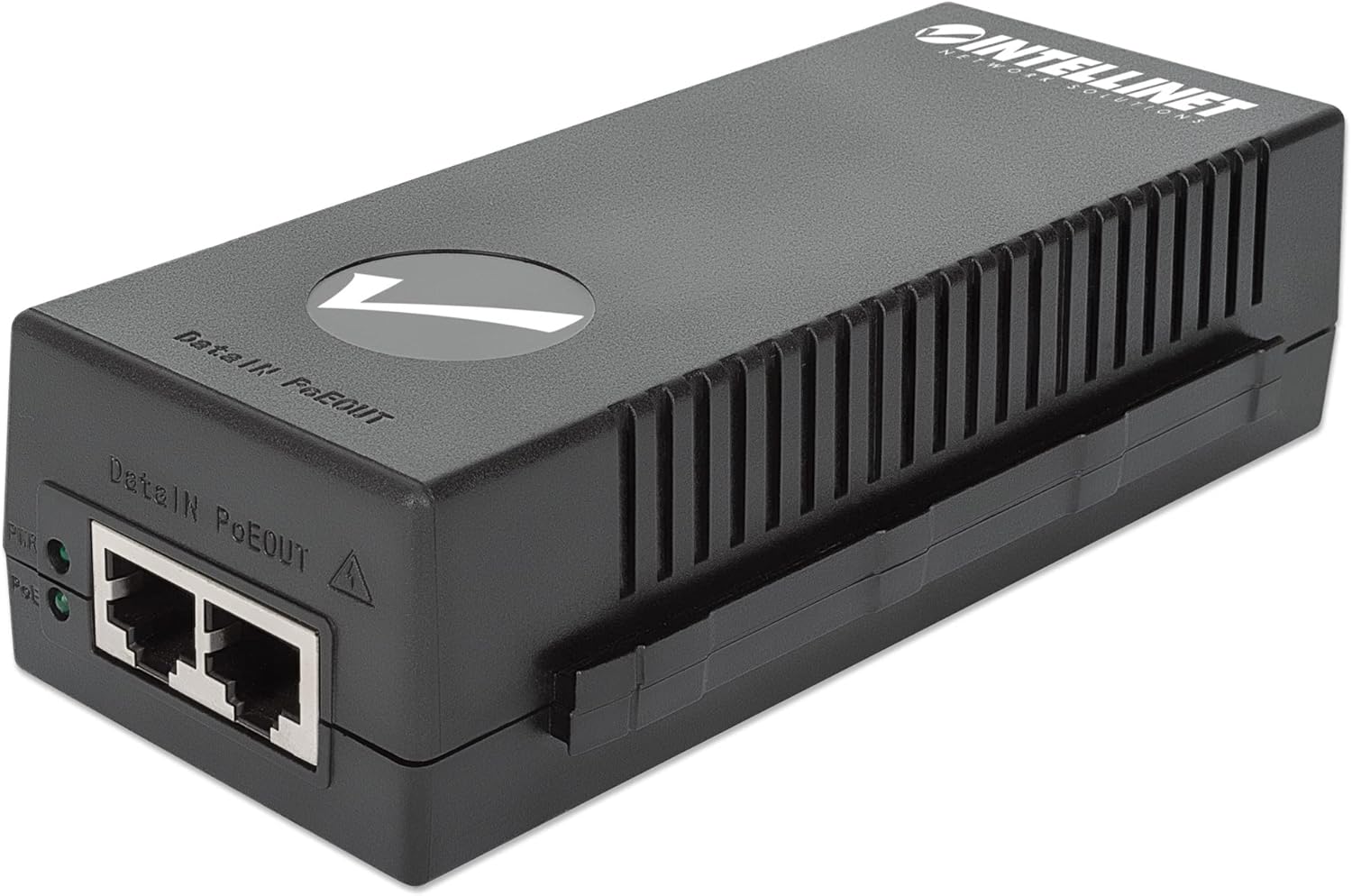

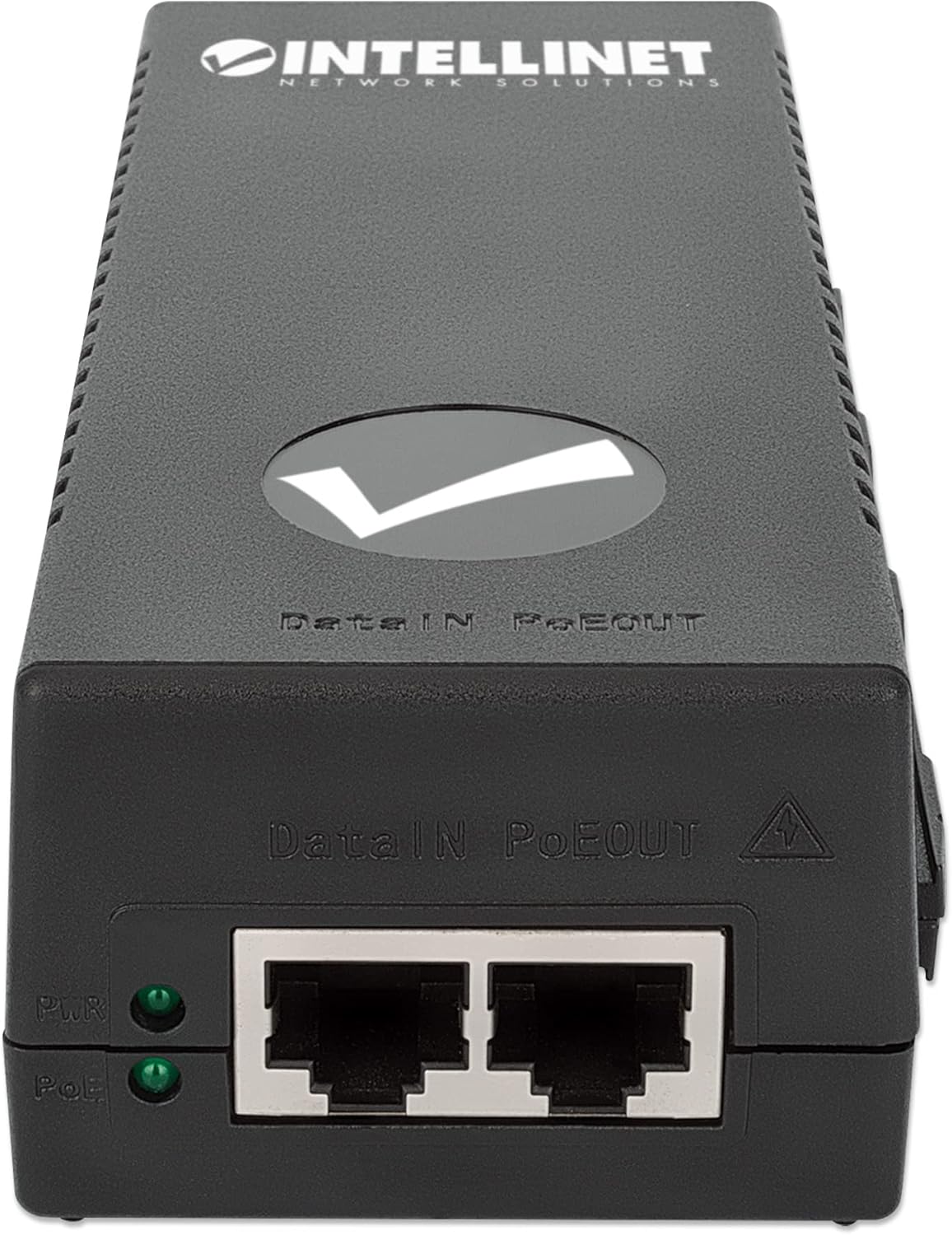

- PROTECTION & SAFETY: auto-sensing PoE awareness only sends power to IEEE 802.3at/af-compliant devices, non-PoE devices only receive data; short-circuit, overload and high-voltage protection. Fully NDAA-compliant. LEDs for Power (PWR) and PoE for status at a glance.

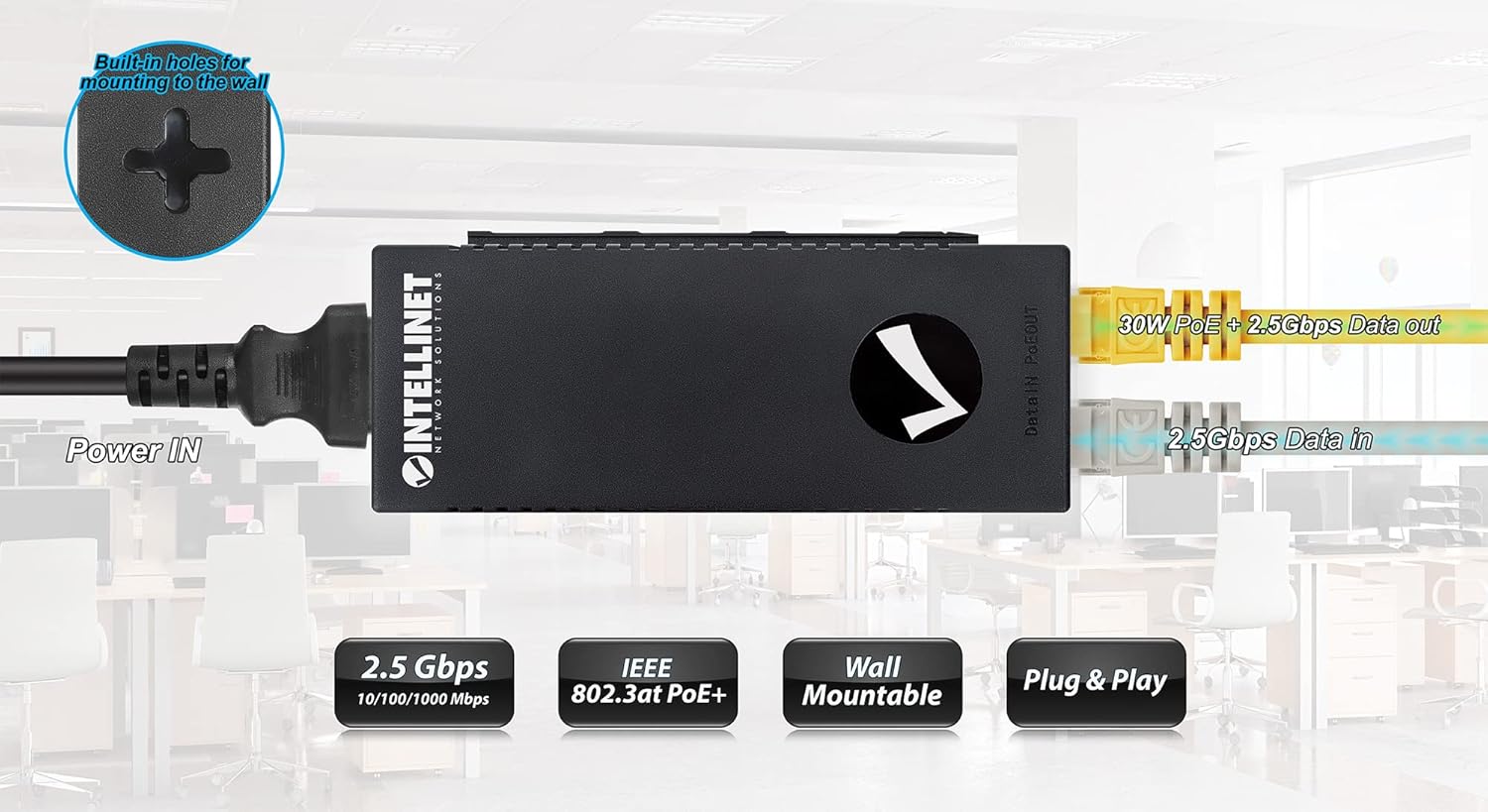

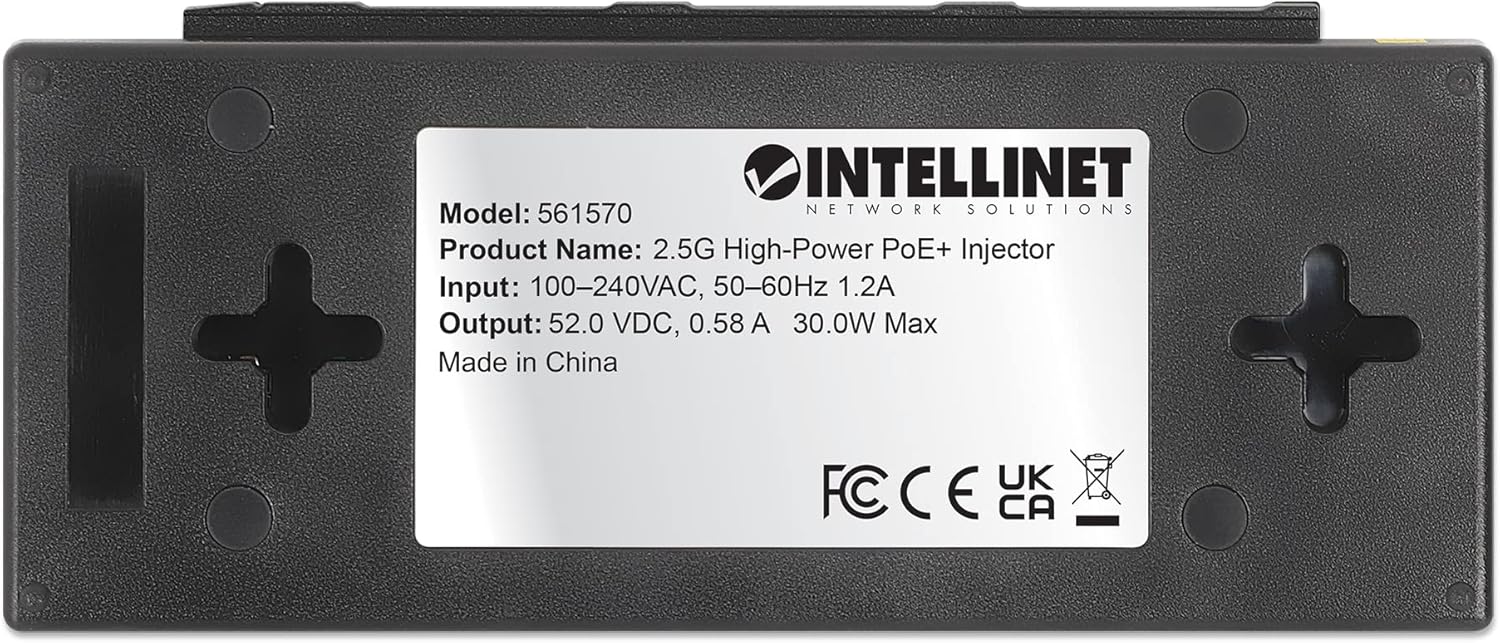

- INSTALLATION OPTIONS: Unit is wall-mountable through two mount-holes on back of unit; unit includes built-in interlocking slide rails to combine units for a tidy installation.
Specifications:
| Materials & Construction | |
| Color | Black |
| Product Details | |
| Compatible Devices | Internet Protocol Camera, Wireless Access Point, VoIP Phone, Network Camera |
| Hardware Interface | Ethernet |
| Sizing & Dimensions | |
| Height | 2.36 inches |
| Length | 4.72 inches |
| Product Dimensions | 2.36 x 6.89 x 4.72 inches |
| Weight | 0.88 pounds |
| Width | 6.89 inches |
| Technical Specifications | |
| Data Link Protocol | IEEE 802.3, IEEE 802.3at, Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data Transfer Rate | 2500 Megabits Per Second |
| Package Dimensions | 6.77 x 4.61 x 2.32 inches |
