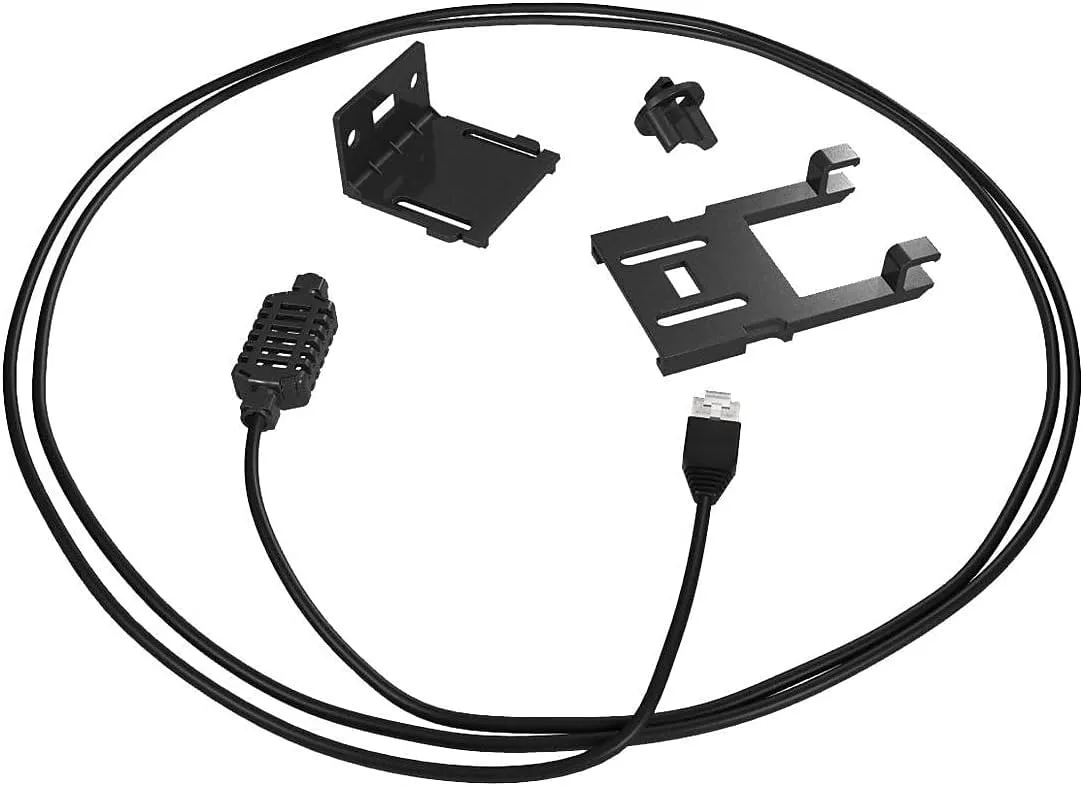

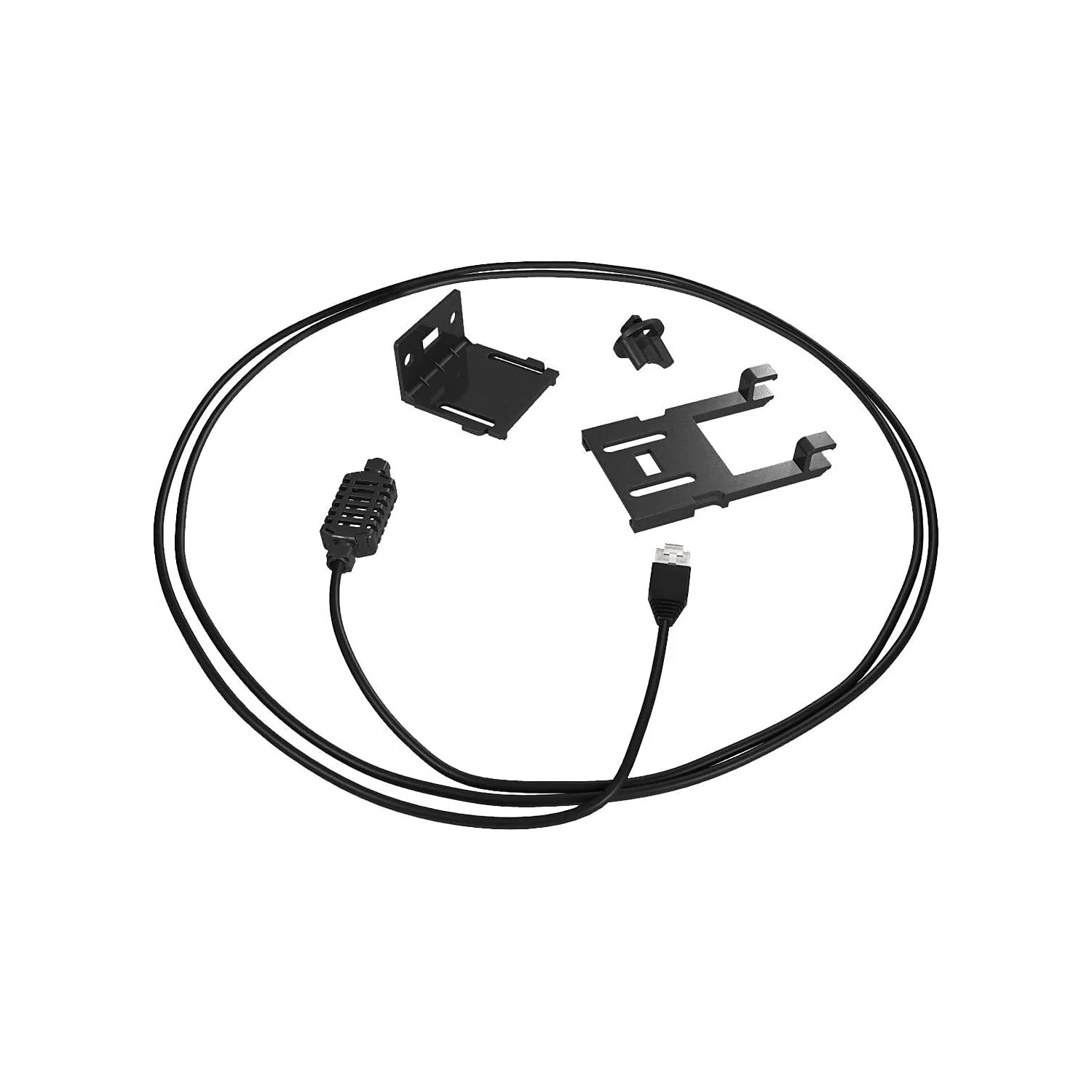

Vertiv Liebert SN Integrated Temperature Sensor - 41°F to 131°F (SN-Z01)
Customize
The Vertiv Liebert SN-Z01 integrated sensor is a temperature sensor with a connected cable and single temperature probe for monitoring conditions in racks and any area. Operating Environment: 41°F to 131°F (5°C to 55°C). Compatible with Vertiv MPX and MPH rack PDUs using RPC card or Vertiv Liebert IS-UNITY-DP communications card. Mounting with supplied bracket or cable tie. Power input through communications cable. Integrated temperature probe, flange-mount capable. Material: Copper. Item weight: 4 ounces. Item dimensions (L x W x H): 145 x 0.75 x 0.5 inches. Measurement accuracy: ±1.8°F. Measurement range: 41°F to 131°F. Specific uses include rack/environment monitoring in data centers, server rooms, and other instrumentation environments.
- OPERATING ENVIRONMENT: 41°F to 131°F
- POWER INPUT: through communications cable
- MOUNTABLE DESIGN: Mounting with supplied bracket or cable tie
- COMPATIBLE WITH: Vertiv MPX and MPH rack PDUs using RPC card or Vertiv Liebert IS-UNITY-DP communications card
- SENSOR: Integrated Temperature Sensor
Specifications:
| Materials & Construction | |
| Material | Copper |
| Product Details | |
| Is Discontinued By Manufacturer | No |
| Item Model Number | SN-Z01 |
| Language | English |
| Lower Temperature Rating | 41 Degrees Fahrenheit |
| Measurement Accuracy | ±1.8°F |
| Measuring Range | 41°F to 131°F |
| Mounting Type | Flange Mount |
| Number of Processors | 1 |
| Output Type | digital (USB) |
| Specific Uses For Product | personal, gaming, business |
| Style | Modern |
| Upper Temperature Rating | 131 Degrees Fahrenheit |
| Sizing & Dimensions | |
| Depth | 3/4 In. |
| Dimensions | 1-5/8 In. X 2-1/64 In. X 3/4 In. |
| Height | 0.5 inches |
| Item dimensions L x W x H | 145 x 0.75 x 0.5 inches |
| Length | 145 inches |
| Product Weight | 0.5000 |
| Weight | 4 ounces |
| Width | 0.75 inches |
| Technical Specifications | |
| Measurement Accuracy | ±1.8°F |
| Measuring Range | 41°F to 131°F |
| Mounting Type | Flange Mount |
