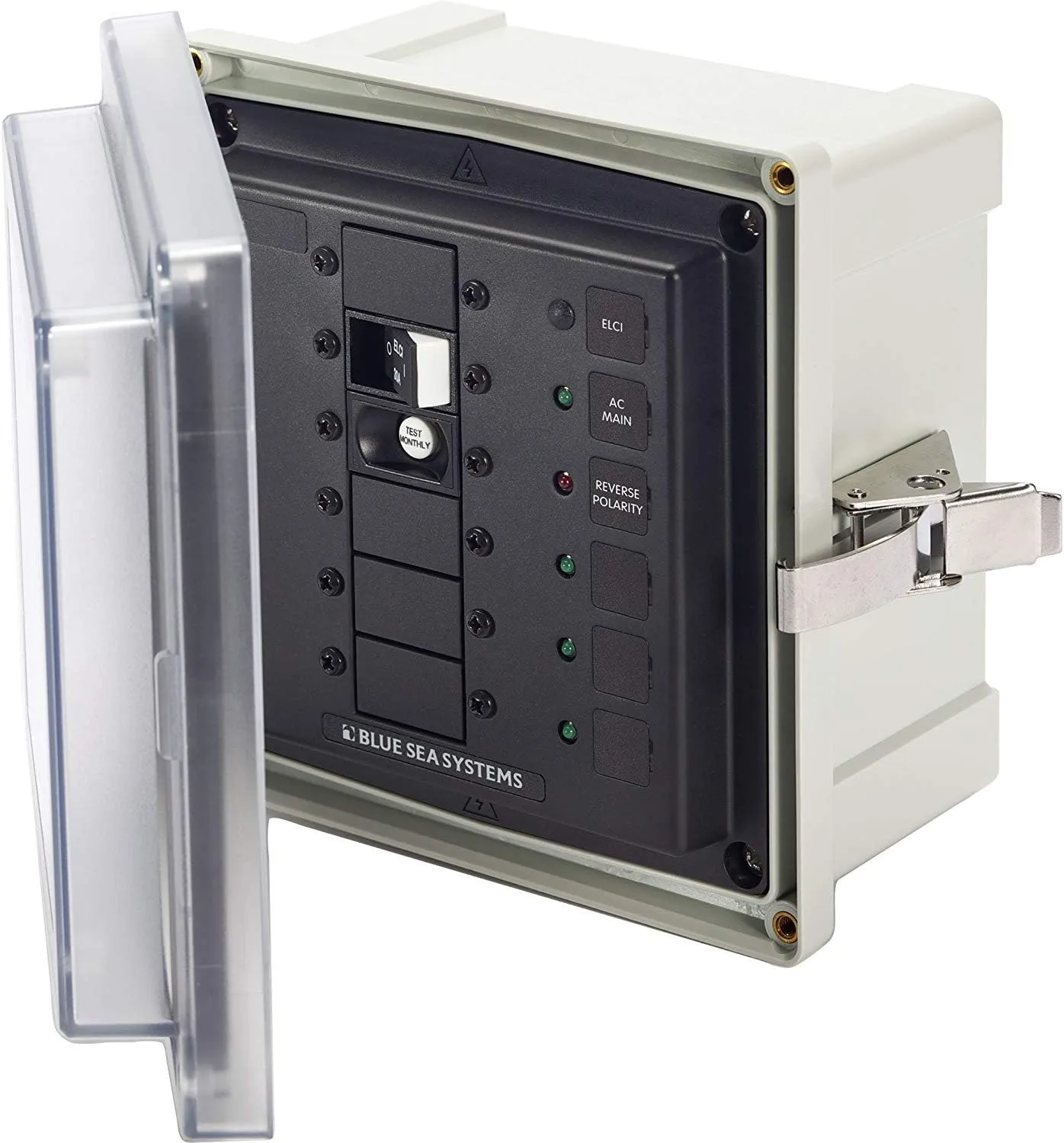

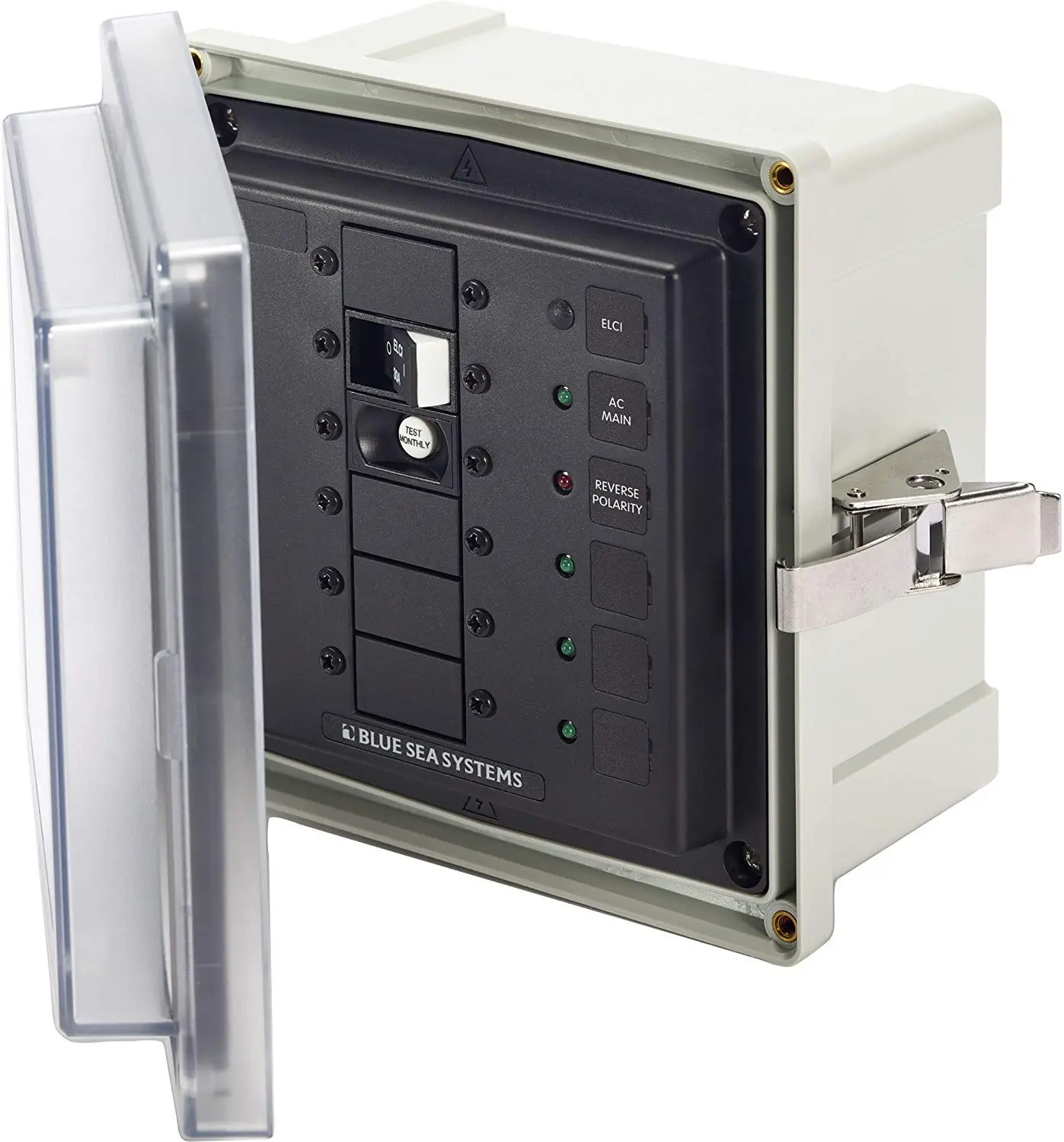

Blue Sea Systems 3116 120VAC ELCI 30A Surface Mount System Enclosure, Beige
Customize
3116 - SMS Panel Enclosure with ELCI (30A) and 3 Blanks - 120V The 3116 panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet. Features: Blank apertures for custom breaker loading Glass filled polycarbonate base Clear cover allows easy view of circuit breaker status Overlapping cover for strength and increased gasket protection Oversized, formed in place seamless PUR gasket Easily removable stainless steel hinge pin for unobstructed installation Stainless steel latch secures cover without penetrating the enclosure Blank circuit positions accommodate Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers Includes waterproof glands LED lights for back lighting and ON indication Technical Specifications: Circuit Breaker Type - 1 x ELCI (30A) Main 120V and 3 x Blank Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm) Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm) LEDs Installed - 1 x Red (Reverse Polarity - 120V AC and 4 x Green ON (120V AC) In the Box: 3116 Enclosure Glands x 5 Labels Mounting hardware Instruction manual *Sold as an Individual WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov . Includes one 120V AC 30A ELCI Main Glass filled polycarbonate mounting box Clear cover allows easy view of circuit breaker status.
- Includes one 120V AC 30A ELCI Main
- Glass filled polycarbonate mounting box
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Accommodate Carling Technologies and C- Series Flat Rocker and ELCI Main circuit breakers
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| AC Adapter Current | 30 Amps |
| Number Of Circuits | 4 |
| Phase Type | Single Phase |
| Style | Compact |
| UPC | 632085031169 |
| Warranty | Warranty |
| Sizing & Dimensions | |
| Height | 6 inches |
| Length | 9 inches |
| Product Dimensions | 9 x 9 x 6 inches |
| Size | Standard |
| Weight | 7 pounds |
| Width | 9 inches |
| Technical Specifications | |
| AC Adapter Current | 30 Amps |
| Item Package Dimensions | 12.3 x 12.3 x 8.9 inches |
| Number Of Circuits | 4 |
| Phase Type | Single Phase |
