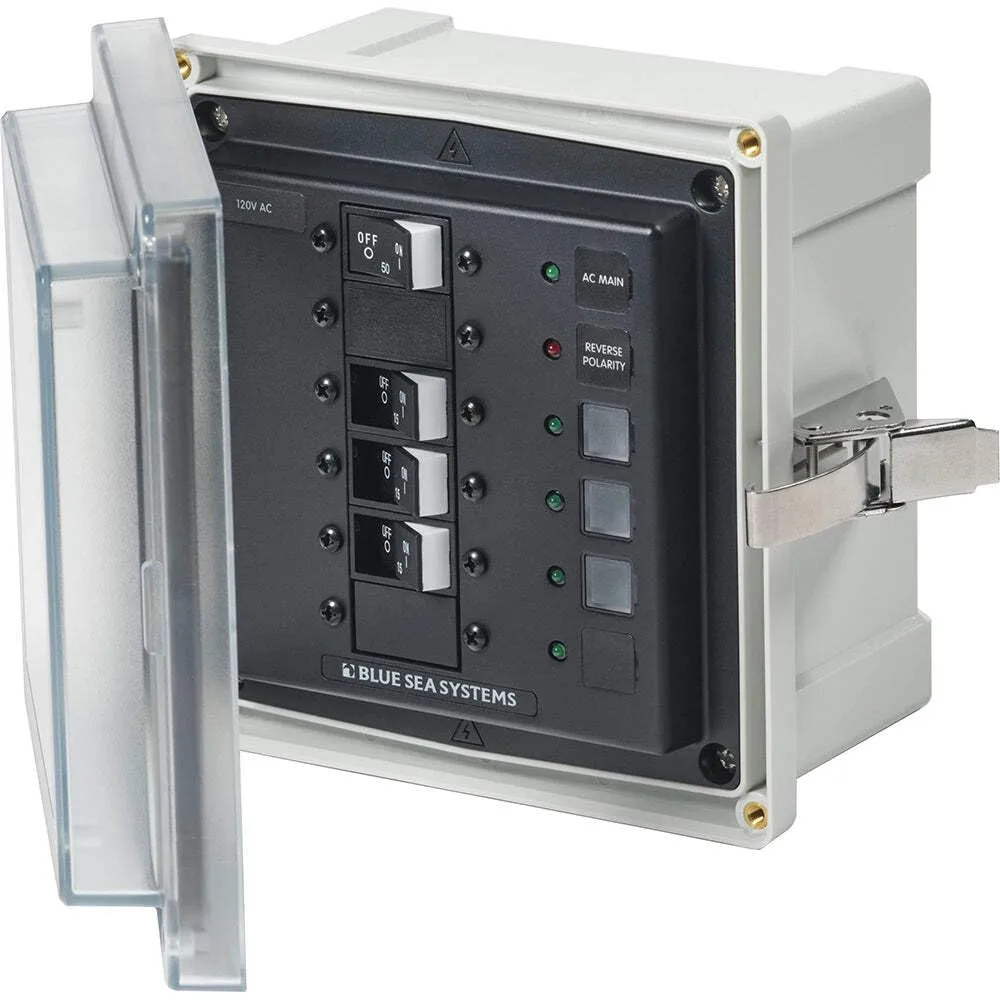

3130 - SMS Panel Enclosure with Main & 3 Branch (15A) - 120V AC The 3130-panel enclosure is built with UL-489 Circuit Breakers to meet CFR 46 / Coast Guard requirements. Features: Blank apertures for custom breaker loading Glass-filled polycarbonate base Clear cover allows easy view of circuit breaker status Overlapping cover for strength and increased gasket protection Oversized, formed in place seamless PUR gasket Easily removable stainless steel hinge pin for unobstructed installation Stainless steel latch secures cover without penetrating the enclosure Blank circuit positions accommodate Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers Includes waterproof glands LED lights for backlighting and ON indication Technical Specifications: Circuit Breaker Type - 1 x 120V Main and 3 x Branch (15A) Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm) Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm) LEDs Installed - 1 x Red (Reverse Polarity - 120V AC and 5 x Green ON (120V AC) In the Box: 3130 Enclosure Glands x 4 Labels Mounting hardware Instruction manual *Sold as an Individual Additional marketing note: Great Product
| Materials & Construction | |
| Color | No Color |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Included Components | Great Product |
| Model Name | 3130 |
| UPC | 632085031305 |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 6 inches |
| Length | 10 inches |
| Size | One Size |
| Weight | 4.45 pounds |
| Width | 9 inches |
| Technical Specifications | |
| Warranty | Warranty |
