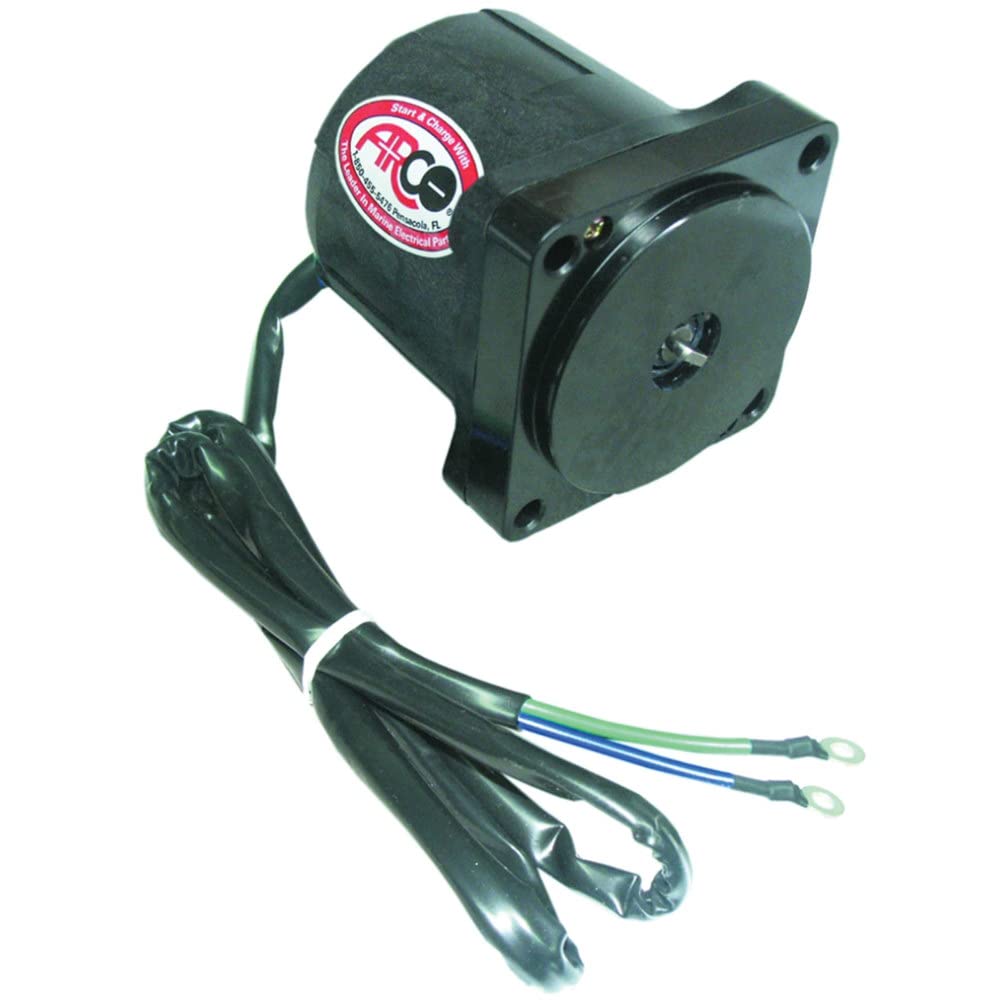

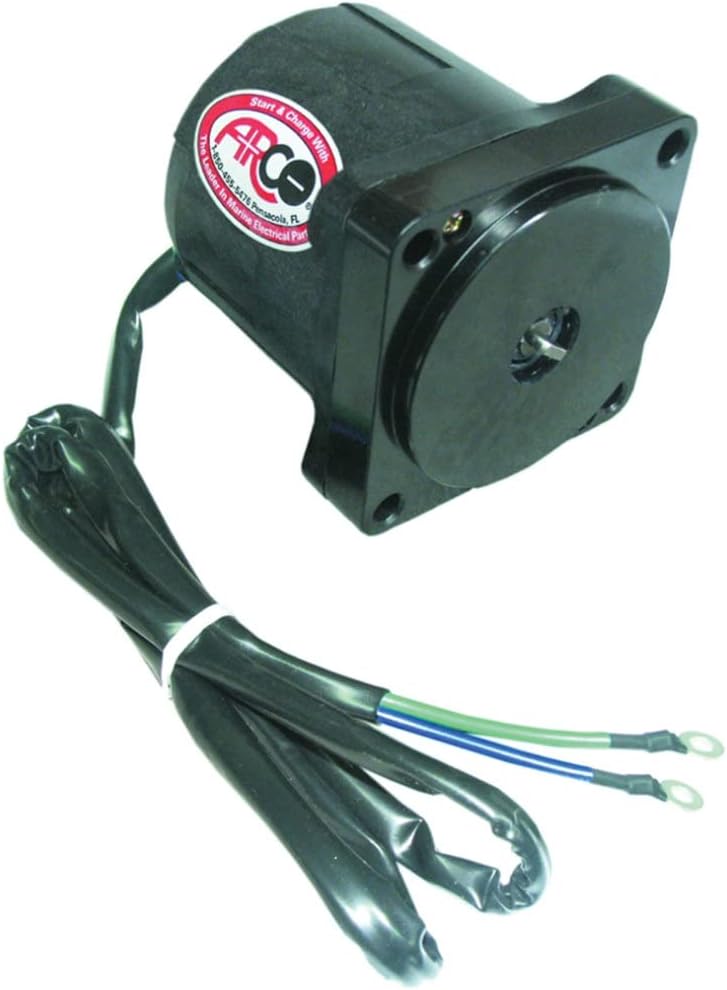

Arco Starting & Charging 6240 Tilt Trim Motor for Yamaha 115 HP (1997+), 130 HP (1997-2000), 150-200 HP (1997+)
Customize
Replacement Outboard Tilt Trim Motor - Yamaha-4 Bolt. Replacement outboard tilt trim motor that will fit Yamaha 1997-UP 115 HP; 2000-UP 115 HP 4-Stroke; 1997-2000 130 HP; 1997-UP 150-200 HP; 1998-UP 225 HP. 2-wire connection, bolt mount, ring terminal ends, includes O-ring. ARCO advises cleaning all connections: A corroded connection creates resistance, lowering the amperage required to operate the motor. Features: Tilt trim motors are dynamically tested to ensure out-of-the-box performance. Motor shafts induction case hardened at bearing surfaces for superior wear resistance. Epoxy Powder coated for maximum insulation protection. Warranty Information: When properly installed, all ARCO products are warrantied against defects in materials and workmanship for a period of 12 months for leisure use and 90 days for commercial or racing applications. Add an extra year of warranty to your rotating electric ARCO product (Tilt/Trim Motors, Alternators, Outboard Starters, and Inboard Starters) when you register your product within 30 days of purchase. You can register your product by visiting arcomarine.com/product-registration. Also marketed as Arco Starting & Charging 6240 Tilt Trim Motor for Yamaha 115 HP (1997+), 130 HP (1997-2000), 150-200 HP (1997+), 225 HP (1998+). All motors must meet or exceed OEM performance before being boxed. All motors performance tested at 5 different load levels. All armatures tested to withstand 50 times operation voltage (12V).
- All motors must meet or exceed OEM performance before being boxed
- All motors performance tested at 5 different load levels
- All armatures tested to withstand 50 times operation voltage (12V)
- Motor shafts induction case hardened at bearing surfaces for superior wear resistance
- Epoxy powder coated for maximum corrosion protection
Specifications:
| Materials & Construction | |
| Color | No Color |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Included Components | Arco Starting & Charging 6240 Tilt Trim Motor for Yamaha 115 HP (1997+), 130 HP (1997-2000), 150-200 HP (1997+), 225 HP (1998+) |
| Model Name | Arco Starting & Charging 6240 Tilt Trim Motor for Yamaha 115 HP (1997+), 130 HP (1997-2000), 150-200 HP (1997+), 225 HP (1998+) |
| Number of Items | 1 |
| Size | No Size |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 6 inches |
| Item Dimensions Lx Wx H | 10 x 6 x 6 inches |
| Item Package Dimensions L x W x H | 13.35 x 4.69 x 4.65 inches |
| Length | 10 inches |
| Product Dimensions | 10 x 6 x 6 inches |
| Weight | 3.06 pounds |
| Width | 6 inches |
| Technical Specifications | |
| Model Number | 6240 |
| Warranty | When properly installed, all ARCO products are warrantied against defects in materials and workmanship for a period of 12 months for leisure use and 90 days for commercial or racing applications. |
