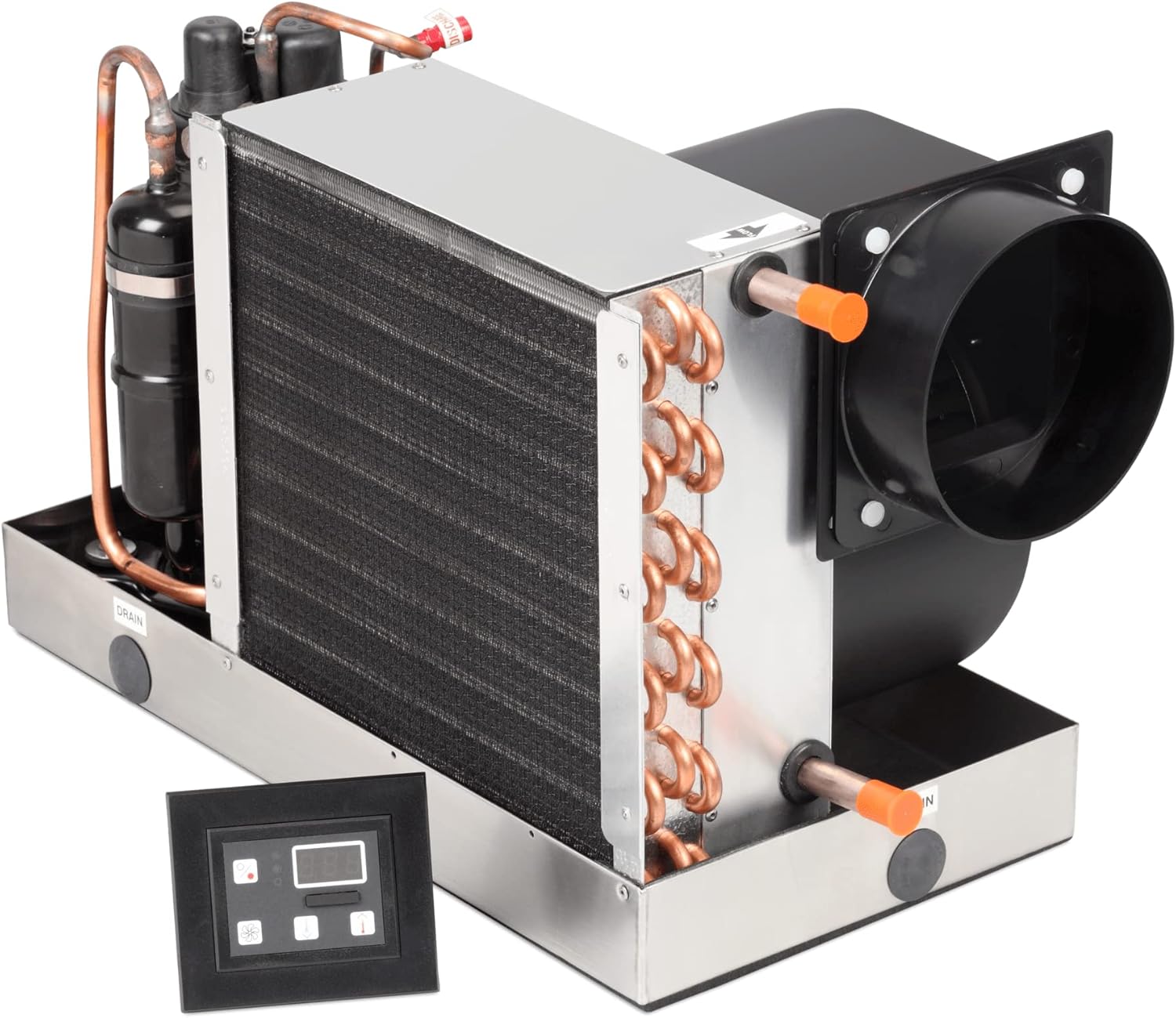

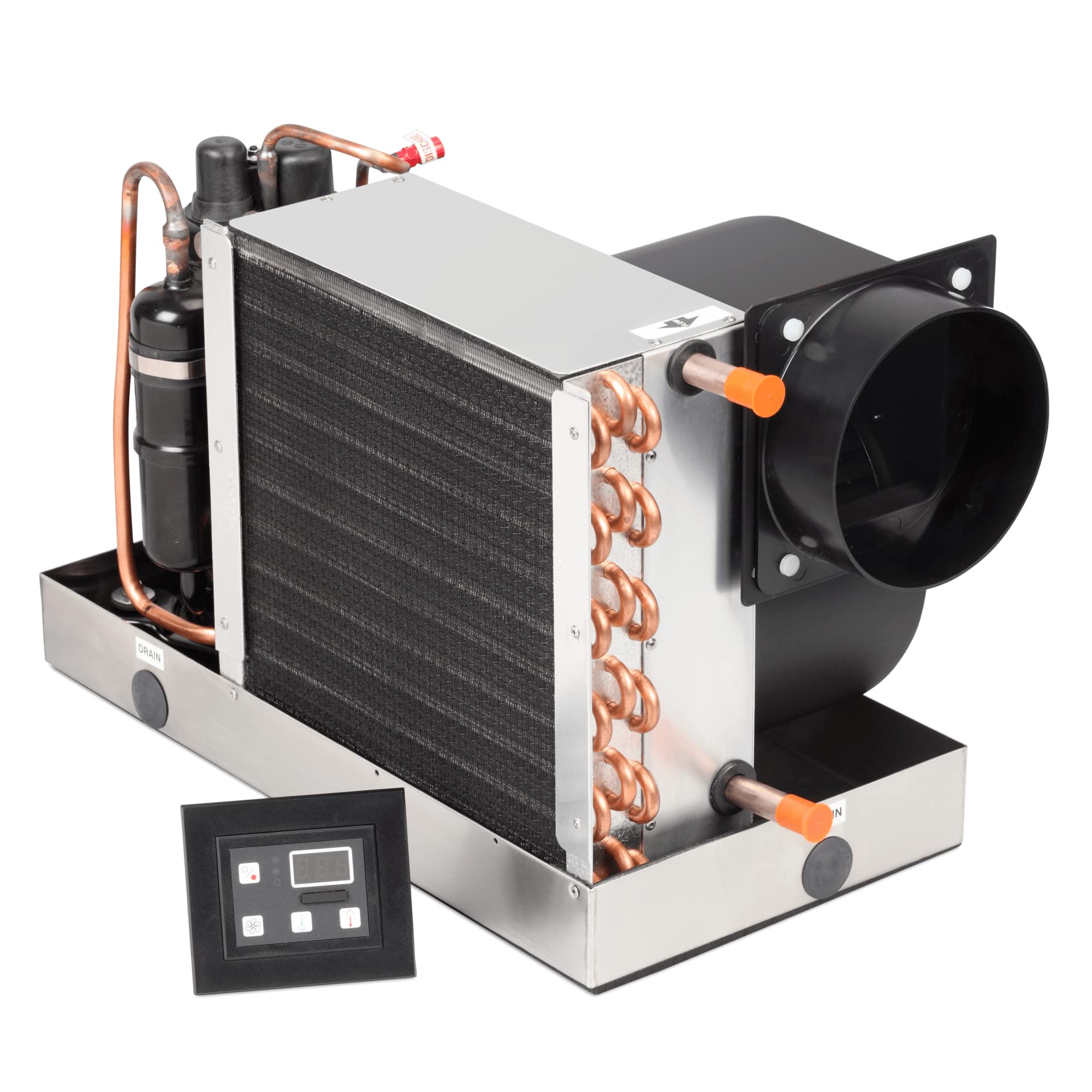

Dometic ECD Self-Contained Air Conditioner - Compact Design with Digital Control and Display -230V R410A Refrigerant

EnviroComfort ECD16KZ-HV AC Retrofit Kit - 230 V - 16,000 BTU The Dometic Marine Air 16,000 BTU EnviroComfort Air Conditioning Retrofit Kit provides reverse-cycle cooling and heating capability so you stay comfortable onboard year-round. This 16,000 BTU unit replaces an older self-contained air conditioner of comparable capacity in the 12,000 to 16,000 BTU range. All units have high-velocity blowers with internal motors for a more compact installation footprint. The blower can be rotated to a horizontal or vertical position for greater installation flexibility. Units are built on an easy-to-plumb stainless-steel drain pan, and the pre-installed return-air filter is removable for cleaning. ECD kits are ideal for replacing an existing air conditioning system or for a new air conditioning installation. The Retrofit Kit includes the ECD self-contained air conditioning unit and digital control with bezel and is intended to replace an older self-contained air conditioner of comparable capacity. Legacy Part Number - 207500017 Features: High-velocity, rotatable blower for horizontal or vertical installation Environmentally friendly R-410A refrigerant Easy to use Dometic Passport I/O digital control and display (P/N 9600005997) Plastic remote electrical box for convenience in mounting Stainless-steel drain pan Pre-installed return-air filter, easily removable and cleanable Small, compact, space-saving design Specifications: Input voltage - 230 V Starting amps - 34 A Fuse Max./Min. - 20 A/12 A Input frequency 50/60 Hz Refrigerant type - R410A Colling capacity - 16,000 BTU Min. supply duct size - 6" Seawater inlet connection - .625" Dimensions - Height 13.5" x Width 20" x Depth 11.25" In the Box: Self-contained AC unit Digital control with bezel and 15' cable Instruction manual *Sold as an Individual WARNING: This product can expose you to chemicals including ARSENIC which is known to the State of California to cause cancer or other reproductive harm. For more information go to P65Warnings.ca.gov . This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

• POWERFUL COOLING CAPACITY: With a cooling capacity of 16,000 BTUs, the Dometic ECD self-contained air conditioning system is powerful enough to keep your boat or RV cool in even the hottest weather.
• ENERGY-EFFICIENT AND ENVIRONMENTALLY-FRIENDLY: The Dometic ECD uses environmentally-friendly R410A refrigerant and is designed to be energy-efficient, helping to reduce your energy costs while also reducing your carbon footprint.
• EASY TO INSTALL AND USE: The Dometic ECD features a small, compact, and space-saving design that makes it easy to install in your boat or RV. It also comes with a plastic remote electrical box for convenient mounting and an easy-to-use Dometic digital control and display.
• HIGH-VELOCITY BLOWER: The high-velocity, rotatable blower can be installed horizontally or vertically, making it easy to direct the airflow where you need it most.
• EASY TO MAINTAIN: The Dometic ECD comes with a pre-installed return-air filter that is easily removable and cleanable. It also features a stainless-steel drain pan that resists rust and corrosion, ensuring long-lasting durability and easy maintenance.
