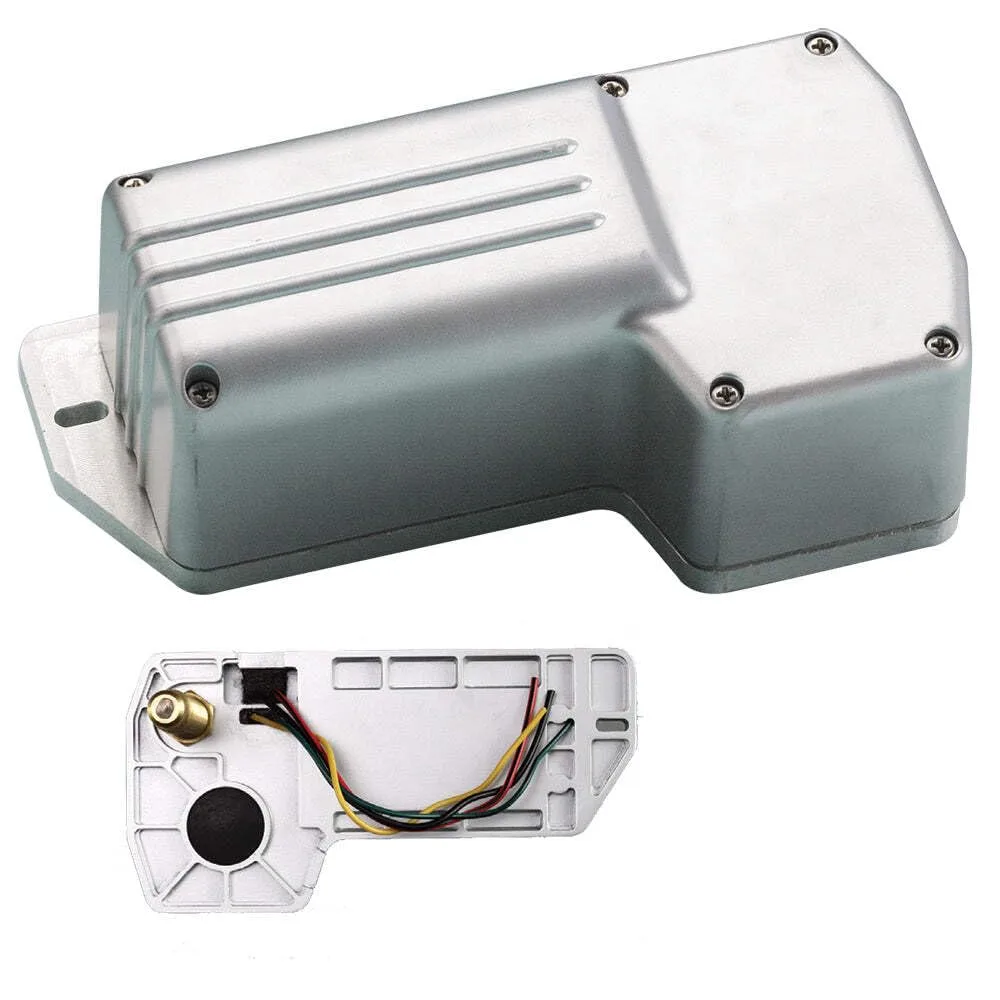

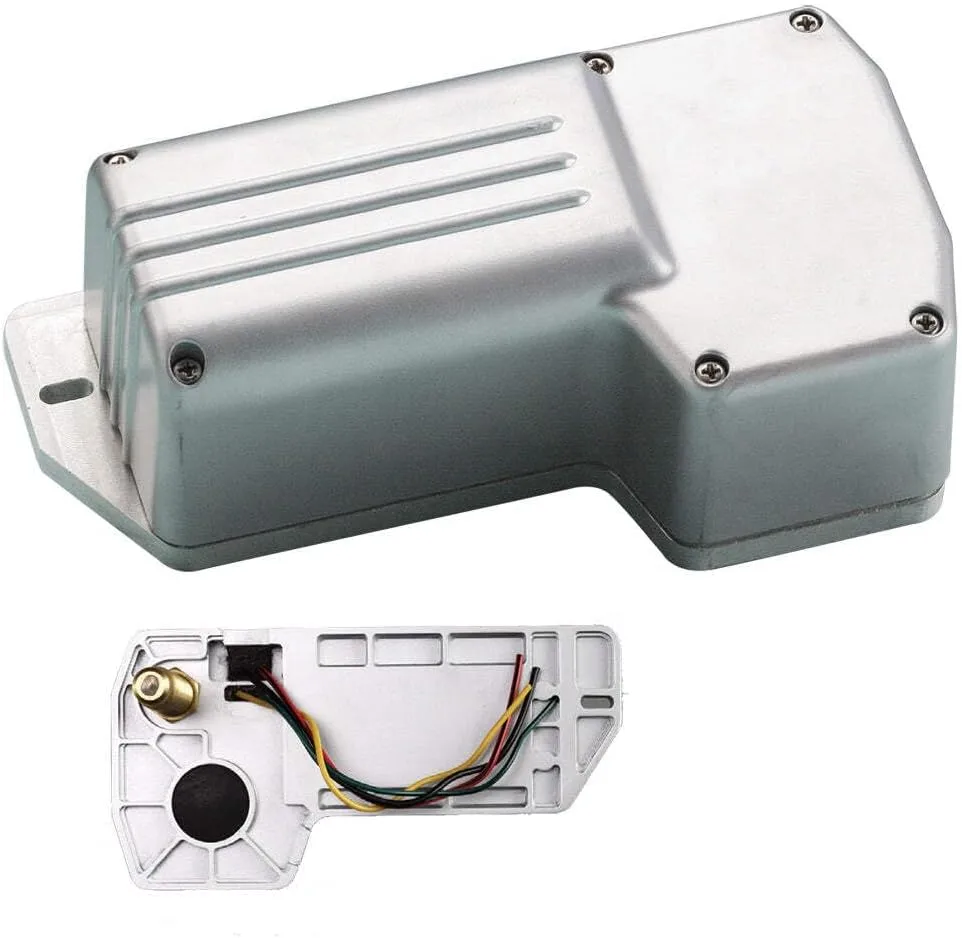

Marinco 71082 Wiper Motor, 1.5 Series, 12V, 2.5" Shaft, 80 Degree
Customize
Waterproof Wiper Motor 12V - 2.5" Shaft - 80° Sweep. The 1.5 Waterproof Wiper Motor is made with a fully sealed powder coated aluminum waterproof base and housing to power a 22" Deluxe arm and 22" Deluxe blade combination or a 20" Premier arm and 20" Premier blade combination. Features include availability in three shaft lengths (1.5", 2.5" and 3.5"), factory pre-set sweep angles of 80° or 110° with easy adjustment to 45° or 60°, chrome plated solid brass knurled drive nut with brass and stainless steel driveshaft, two-speed motor, sealed 6" wire leads (16 AWG), adjustable right or left self-parking, 0.625" diameter shaft (16 mm), available in 12V and 24V models, RF shielded circuitry, retail version includes 5 amp fuse and holder (operating switch not included). Measures approximately 7.75" L x 4" W x 2.75" D. Stall torque: 109 in-lbs (125 kgf/cm; 12.3 Nm). Stall current: 11.5-13.0 amps. No load current: 0.5-1.2 amps. Replaces AFI 2000 motor.
- Package weight - 2.206 kilograms
- Package dimensions - 19.1 cm L X 19.4 cm W X 24.8 cm H
- Factory pre-set Sweep angles of 80 degree or 110 degree, with easy adjustment to 45 degree or 60 degree
- Factory pre-set Sweep of 110 degrees, can be adjusted
Specifications:
| Materials & Construction | |
| Color | No Color |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Color | No Color |
| Included Components | Wiper Systems |
| Material | Plastic |
| Number of Items | 1 |
| Size | One Size |
| Warranty | Warranty |
| Sizing & Dimensions | |
| Height | 7.25 inches |
| Length | 10 inches |
| Product Dimensions | 10 x 7.25 x 7.25 inches |
| Size | One Size |
| Weight | 2.18 pounds |
| Width | 7.25 inches |
| Technical Specifications | |
| No Load Current | 0.5-1.2 amps |
| Self-Parking | Adjustable right or left |
| Shaft Diameter | 0.625 inches (16 mm) |
| Shaft Length | 2.5 inches |
| Stall Current | 11.5-13.0 amps |
| Stall Torque | 109 in-lbs |
| Sweep Angle | 80 degrees (factory pre-set; adjustable to 45° or 60°; also available 110°) |
| Two-speed Motor | Yes |
| Voltage | 12V |
