CE Smith Trailer 10200G40 2-1/2" On Center Swivel Bracket,Silver
Customize

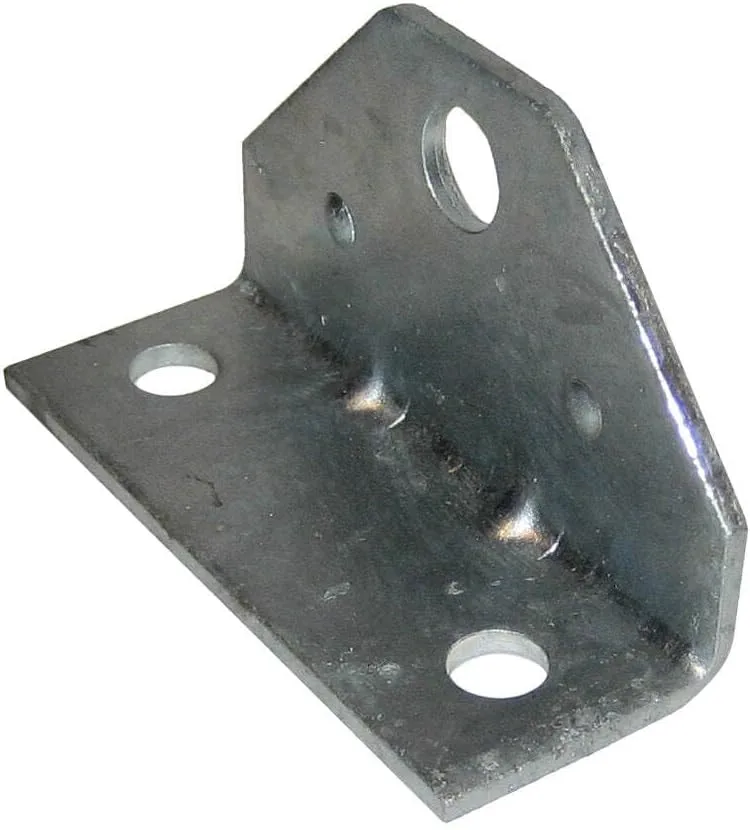

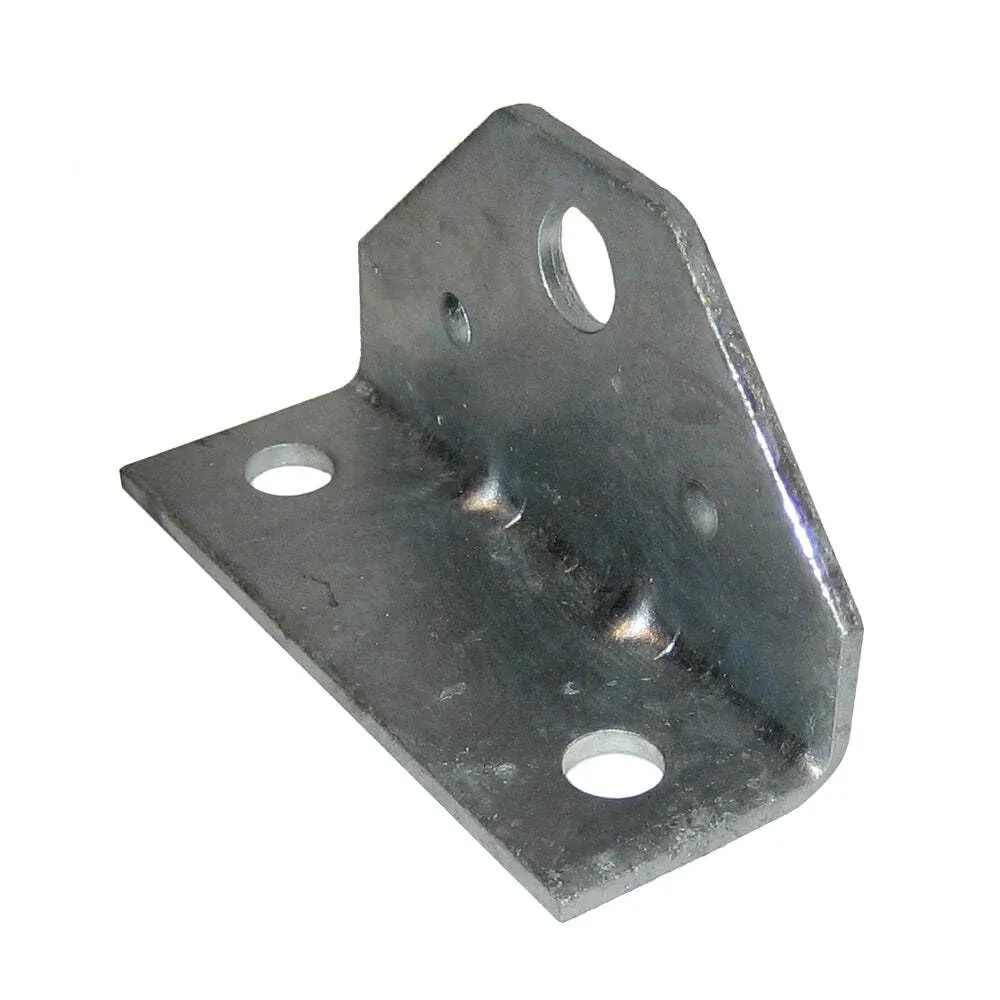

Center Swivel Bracket - 2-1/2". Galvanized swivel top bracket provides vertical and tilting adjustment for trailer bunks. Swivel Bracket for mounting Bunk Boards to Bolster Brackets. Features: Bolt-on installation, bunk flange holes 3/8" dia., bunk flange 1-3/8" x 3-1/2", swivel flange hole 1/2" dia., swivel flange 2" tall x 3-1/2", 2-1/2" bunk flange hole centers, 11 gauge galvanized steel. Made in the USA. Sold individually. Includes manufacturer model 10200G40; item dimensions approximately 3 x 3 x 2 inches and item weight about 0.3 pounds (4.8 ounces). Package dimensions approx. 3.2 x 1.5 x 1.2 inches; package weight approx. 0.14 kg (4.94 ounces). Ideal for mounting trailer bunk boards to bolster brackets; durable galvanized construction resists corrosion and provides dependable performance for marine and utility trailers.
- 2-1/2 inch bunk Flange Hole centers
- Swivel Flange 2" tall x 3-1/2"
- Swivel Flange Hole 1/2 inch diameter
- Bunk Flange 1-3/8" x 3-1/2"
- Bunk Flange holes 3/8 inch diameter
Specifications:
| Materials & Construction | |
| Color | Silver |
| Material | Galvanized Steel |
| Product Details | |
| Included Components | Swivel Bracket, 2-1/2" On Center |
| Model Number | 10200G40 |
| Number of Items | 1 |
| Size | 2-1/2" |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 3 inches |
| Product Dimensions | 3 x 3 x 2 inches |
| Size | 2-1/2" |
| Weight | 4.8 ounces |
| Width | 3 inches |
| Technical Specifications | |
| Warranty | 1 YEAR LIMITED |
