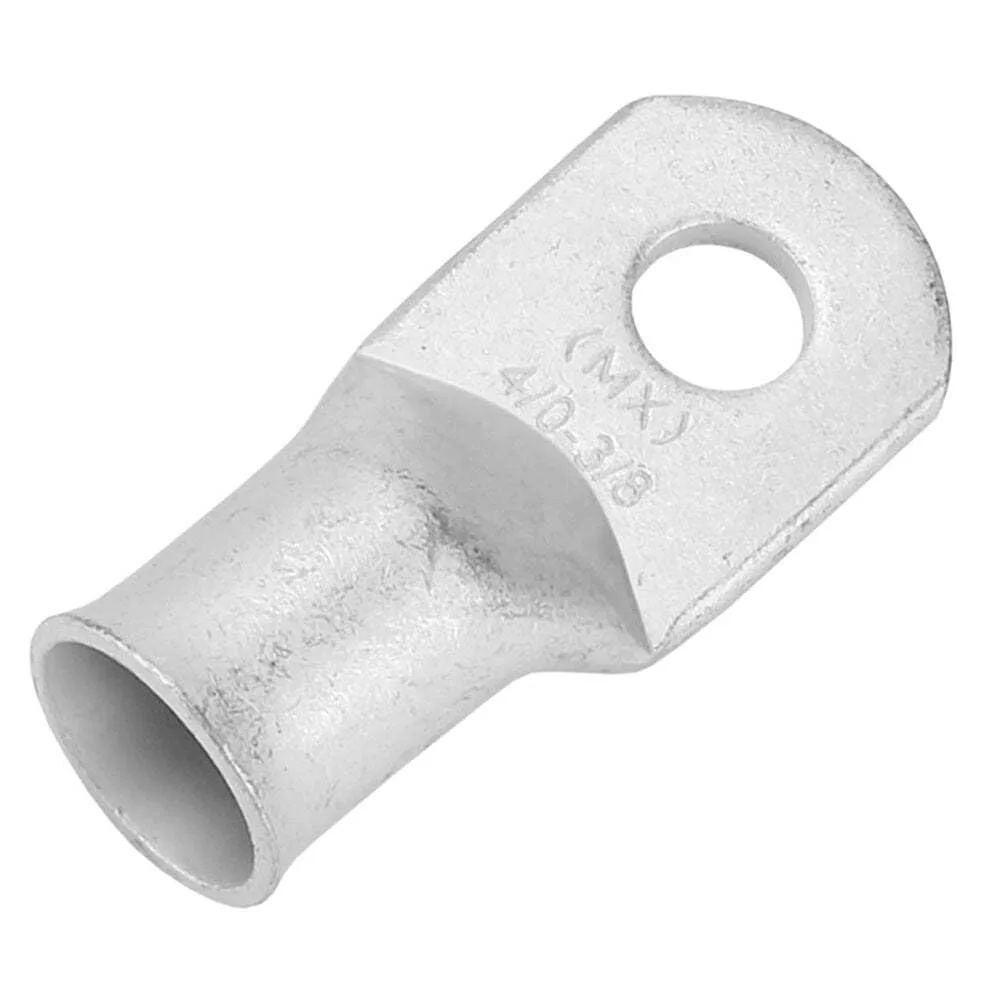

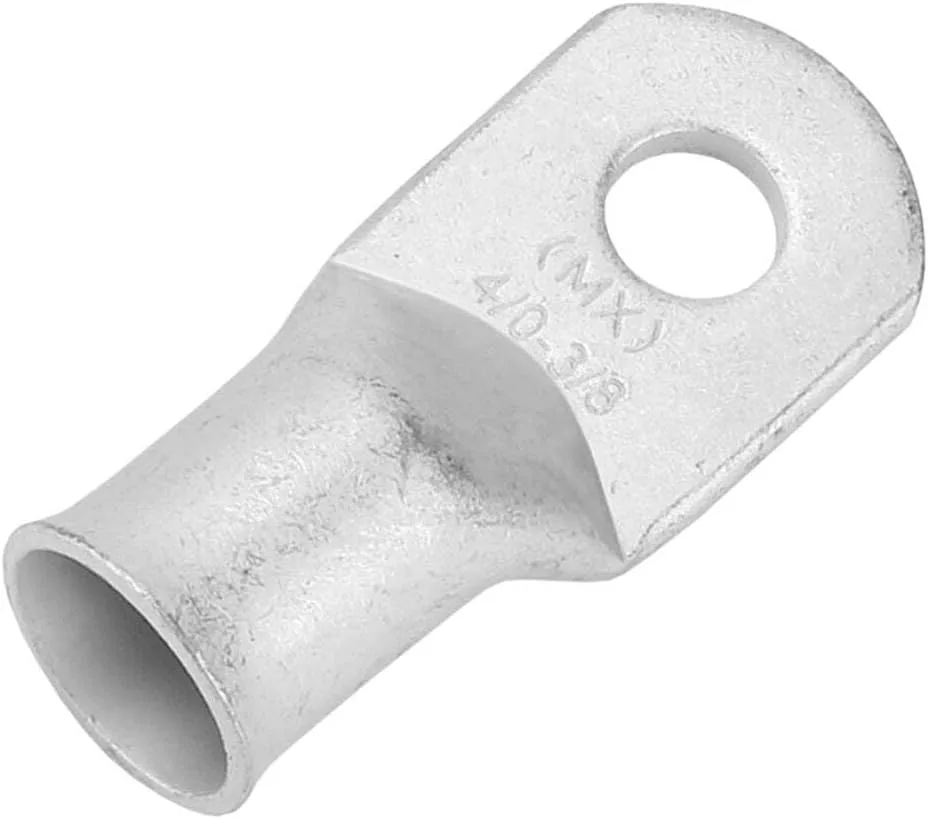

Pacer Tinned Lug 4/0 AWG - 3/8" Stud Size - 10 Pack
Customize
Tinned Lug 4/0 AWG - 3/8" Stud Size - 10 Pack Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacer's closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor leaving nothing exposed to the elements. To use, simply strip your wire or cable to the proper length, slide the lug over the exposed wire (insulation butts to the edge of the lug), then crimp using the correct tool. Add epoxy lined heat shrink for added durability. Pacer's closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. Available stud sizes include #10, 1/4", 5/16", 3/8", and 1/2". Features include tin plating, no exposed seams, 600V rating, made from seamless tubes of 99.9% copper for higher conductivity, larger pad area for better contact, cable size and stud hole stamped on pad, and the option to crimp or solder. Compliances: E.T.P. (Electrolytic Tough Pitch) CDA-110 ASTM-B-152 copper rated at 100% conductivity; UL & CSA Approved; RoHS Compliant; Exceeds SAE Conductivity STD J163 & J1811.
- Great Product
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Tin-plated Copper |
| Outer Material | Tin-plated Copper |
| Product Details | |
| Included Components | Great Product |
| Model Name | TAE4/0-38-R-10 |
| Number of Items | 1 |
| Type | Lugs |
| Unit Count | 1.0 Count |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 5 inches |
| Product Dimensions | 5 x 5 x 2 inches |
| Size | 4/0 AWG |
| Weight | 0.9 pounds |
| Width | 5 inches |
| Technical Specifications | |
| Gauge | 4/0 Awg |
| Heat Shrink | No |
| Package Qty | 10 |
| Post Size | 3/8" |
