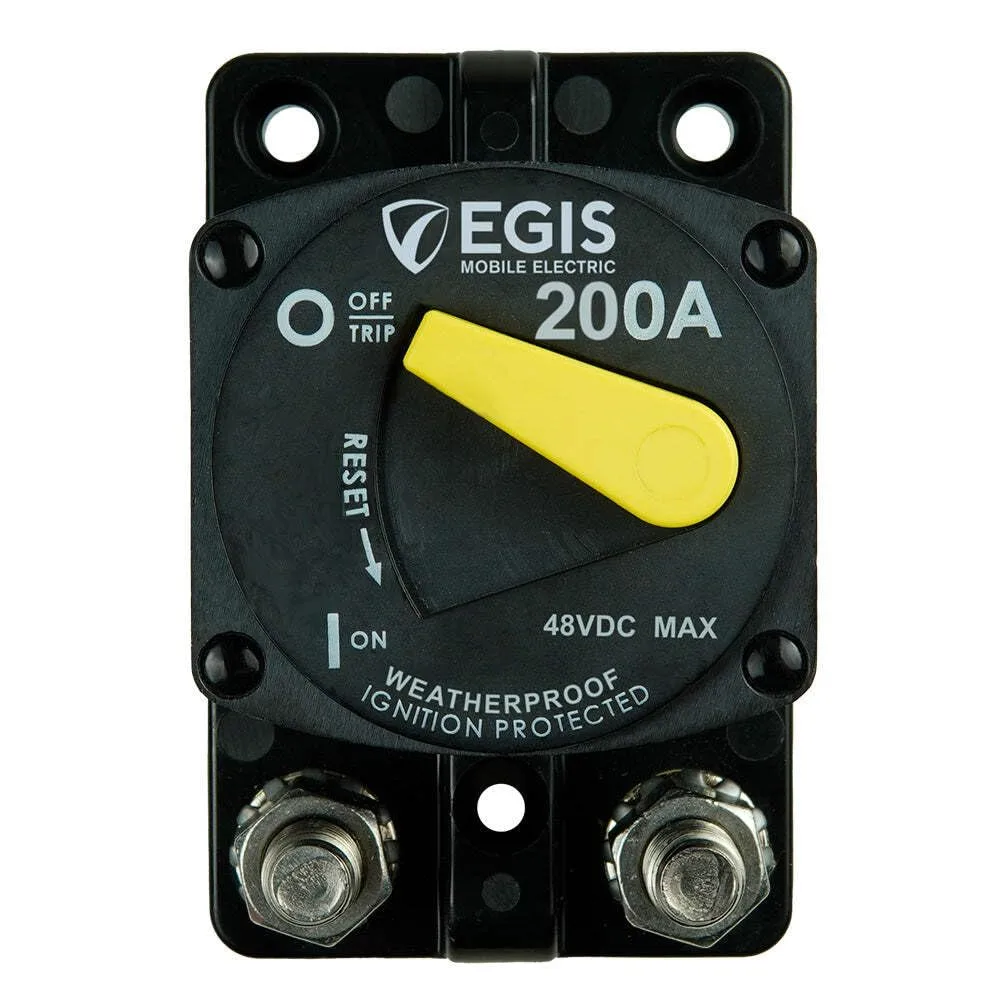

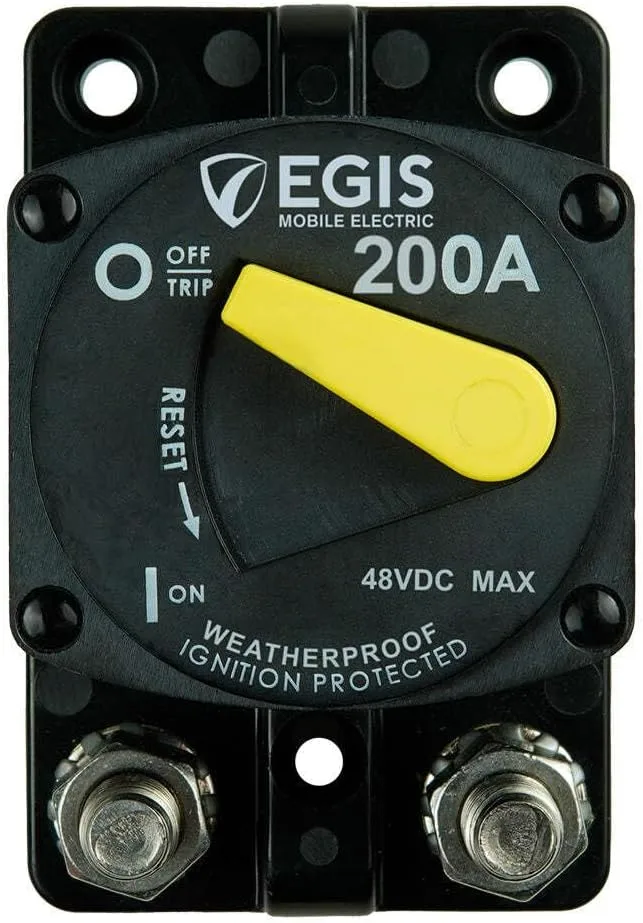

Egis 200A Surface Mount 87 Series Circuit Breaker
Customize
200A Surface Mount 87 Series Circuit Breaker. This 200A Egis circuit breaker protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction. Applications: automatic circuit protection and manual on/off switching combine dual functionality in one reliable and compact solution. Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location. Features: IP66 sealed against dust and water intrusion to ensure reliable circuit protection for the life of the electrical system installation. High voltage (48 Vdc) rating - easily supports 12 and 24 VDC applications while offering advanced protection for 36 and 48 VDC. High electrical/manual switching endurance delivers 2,000 cycles at full current. High interrupt current safely protects circuits connected to large paralleled battery banks with significant available power. Reinforced mounting tabs and stainless steel hardware provide corrosion and vibration resistance for harsh environment applications. Proudly made in the USA. 4-year warranty. Amperage: 200A.
- Great Product
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Amperage | 200a |
| Circuit Breaker Type | Standard |
| Model Number | 4704-200 |
| Number Of Poles | 1 |
| Sizing & Dimensions | |
| Height | 3 inches |
| Length | 4 inches |
| Product Dimensions | 4 x 3 x 3 inches |
| Weight | 1 pounds |
| Width | 3 inches |
| Technical Specifications | |
| Cycling Endurance | 2,000 cycles |
| Ingress Protection Rating | IP66 |
| Interrupt Current @14 VDC (Amps) | 5,000 |
| Interrupt Current @28 VDC (Amps) | 3,000 |
| Max Voltage | 48 Vdc |
| Warranty | Warranty |
