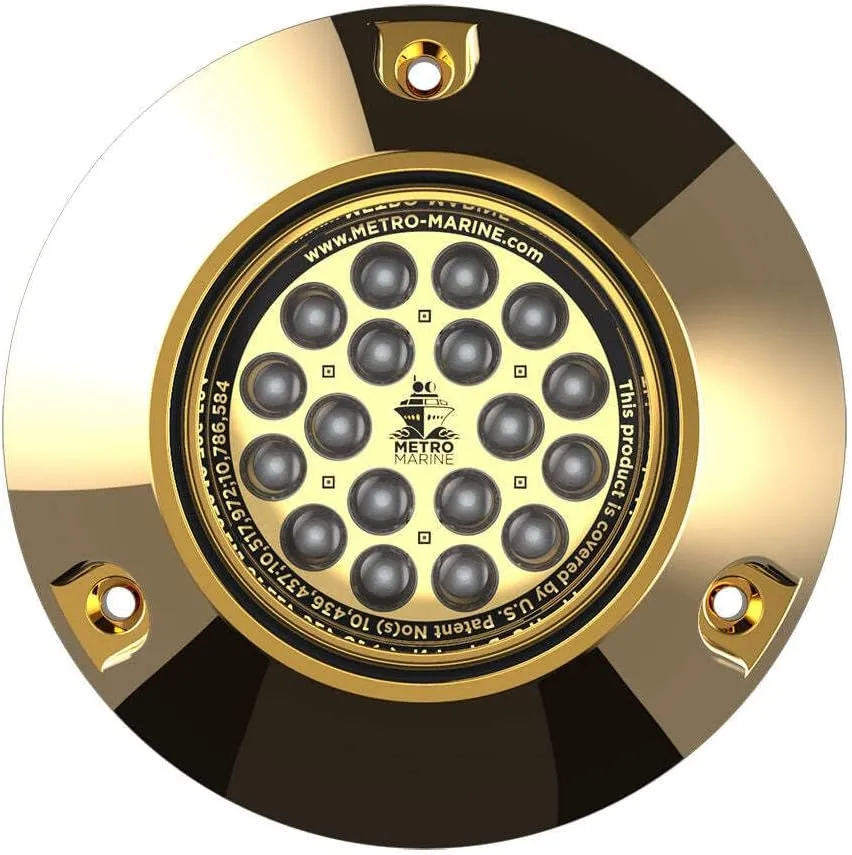

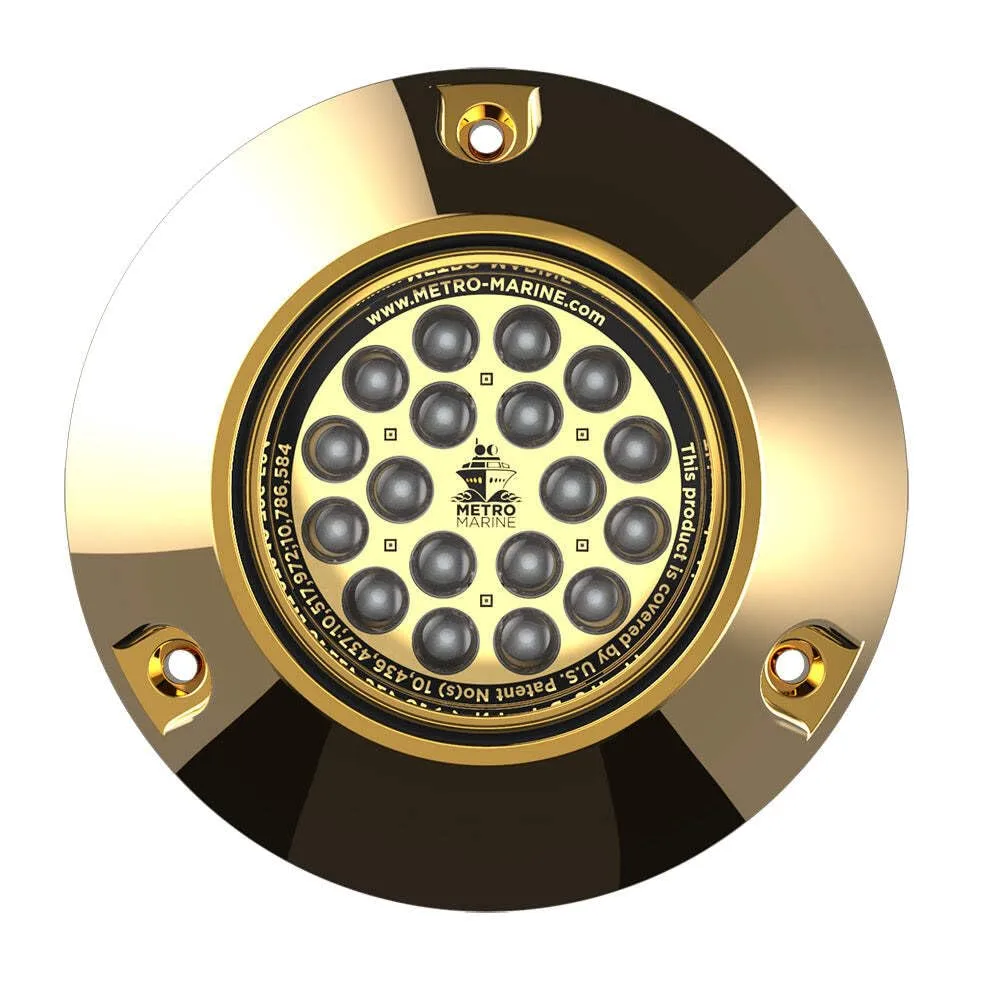

Metro Marine High-Output Submersible Underwater Light w/Intelligent Monochromatic LED's - Blue, 90° Beam
Customize
High-Output Submersible Underwater Light with Intelligent Monochromatic LED's - Blue, 90° Beam. The F-Series line of underwater marine lighting fixtures is designed to be mounted at depths up to 4.6M (15') below the water’s surface to provide vibrant blue light. With watertight aluminum bronze housings and silicon bronze hardware, Metro Marine’s F-Series luminaires are perfect for marine-based applications such as mounting to yachts, docks, sea walls, as well as for use in fountains and theme park installations. Leveraging Metro’s legacy in optics & LED control technology, the F-Series underwater lighting fixtures introduce a unique LED array with 18 H.O. LEDs per fixture, allowing close adjacent fixture placement where fully-mixed, uniform light is important. The F-BMR1-B3-90 is a superior underwater Blue LED luminaire with 90° optical lensing for lighting mid- to large-scale structures and yachts (10M–30M / 32'–100'), with uniform color control and high efficiency. Clear Lens Technology and patented UVC lens-cleaning LEDs help prevent biofouling and maintain light output. Patent-pending anti-condensation assembly and Class 1000 clean room manufacturing reduce internal corrosion risk and improve longevity. Technical highlights: Beam Angle - 90°; Input Voltage - 10VDC-30VDC; Power Consumption - 44W; Dimensions - 5.47" (Dia.) x 1.12" (D); Weight - 2.71 lbs; Lens Material - Clear Quartz; Operating Temperature - -40 to 122° F; Color: Blue; Material: AB2 Aluminum Bronze; Mounting Style: Surface.
- Great Product
Specifications:
| Materials & Construction | |
| Color | Blue |
| Lens Material | Clear Quartz |
| Material | AB2 Aluminum Bronze |
| Outer Material | AB2 Aluminum Bronze |
| Product Details | |
| Assembly Required | No |
| Included Components | Great Product |
| Model Number | F-BMR1-B3-90 |
| Mounting Style | Surface |
| Mounting Type | Wall Mount |
| Number of Items | 1 |
| Shape | as shown |
| Style | High-Output Submersible Underwater Light |
| Unit Count | 1.0 Count |
| Sizing & Dimensions | |
| Height | 4 inches |
| Length | 10 inches |
| Product Dimensions | 10 x 9 x 4 inches |
| Weight | 5.2 pounds |
| Width | 9 inches |
| Technical Specifications | |
| Beam Angle | 90° |
| Input Voltage | 10VDC-30VDC |
| Number of LE Ds | 18 H.O. LEDs per fixture |
| Operating Temperature | -40 to 122° F |
| Voltage - Input Range (Volts) | 10-30v |
| Warranty | Warranty. |
| Watts | 44w |
