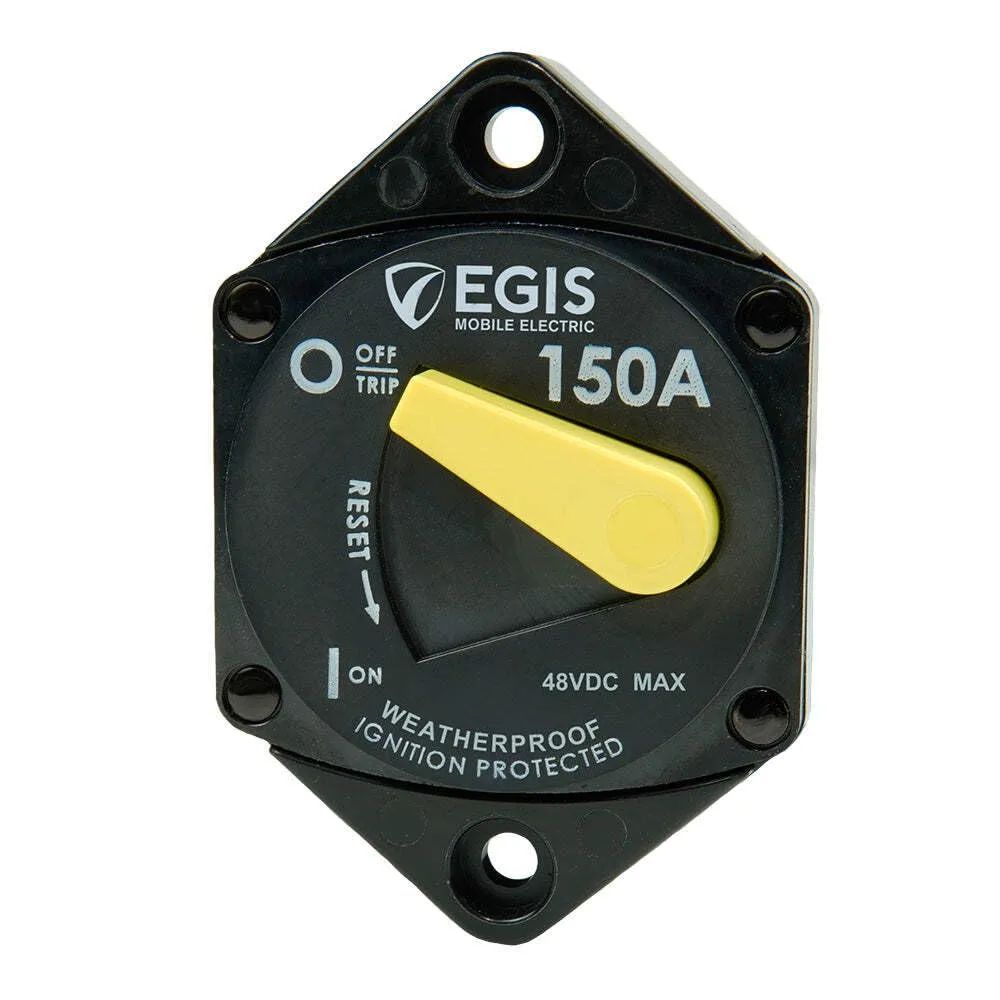

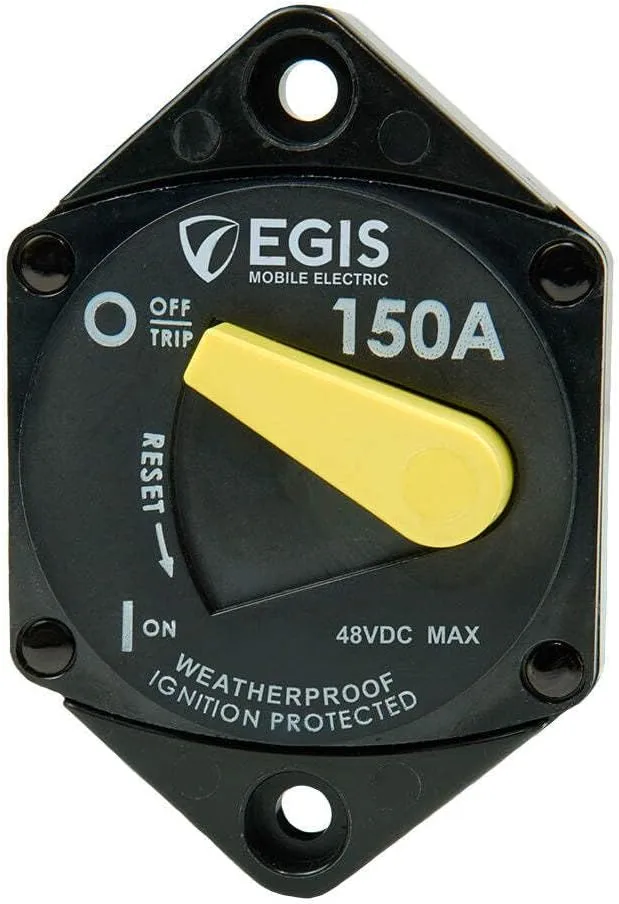

Egis 150A Panel Mount 87 Series Circuit Breaker
Customize
150A Panel Mount 87 Series Circuit Breaker This 150A Egis Mobile 187 Series Circuit Breaker protects electrical circuits from short circuits and thermal overloads while providing robust manual circuit switching for reliable live load switching. A weatherproof case keeps the circuit protection safe from the environment, and it has high-voltage circuit interrupt current capability that protects circuits connected to large series or parallel-connected battery banks. Convenient round cutout style mounting ensures easy installation into the panels chosen. Applications: Protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction Automatic Circuit Protection and Manual On/Off Switching combine dual functionality in one reliable and compact solution Allows for circuit isolation and maintenance of load circuits by providing convenient switching and integral circuit protection capable of mounting adjacent to battery systems regardless of the location Features: IP66 sealed against dust and water Intrusion to ensure reliable circuit protection for the life of the electrical system installation High voltage (48 Vdc) rating - easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc High electrical and manual switching endurance delivers 2,000 cycles at full current High interrupt current - safely protects circuits connected to large paralleled battery banks with significant available power 4-year warranty - Egis stands behind its product's ability to meet the user's needs Specifications: Continuous Current Amps: 150 Max Voltage: 48 Cycling Endurance: 2,000 Interrupt Current @14 VDC (Amps): 5,000 Interrupt Current @28 VDC (Amps): 3,000 Ingress Protection Rating: IP66 Focal Features ON/OFF High Visibility Controls Sealed against dust and moisture penetration. The high-temperature rating for all installation locations. Circular Design Compatible with circular cutout enables easy panel installation. Stainless Steel Hardware / Serrated Flange Nuts Corrosion and vibration resistance for harsh environment applications. Proudly Made in the USA Made in the USA of high-quality components.
- Great Product
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Amperage | 150a |
| Circuit Breaker Type | Standard |
| Current Rating | 150 Amps |
| Included Components | Great Product |
| Model Name | 4707-150 |
| Mounting Type | Panel Mount |
| Number of Items | 1 |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 3 inches |
| Length | 4 inches |
| Product Dimensions | 4 x 3 x 3 inches |
| Product Weight | 16 ounces |
| Weight | 1 pounds |
| Width | 3 inches |
| Technical Specifications | |
| Cycling Endurance | 2,000 |
| Ingress Protection Rating | IP66 |
| Interrupt Current @14 VDC (Amps) | 5,000 |
| Interrupt Current @28 VDC (Amps) | 3,000 |
| Max Voltage | 48 |
| Warranty | 4-year warranty |
