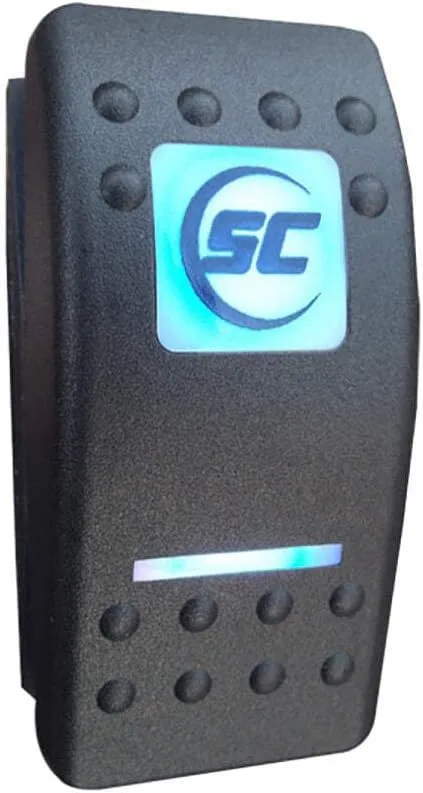

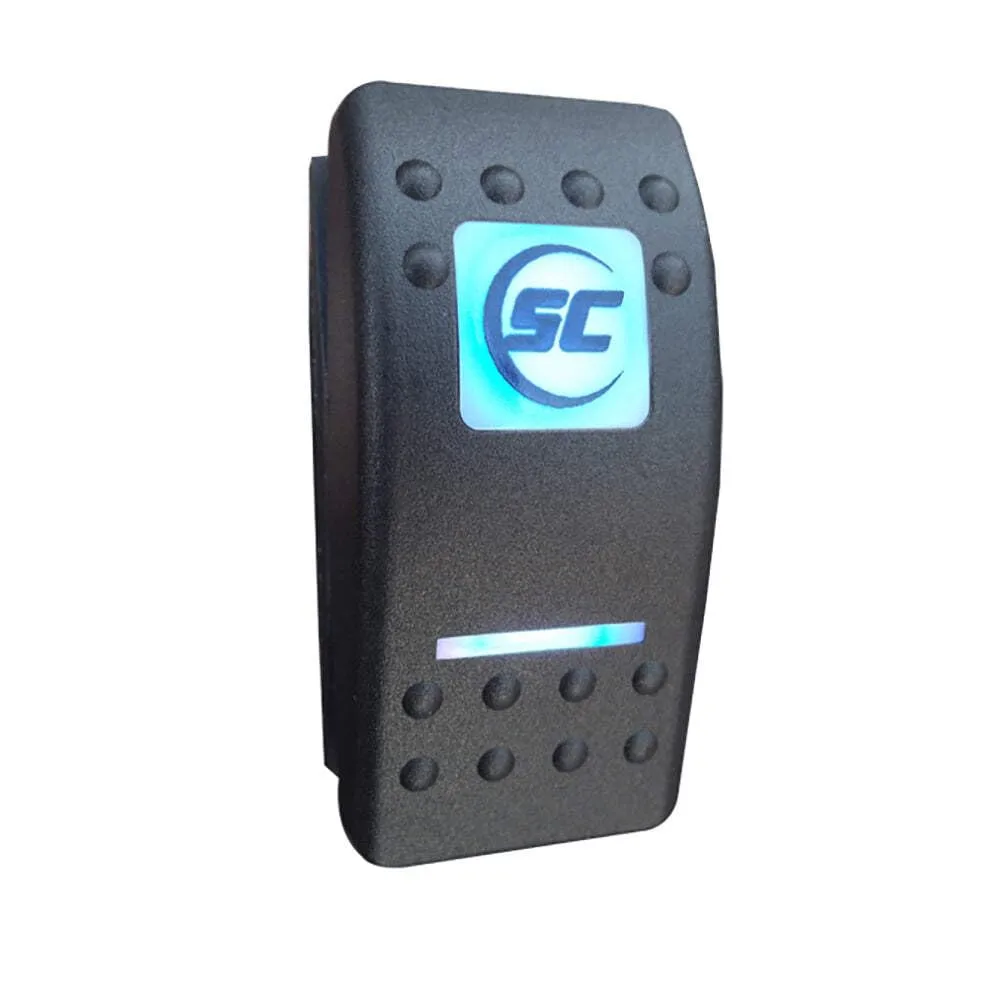

Shadow-Caster 3-Position On/Off/Momentary Marine LED Lighting Switch
Customize
3-Position On/Off/Momentary Marine LED Lighting Switch On / Off / Momentary Marine LED Lighting Switch for two-color and multi-color lighting – simply toggle power to set color choice. For use with fishing boats, pontoon boats, sports boats, and yachts. Features: Power On/Off Color change Multiple fade mode changes Specifications: Off/On/Momentary LED Voltage Rating: 12V (Add 600ohm resistor between pin 7 and ground for 24V operation) LED Color: Blue x 2 Terminals: Brass or copper/silver plate 1/4” (6.3mm) quick connect Sealing IP66/68, for above-panel components of actual switch only Operating Temp. -40°C to +85°C Contact Rating: 20 amps, 4-14VDC and 15 amps, 15-28VDC Switch and actuator color: Black. Note: Use with SCM-SNLC single-zone lighting controller to access full ShadowNET lighting control functionality. Additional product details and customer-oriented specs: waterproof, shakeproof, panel-mount rocker switch, compact dimensions (2 x 2 x 1 inches), lightweight design, ideal for marine electrical equipment and LED lighting control.
- Great Product
Specifications:
| Materials & Construction | |
| Color | Multicoloured |
| Material | Plastic |
| Product Details | |
| Included Components | Great Product |
| Model Name | SCM-SWITCH-O/O/M |
| Mounting Type | Panel Mount |
| Number of Items | 1 |
| Size | One Size |
| Special Feature | Waterproof, Shakeproof |
| Warranty Description | Warranty |
| Sizing & Dimensions | |
| Height | 1 inches |
| Item Dimensions Lx Wx H | 2 x 2 x 1 inches |
| Item Package Dimensions L x W x H | 2 x 2 x 1 inches |
| Length | 2 inches |
| Product Dimensions | 2"L x 2"W |
| Weight | 1 pounds |
| Width | 2 inches |
| Technical Specifications | |
| Contact Rating | 20 amps, 4-14VDC and 15 amps, 15-28VDC |
| LED Color | Blue x 2 |
| LED Voltage Rating | 12V (Add 600ohm resistor between pin 7 and ground for 24V operation) |
| Mounting Type | Panel Mount |
| Operating Temp. | -40°C to +85°C |
| Sealing | IP66/68, for above-panel components of actual switch only |
| Special Feature | Waterproof, Shakeproof |
| Terminals | Brass or copper/silver plate 1/4” (6.3mm) quick connect |
