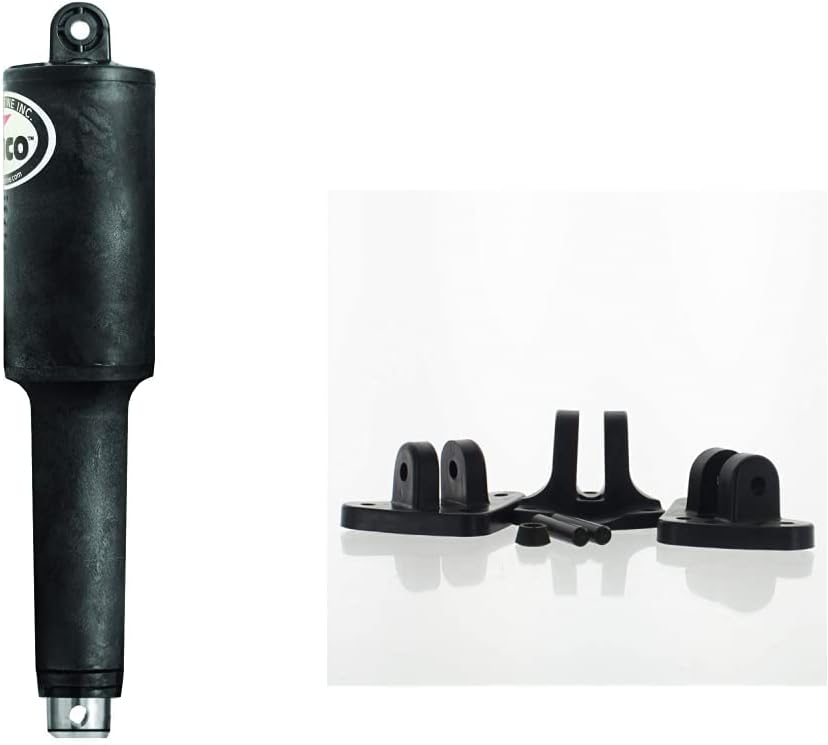

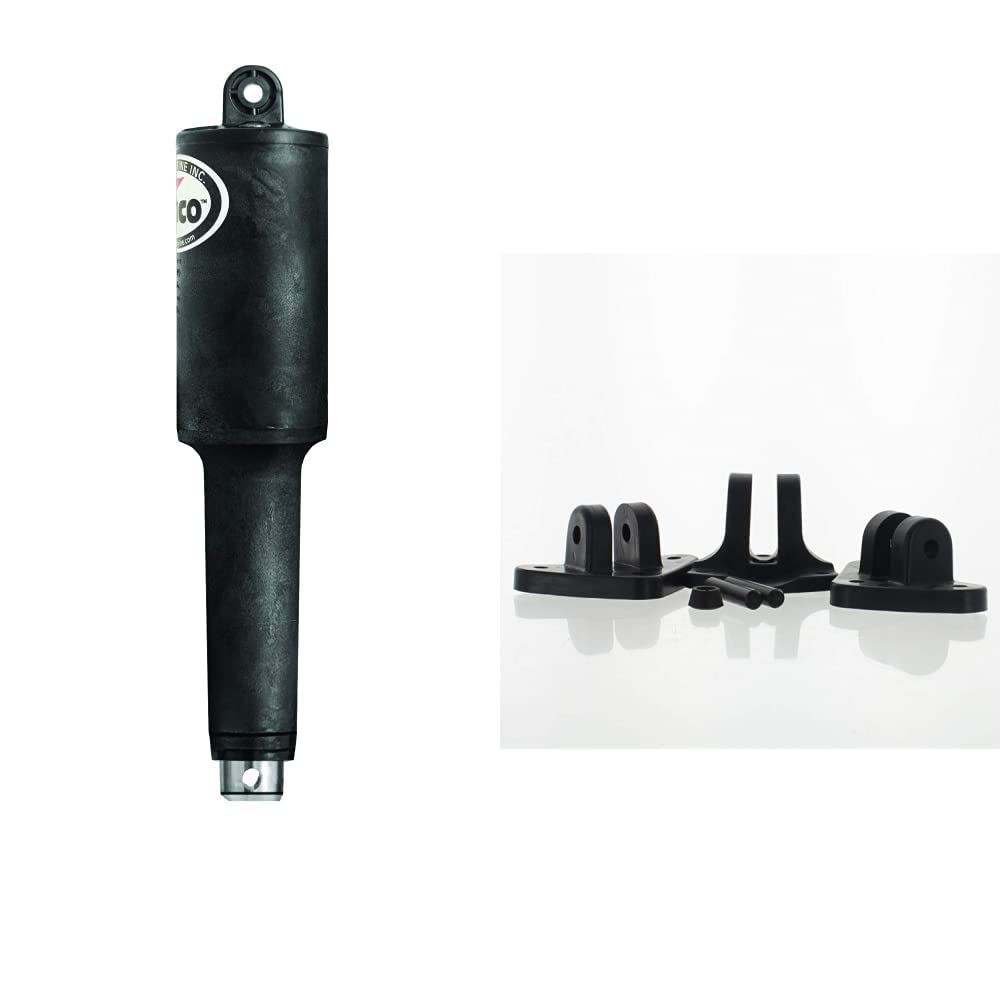

LENCO MARINE 15060-001 102 HD/XD Actuator and 15099-001 Actuator Mounting Bracket Kit HD/XD Actuator + Bracket KIT
Customize

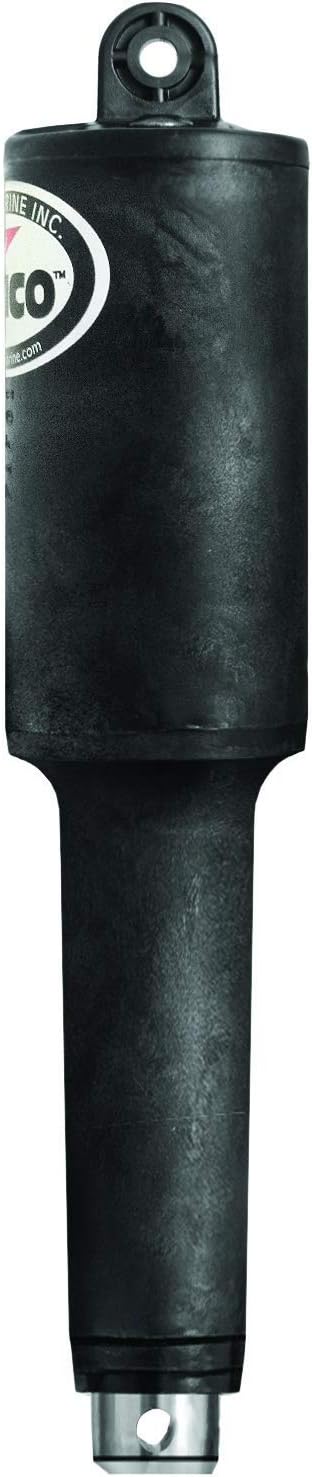

102 XD Actuator- 12 Volt- 4-1/2 Stroke with Mounting Hardware The 102 XD Actuator is used with Trolling Tab systems sold after 2000 and OEM applications. 4.25 stroke. Overall length (tip to tip) is 13 inches. Instant response electric actuators are made of high impact glass fiber filled, ultraviolet-resistant nylon material with 316 super buff stainless steel tubing. Specifications : Newly implemented Anti Extrusion Ring (AXR) seal stabilization system. Stronger top cap and mounting clevis design Improved pressure-tight torx screws Integrated wiper seal at actuator base Molded-in brass thrust bearing design Thicker and stronger motor housing wall Improved O-Ring design for more consistent seal Over-molded cable providing a stronger tighter seal Upper mounting bracket with gland seal Features : Lenco's ballscrew design is more reliable and twice as powerful compared to typical hydraulics Lenco's tough, high-torque actuator motor easily pushes 500 pounds. Lenco Actuator connections use waterproof "Plug & Play" Deutsch connectors eliminating the possibility of water intrusion. 12 Volt 5/16" mounting hardware 6 foot cable WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov . This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. LENCO MARINE 15060-001 102 HD/XD ActuatorActuator, 4 1/4" Stroke, 102XD, 12V, 5/16, MFG# LEN-15060-001, 102 XDS Actuator, 5/16" Mtg HW w/6' cable. Used with trolling tab systems sold after 2000 and OEM Applications. LOA 12 7/8". LENCO MARINE - 15099-001 Actuator MOUNTING Bracket KIT.
- Made in the United States.
- The actuator has a length of 12 7/8" and is compatible with trolling tab systems sold after 2000.

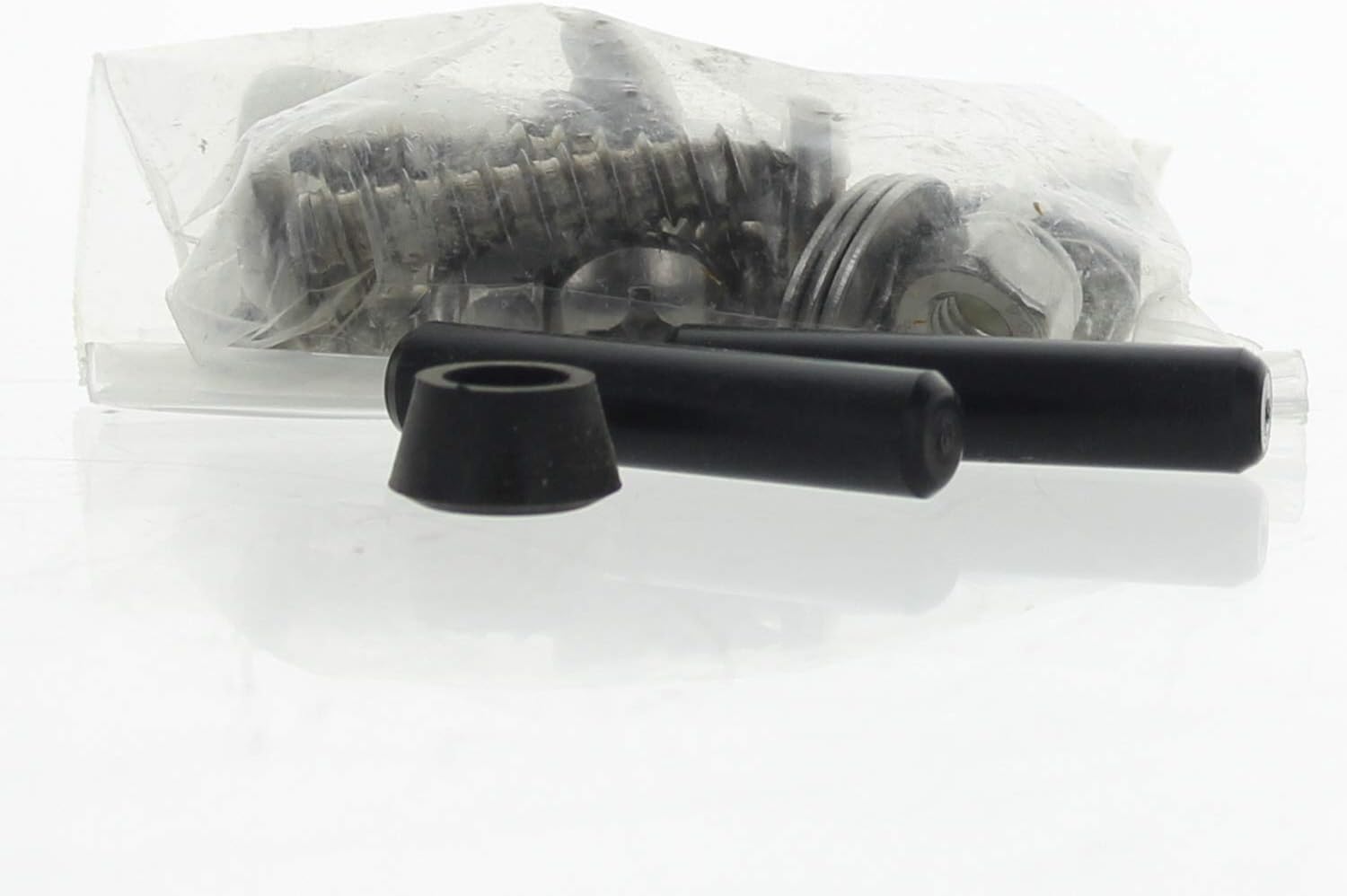

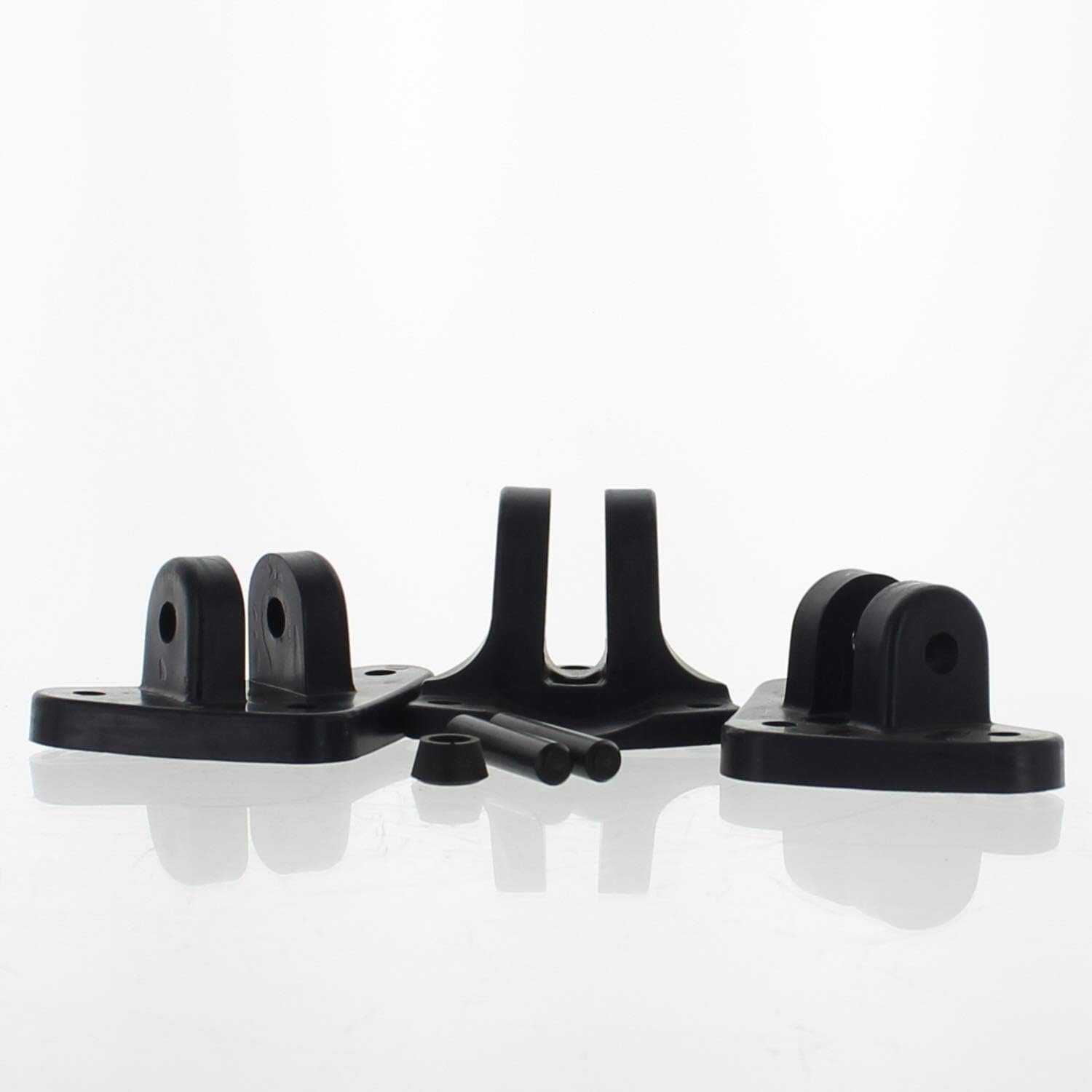

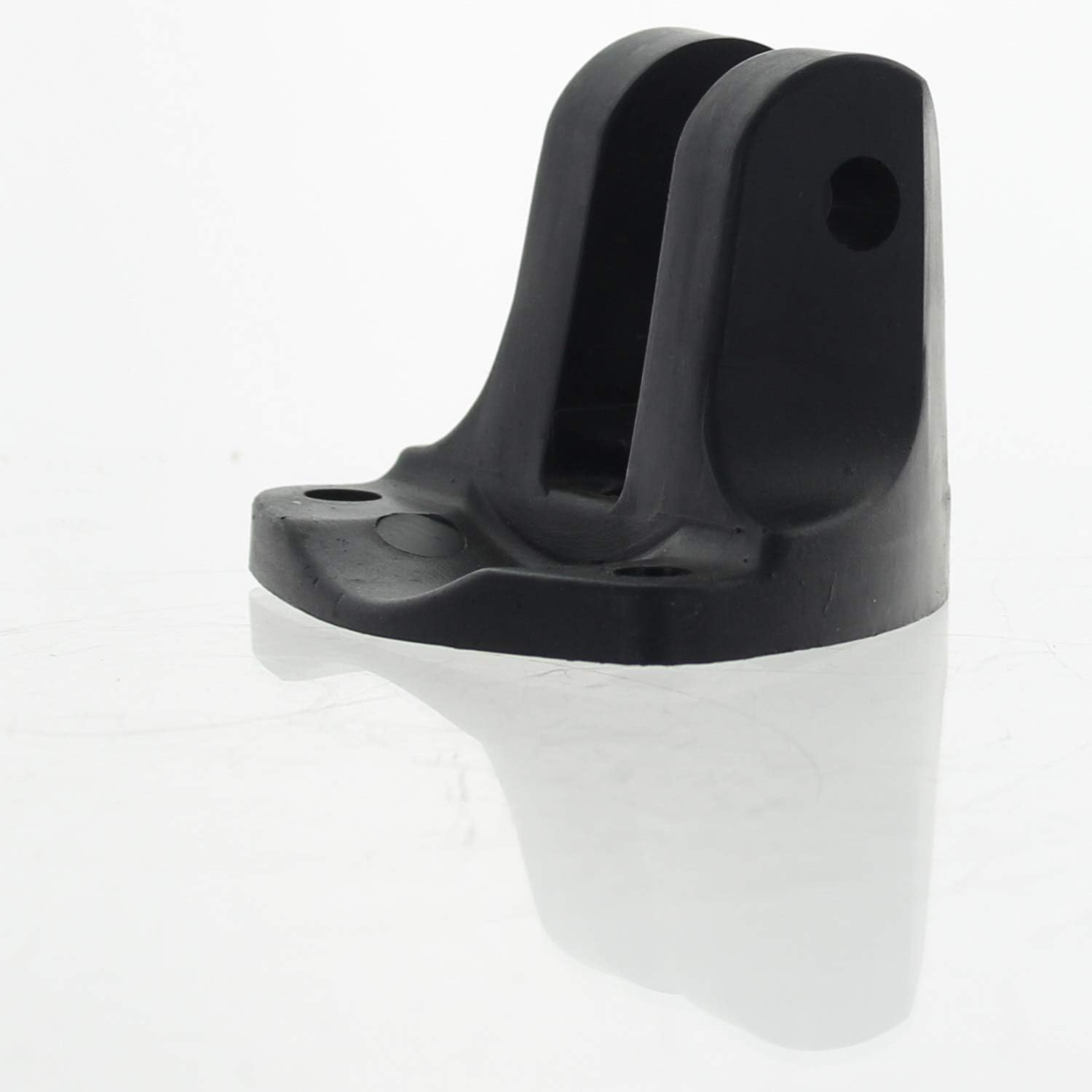

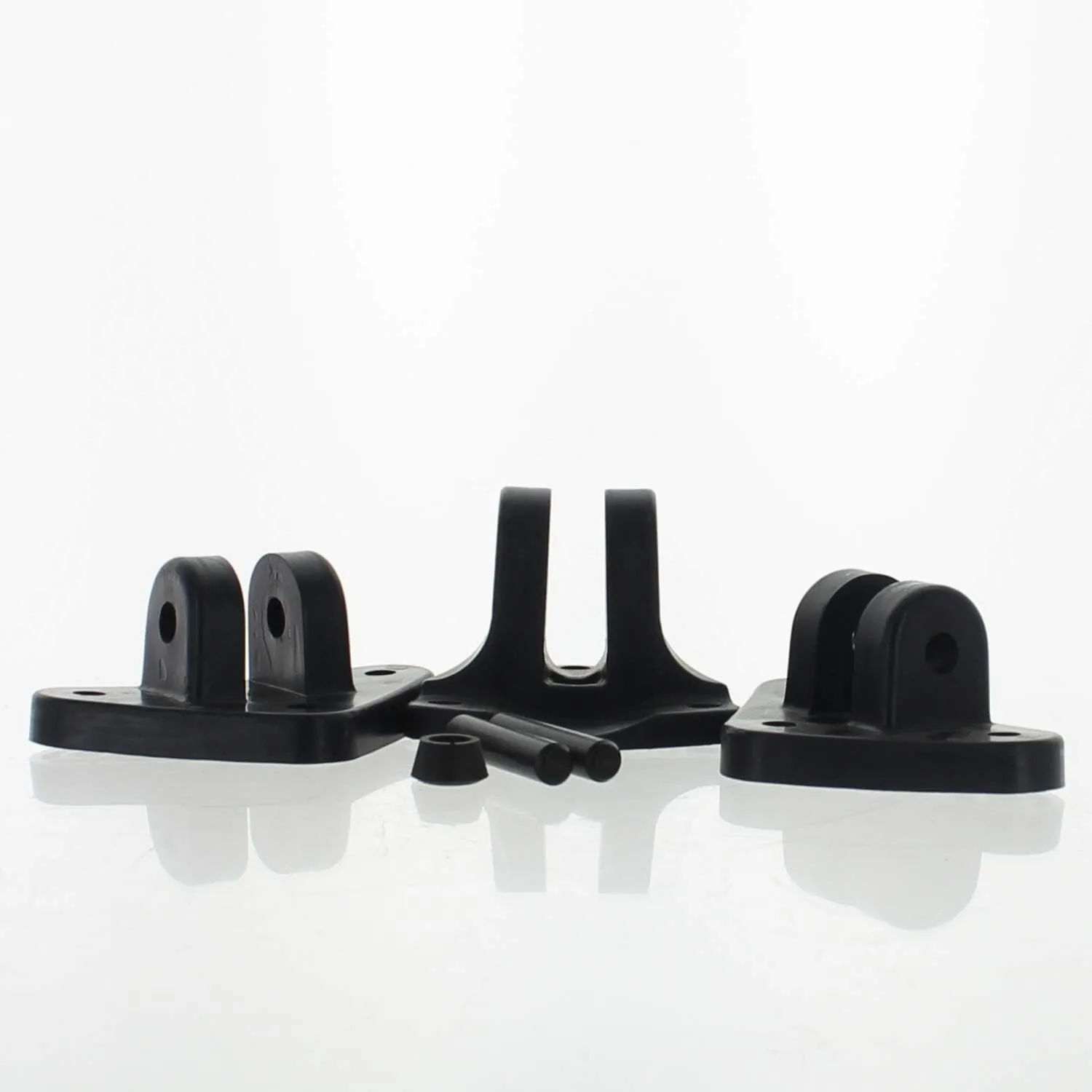

- Comes with a mounting bracket kit for the actuator (LENCO MARINE 15099-001).
- Includes a 4 1/4" stroke 12V 102XD actuator with 5/16" mounting hardware and 6' cable for trolling tab systems (LENCO MARINE 15060-001).
Specifications:
| Sizing & Dimensions | |
| Weight | 4 pounds |
| Technical Specifications | |
| Voltage | 12 Volts (DC) |
