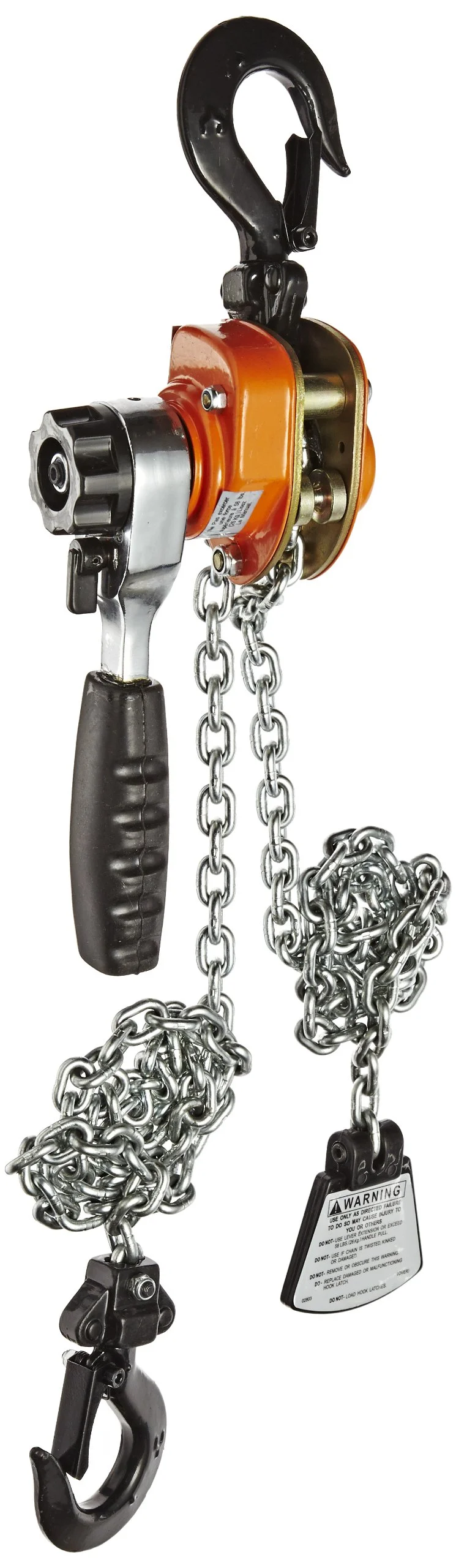

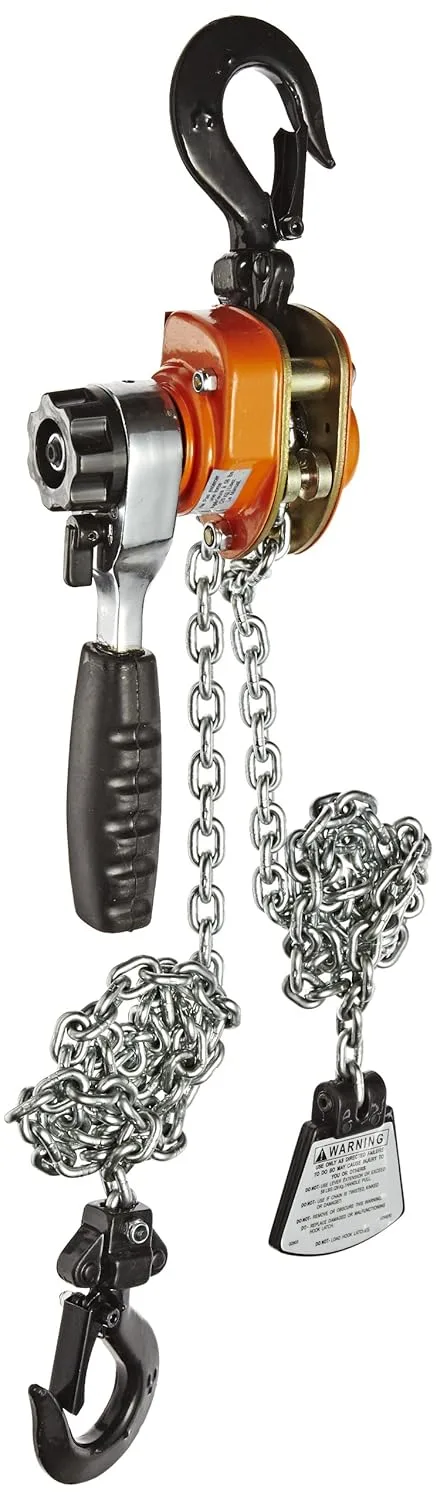

CM 602 Series Mini Ratchet Lever Chain Hoist, 6-19/64" Lever, 550 lbs Capacity, 5' Lift Height
Customize
Mini - hoists are the most compact ratchet lever hoists in the market, perform just like the larger models except they're small enough to fit in the palm of your hand. Plated load chain is standard. Weston-type load brake. Rubber hand grip for better comfort and security. Lightweight design for ease of portability. Use in confined conditions with one-hand operation. Forged upper and lower hooks with latches standard. Impact resistant, all-steel frame, gear case and cover. Hardened link-type alloy steel load chain for strength and long wear. Free wheeling feature serves to quickly attach the load. Metric rated. Capacity: 550 lbs. 5' Lift. Chain type. 9-1/2" headroom. 1- Year warranty. 6-19/64" Lever length. 1 Reeving. 56 lbs Average handle effort. 1 Chainfalls. 9-57/128" Minimum distance between hooks. 3-19/128" Lift with one full lever turn.
- Forged upper and lower hooks with latches standard
- Lightweight design for ease of portability, use in confined conditions with one-hand operation
- Rubber hand grip for better comfort and security
- Weston-type load brake
- Plated load chain is standard
Specifications:
| Materials & Construction | |
| Material | Steel |
| Outer Material | Steel |
| Product Details | |
| Capacity (Lb.) | 550 |
| Chain Length | 5ft |
| Chain Material | Steel |
| Distance Between Hooks | 9.4500in |
| Hoist Overload Protection | Yes |
| Hoist Type | Mini-Ratchet Lever |
| Lever Force To Operate Hoist | 56 |
| Lift Height (Feet) | 5 |
| Lift Mechanism | Chain |
| Maximum Lift Distance | 5ft |
| Minimum Distance Between Hooks (Inch) | 9-7/16 |
| Mount Type | Hook (Without Trolley) |
| Number Of Chains | 1 |
| Overall Depth | 3.8600in |
| Pull Capacity | 56.0lb |
| Sizing & Dimensions | |
| Height | 6.0000 inches |
| Length | 6.0000 inches |
| Weight | 5.0000 pounds |
| Width | 6.0000 inches |
| Technical Specifications | |
| Hoist Overload Protection | Yes |
| Pull Capacity | 56.0lb |
