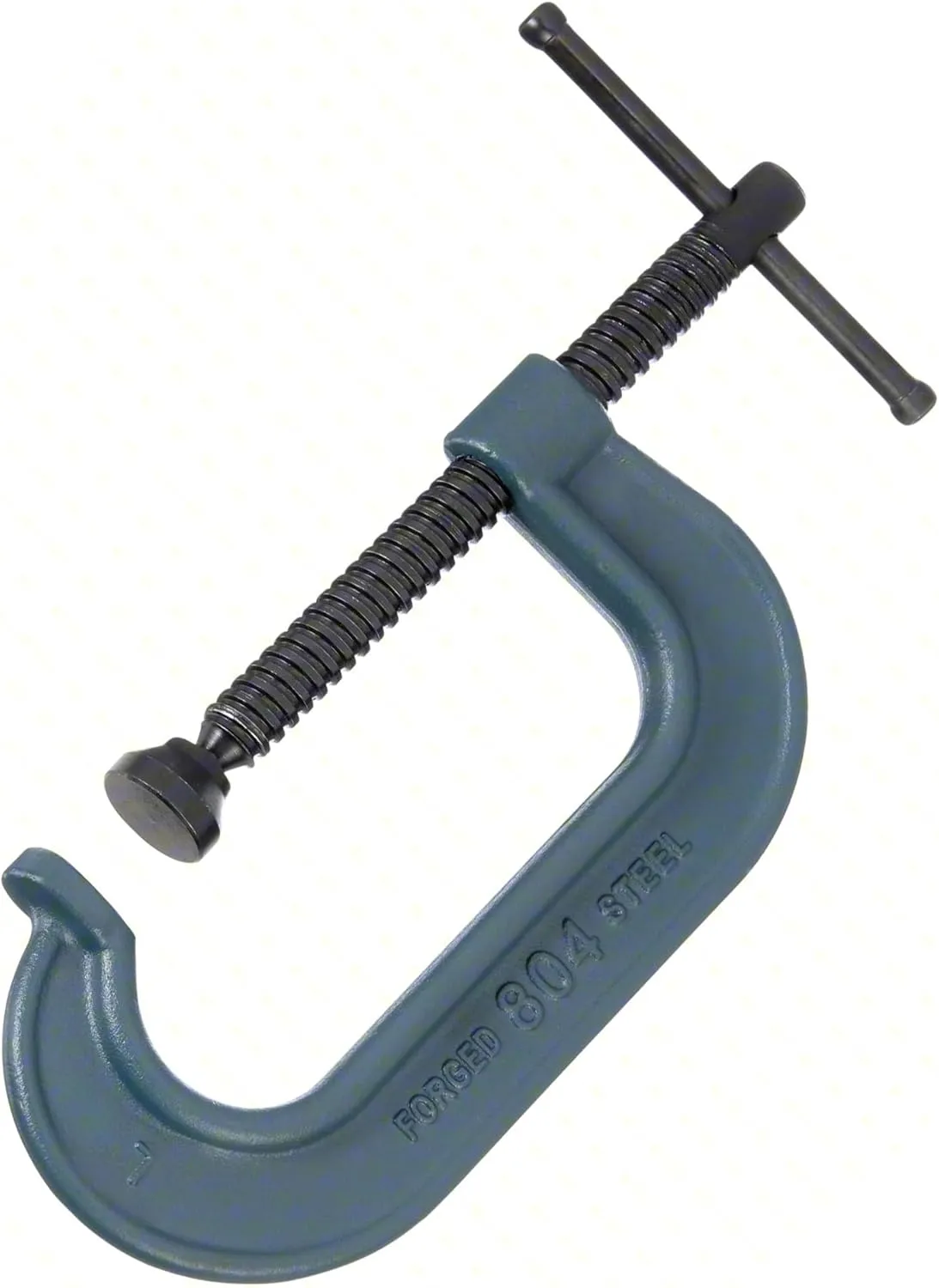

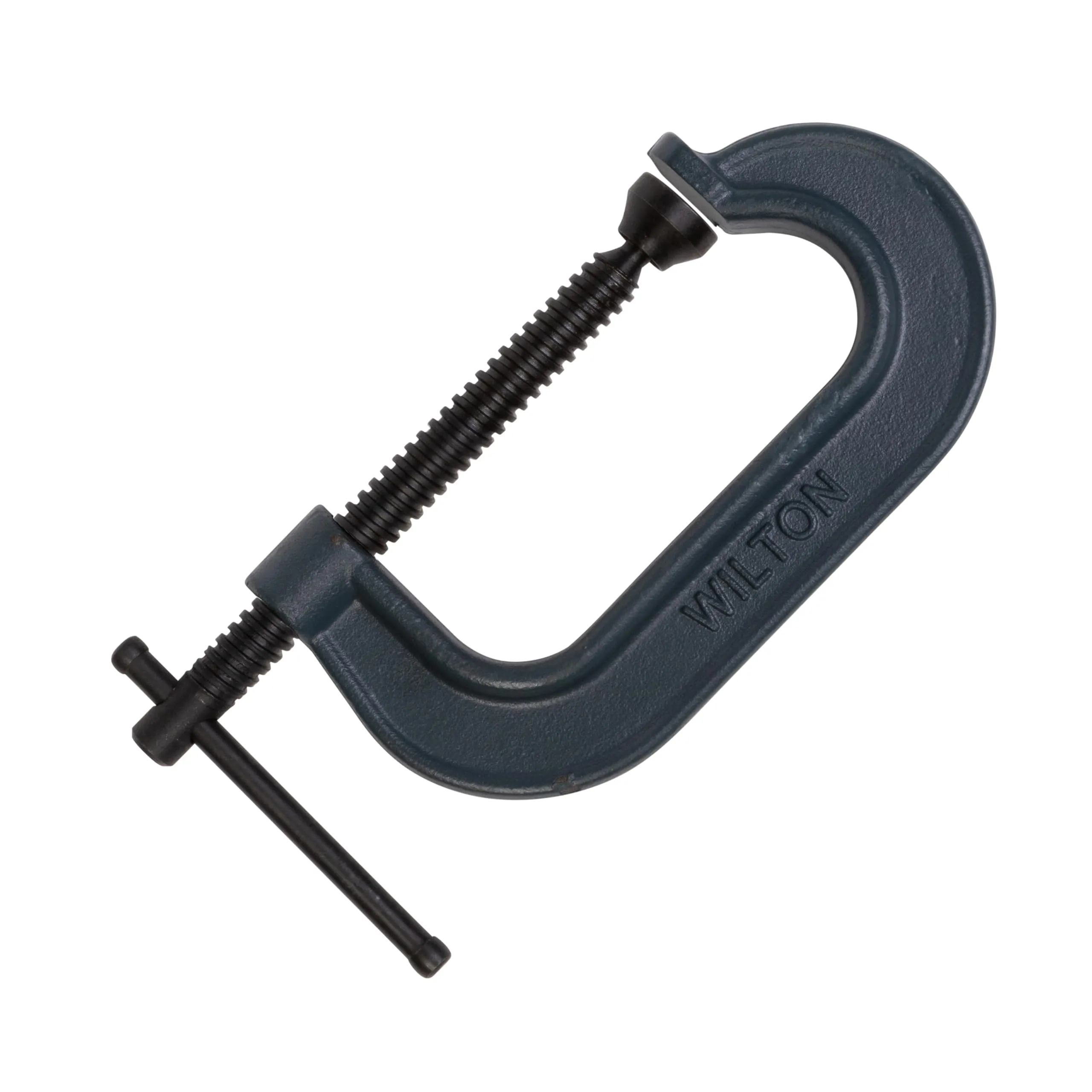

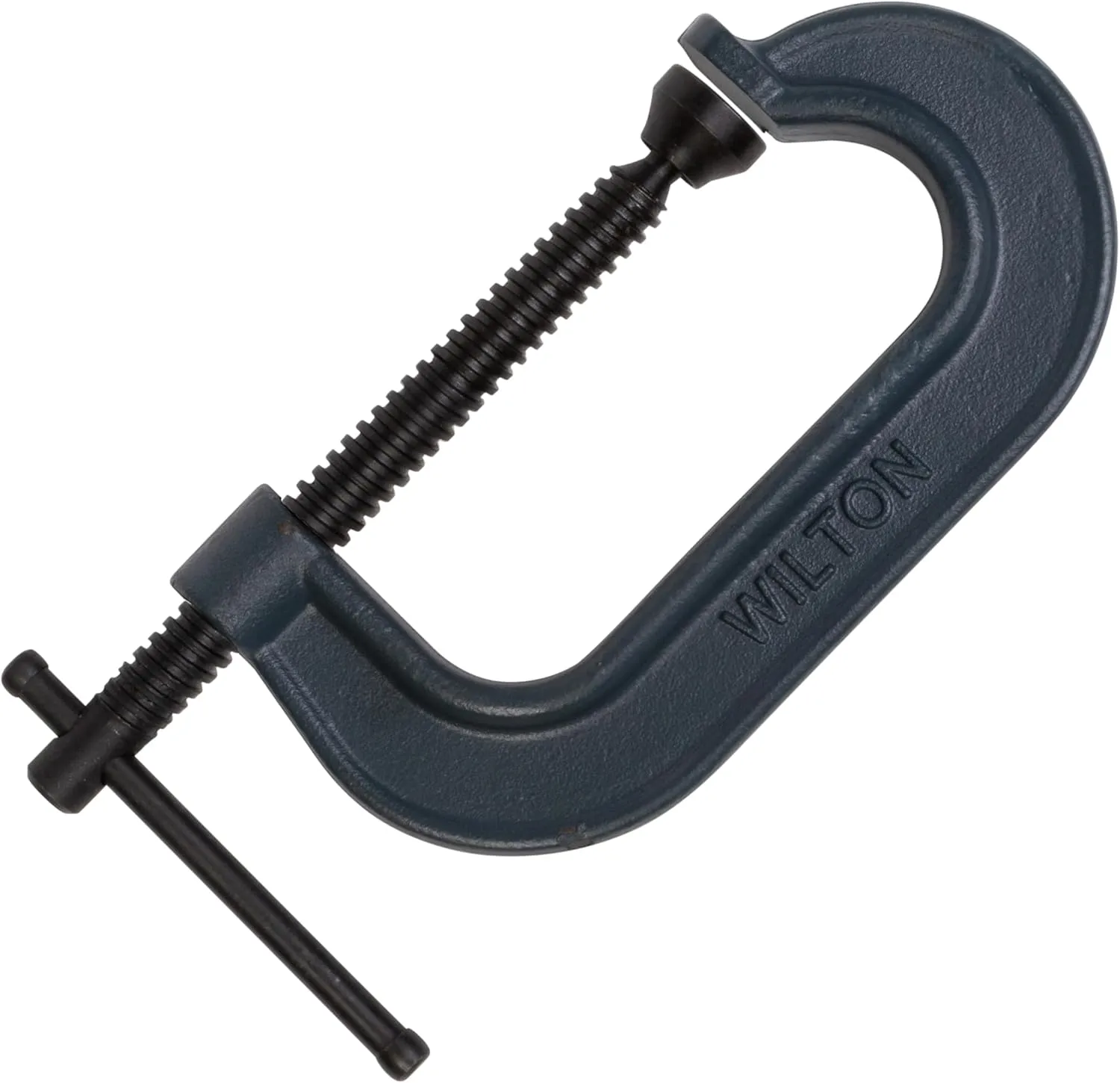

Wilton C-Clamp, 4" Opening, 2-5/16" Throat, 3700 Lbs. Clamping Force (Model 804)
Wilton 4" C-Clamp (Model 804) — forged steel body, 2-5/16" throat, 3,700 lb clamping capacity, replaceable swivel Perma-Pads, copper-plated screw, black oxide finish. Lifetime warranty.
$90.40
Customize
Available Quantity
3 GSA Item
No GSA Compliant
No Product Details
Wilton 800 Series C-Clamps are a smart value alternative for clamping applications that don't require as much throat depth or clamping pressure as a 400 Series clamp. Each c-clamp is drop forged and features replaceable Perma-Pads and spindles. C-Clamp: 4" Max Opening, 2-5/16" Throat Depth, Regular-Duty, Forged Steel Body. 3,700 Lb Capacity. Replaceable swivel pad. Copper plated screw. Black oxide finish. Ideal for workshop and industrial clamping tasks; backed by Wilton's lifetime warranty.
- Wilton Tools Guarantee: Backed by Wilton's industry-leading lifetime warranty
- Replaceable Parts: Both the spindle and Perma-Pads are replaceable and can be individually ordered
- Alternative for Clamping: Does not require as much throat depth or clamping pressure as a 400 Series clamp

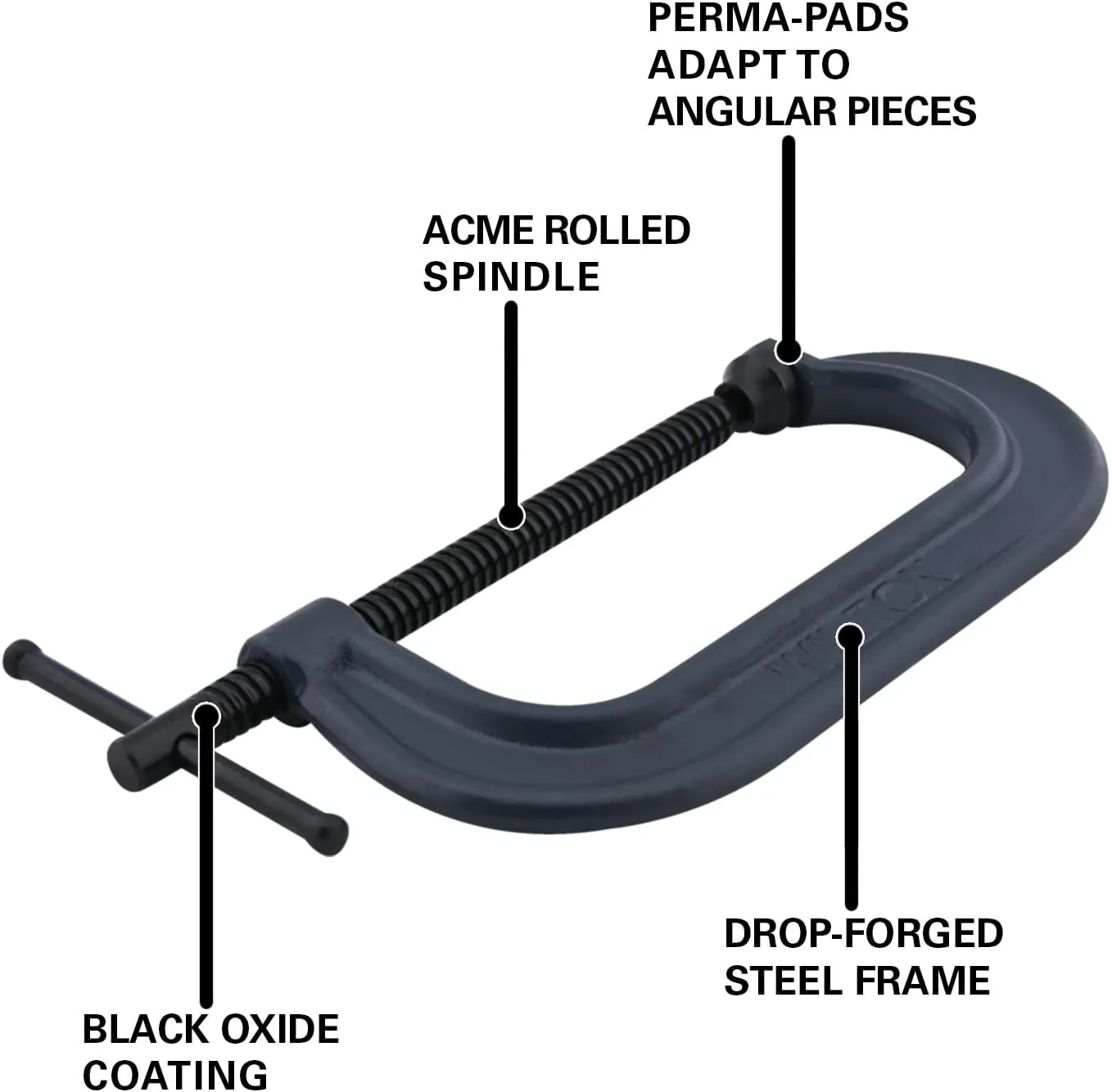

- Perma-Pads: Exclusive, black oxide coated pads swivel and adapt to angular work pieces for tighter holding
- Drop Forged: Manufactured for greater strength in standard applications
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Forged Steel |
| Outer Material | Forged Steel |
| Product Details | |
| Anvil Shape | V-Grooved |
| Application Strength | Regular-Duty |
| Body Material | Forged Steel |
| Clamp Finish/Coating | Black Oxide |
| Clamp Material | Forged Steel |
| Clamp Type | Standard |
| Clamping Pressure | 3700.00 |
| Duty Rating | Regular-Duty |
| Global Trade Identification Number | 00019907147428 |
| Included Components | C-Clamp |
| Load Capacity (Lb. - 3 Decimals) | 3700 |
| Maximum Opening Capacity (Decimal Inch) | 4.0000 |
| Maximum Opening Capacity (Inch) | 4 |
| Minimum Opening Capacity (Inch) | 0 |
| Part Number | 14742 |
| Replaceable Swivel Pad | Yes |
| Screw Diameter (Inch) | 5/8 |
| Screw Finish/Coating | Copper Plated |
| Spindle Finish | Black Oxide |
| Spindle Material | Steel |
| Throat Depth (Inch) | 2-5/16 |
| Throat Depth Style | Standard Depth |
| UPC | 019907147428 |
| Sizing & Dimensions | |
| Height | 1.2 inches |
| Length | 10.1 inches |
| Product Dimensions | 10.1 x 4.7 x 1.2 inches |
| Size | 4 inch |
| Weight | 2.4 pounds |
| Width | 4.7 inches |
| Technical Specifications | |
| Power Source | Hand Powered |
| Warranty | Lifetime |
