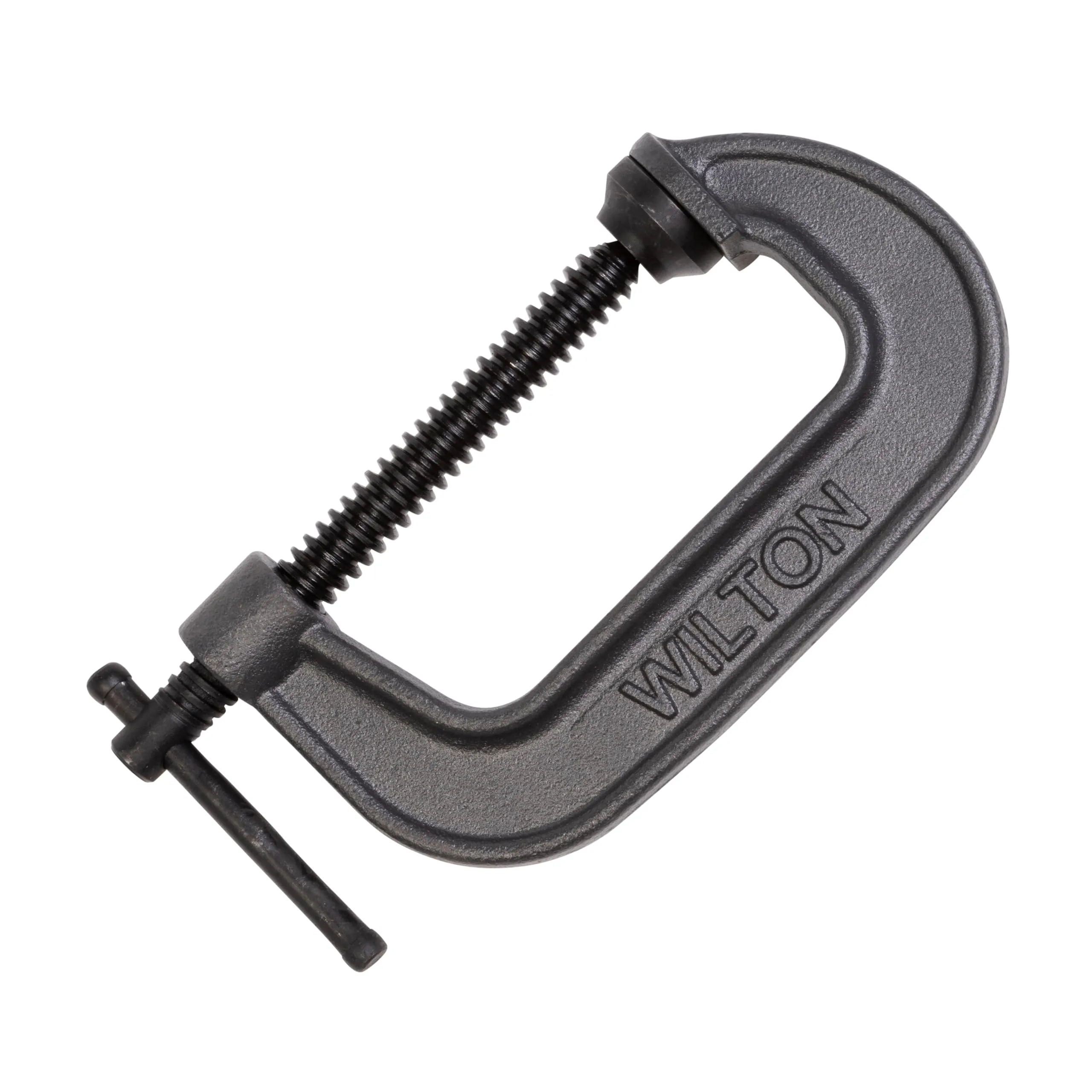

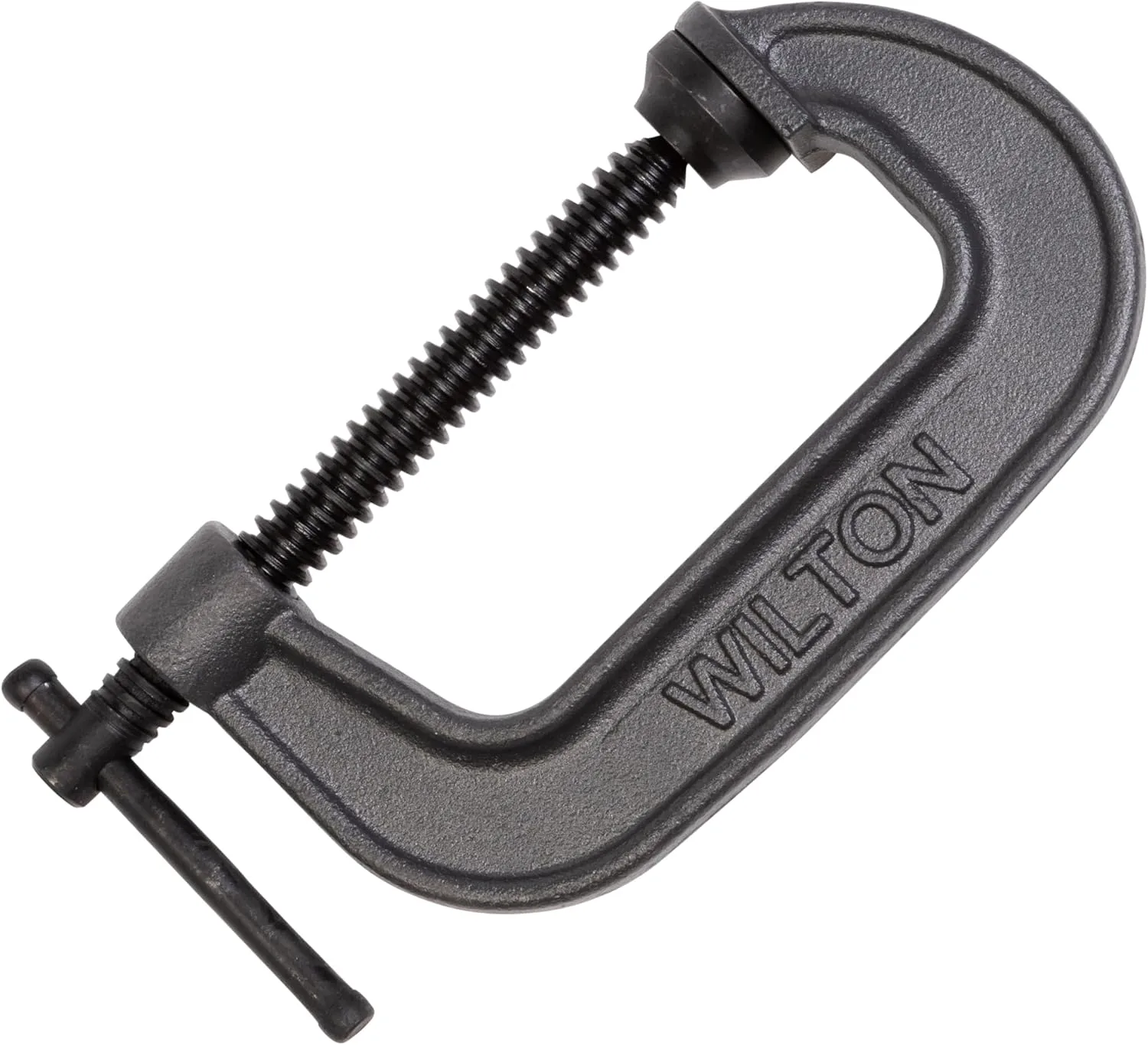

Wilton C-Clamp, 4" Opening, 2-1/16" Throat, 2150 Lbs. Clamping Force (Model 540A-4)
Customize

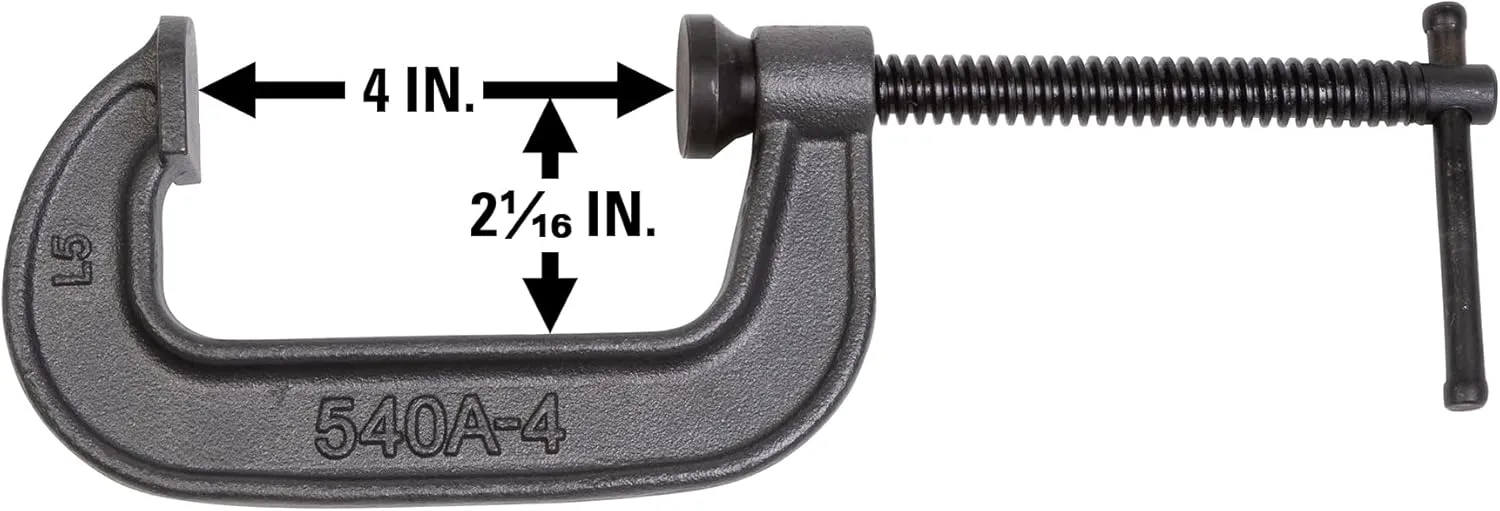

C-Clamp: 4" Max Opening, 2-1/16" Throat Depth, Light-Duty, Ductile Iron Body 2,150 Lb Capacity, 0" Min Opening, Standard Throat Depth, Clamp Type: Standard, Body Material: Ductile Iron, Application Strength: Light-Duty, Throat Depth Style: Standard Depth, Clamp Material: Ductile Iron, Maximum Opening Capacity (Decimal Inch): 4.0000, Maximum Opening Capacity (Inch): 4, Minimum Opening Capacity (Inch): 0, Load Capacity (Lb. - 3 Decimals): 2150, Screw Finish/Coating: Copper Plated, Throat Depth (Inch): 2-1/16, Color: Gray, Spindle Finish: Black Oxide, Screw Diameter (Inch): 5/8, Manufacturer's Part Number: 22003, Duty Rating: Light-Duty. 540A Series Carriage C-Clamps are ideal for light industrial, woodworking, and repair applications. They feature a black oxide coating, oscillating head, and sliding cross pin handle. Backed by Wilton's industry-leading lifetime warranty against manufacturing defects. High-quality oscillating steel pad provides firm gripping action on angular surfaces. Black oxide coated spindles and pads resist corrosion. Rugged ductile iron frame designed for maximum clamping force. Product Dimensions: 8.8 x 4.5 x 1.4 inches; 2.06 Pounds.
- Backed by Wilton's industry-leading lifetime warranty against manufacturing defects
- Ideal for light industrial, woodworking, and repair applications

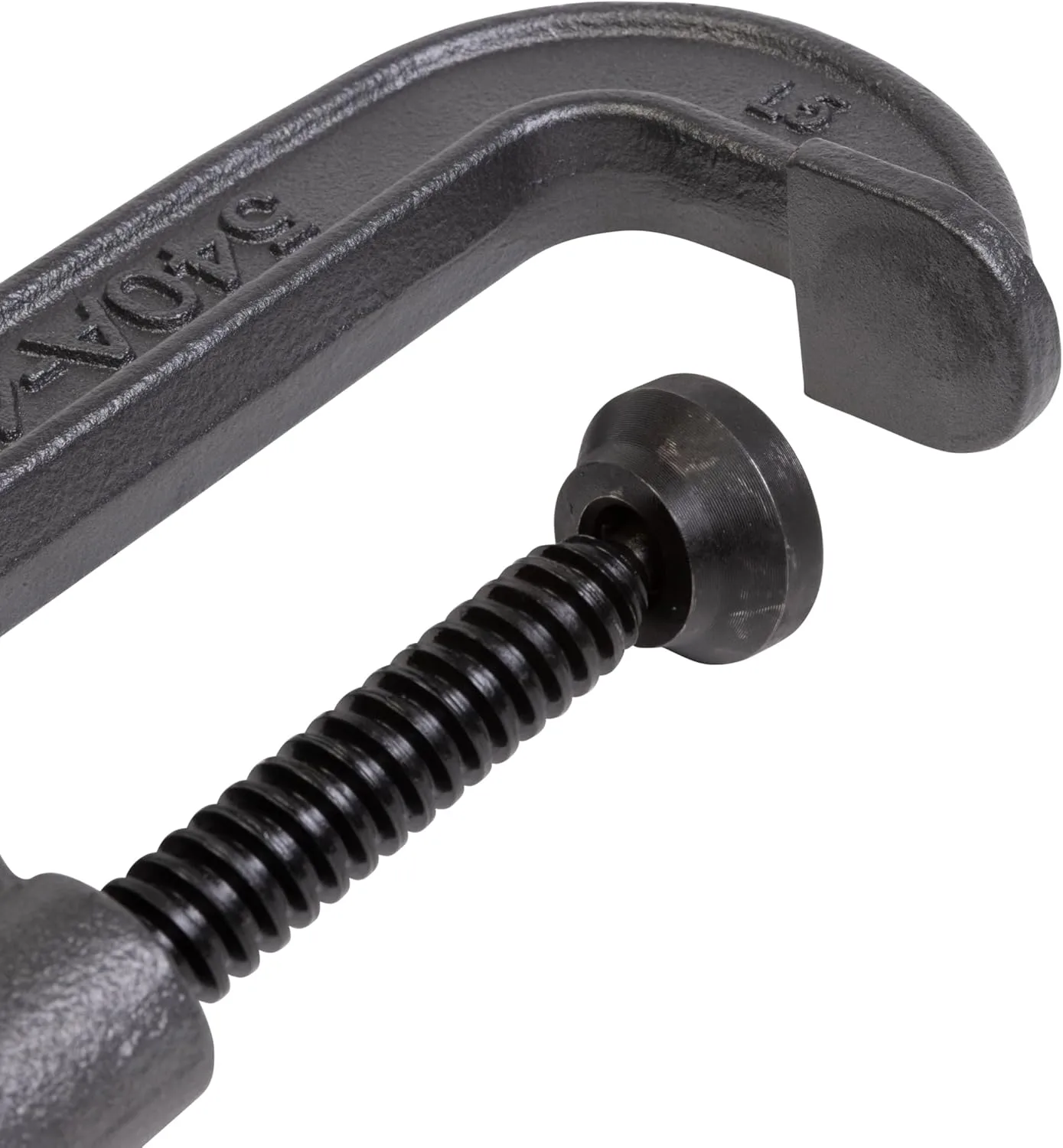

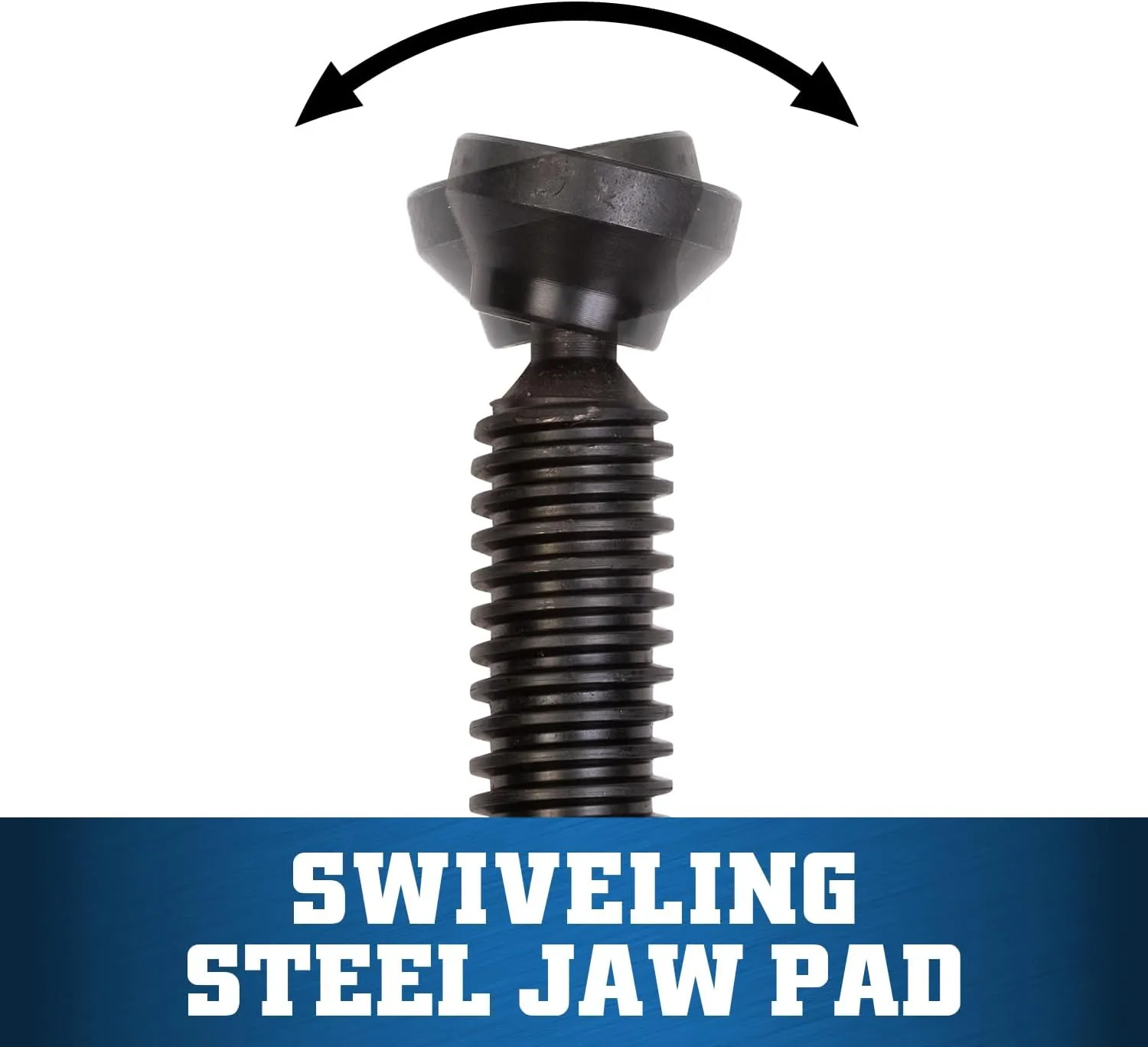

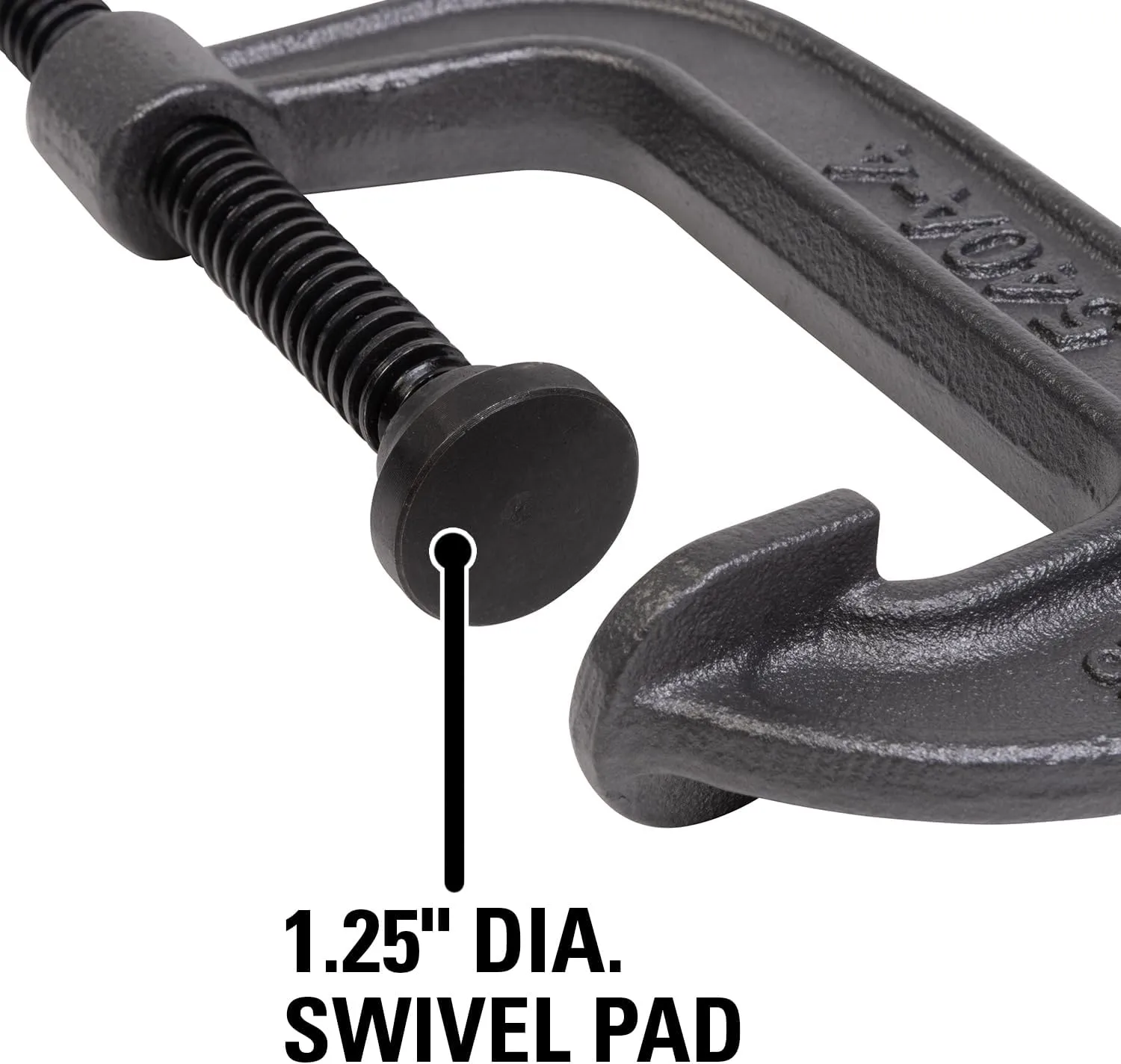

- High-quality oscillating steel pad is built to last and provide firm gripping action on angular surfaces

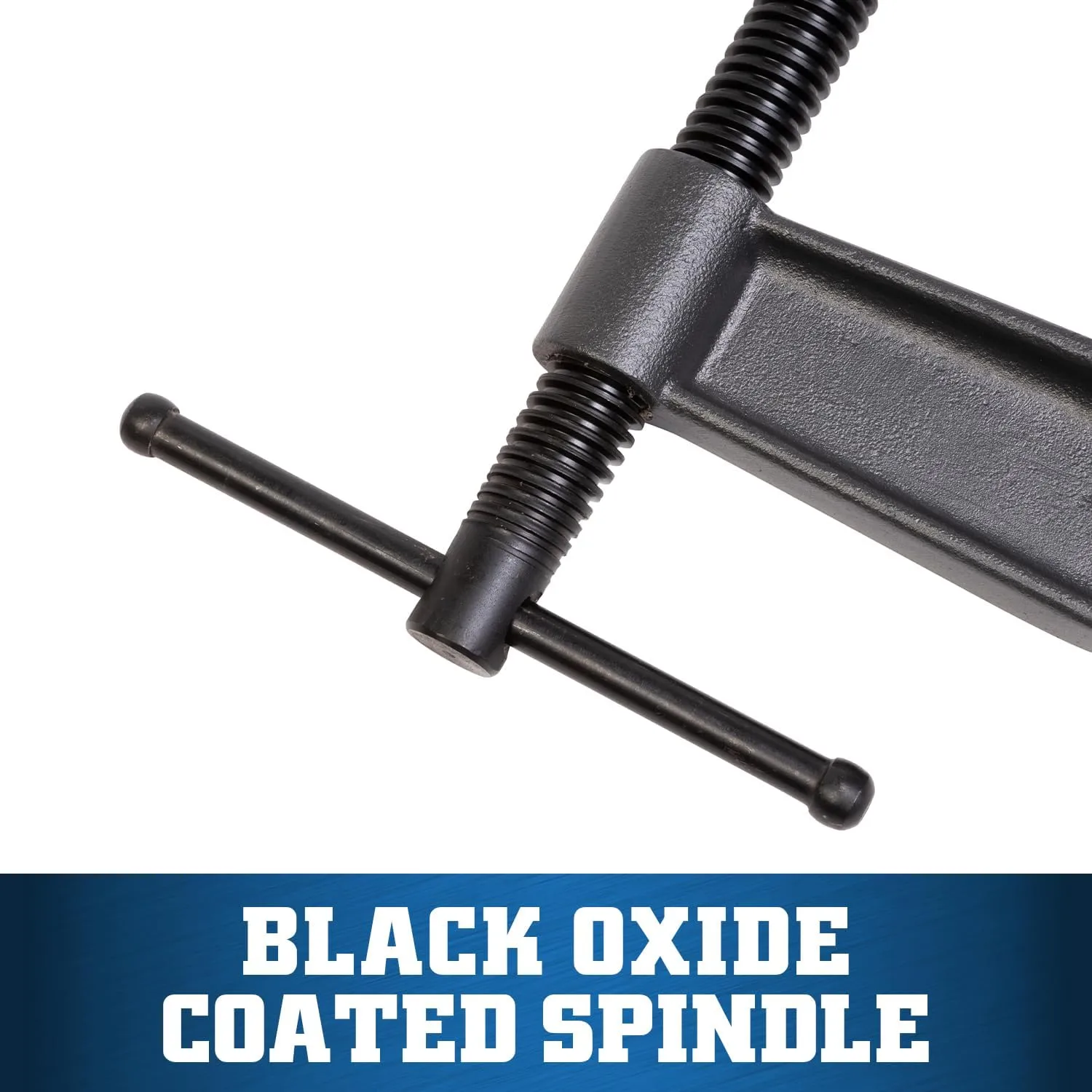

- Black oxide coated spindles and pads are treated to resist corrosion
- Our most popular C-clamp for more than 50 years
- Rugged ductile iron frames are designed for maximum clamping force
Specifications:
| Materials & Construction | |
| Color | Gray |
| Material | Ductile Iron |
| Outer Material | Ductile Iron |
| Product Details | |
| Application Strength | Light-Duty |
| Body Material | Ductile Iron |
| Clamp Material | Ductile Iron |
| Clamp Type | Standard |
| Color | Gray |
| Country of Origin | China |
| Duty Rating | Light-Duty |
| Global Trade Identification Number | 00019907220039 |
| Item model number | 540A-4 |
| Load Capacity (Lb. - 3 Decimals) | 2150 |
| Manufacturer's Part Number | 22003 |
| Material | Ductile Iron |
| Maximum Opening Capacity (Decimal Inch) | 4.0000 |
| Maximum Opening Capacity (Inch) | 4 |
| Minimum Opening Capacity (Inch) | 0 |
| National Stock Number | 5120-00-883-6243 |
| Screw Diameter (Inch) | 5/8 |
| Screw Finish/Coating | Copper Plated |
| Spindle Finish | Black Oxide |
| Style | Modern |
| Throat Depth (Inch) | 2-1/16 |
| Throat Depth Style | Standard Depth |
| UPC | 019907220039 |
| Sizing & Dimensions | |
| Height | 1.4 inches |
| Length | 8.8 inches |
| Product Dimensions | 8.8 x 4.5 x 1.4 inches |
| Weight | 2.06 pounds |
| Width | 4.5 inches |
| Technical Specifications | |
| Load Capacity (Lb. - 3 Decimals) | 2150 |
| Screw Diameter (Inch) | 5/8 |
| Screw Finish/Coating | Copper Plated |
| Spindle Finish | Black Oxide |
