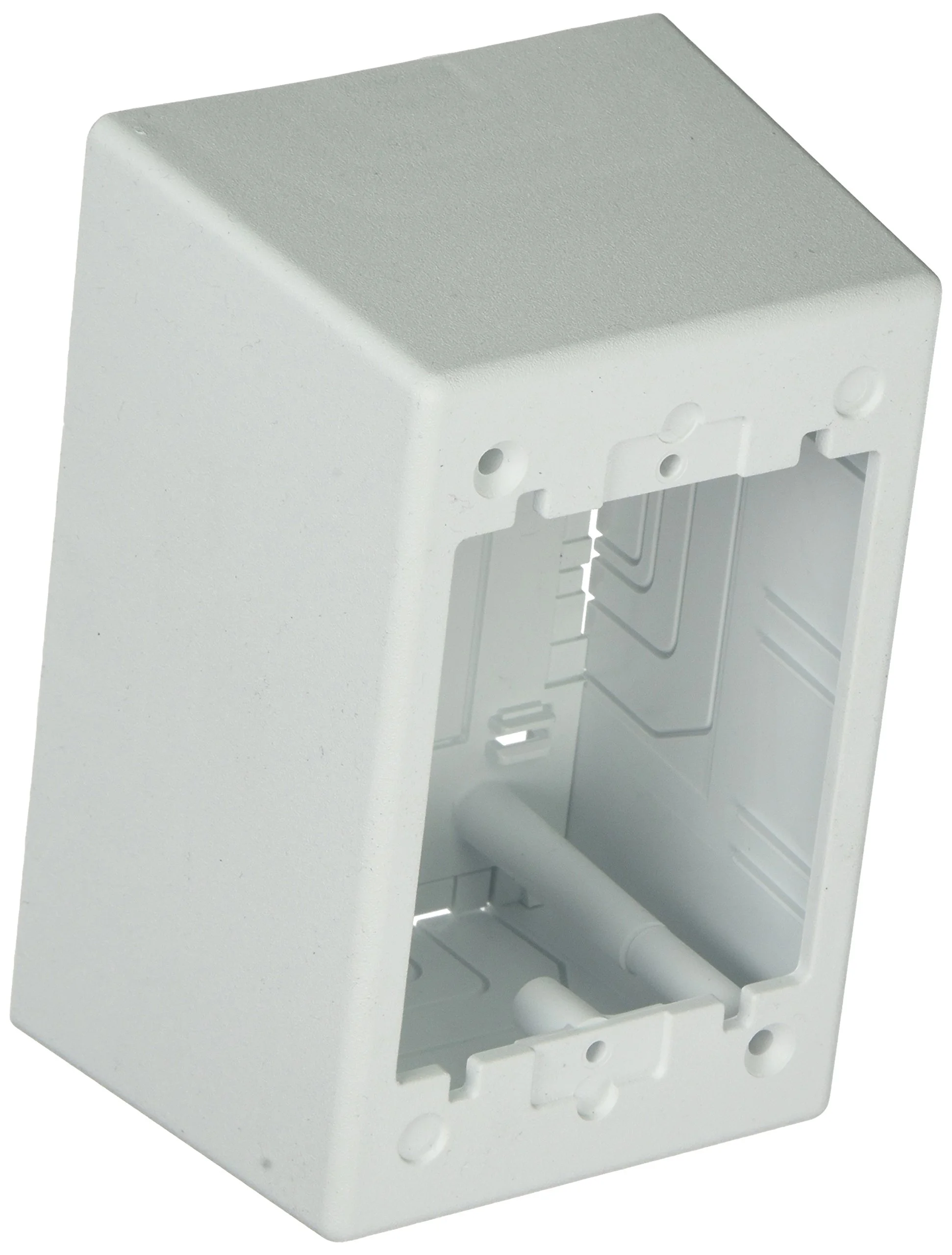

Panduit JBP1DWH 1-Gang Deep Outlet Box, White
Customize
Single gang two-piece screw together deep outlet box. Box accepts Pan-Way Screw-On Faceplates or any NEMA standard single gang faceplate. For use with Pan-Way T-45, LD2P10 (when used with JBD1), or LD profile raceway. 5.19-Inch L x 3.45-Inch Width x 2.75-Inch Height (131.9mm x 87.7mm x 69.8mm). Breakouts for 1/2-Inch, 3/4-Inch, or 1-Inch Diameter conduit. Panduit is a world-class manufacturer committed to innovation and excellence. Today, Panduit is recognized as a leading manufacturer of high-quality products for wiring and communications applications. This reputation gives the company a powerful advantage in today's competitive worldwide marketplace. ProductDatabase Long Description(s): Junction Box Power Wh 1-gang Deep Ea / JUNCTION BOX PWR WH 1-GANG DEEP EA SGL.
- JBP1FS and JBP2FS Accepts Pan-Way Snap-On faceplates for superior aesthetics
- JBP1FS and JBP2FS are supplied with adhesive backing to speed installation
- JBP1FS and JBP2FS assemble without the use of screws for faster installation
- For use with LDP, LDS and T-45
- Pan-Way power rated surface mount outlet boxes are UL 5A listed to 600V and CSA Certified to 300V
Specifications:
| Materials & Construction | |
| Color | White |
| Material | Polyvinyl Chloride |
| Outer Material | Polyvinyl Chloride |
| Product Details | |
| Finish Type | Painted |
| Included Components | Power Rated |
| Installation Type | Screw-In |
| Is Discontinued By Manufacturer | No |
| Item Package Quantity | 1 |
| Style | Compact |
| Warranty Description | Panduit limited 6-month manufacturer's warranty |
| Sizing & Dimensions | |
| Height | 2.75 inches |
| Length | 3.28 inches |
| Product Dimensions | 3.28 x 3.28 x 2.75 inches |
| Size | 1-Gang |
| Weight | 4.8 ounces |
| Width | 3.28 inches |
| Technical Specifications | |
| Warranty | Panduit limited 6-month manufacturer's warranty |
