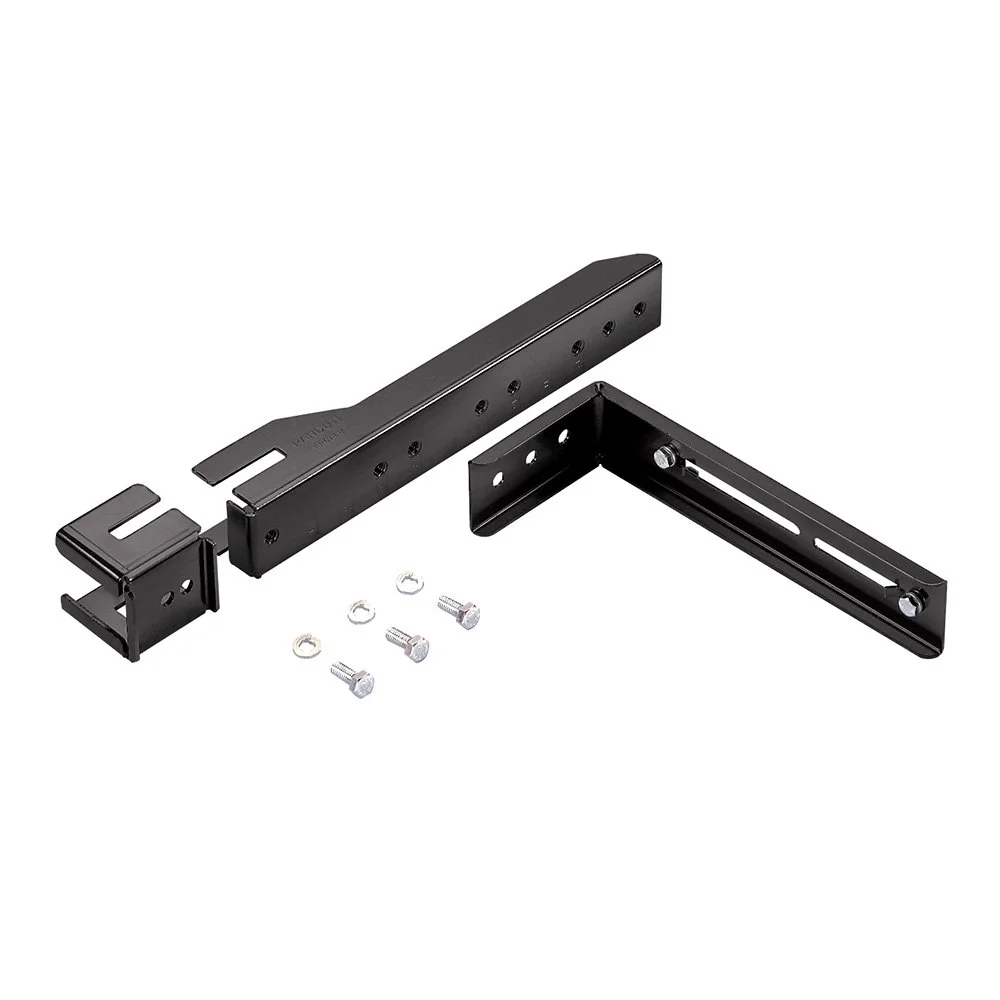

Panduit FR6ALB Adjustable Steel Ladder Bracket, Black
Panduit FR6ALB adjustable alloy-steel ladder bracket for 6x4 and 4x4 ladder racks. Black finish; adjustable 4"–12" above or below rack; pre-assembled slide clamps for fast assembly (use 7/16" nut driver).
$125.90
Customize
Available Quantity
157 GSA Item
No GSA Compliant
Yes Product Details
Used to support the 6x4 and 4x4 systems attaching to any 3/8-Inch (9.5mm) x 1 1/2-Inch (38.1mm) or 3/8-Inch (9.5mm) x 2-Inch (50.8mm) ladder rack rail. Adjustable to nine incremental positions from 4-Inch (101mm) to 12-Inch (305mm) above or below the ladder rack. No threaded rod required. The pre-assembled slide clamps enable fast assembly to channel. Use 7/16-Inch nut driver on slide clamps. Panduit is a world-class manufacturer committed to innovation and excellence. Today, Panduit is recognized as a leading manufacturer of high-quality products for wiring and communications applications. This reputation gives the company a powerful advantage in today's competitive worldwide marketplace. Mounting Ladder Bracket For Fiber Pathways
- RoHS Compliant
- Use 7/16" nut driver on slide clamps
- The pre-assembled slide clamps enable fast assembly to channel
- Adjustable to nine incremental positions from 4" to 12" above or below the ladder rack
- Used to support the 6x4 and 4x4 systems attaching to any 3/8" x 1-1/2" or 3/8" x 2" ladder rack rail
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Alloy Steel |
| Outer Material | Alloy Steel |
| Product Details | |
| Item model number | FR6ALB |
| Unit Count | 1.0 Count |
| Sizing & Dimensions | |
| Height | 12.92 inches |
| Length | 12.92 inches |
| Product Dimensions | 12.92 x 2.26 x 12.92 inches; 1.65 Pounds |
| Weight | 1.65 pounds |
| Width | 2.26 inches |
| Technical Specifications | |
| Adjustment Range | Adjustable to nine incremental positions from 4-Inch to 12-Inch above or below the ladder rack |
| Installation Note | No threaded rod required. Use 7/16-Inch nut driver on slide clamps. |
| Item dimensions L x W x H | 12.92 x 2.26 x 12.92 inches |
| Mounting / Compatibility | Used to support the 6x4 and 4x4 systems attaching to any 3/8-Inch x 1-1/2-Inch or 3/8-Inch x 2-Inch ladder rack rail |
| Ro HS Compliant | True |
