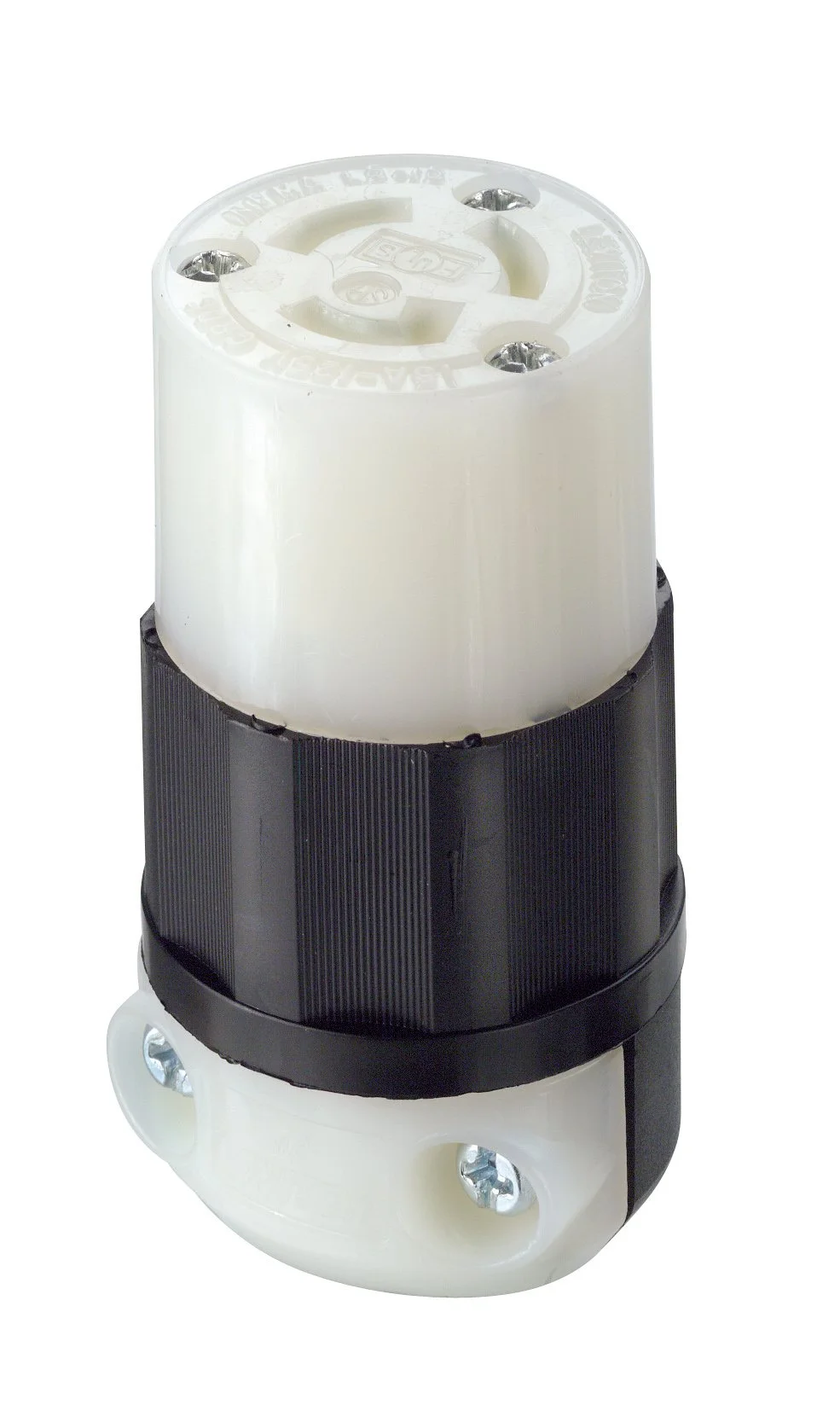

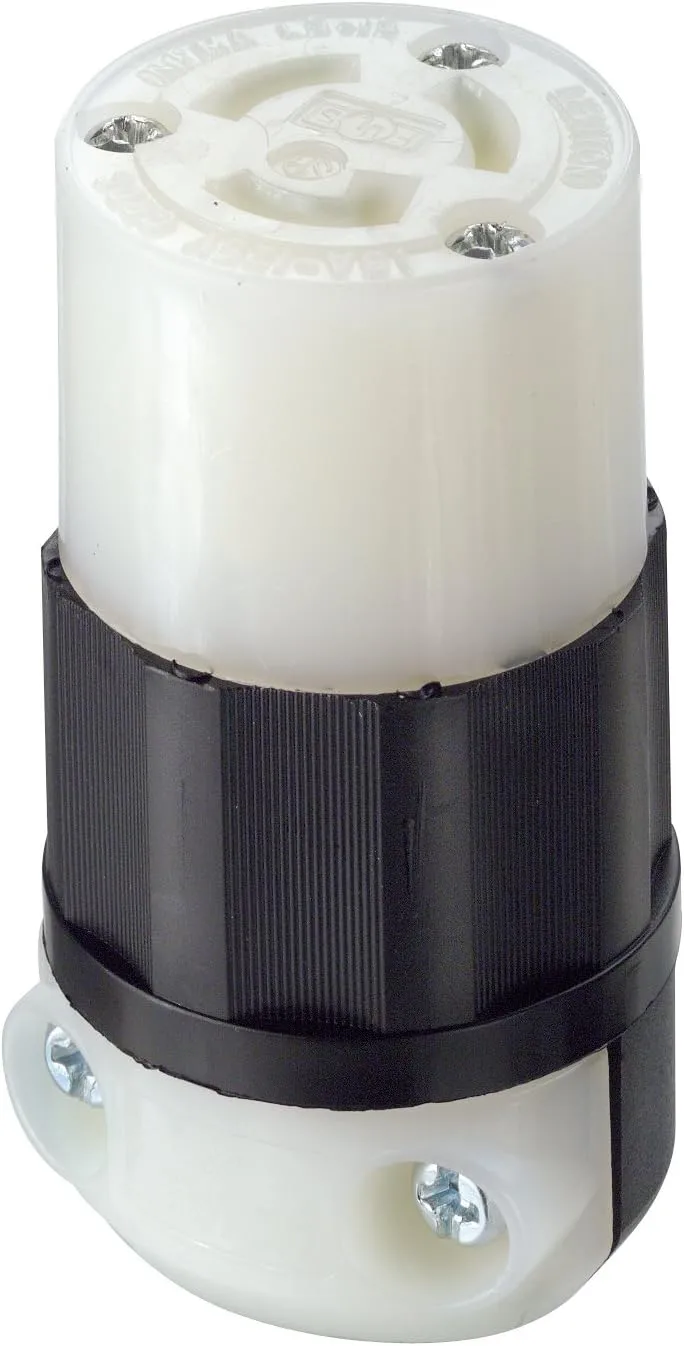

Leviton 15 Amp, 125 Volt, NEMA L5-15R, 2P, 3W, Locking Connector, Industrial Grade, Grounding, 4729-C, Black-White
Customize
Locking Inlet: Connector, Industrial, L5-15R, 125V, Black & White Self-Grounding, 15A, Nylon, 2 Poles, 3 Wire, Grade: Industrial , Material: Nylon , Grounding Style: Self-Grounding , Amperage: 15 , Voltage: 125V , Number Of Poles: 2 , Number Of Wires: 3 , Color: Black; White , Minimum Cord Diameter (Decimal Inch): 0.2450 , Maximum Cord Diameter (Decimal Inch): 0.7000 , Number Of Phases: 1 , Standards: ANSI C-73; CSA C22.2 No. 42 File LR-406; CSA Certified; NEMA WD-6; NOM 057; UL 498 File E13393; UL Federal Specification W-C-596 File E13393; UL Listed , Nema Configuration: L5-15R , UNSPSC Code: 39121400 PRODUCT DESCRIPTION Leviton 4729-C 15 Amp, 125 Volt, NEMA L5-15R, 2P, 3W, Locking Connector, Industrial Grade, Grounding, - Black-White FROM THE MANUFACTURER Leviton's industry leading locking devices, such as our Black & White line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty. 15 Amp, 125 Volt, NEMA L5-15R, 2P, 3W, Locking Connector, Industrial Grade, Grounding, - Black-White
- Item Package Quantity - 1
- Item Package Weight - 0.19 Pounds
- Item Package Dimension: 5.94L x 2.24W x 1.57H inches
- Product Type: LOCKING CONNECTOR
- EB CONN LOCK 2PO 3WI L5-15R 15A125V
Specifications:
| Materials & Construction | |
| Color | Black-White |
| Material | Nylon |
| Outer Material | Nylon |
| Product Details | |
| Amperage | 15 |
| Color | Black; White |
| Connector Type | Plug in |
| Grade | Industrial |
| Grounding Style | Self-Grounding |
| Material | Nylon |
| Maximum Cord Diameter (Decimal Inch) | 0.7000 |
| Minimum Cord Diameter (Decimal Inch) | 0.2450 |
| Nema Configuration | L5-15r |
| Number Of Phases | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Plug Format | NEMA L5-15R |
| Product Grade | new |
| Shape | Triangle |
| Specification Met | NEMA |
| Standards | Ansi C-73; Csa C22.2 No. 42 File Lr-406; Csa Certified; Nema Wd-6; Nom 057; Ul 498 File E13393; Ul Federal Specification W-C-596 File E13393; Ul Listed |
| Thickness | 1 Inches |
| Voltage | 125v |
| Sizing & Dimensions | |
| Height | 1.57 inches |
| Length | 2.24 inches |
| Product Dimensions | 1.57 x 2.24 x 1.57 inches |
| Size | Image |
| Weight | 1.6 ounces |
| Width | 1.57 inches |
| Technical Specifications | |
| Amperage | 15 Amps |
| Voltage | 125 Volts |
| Warranty | Manufacture |
